Reference High-Fidelity for Compact & Desktop Spaces | Available at Trimira Audio
The Wilson Audio TuneTot is Wilson Audio's compact loudspeaker designed specifically for applications where conventional floorstanding or standmount loudspeakers are impractical.
Developed for placement on desktops, bookshelves, credenzas, countertops, and other furniture, the TuneTot applies Wilson Audio's emphasis on cabinet rigidity, driver integration, and room positioning to a compact two-way enclosure.
At Trimira Audio, we recommend the TuneTot for offices, studies, living spaces, desktop systems, and compact listening environments where high-quality two-channel reproduction needs to fit within a limited footprint.
Key Features & Technological Innovations
X-Material Enclosure Construction
The TuneTot uses Wilson Audio's dense X-Material cabinet construction to provide a rigid mechanical platform for the driver complement.
The high-density enclosure is designed to minimise cabinet vibration and unwanted mechanical coloration.

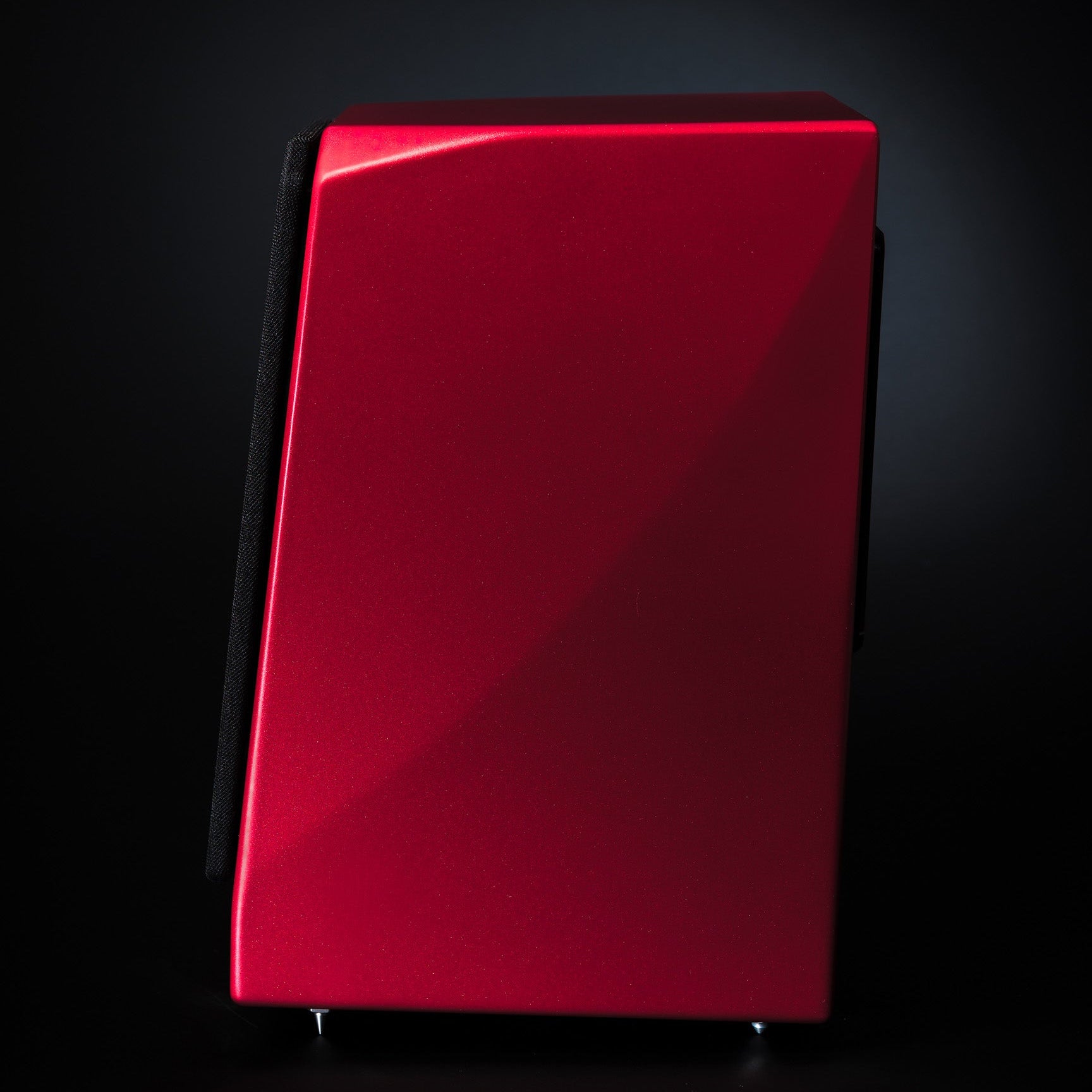

Asymmetrical Cabinet Architecture
The cabinet incorporates non-parallel surfaces designed to control internal reflections and standing-wave behaviour.
This helps create a controlled acoustic environment around the mid-woofer and tweeter.
Custom Driver Complement
The TuneTot combines:
- 5.75-inch doped paper-pulp mid-woofer
- 1-inch doped silk-fabric dome tweeter
The two-way configuration is designed to provide coherent integration between the midrange and high-frequency sections within the compact enclosure.

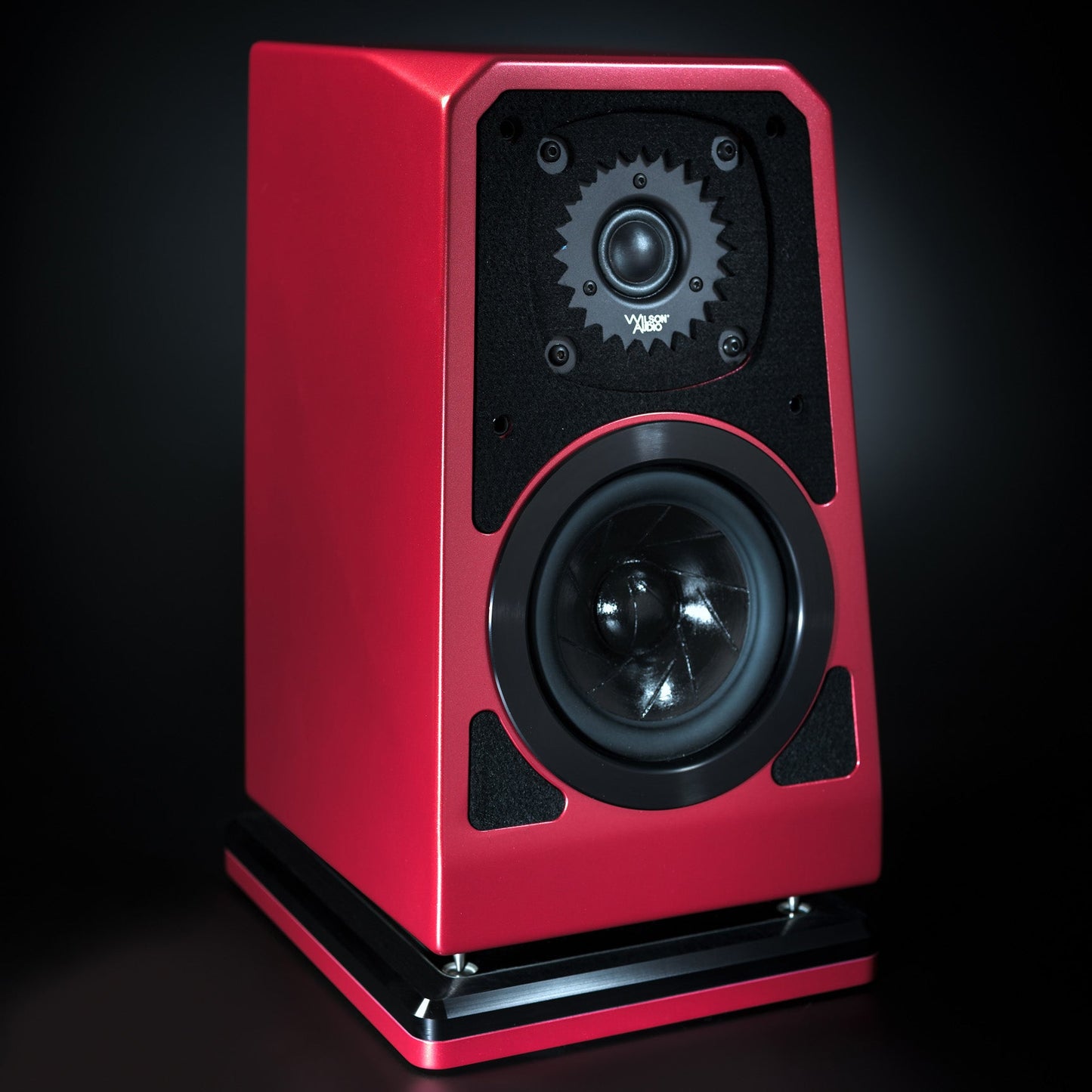

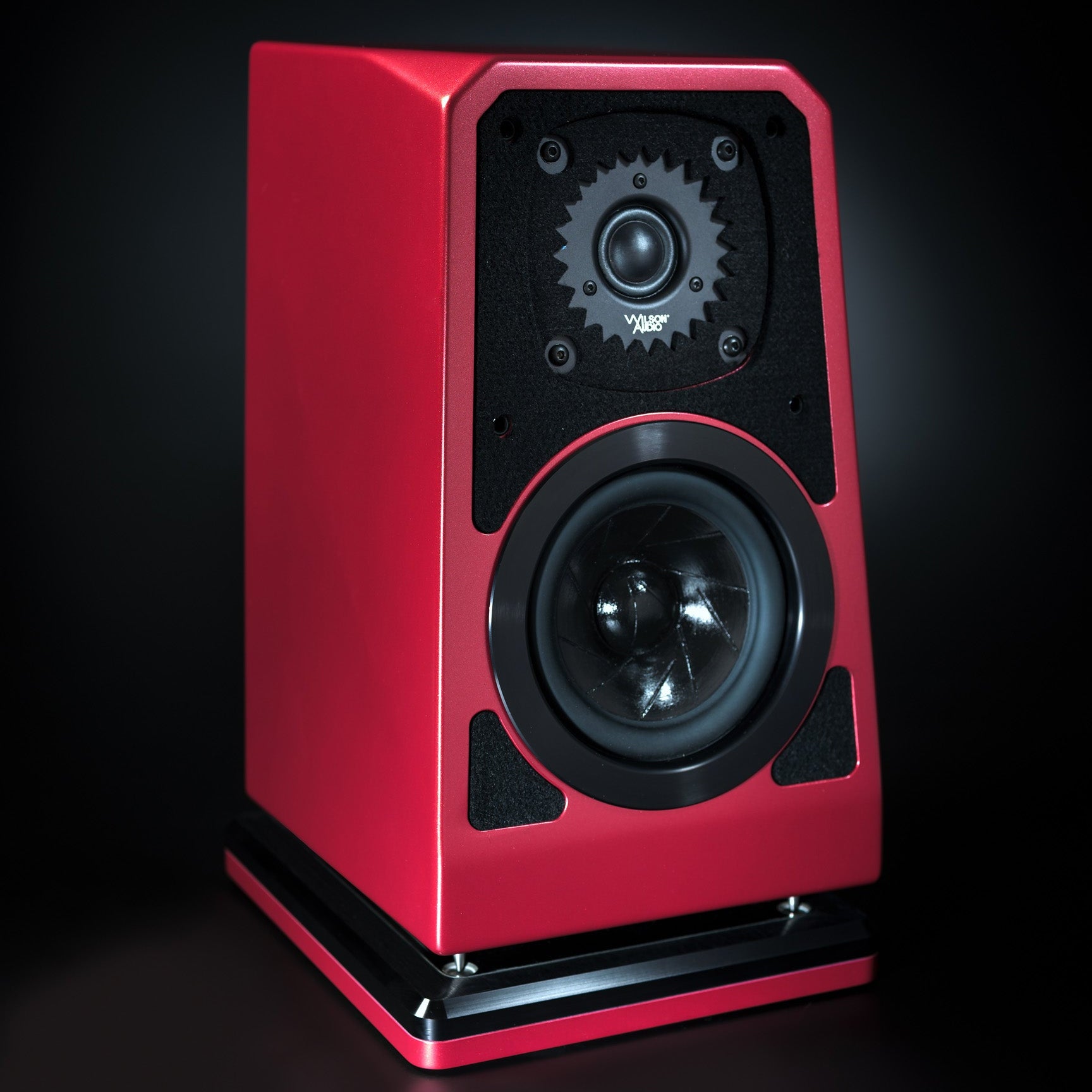

Optional IsoBase System
The optional TuneTot IsoBase provides a dedicated mechanical interface between the loudspeaker and furniture surface.
It allows the speaker to be isolated from the supporting surface while also providing tilt adjustment to optimise the acoustic axis for the listening position.
This can be particularly valuable for desktop installations where the speaker is positioned below or close to ear height.
Dedicated Accessory Ecosystem
The TuneTot can be integrated with a range of dedicated accessories, including:

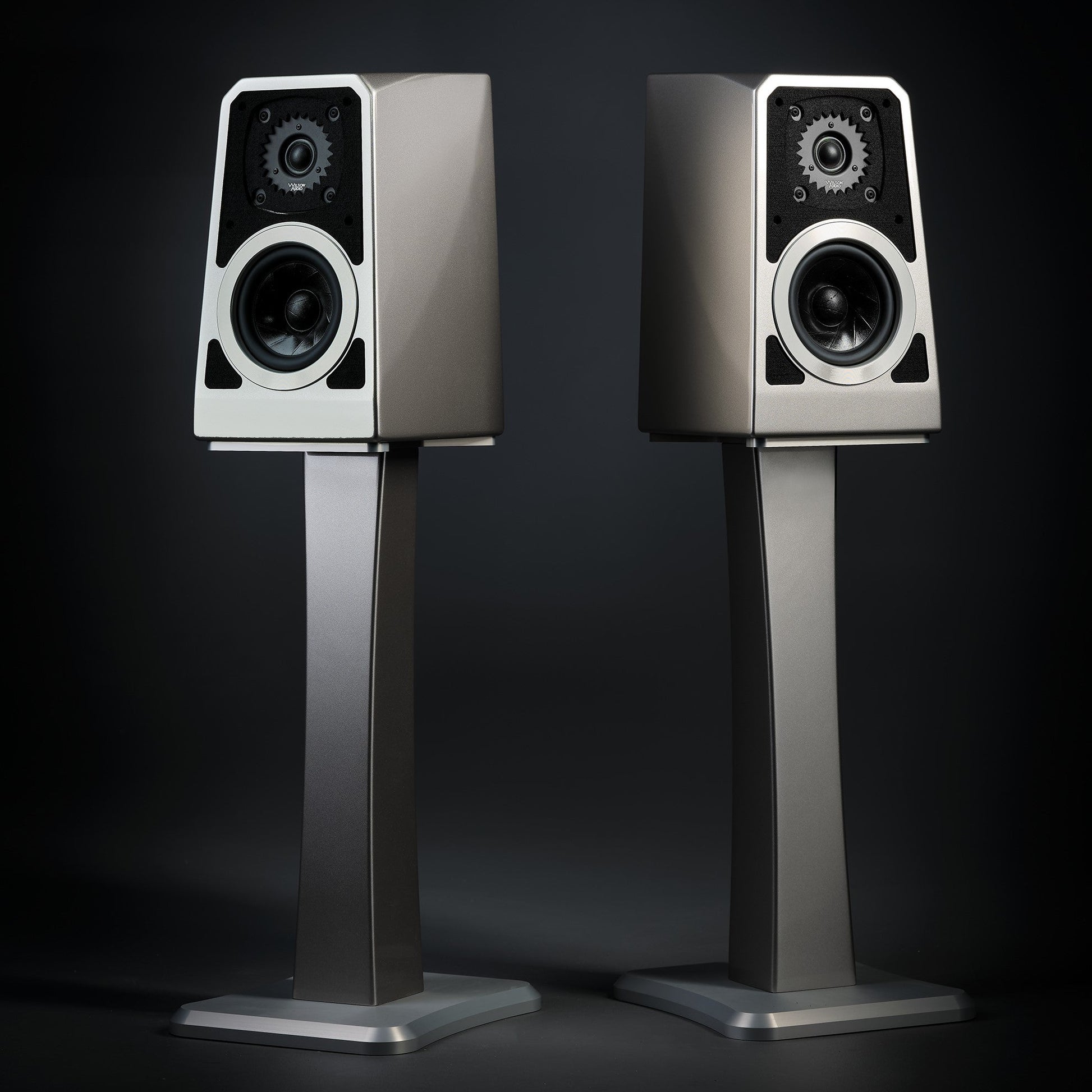

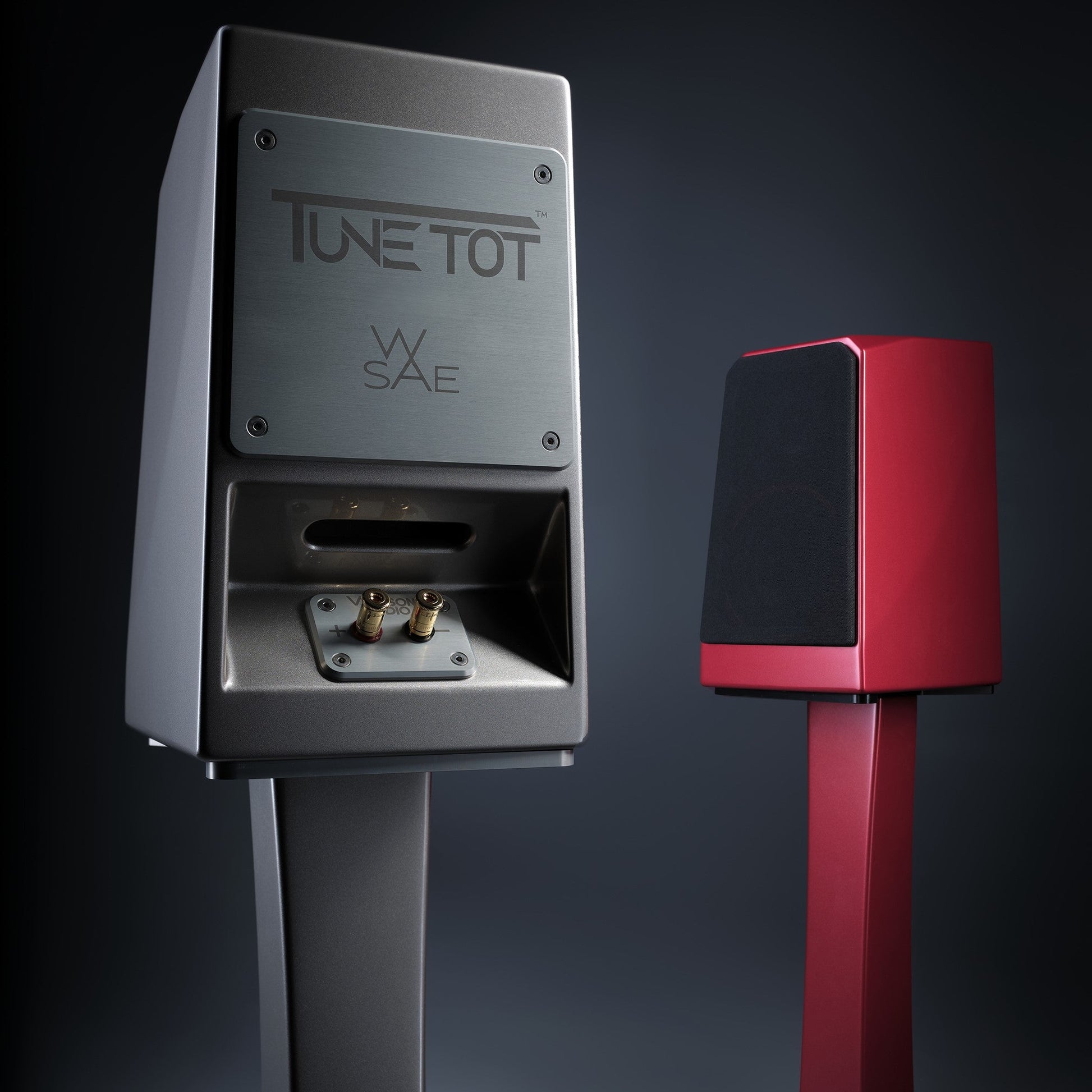

- TuneTot Stands
- IsoBase platforms
- Custom-machined aluminium trim components

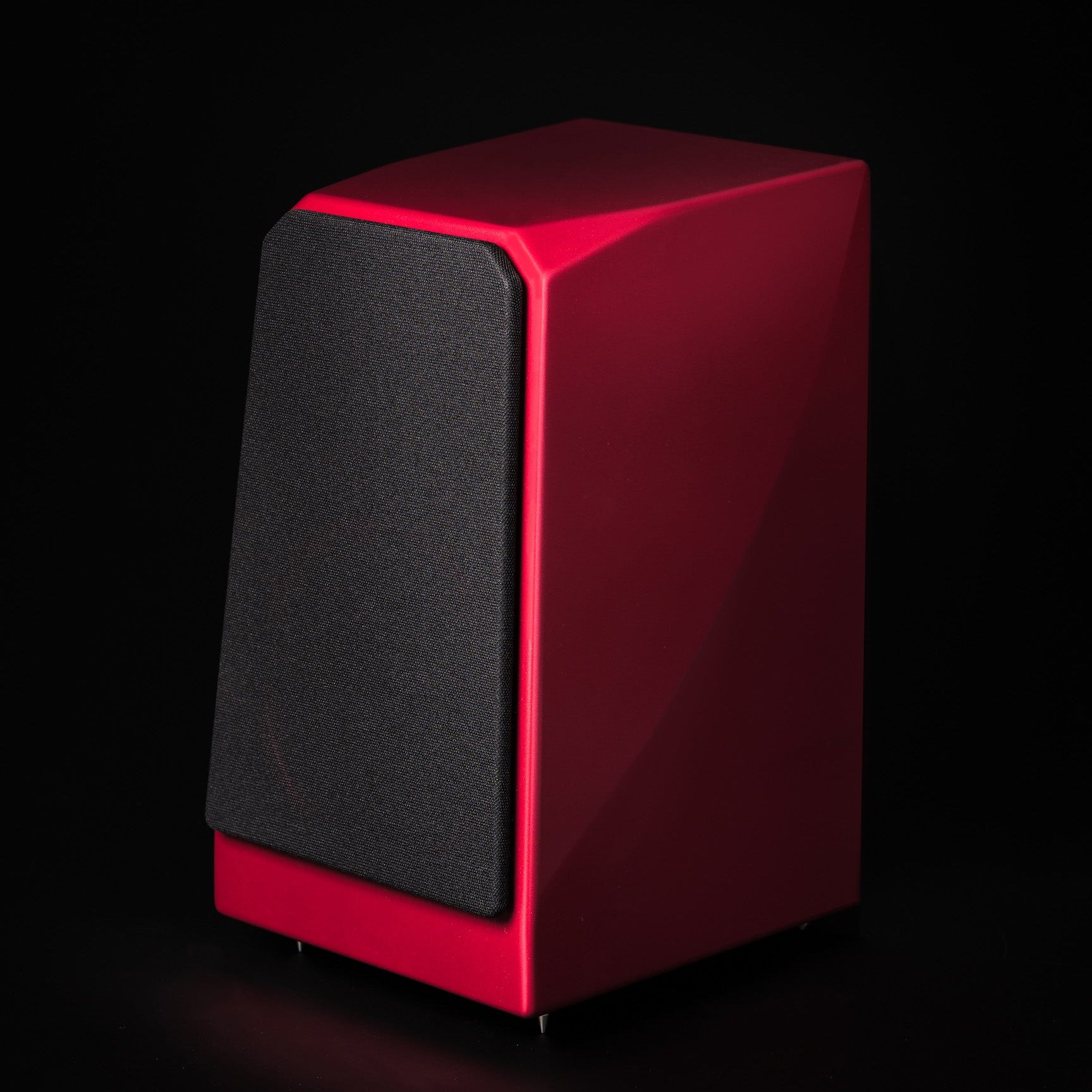

- Fabric grilles
These accessories allow both acoustic positioning and visual integration to be tailored to the installation.
Technical Specifications
| Specification |
TuneTot Monitor Loudspeaker |
| System Architecture |
Rear-Ported 2-Way Desk / Bookshelf Monitor |
| Tweeter |
1-inch (2.54 cm) Doped Silk Fabric Dome |
| Mid-Woofer |
1 × 5.75-inch (14.61 cm) Doped Paper Pulp Cone |
| Frequency Response |
65 Hz–23 kHz (±3 dB Room Average Response) |
| Sensitivity |
86 dB @ 1 W / 1 m / 1 kHz |
| Nominal Impedance |
8 Ω |
| Minimum Impedance |
6.61 Ω @ 172 Hz |
| Minimum Power Handling |
25 W / Channel |
| Dimensions (H × W × D) |
376.7 × 218.7 × 258.8 mm |
| System Net Weight |
13.15 kg per channel |
Desktop & Compact-System Integration
The TuneTot is particularly well suited to environments where the loudspeaker must share space with furniture or other equipment.
Potential applications include:
- Desktop listening
- Home offices
- Studies
- Bookshelves
- Credenzas
- Kitchen or living-space systems
- Compact two-channel rooms
Because furniture surfaces can strongly influence vibration and bass response, dedicated placement accessories such as the IsoBase can be valuable when setting up the TuneTot on a desk or credenza.
Amplifier & System Matching
With an 86 dB sensitivity and 8-ohm nominal impedance, the TuneTot is compatible with a wide range of quality amplification.
Trimira Audio can assist with:
- Integrated amplifier matching
- Desktop DAC and streamer integration
- Speaker placement
- IsoBase setup
- TuneTot Stand selection
- Subwoofer integration
- Compact two-channel system design
Precision Desktop Setup
Correct positioning is particularly important for a compact monitor.
Trimira Audio can help optimise:
- Tweeter height
- Listening distance
- Toe-in
- Speaker spacing
- Tilt angle
- Furniture coupling
- Subwoofer crossover and integration
The optional IsoBase provides additional control where the TuneTot is installed directly on furniture.
Consult with the High-End Audio Specialists at Trimira Audio
The Wilson Audio TuneTot combines X-Material cabinet construction, asymmetrical enclosure geometry, a 5.75-inch mid-woofer, 1-inch silk dome tweeter, and optional IsoBase mechanical isolation in a compact two-way loudspeaker designed for furniture-based installations.
Trimira Audio can assist with complete TuneTot system planning, including desktop placement, amplification, isolation, stands, subwoofer integration, and acoustic optimisation.
Contact the Trimira Audio specialists in Brisbane to arrange a private demonstration or discuss a high-performance compact Wilson Audio system.
