The Wilson Audio Sasha V is the latest evolution of Wilson Audio's celebrated WATT/Puppy and Sasha lineage, incorporating technologies developed for the company's larger reference loudspeakers.

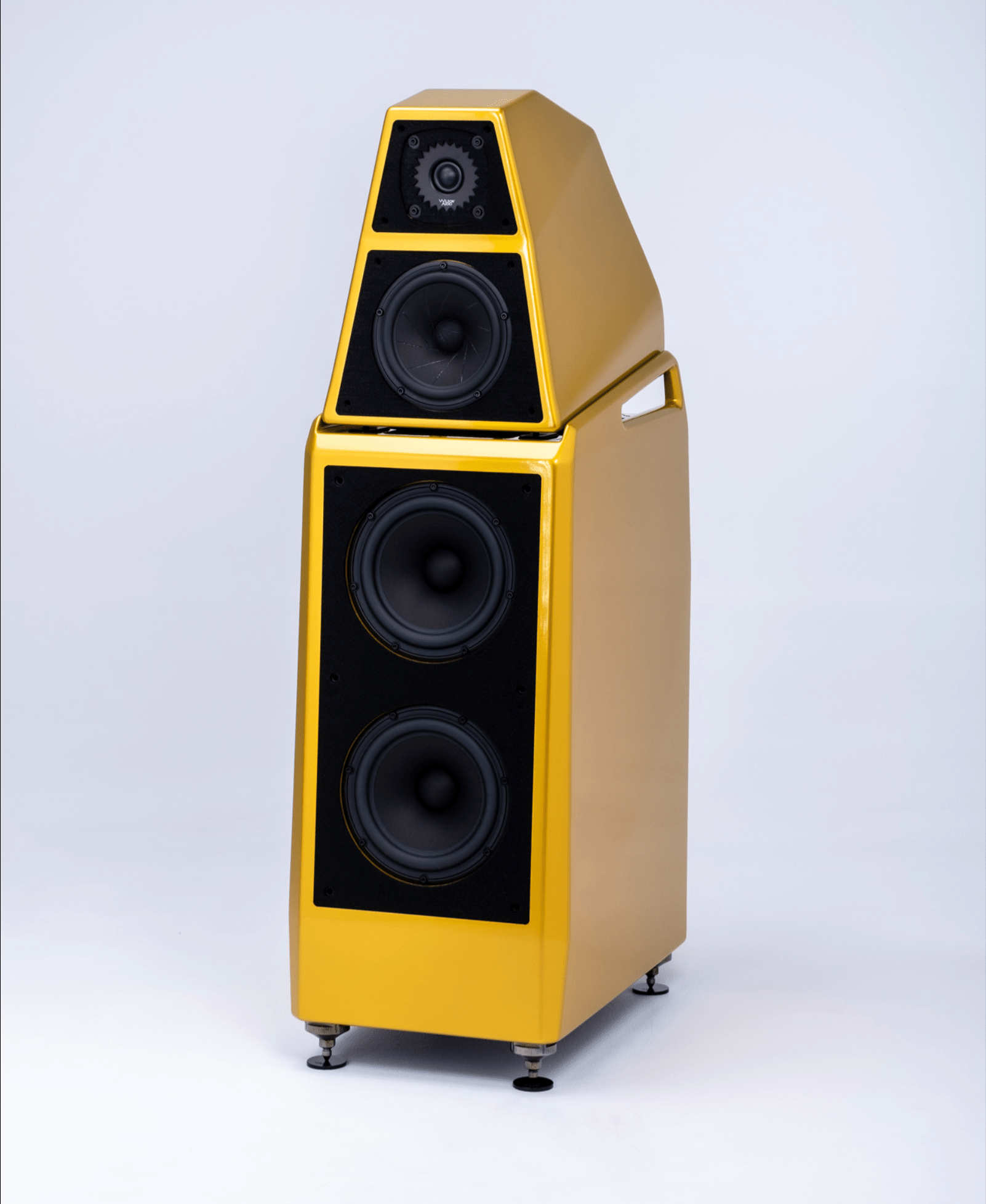

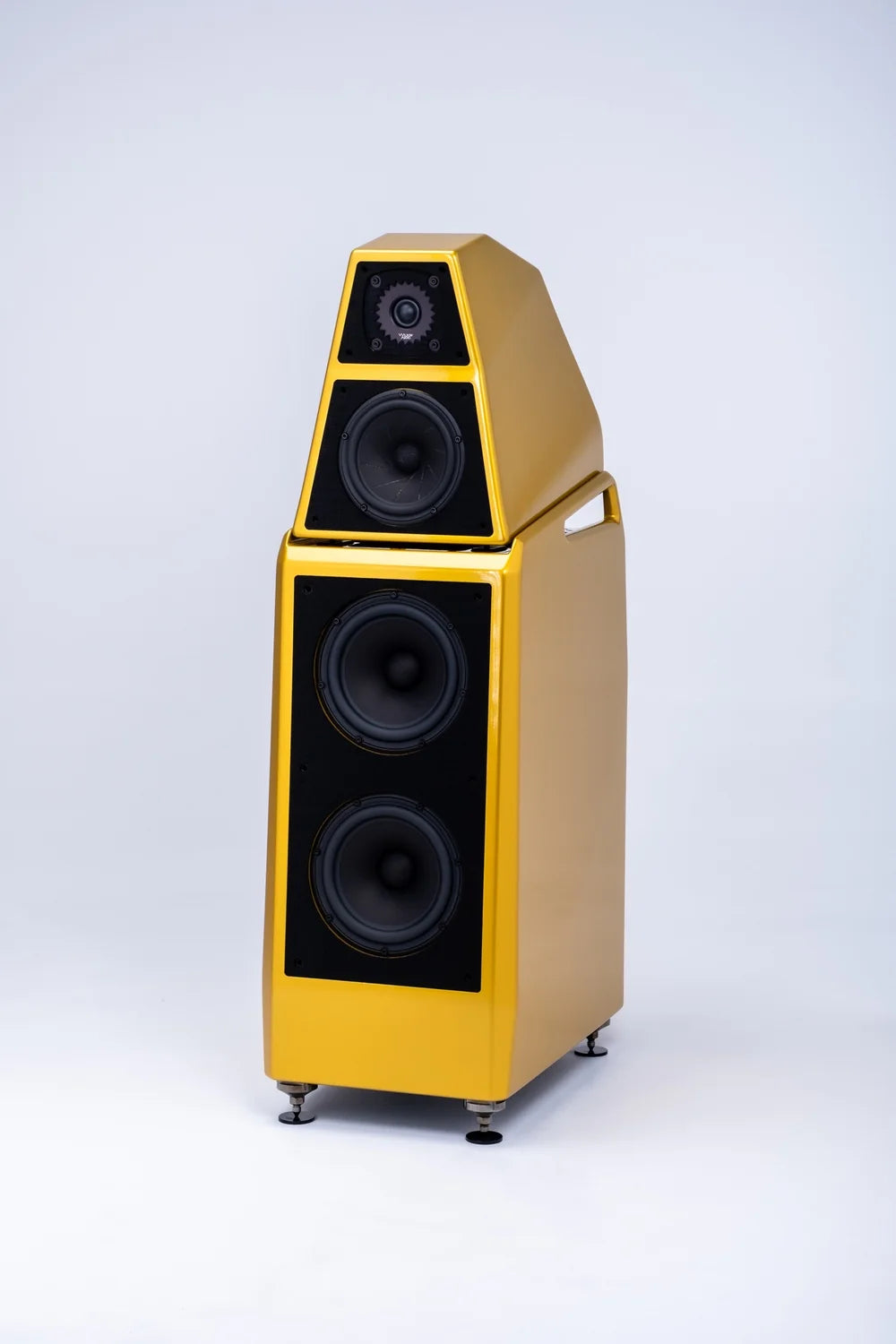

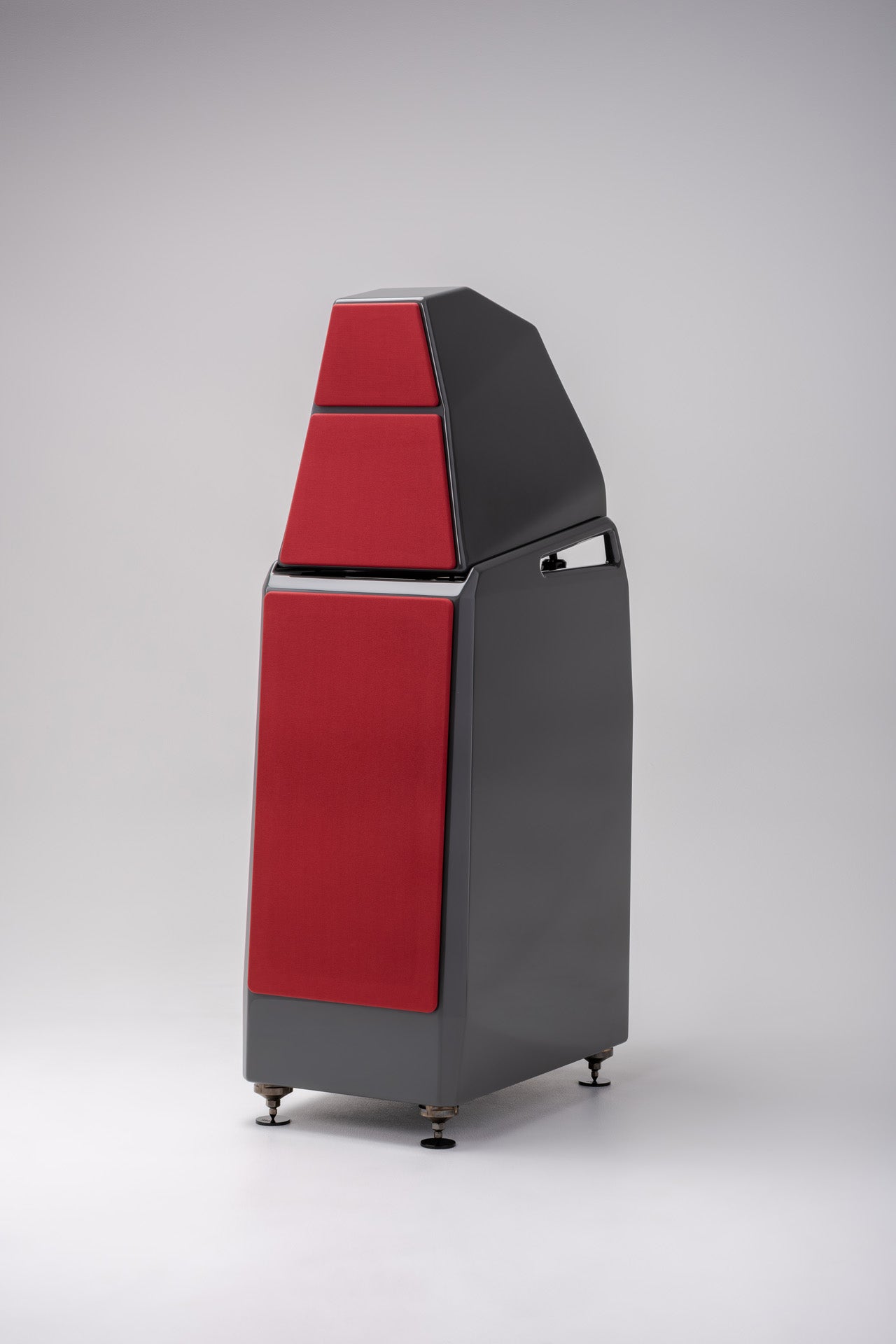

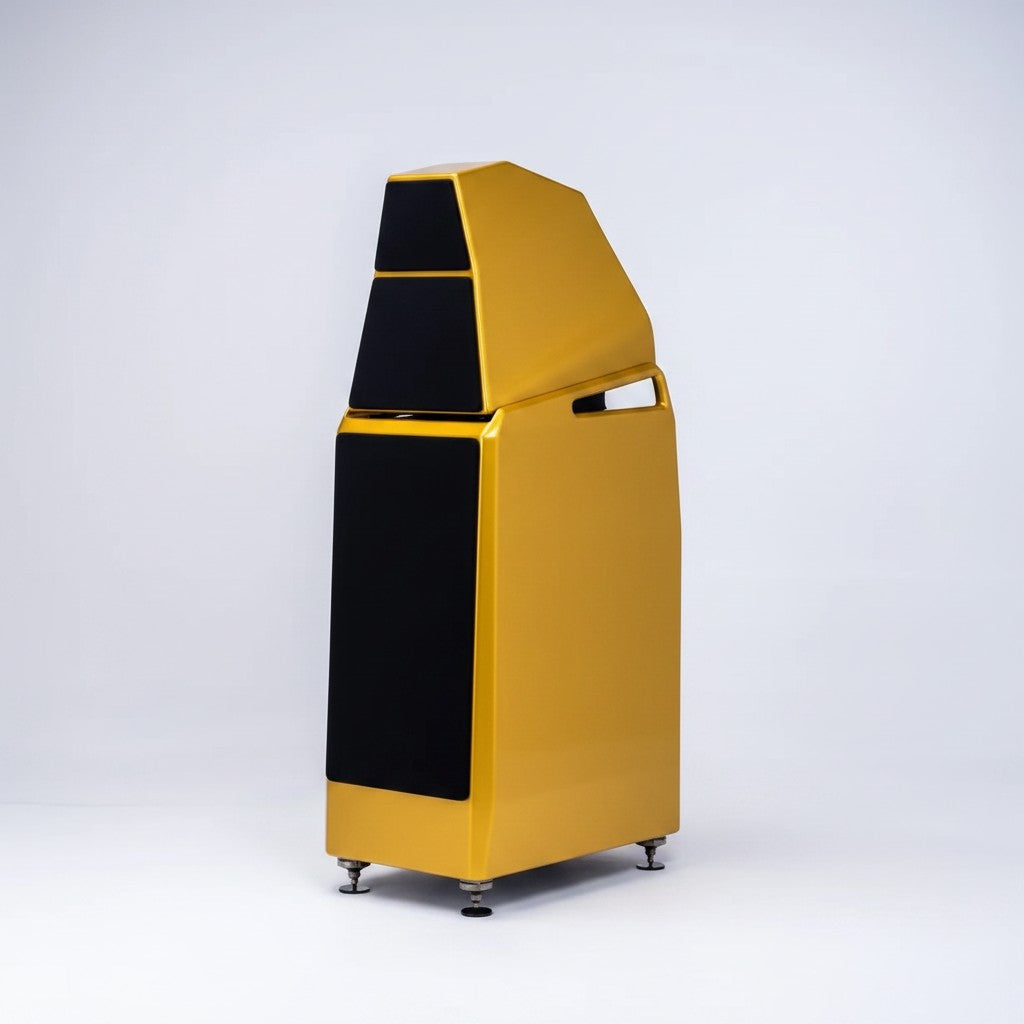

Designed as a two-module floorstanding loudspeaker, the Sasha V combines a 7-inch QuadraMag™ AlNiCo midrange driver, Convergent Synergy Carbon (CSC) tweeter, advanced Wilson Audio composite materials, adjustable time-domain alignment, and a dedicated dual-woofer bass enclosure.
At Trimira Audio, we recommend the Sasha V for serious two-channel systems seeking a combination of reference-level resolution, dynamic capability, precise imaging, and a more approachable physical footprint than Wilson Audio's larger multi-module designs.
Key Features & Technological Innovations
QuadraMag™ AlNiCo Midrange Driver
The Sasha V incorporates a 7-inch QuadraMag™ AlNiCo midrange driver using a four-magnet motor architecture.
The design is intended to provide strong motor control and linear midband reproduction, with particular emphasis on vocal presence, tonal accuracy, and low-level detail.
Convergent Synergy Carbon (CSC) Tweeter
The 1-inch CSC tweeter incorporates a custom carbon-fibre rear-wave chamber designed to control unwanted energy behind the diaphragm.
This supports extended high-frequency reproduction while helping reduce resonances within the tweeter enclosure.
V-Material Resonance Control
Wilson Audio's V-Material is strategically integrated at important mechanical interfaces between the loudspeaker modules.
The material is designed to manage vibrational energy and reduce unwanted mechanical interaction between the cabinet structures.
Dual 8-Inch Woofer System
The lower enclosure incorporates two 8-inch homogeneous paper-cone woofers in a ported configuration.
The dual-driver arrangement provides substantial radiating area and low-frequency displacement while maintaining the Sasha V's relatively compact footprint.
Precision Time-Alignment Architecture

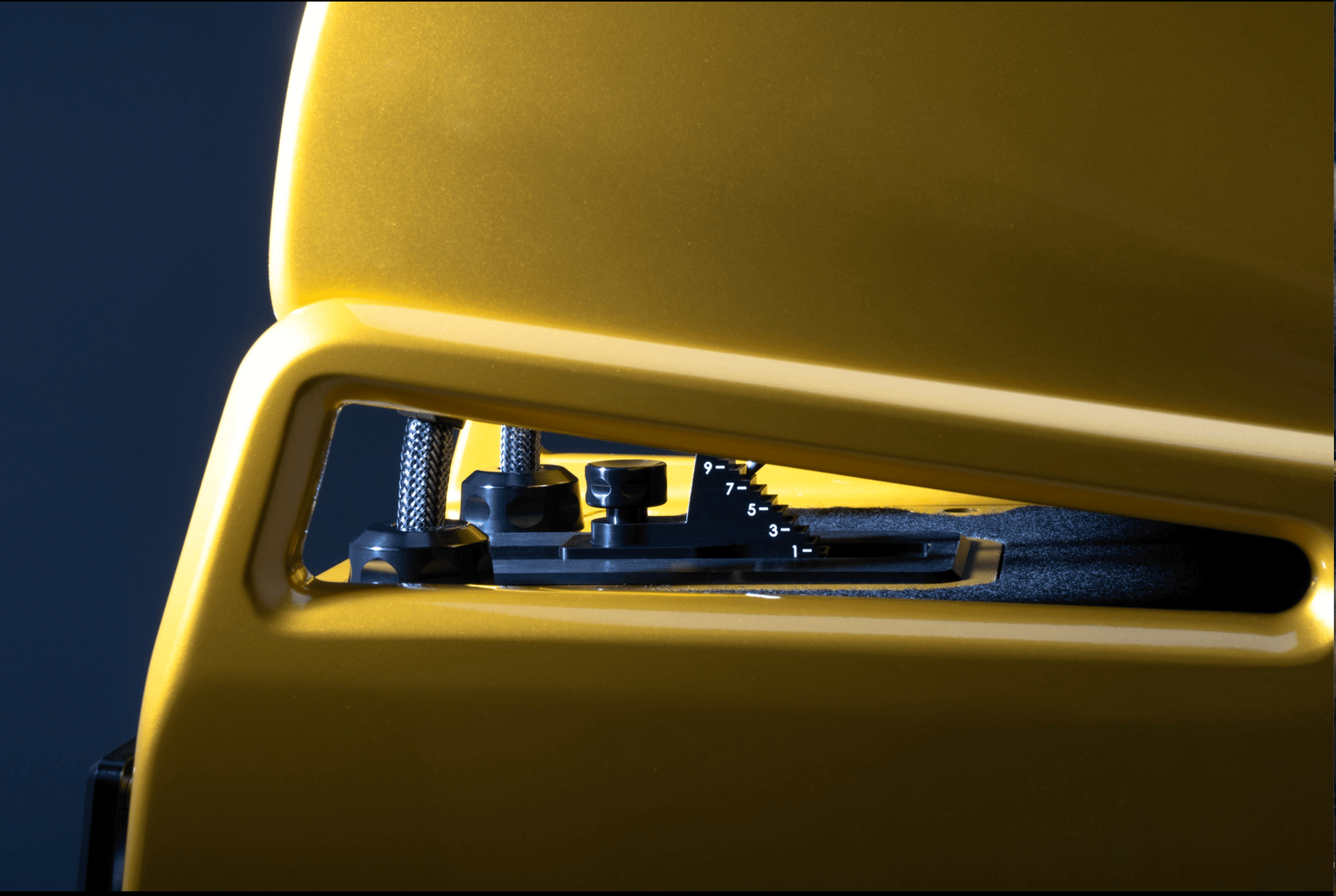

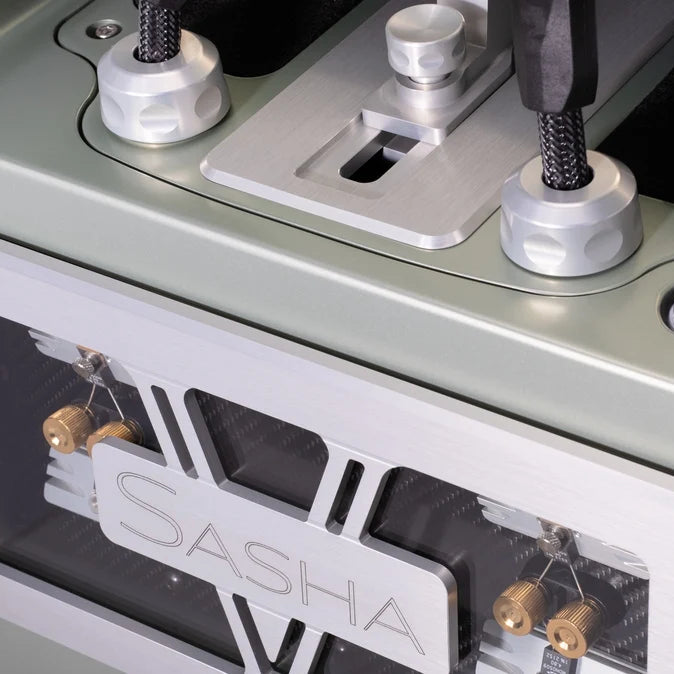

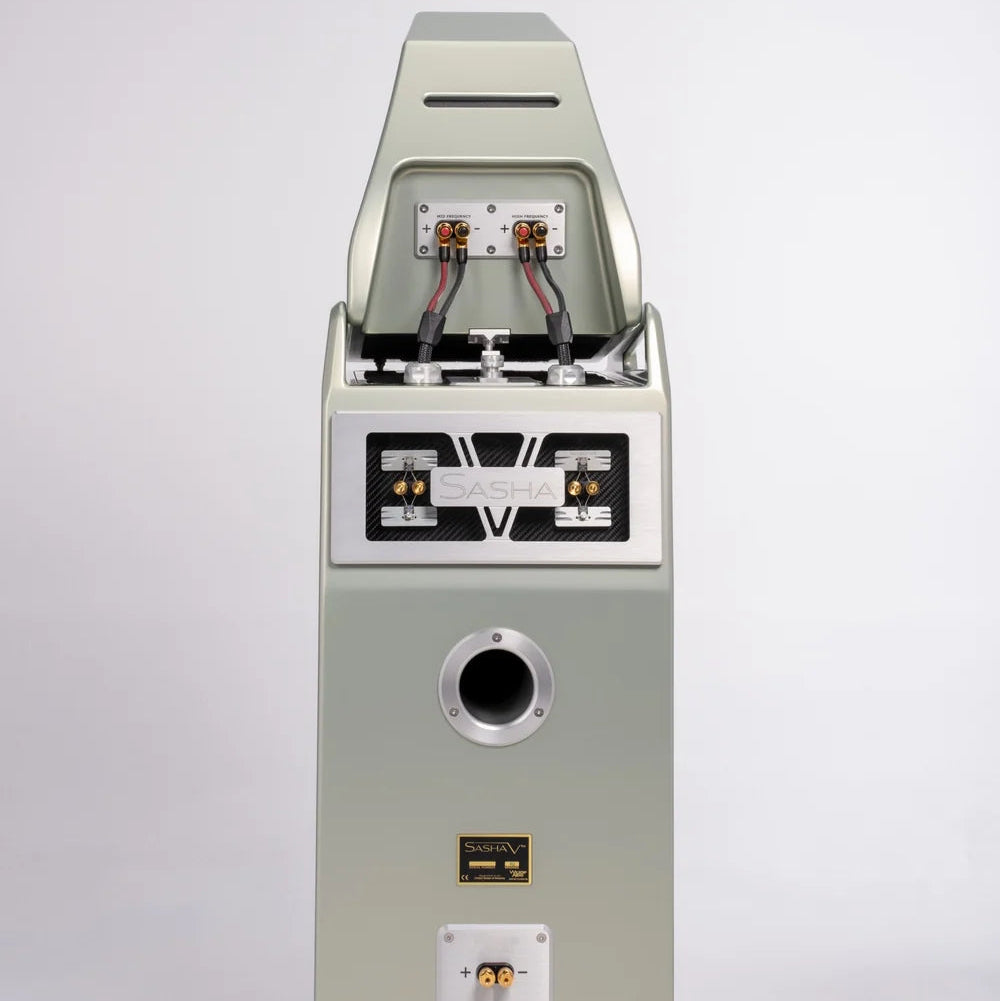

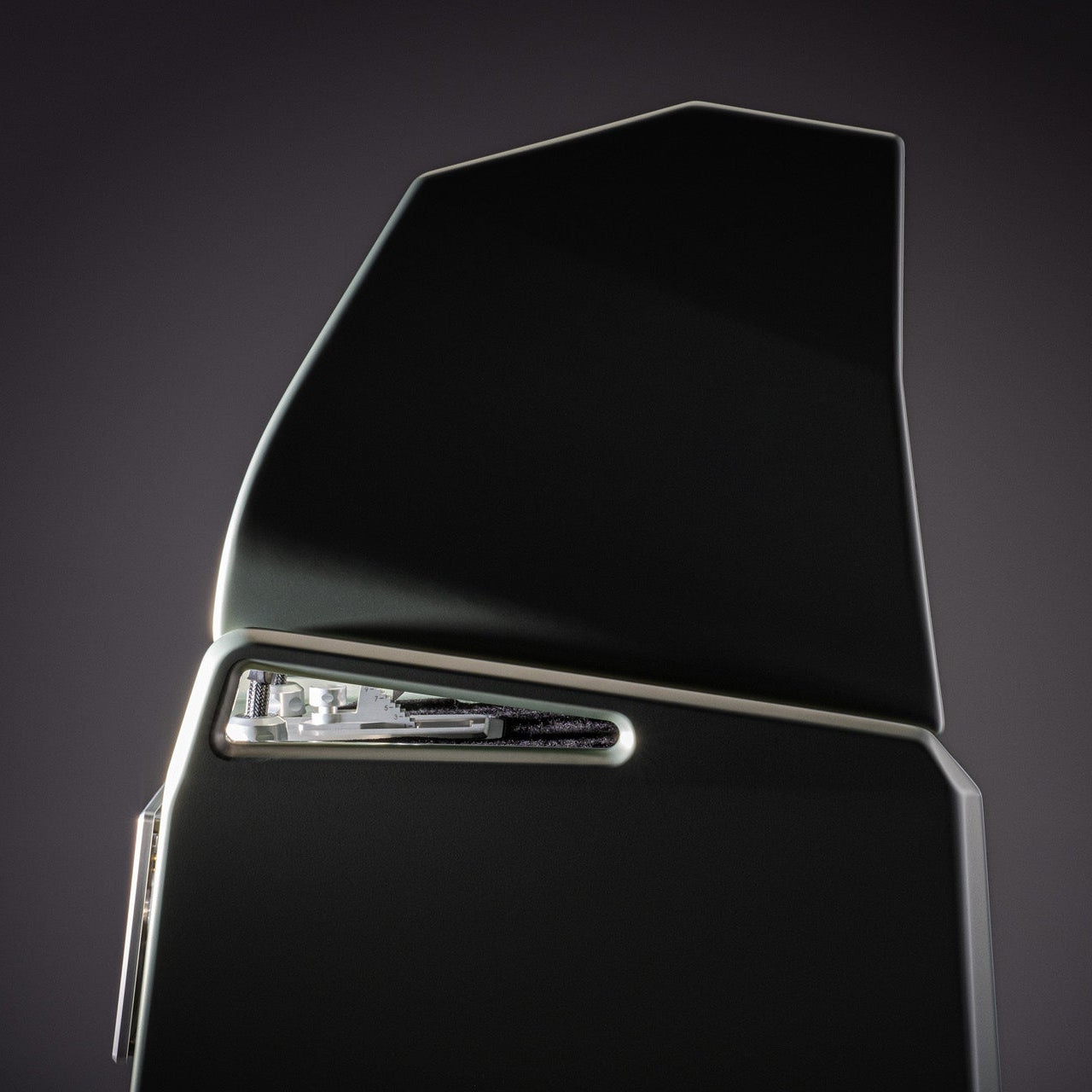

The upper module incorporates adjustable alignment hardware that allows the acoustic relationship between the tweeter and midrange driver to be optimised for the listening position.
This makes precise installation and room setup an important part of extracting the Sasha V's full spatial performance.
Technical Specifications
| Specification |
Sasha V Loudspeaker |
| System Architecture |
Two-Module Adjustable 4-Driver Floorstanding Tower |
| Tweeter |
1-inch (2.54 cm) Convergent Synergy Carbon (CSC) Dome |
| Midrange |
1 × 7-inch (17.78 cm) QuadraMag™ AlNiCo Magnet Cone |
| Woofer Complement |
2 × 8-inch (20.32 cm) Homogeneous Paper Cone Woofers |
| Frequency Response |
20 Hz–32 kHz (±3 dB Room Average Response) |
| Sensitivity |
88 dB @ 1 W / 1 m / 1 kHz |
| Nominal Impedance |
4 Ω |
| Minimum Impedance |
2.36 Ω @ 82 Hz |
| Minimum Power Handling |
50 W / Channel |
| Dimensions (H × W × D) |
1144.8 × 368.3 × 607.8 mm |
| System Net Weight |
110.67 kg per channel |
Amplifier & System Matching
With 88 dB sensitivity, a 4-ohm nominal impedance, and a specified minimum impedance of 2.36 ohms, the Sasha V benefits from capable amplification with good current delivery and low-impedance stability.
When selecting an amplifier, Trimira Audio can help evaluate:
- Continuous power capability
- Current delivery
- Low-impedance stability
- Gain structure
- Speaker-cable matching
- Overall system voicing
Precision Room Setup
The Sasha V's two-module construction provides significant flexibility for room optimisation.
Correct setup should take into account:
- Listening distance
- Toe-in
- Module alignment
- Speaker spacing
- Side-wall proximity
- Rear-wall distance
- Bass interaction with the room
Trimira Audio can assist with precision placement and alignment to optimise soundstage focus, tonal balance, and time-domain coherence.
Consult with the High-End Audio Specialists at Trimira Audio
The Wilson Audio Sasha V combines QuadraMag™ AlNiCo midrange technology, CSC tweeter architecture, V-Material vibration control, dual 8-inch woofers, and adjustable time-domain alignment in a sophisticated two-module floorstanding design.
Trimira Audio can assist with complete Sasha V system planning, including amplifier matching, room placement, module alignment, speaker cabling, and final acoustic optimisation.
Contact the Trimira Audio specialists in Brisbane to arrange a private demonstration or discuss a complete Wilson Audio Sasha V reference system.
