Pure Performance in a Single-Enclosure Architecture | Available at Trimira Audio

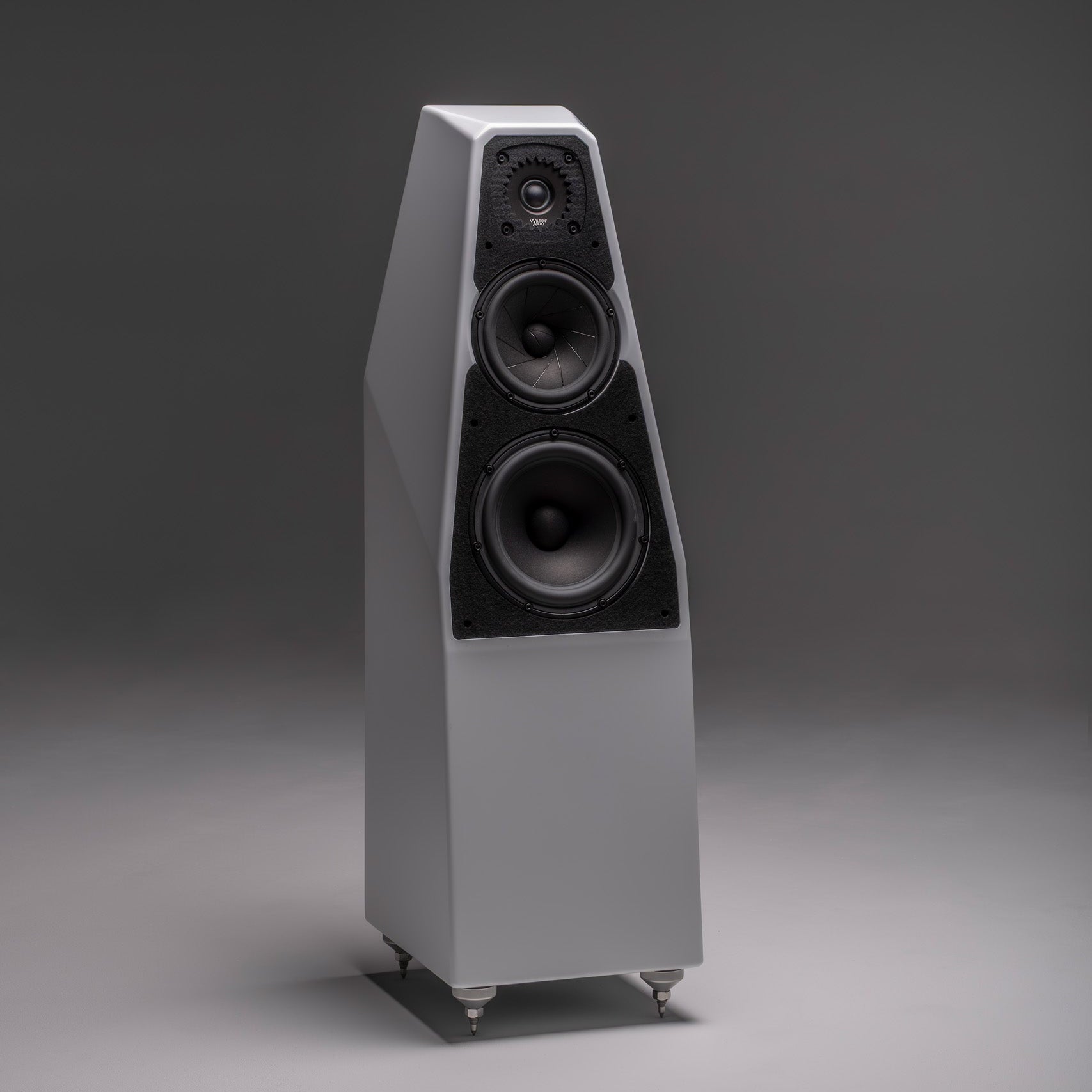

The Wilson Audio Sabrina V brings advanced Wilson Audio driver and cabinet technologies into a compact, single-enclosure floorstanding loudspeaker.
Building on the Sabrina and SabrinaX platform, the Sabrina V combines a 7-inch QuadraMag™ AlNiCo midrange driver, Convergent Synergy Carbon (CSC) tweeter, 8-inch bass driver, and Wilson Audio's advanced composite-material construction.
Its relatively compact footprint makes it particularly attractive for high-performance listening rooms where the scale of a larger Wilson Audio multi-module loudspeaker is unnecessary.
At Trimira Audio, we recommend the Sabrina V for listeners seeking Wilson Audio's characteristic dynamic expression, spatial precision, and musical transparency in a more compact floorstanding format.
Key Features & Technological Innovations

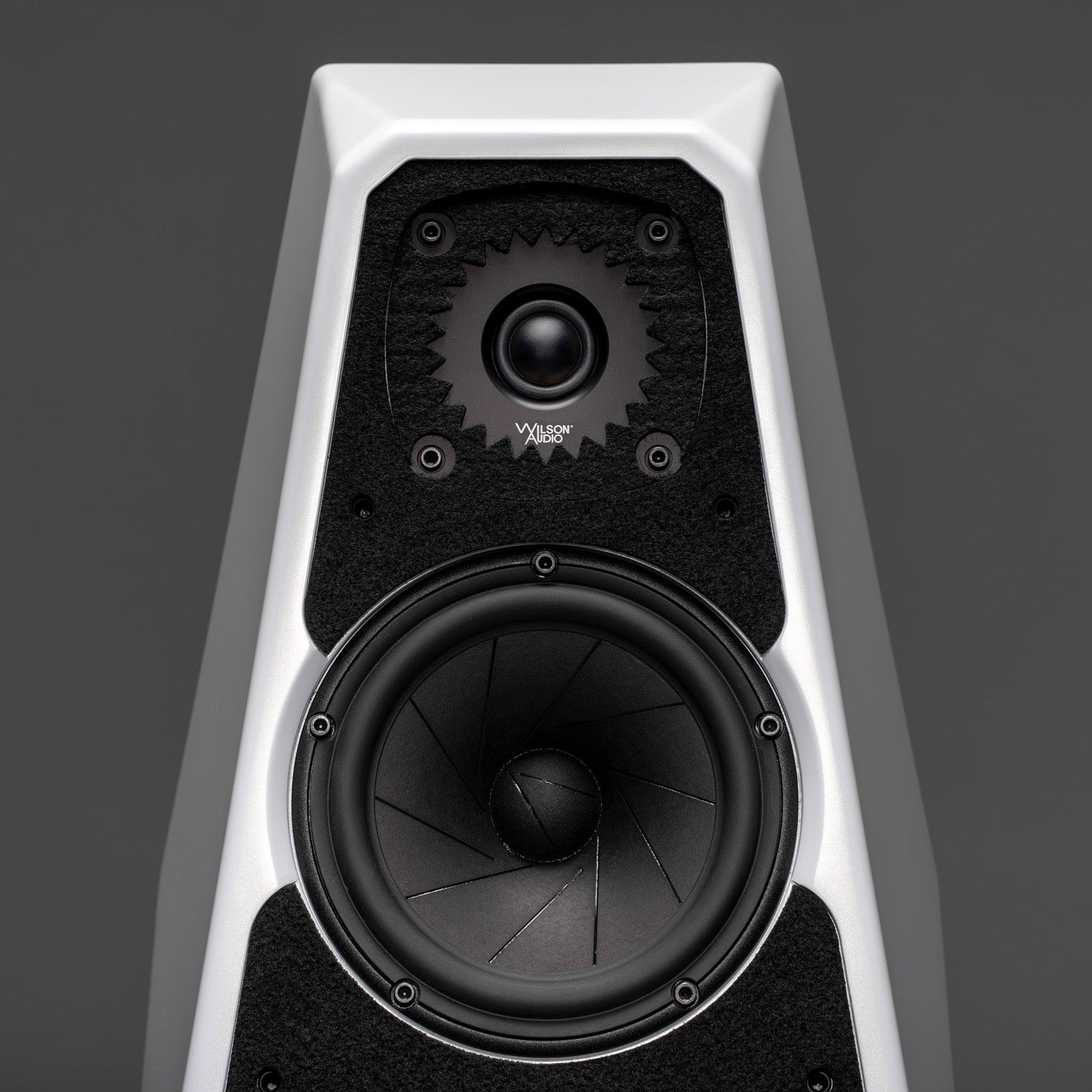

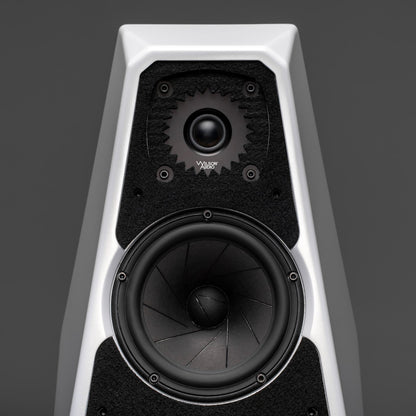

QuadraMag™ AlNiCo Midrange Driver
The Sabrina V incorporates a 7-inch QuadraMag™ AlNiCo midrange driver featuring a four-magnet motor architecture.
The design is intended to provide strong magnetic control, low distortion, and natural reproduction through the critical midrange.
Convergent Synergy Carbon (CSC) Tweeter
The 1-inch CSC tweeter incorporates a carbon-fibre rear-wave chamber designed to control unwanted energy behind the diaphragm.
This supports extended high-frequency reproduction while helping minimise resonant energy within the tweeter enclosure.

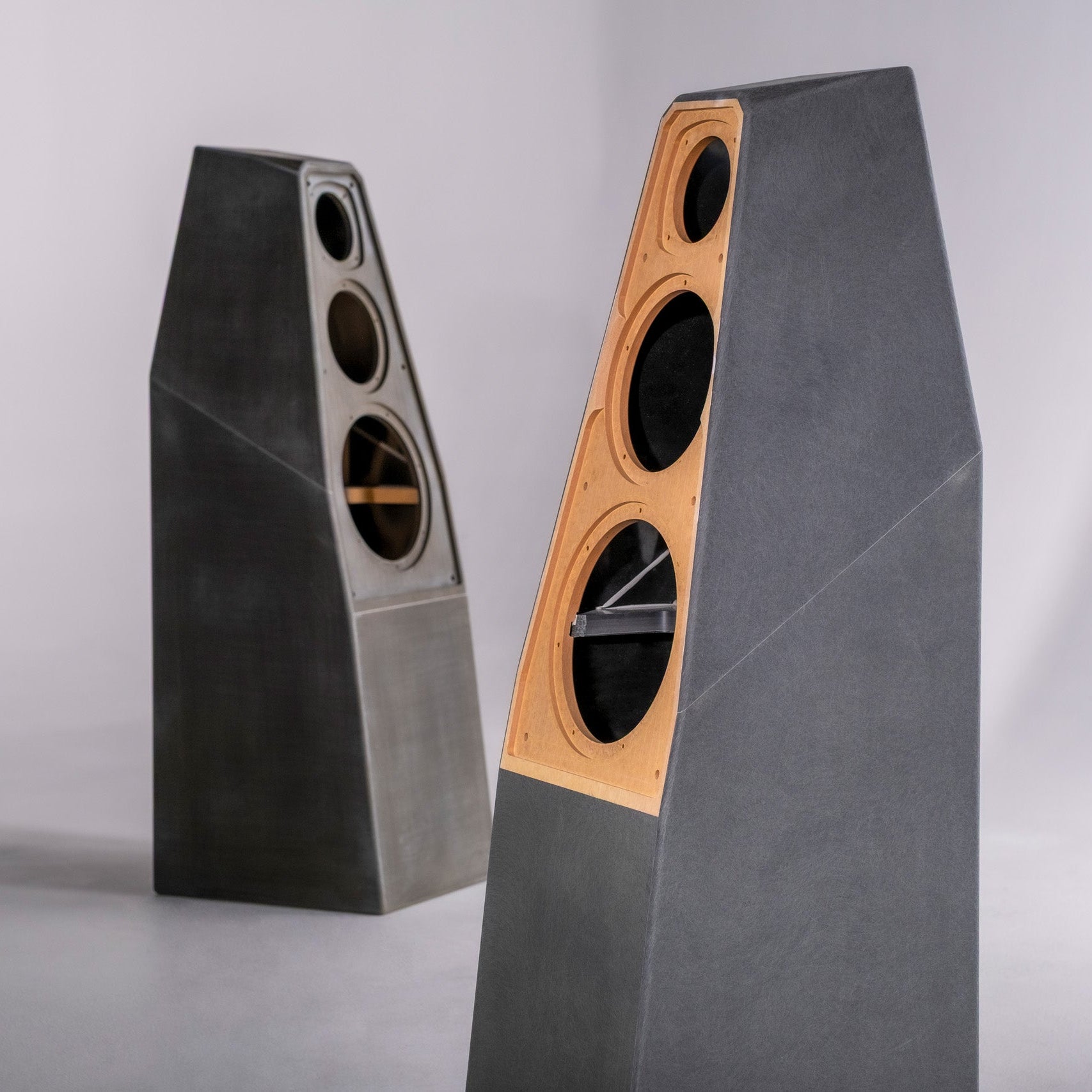

V-Material & X-Material Cabinet Construction
Wilson Audio's proprietary materials form an important part of the Sabrina V's mechanical architecture.
X-Material provides a dense, rigid cabinet structure, while strategically positioned V-Material elements are used to manage mechanical vibration and energy transfer.
8-Inch Bass Driver
The single 8-inch paper-cone woofer is designed around the volume and loading characteristics of the Sabrina V's compact cabinet.
The rear-ported configuration extends the speaker's low-frequency response while retaining the relatively small footprint.
AudioCapX-WA Crossover Capacitors
The crossover incorporates Wilson Audio's custom AudioCapX-WA capacitors.
These components are engineered specifically for Wilson Audio crossover applications and form part of the speaker's carefully optimised signal path.
Technical Specifications
| Specification |
Sabrina V Loudspeaker |
| System Architecture |
Single-Enclosure Rear-Ported 3-Way Floorstander |
| Tweeter |
1-inch (2.54 cm) Convergent Synergy Carbon (CSC) Dome |
| Midrange |
1 × 7-inch (17.78 cm) QuadraMag™ AlNiCo Magnet Cone |
| Woofer Complement |
1 × 8-inch (20.32 cm) Paper Cone Woofer |
| Frequency Response |
31 Hz–30 kHz (±3 dB Room Average Response) |
| Sensitivity |
87 dB @ 1 W / 1 m / 1 kHz |
| Nominal Impedance |
4 Ω |
| Minimum Impedance |
2.4 Ω @ 135 Hz |
| Minimum Power Handling |
50 W / Channel |
| Dimensions (H × W × D) |
1024 × 305 × 389 mm |
| System Net Weight |
50.80 kg per channel |
Compact Reference System Integration
The Sabrina V's single-cabinet architecture makes it particularly suitable for rooms where a larger multi-module Wilson Audio loudspeaker would be physically impractical.
It can be integrated into:
- Dedicated two-channel listening rooms
- Medium-sized living spaces
- High-end media rooms
- Compact reference systems
Its 87 dB sensitivity and 4-ohm nominal impedance, with a specified 2.4-ohm minimum, make amplifier matching an important consideration.
Amplifier & System Matching
Trimira Audio can assist with selecting amplification that provides appropriate current delivery and stability into the Sabrina V's impedance profile.
System matching can include:
- Integrated amplifier selection
- Separate pre/power amplification
- Speaker-cable selection
- Source matching
- Subwoofer integration
- Room positioning
- Toe-in optimisation
Precision Room Setup
Despite its compact dimensions, the Sabrina V benefits from careful placement.
Trimira Audio can assist with:
- Speaker spacing
- Listening-distance optimisation
- Toe-in
- Rear-wall positioning
- Bass integration
- Room-acoustic assessment
- System calibration
Consult with the High-End Audio Specialists at Trimira Audio
The Wilson Audio Sabrina V combines QuadraMag™ AlNiCo midrange technology, CSC tweeter architecture, X-Material and V-Material construction, an 8-inch woofer, and AudioCapX-WA crossover components in a compact single-enclosure floorstanding design.
Trimira Audio can assist with complete Sabrina V system planning, including amplifier matching, room placement, speaker cabling, subwoofer integration, and final acoustic optimisation.
Contact the Trimira Audio specialists in Brisbane to arrange a private audition or discuss a complete Wilson Audio Sabrina V system.
