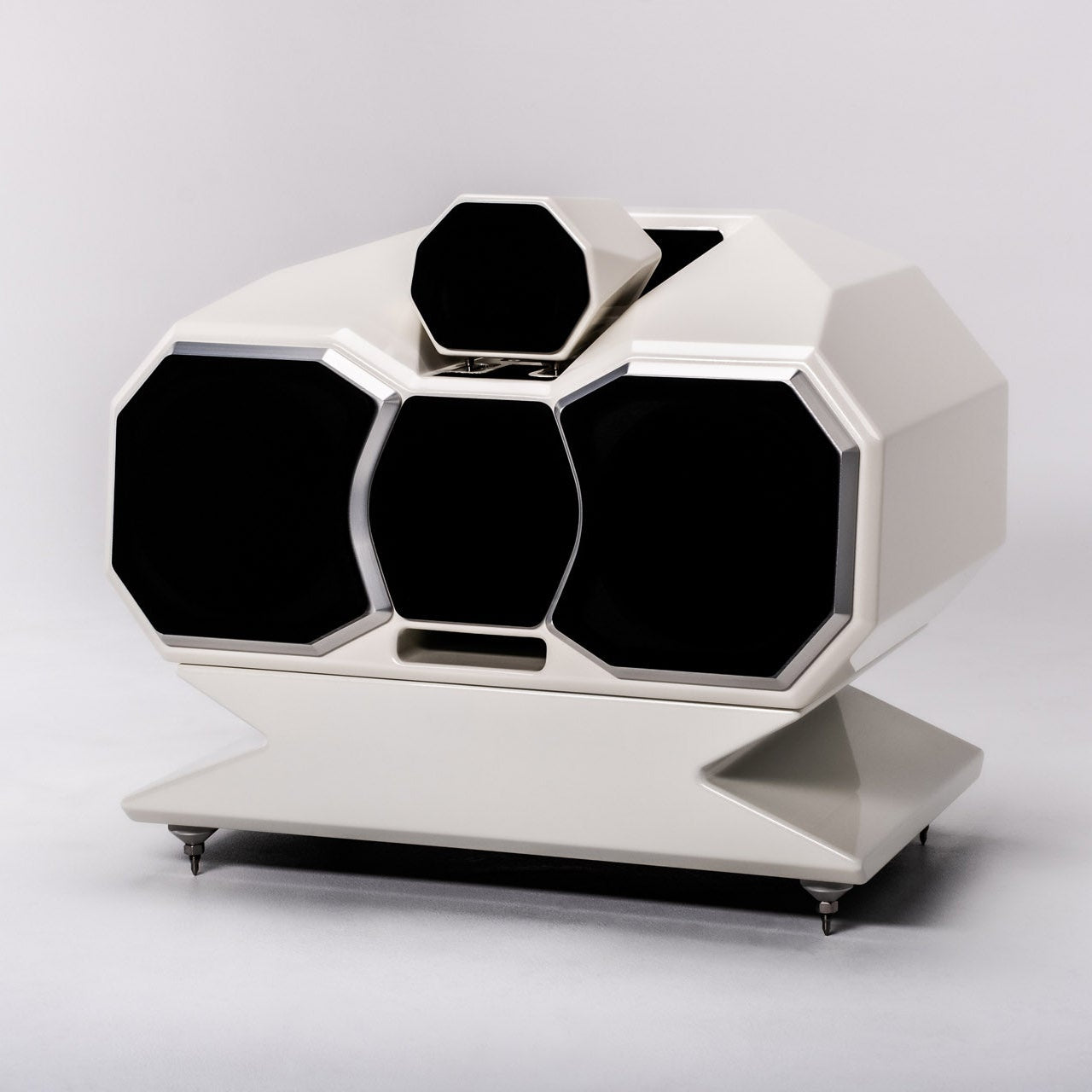

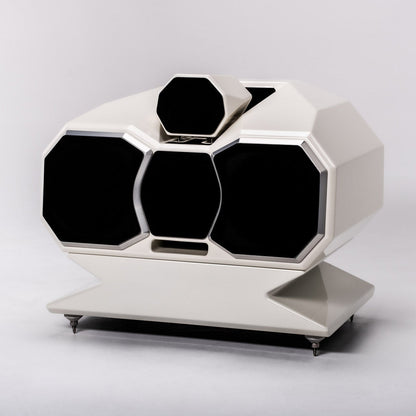

The Wilson Audio Mezzo CSC is a reference-grade centre-channel loudspeaker designed to bring Wilson Audio's full-scale two-channel performance into demanding home-theatre and multi-channel systems.
Designed to complement Wilson Audio reference loudspeakers including the Alexx V, Alexia V, and Sasha V, the Mezzo CSC combines a 7-inch QuadraMag™ AlNiCo midrange, dual 8-inch woofers, and a Convergent Synergy Carbon (CSC) tweeter in a dedicated multi-module centre-channel architecture.
At Trimira Audio, we recommend the Mezzo CSC for high-end cinemas where dialogue intelligibility, front-stage continuity, dynamic impact, and precise tonal matching are critical.
Key Features & Technological Innovations
QuadraMag™ AlNiCo Midrange Driver
The Mezzo CSC features a 7-inch QuadraMag™ AlNiCo midrange driver using a four-magnet motor architecture.
The dedicated midrange enclosure is designed to provide controlled reproduction through the critical vocal and dialogue region, supporting natural timbre and high intelligibility.
Convergent Synergy Carbon (CSC) Tweeter
The 1-inch CSC tweeter incorporates a carbon-fibre rear-wave chamber designed to control unwanted energy behind the diaphragm.
This supports extended high-frequency reproduction and wide spatial dispersion across the front soundstage.
Adjustable Tweeter Module

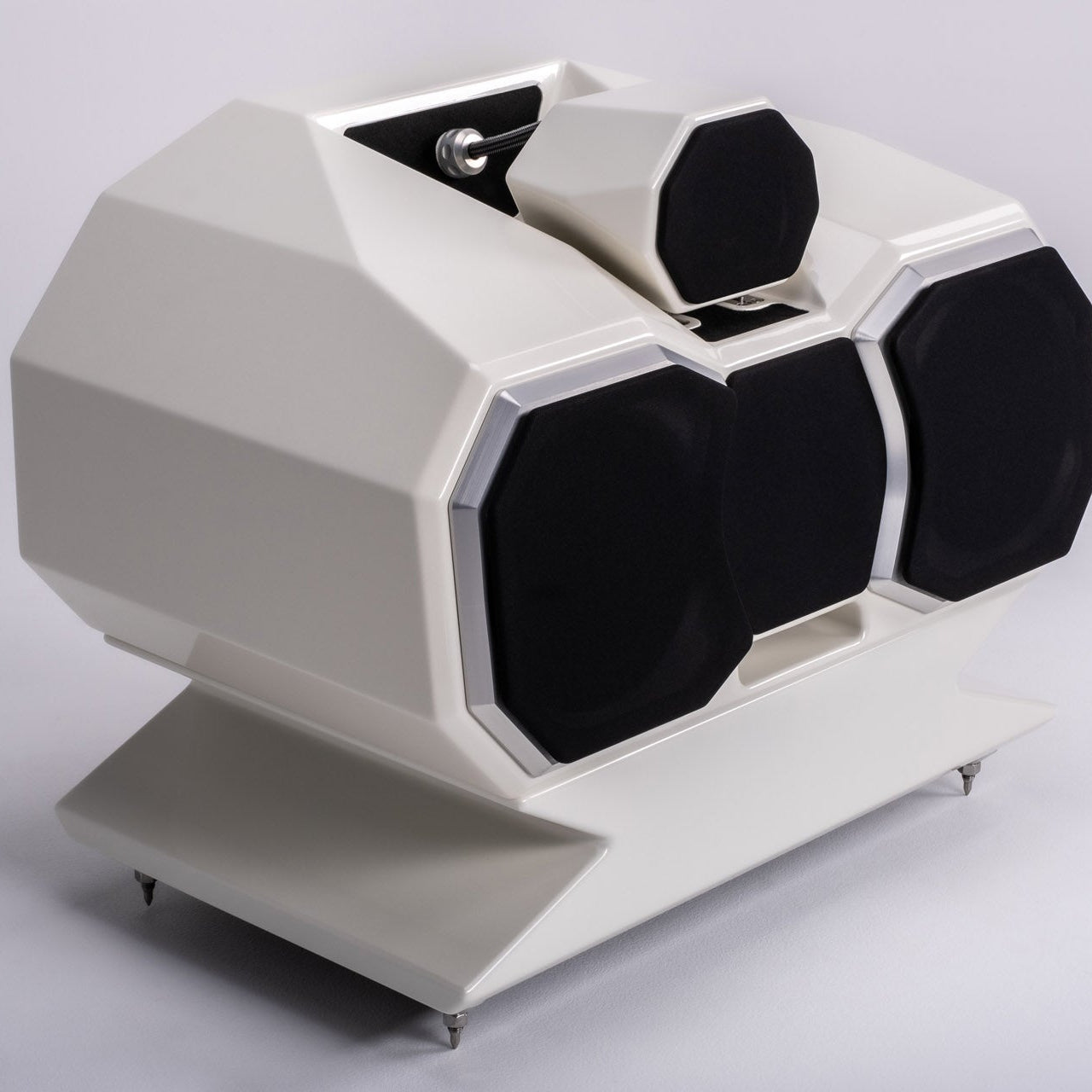

The upper tweeter module can be physically adjusted to optimise its acoustic angle relative to the listening position.
This is particularly useful when the Mezzo CSC is installed at different heights, whether placed on a dedicated stand, floor-mounted, or incorporated into custom cabinetry.
Dual 8-Inch Woofers
Two 8-inch paper-pulp cone woofers provide substantial low-frequency displacement and dynamic capability.
The front-ported woofer enclosure is designed to provide extended bass response and high-output capability suitable for demanding cinematic material.
AudioCapX-WA Crossover Components
The crossover incorporates Wilson Audio's custom AudioCapX-WA copper capacitors, designed for high-quality signal transfer within the loudspeaker's crossover network.
Flexible Installation
The Mezzo CSC can be installed in several configurations, including:
- Dedicated Wilson Audio stands
- Custom cabinetry
- Architectural joinery
- Floor-supported installations
This flexibility allows the centre channel to be positioned appropriately beneath or behind a projection screen or display.
Technical Specifications
| Specification |
Mezzo CSC Center Channel |
| System Architecture |
Multi-Module Adjustable 4-Driver Center Channel System |
| Tweeter |
1-inch (2.54 cm) Convergent Synergy Carbon (CSC) Dome |
| Midrange |
1 × 7-inch (17.78 cm) QuadraMag™ AlNiCo Magnet Cone |
| Woofer Complement |
2 × 8-inch (20.32 cm) Paper Pulp Cone Woofers |
| Enclosure Type |
Front-Ported Woofer / Sealed Midrange & Tweeter |
| Frequency Response |
19 Hz–32 kHz (±3 dB Room Average Response) |
| Sensitivity |
89 dB @ 1 W / 1 m / 1 kHz |
| Nominal Impedance |
4 Ω |
| Minimum Impedance |
2.66 Ω @ 687 Hz |
| Minimum Power Handling |
25 W / Channel |
| Dimensions (H × W × D) |
457 × 787 × 565 mm |
| System Net Weight |
90.72 kg |
Reference Home-Cinema Integration
The Mezzo CSC is designed to operate as the acoustic anchor of a high-performance front soundstage.
For systems using Wilson Audio reference left and right loudspeakers, careful matching of:
- Loudspeaker voicing
- Amplification
- Height
- Horizontal position
- Tweeter angle
- Screen position
- Crossover configuration
is essential to achieving convincing front-stage continuity.
The centre channel can be positioned beneath a display or integrated into a suitable architectural structure behind an acoustically transparent projection screen.
Amplifier & System Matching
With 89 dB sensitivity, a 4-ohm nominal impedance, and a specified minimum impedance of 2.66 ohms, the Mezzo CSC benefits from capable amplification with good current delivery.
Trimira Audio can assist with:
- Centre-channel amplifier selection
- Matching amplification to Wilson Audio LCR systems
- XLR/RCA processor integration
- Speaker-cable selection
- Tweeter-angle adjustment
- Screen and centre-channel positioning
- Multi-channel system calibration
Consult with the High-End Audio Specialists at Trimira Audio
The Wilson Audio Mezzo CSC combines QuadraMag™ AlNiCo midrange technology, CSC tweeter architecture, dual 8-inch woofers, adjustable tweeter positioning, and AudioCapX-WA crossover components in a dedicated reference centre-channel platform.
Trimira Audio can assist with complete Wilson Audio cinema design, including LCR matching, dedicated stands, custom joinery, screen integration, amplification, and final acoustic calibration.
Contact the Trimira Audio high-end multi-channel specialists in Brisbane to arrange a private audition or discuss a complete Wilson Audio reference cinema system.
