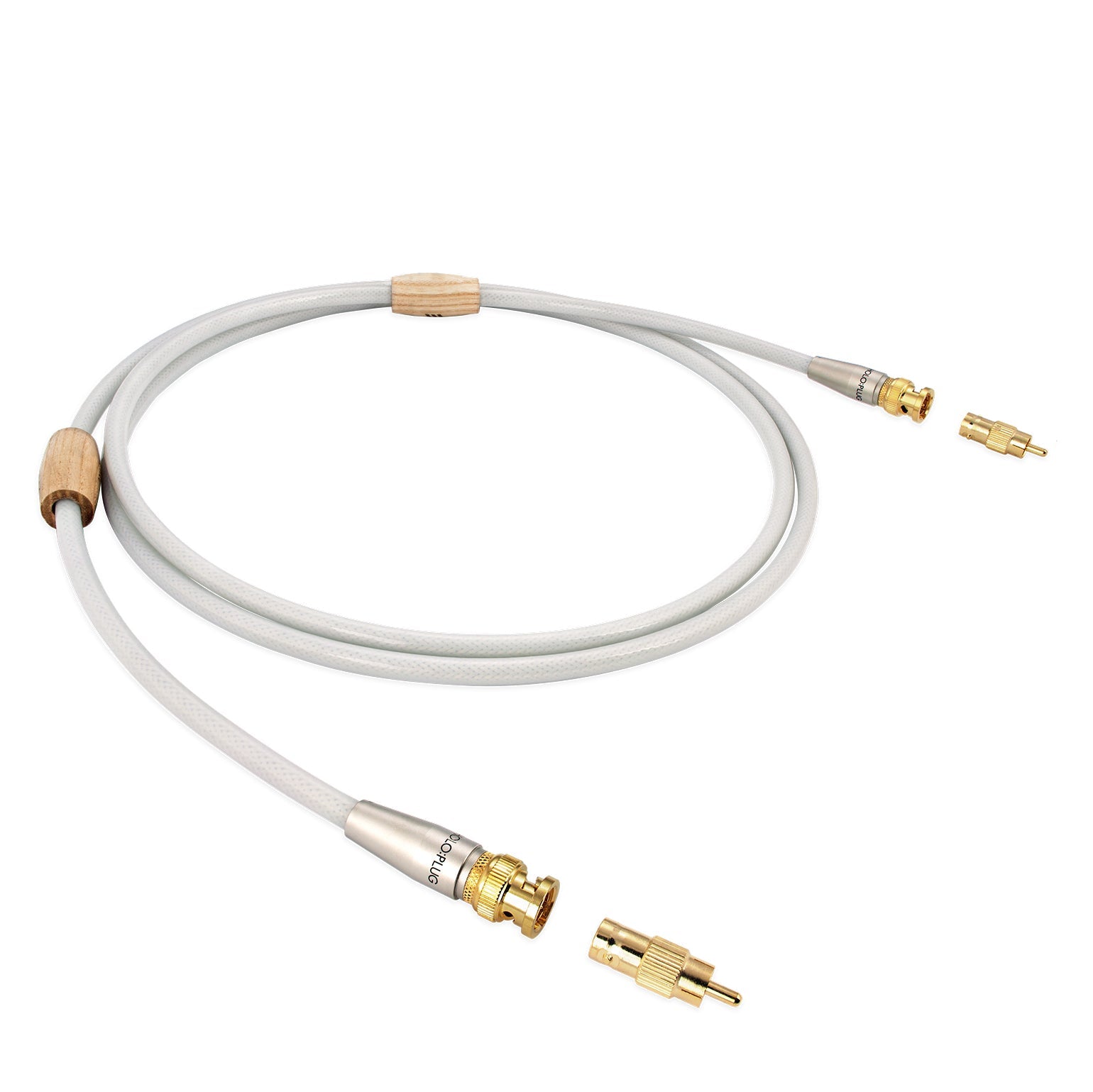

The Nordost Valhalla 2 75-Ohm Digital Interconnect is a flagship digital coaxial cable from Nordost's Reference Series, engineered specifically for 75-ohm digital interfaces such as S/PDIF.
Its construction combines Dual Mono-Filament technology, a heavy-gauge silver-plated solid-core OFC conductor, comprehensive shielding, carefully controlled coaxial geometry, and proprietary HOLO:PLUG® BNC terminations.
At Trimira Audio, we recommend the Valhalla 2 75-Ohm Digital Interconnect for reference digital systems connecting CD transports, network streamers, digital bridges, DACs, and digital processors.
Key Features & Technological Innovations
Patented Dual Mono-Filament Technology
The solid-core conductor is wrapped with two helical FEP strands before the outer FEP jacket is applied.
This creates a low-contact dielectric environment designed to minimize dielectric interaction and energy storage while supporting rapid signal propagation.
Heavy-Gauge 16 AWG Solid-Core OFC
The Valhalla 2 75-ohm version uses 1 × 16 AWG solid-core conductor manufactured from 99.999999% high-purity OFC copper with 85 µm pure silver plating.
The solid-core construction provides consistent conductor geometry throughout the coaxial signal path.
100% Dual-Layer Shielding
A combined foil-and-braid structure provides 100% total coverage, protecting the high-frequency digital signal against:
- RF interference
- Electromagnetic interference
- External electrical noise
- High-frequency crosstalk
Strict 75-Ohm Characteristic Impedance
The cable is specifically engineered around a true 75-ohm characteristic impedance, making it appropriate for 75-ohm digital interfaces.
Maintaining consistent impedance helps minimize electrical reflections within the digital transmission path.
Custom HOLO:PLUG® 75-Ohm BNC Terminations
The cable is terminated with custom 75-ohm HOLO:PLUG® BNC connectors.
Gold-plated 75-ohm BNC-to-RCA adapters are supplied for components equipped with RCA-type S/PDIF connections.
Technical Specifications
| Specification |
Valhalla 2 Reference 75-Ohm Digital Interconnect |
| Series |
Reference Series |
| Insulation |
High-Grade Extruded Fluorinated Ethylene Propylene (FEP) |
| Construction |
Mechanically Tuned Spacing, Dual Mono-Filament, Coaxial Design |
| Conductors |
1 × 16 AWG Solid-Core |
| Conductor Material |
99.999999% Solid-Core OFC with 85 µm Pure Silver Plating |
| Capacitance |
15.3 pF/ft |
| Impedance |
True 75 Ω |
| Shielding |
100% Total Coverage Dual-Layer Braid & Foil Shielding |
| Velocity of Propagation |
89% Speed of Light |
| Terminations |
Custom HOLO:PLUG® 75-Ohm BNC, Including Gold-Plated BNC-to-RCA Adapters |
| Standard Lengths |
1.25 m, 2.0 m, 3.0 m + Custom Lengths |
Why 75 Ω Matters
The 75-ohm version should be selected for digital interfaces designed around 75-ohm coaxial transmission, such as conventional S/PDIF.
It should not be confused with 110-ohm AES/EBU, which uses a different balanced transmission architecture and requires a dedicated 110-ohm cable.
Consult with the Digital Audio Specialists at Trimira Audio
The Nordost Valhalla 2 75-Ohm Digital Interconnect is designed for reference digital systems where impedance control, shielding, conductor geometry, and termination quality are given particular attention.
Trimira Audio can assist with:
- Confirming 75-ohm S/PDIF compatibility
- BNC versus RCA connectivity
- Cable length selection
- CD transport-to-DAC matching
- Streamer-to-DAC configuration
- Complete digital cable-system planning
- Private system auditions
For a flagship 75-ohm digital connection, Valhalla 2 combines Dual Mono-Filament construction, 16 AWG silver-plated solid-core OFC, 100% shielding, true 75-ohm coaxial architecture, and HOLO:PLUG® BNC termination.
