Advanced Image/Audio Processing Technology

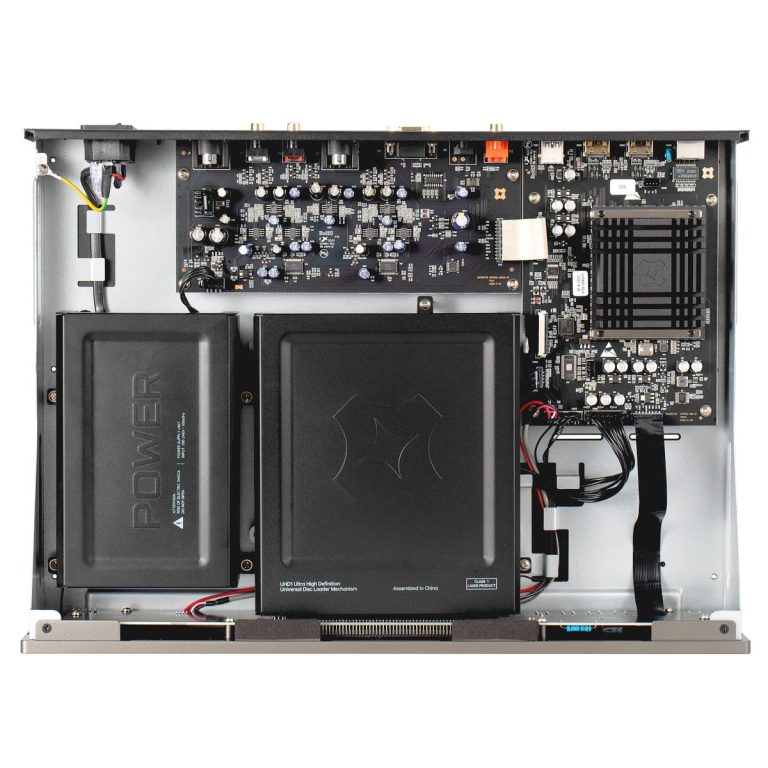

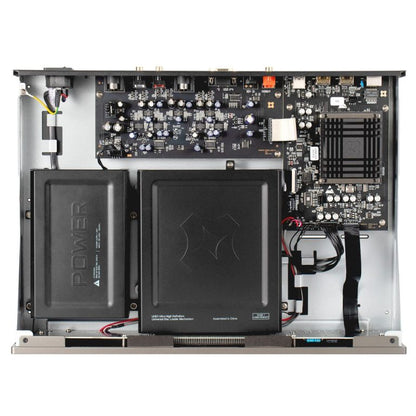

High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.
Stunning Audio - Visual Quality
Adding the TMDS retiming function to the mainboard’s HDMI AUDIO port, which can effectively compensate for random jitter, provide better signal quality and load-carrying capacity, and further improve the HDMI audio quality, making the sound details richer.
Versatile Compatibility
Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. The optimization also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.
Operational Amplifier
Replacing the operational amplifiers with seven OPA1602s. Its low noise reduces audio distortion for clearer sound. High precision ensures accurate signal reproduction, creating audiophile-grade sound.
Roon Ready
Roon Ready is a partner program that lets UDP800 MKII auto-connect to Roon without configuration for bit-perfect audio. Working with Roon’s multi-platform music platform, UDP800 MKII delivers powerful, flexible networked audio with easy setup and top reliability for great listening experiences.
Technical Specifications
Disc formats
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

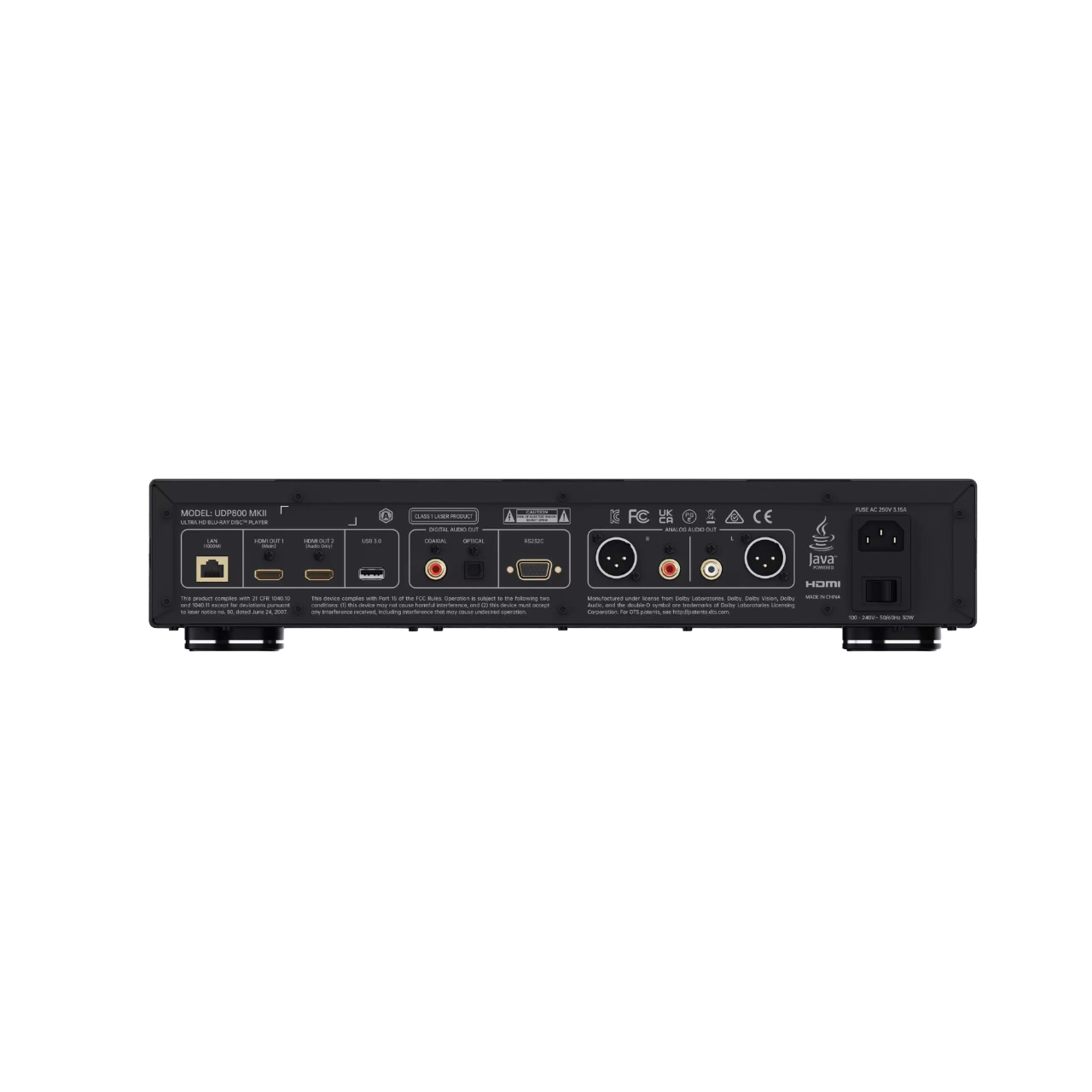

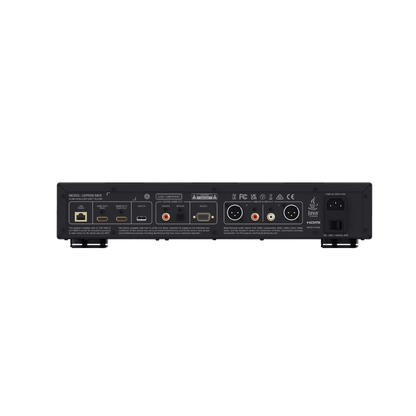

Outputs
Analog audio: Stereo
Independent stereo analog audio: XLR balanced output, RCA output
Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS
HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.
Analog Audio Characteristics
Frequency range: 20Hz-20kHz (±0.05dB)
Signal-to-noise ratio: ≥120dB
Total harmonic distortion + Noise: ≤0.01%
Output level: (RCA) 2. 1±0.2Vrms; (XLR) 4.2±0.4Vrms
Dynamic range: AGT: ≥120dB
Channel separation: ＞100dB (RCA); ＞120dB (XLR)
General Specification
Power supply: AC 100-240V ~, 50/60Hz
Power consumption: <30W, Standby<0.5W
Size: 430 mm x 300 mm x 90 mm
Weight: 6.8kg
Operating temperature: 5° C ~ 35° C （41° F ~ 95° F）
Operating humidity: 15% ~ 75%
