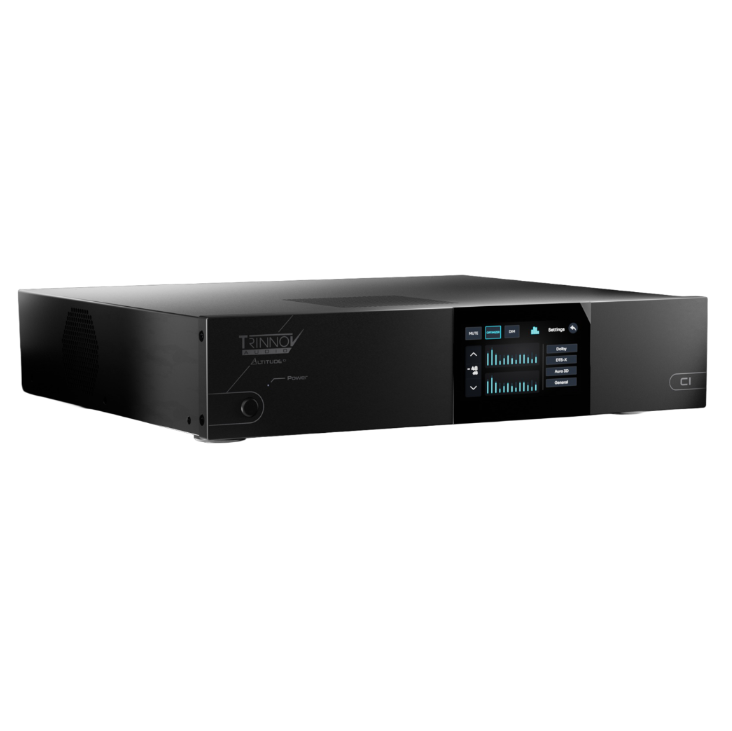

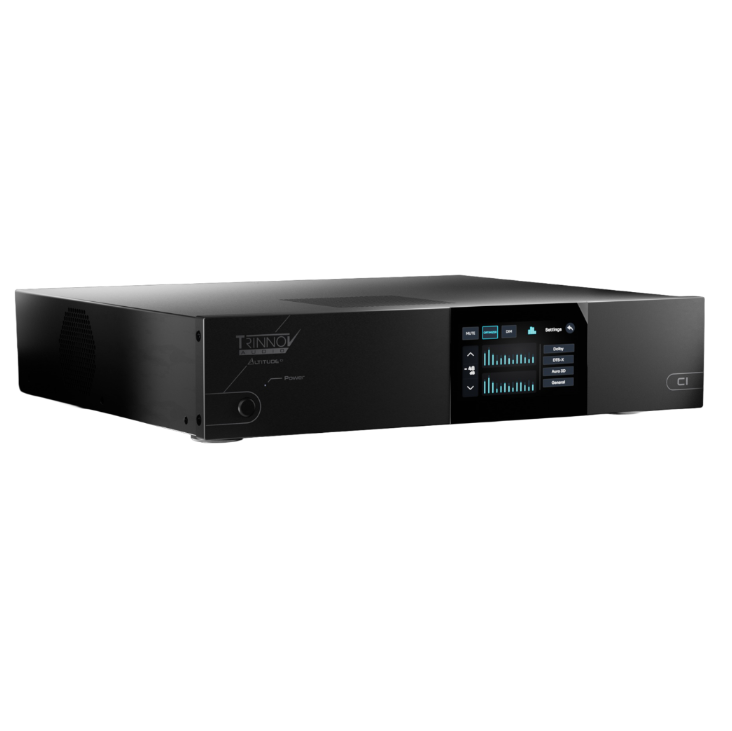

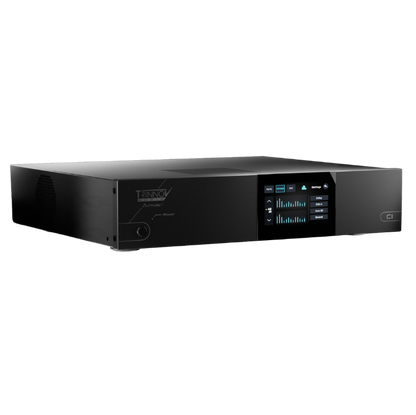

AltitudeCI brings Trinnov’s exclusive active acoustics technologies to the world of custom integration, with native support for DanteⓇ and AES67, a scalable channel count, and a network architecture built to meet the demands of the most challenging environments.
Dual AoIP Support for Maximum Compatibility
AltitudeCI supports both AES67 and DanteⓇ natively — combining the interoperability and precision required in DCI and pro audio environments with the simplicity and plug-and-play integration that Dante offers, including direct connection to digital amplifiers like the Amplitude16.
Three Ethernet Ports, Fiber-Ready
Featuring three independently configurable Ethernet ports — one RJ45 and two SFP cages (fiber or copper) — AltitudeCI adapts to any network scenario. These ports support redundant AoIP streams, segregated networks, or integrated switch mode for optimal flexibility and reliability.
From 8 to 64 Channels, Step by Step
Available from 8 to 32 outputs, configurable in 2-channel steps to match each project precisely. For larger systems, a 64-channel build-to-order model with enhanced hardware will be offered from 2026 for demanding, large-scale installations.
Built for Any System Configuration
AltitudeCI offers unmatched output flexibility with 8 balanced analog outputs, up to 32 channels of AES/EBU digital audio (input and output), and native Audio over IP support via DanteⓇ and AES67.
No optional I/O cards or external A/D or D/A converters are required, thanks to its flexible routing matrix, which lets integrators build hybrid systems that combine analog, digital, and networked outputs.
Tailored Configurations for Every Project
From high-end stereo setups to DCI-grade private cinemas, AltitudeCI adapts to nearly any project — with channel configurations available from 8 to 32 outputs, adjustable in 2-channel increments, and built-to-order models supporting up to 64 channels starting in 2026.
Whether you’re designing a compact media room or a multi-row theater with 30+ speakers, AltitudeCI offers the performance, routing freedom, and format precision required for today’s most ambitious installations.
The examples below illustrate common use cases, each system can be tailored precisely to your project’s requirements. Built on the same core architecture across all models, it’s a platform that scales with your vision.
Reliable Integration, Comprehensive Control
AltitudeCI is engineered to fit seamlessly into modern smart home and cinema ecosystems. It supports IR (3,5mm jack input, receiver provided), RS232, and IP control, works with the Trinnov App (iOS, Android, macOS, or Windows) and web interface, and includes certified drivers for all major control platforms (Crestron, Savant, Control4, RTI, AMX, Nice, AVA).
Installers can take advantage of 4 programmable trigger outputs, energy-saving standby and fast boot modes (hardware ready), as well as remote servicing via my.trinnov.audio streamlining both system deployment and long-term maintenance.
Specifications
Audio Processing
Channel Count: Available from 8 to 32 outputs
Future Option (2026): Up to 64 channels (build-to-order)
Architecture: Software-based, 64-bit floating point processing
Sample Rate: Up to 192kHz (channel dependent)
Immersive Audio Formats
Decoded Formats: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
Upmixers: Dolby Surround, DTS Neural:X, Auro-Matic
Flexibility: Full-format decoding with channel-to-speaker assignment
HDMI Connectivity
Inputs / Outputs: 4x HDMI Inputs, 2x HDMI Outputs
Version: HDMI 2.1 with HDCP 2.3
Max bandwidth: 40 Gbps on all inputs and outputs
8K Support: Up to 8K60 (4:2:0 chroma only)
4K Support: Up to 4K120 (with full 4:4:4 chroma)
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 (format-dependent)
HDR Support: HDR10, HDR10+, Dolby Vision, HLG
Gaming Features: VRR, FRL and ALLM
Other Features: On-screen display (OSD), full pass-through, ARC/eARC
Audio Inputs
Dante: Up to 32 input channels
AES/EBU: Up to 32 inputs via 2x DB25
S/PDIF: 1x coaxial + 1x optical
3D Microphone: 1x Ethercon input (provides power)
Independence: All inputs are independent
Future AoIP Input Capacity (2026): Up to 64 inputs (build-to-order)

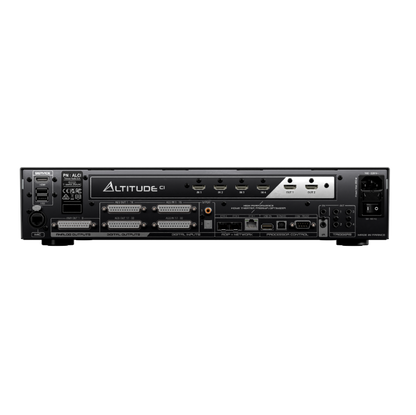

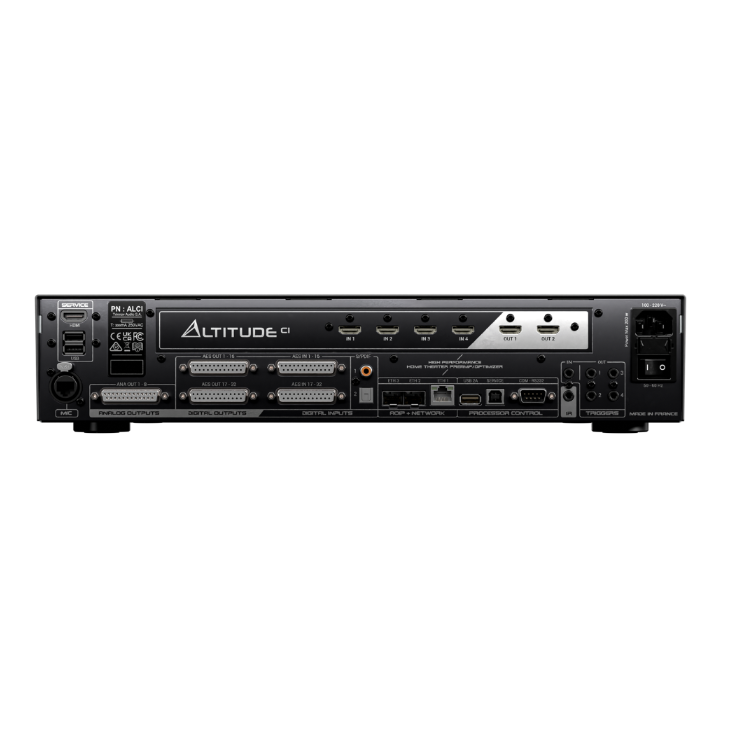

Audio Outputs
Dante: Up to 32 output channels
AES/EBU: Up to 32 outputs via 2x DB25
Analog: 8x balanced outputs via 1x DB25
Analog Output Level: +18 dBu max
THD+N (analog output): 110dB (1kHz 0dBFS, 20kHz BW)
Dynamic Range (analog output): 115dB A-weighted (ref +18dBu)
Channel Assignment: Any output channel to any physical audio output
Output Types: Analog, digital or AoIP
Network Architecture & AoIP
AoIP Format: Dante (+AES67 compatibility)
Compatibility with Dolby media servers: via AES67
Ethernet Ports: 3x Gigabit ports: 1x RJ45, 2x SFP cages
SPF module: 1x RJ45 provided
Networking Modes: Integrated switch, isolated, or redundant paths
AoIP Simplification: DirectLink supported with Amplitude16
Control & Integration
Full UI Access: macOS/Windows app or Web UI
Mobile Remote Control: iOS & Android app
Control Drivers: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
Physical Control: IR Input (Jack 3,5", IR receiver included), RS-232
Triggers: 1x input, 4x programmable outputs
IR Remote Control: Optional
Remote Management: Partner access through via my.trinnov.audio

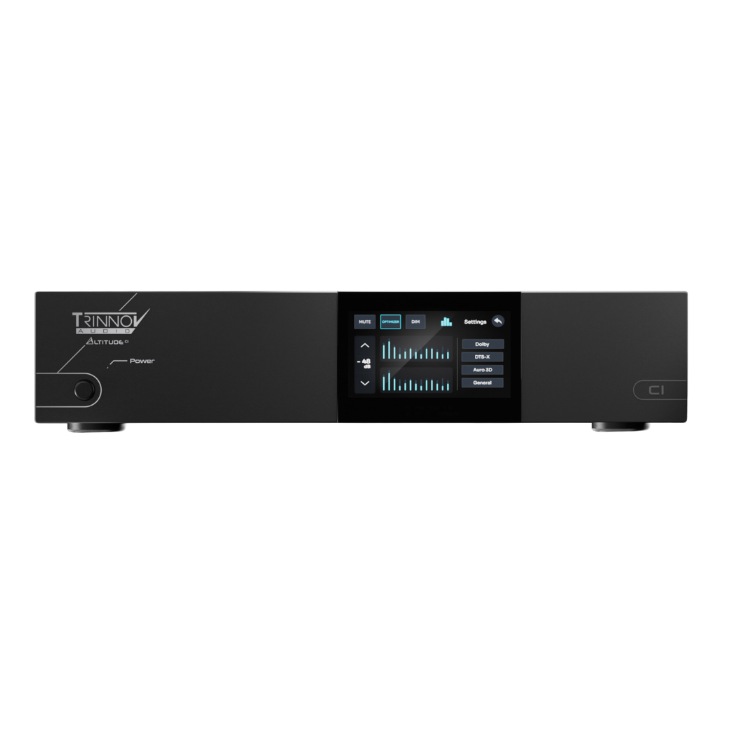

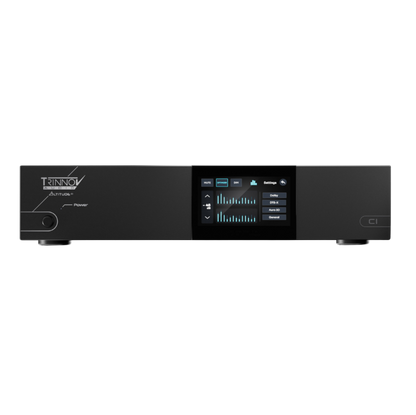

Front panel: 5-inch touchscreen
Power Modes: Standby & fast boot (firmware-ready)
Digital Acoustic Optimization
Trinnov Technologies:Trinnov Optimizer, WaveForming & Remapping
Calibration Workflow:Step-by-step guided setup
3D Mic Integration:Automatic compensation file upload
Audio Streaming
Roon: Certified Roon Ready endpoint (soon)
Audirvãna: Certified plãys with audirvãna (soon)
UPnP: Flac, WAV, MP3, ogg
Power & Thermal
Power Supply: 100-240V auto-switching
Max Consumption: 140W (0,5W idle)
Cooling: Temperature-controlled exhaust fans
Heat Output: 480 BTU/hr (max load)
Mains fuse: 2x T800mA
Chassis & Dimensions
Form Factor: 2RU rack-mountable
Net Weight: 8.6kg / 19 lbs
Front Plate: Smoked-glass touchscreen in brushed aluminum
Design: Minimalist, with removable ears/feet
W x H x D (no ears/feet): 438 x 88 x 371 mm / 17.24 x 3.46 x 14.61 in
W x H x D (with ears/feet): 482 x 97 x 371 mm / 18.98 x 3.82 x 14.61 in
