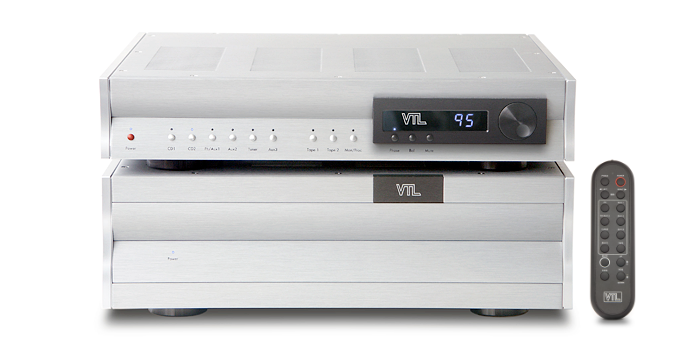

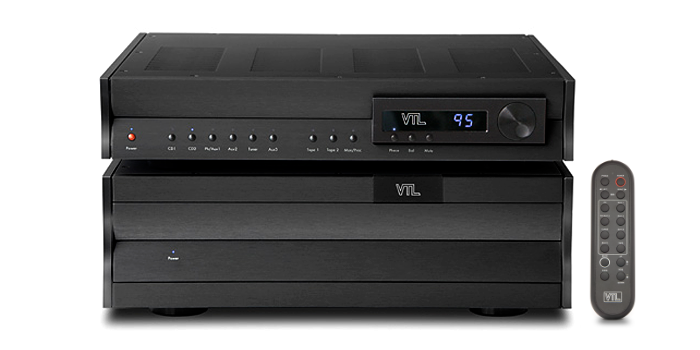

TL-7.5 S3 Reference Preamplifier
*This product is built to order. The estimated delivery time is 3 months.
More than eight years after introducing the TL-7.5 Reference preamplifier to universal acclaim, VTL presents the latest version, the TL7.5 Series III. The new model incorporates numerous technological advances while retaining the best elements of the TL-7.5 platform. The proven strengths of the original system architecture include: a fully balanced differential design; a hybrid circuit that combines tubes in the gain stage for voltage linearity (less than 2dB NFB) with a MOSFET buffer for greater current capacity; a high resolution volume control; and a clean box/dirty box architecture with multiple precision-regulated power supplies. The highly-regarded user interface of the TL7.5 platform sets the standard for intuitiveness, and ease of use.
The Series III builds on improvements made to the Series II for an even higher level of performance. The new design features an extensively revised power supply based on current-sourced shunt regulator technology that minimizes impact on the audio signal by eliminating high voltage gain. Far more precise power regulation yields dramatically improved rejection of noise and AC fluctuation.
The completely redesigned high current gain stage utilizes newly available FET technology developed for green technologies such as solar panels and electric cars that require a normally-on state. Unlike MOSFETs that need to be biased on, normally-on devices operate more like vacuum tubes in the audio output stage, with simpler circuits that continuously conduct current, resulting in a more tube-like sound. The high-current gain stage has been further optimized for linearity with zero global negative feedback in the circuit.
Also included in the upgrade are new specially selected audiophile grade capacitors and a fully bi-directional RS-232 control interface for increased compatibility with modern home theater systems.
Enhancements to the Series III result in an even higher level of coherence, integration and transparency of sound, with dramatically improved mid-bass and midrange, and a more tube-like sonic character.
Specifications
| Feature |
Specification |
| Vacuum Tube Complement |
2 x 12AU7 |

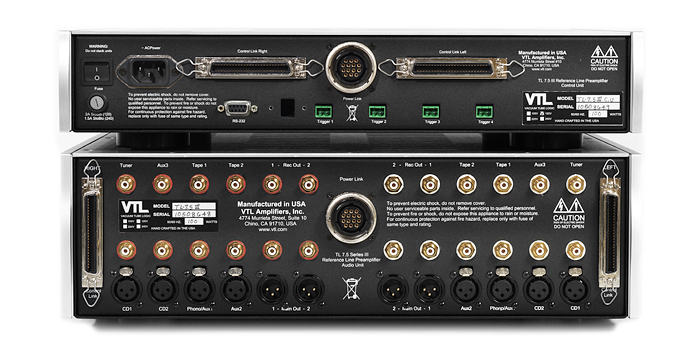

| Inputs |
4 pairs balanced/XLR or RCA single-ended
4 pairs single-ended/RCA
|
| Outputs |
2 pairs balanced out
2 pairs single-ended RCA out
2 pairs single-ended RCA buffered Tape Out
|
| Remote Control Functions |
Power, Source Select, Volume up/down, Mute, Fade, Balance Control, Phase Reverse |
| Gain |
Balanced In / Balanced Out: 19.2 dB
Single-Ended In / Balanced Out: 19.2 dB
Balanced In / Single-Ended Out: 13.2 dB
Single-Ended In / Single-Ended Out: 13.2 dB
|
| Output Impedance |
25Ω (Max 150Ω @ 10Hz) |
| Input Impedance |
50kΩ (20kΩ minimum) |
| Frequency Response |
1Hz – 100kHz (+0 /-1 dB)
(20Hz – 100kHz +0 /–1dB into 600Ω with 900pF 20’ interconnect cable)
|
| Maximum Output Voltage |
Into 10kΩ or above: 30V (<1% THD, 10Hz – 200kHz +/-1dB)
Into 600Ω: 10V (<1% THD)
|
| Channel Separation |
>100dB @ 1kHz (>80dB @ 20kHz) |
| Power Consumption |
150W |
| Dimensions (W x D x H) |
Control Chassis: 17.5 x 17.5 x 4 inches (44.5 x 44.5 x 10.2 cm)
Audio Chassis: 17.5 x 17.5 x 6 inches (44.5 x 44.5 x 15.3 cm)
|
| Weight |
Unpacked (Audio Unit): 38 lbs (17.24 kg)
Unpacked (Control Unit): 32 lbs (14.50 kg)
Fully Packed (Two Boxes): 90 lbs (40.82 kg)
|
