1U Rackmount Multi-Format Media Player
The TASCAM BD-MP1MKII is a professional-grade 1U rack-mountable multi-format Blu-ray player designed for commercial AV, education, theatrical, venue, and high-end residential home cinema installations.
Building on the established BD-MP1 platform, the MKII provides comprehensive playback from Blu-ray, DVD, CD, USB storage, and SD cards, while offering professional-grade balanced XLR connectivity, 7.1-channel analog outputs, HDMI digital audio/video connectivity, and extensive IP and RS-232C control.
At Trimira Audio, we recommend the TASCAM BD-MP1MKII for AV integrators, commercial venues, and dedicated home theater installations requiring reliable physical-media playback, flexible audio connectivity, and comprehensive system-control options across Brisbane, Queensland, and Australia.
Key Features & Audio Engineering Highlights
Universal Physical & Solid-State Media Playback
The BD-MP1MKII supports an extensive range of media, including:
- Blu-ray BD25 / BD50
- BD-ROM / BD-R / BD-RE
- DVD
- CD
- USB storage
- SD / SDHC / SDXC cards up to 512 GB
This makes it a versatile single-source playback solution for professional AV environments.
Commercial Installation Features
Designed specifically for controlled installation environments, the BD-MP1MKII includes:
-
Power-On Play for immediate playback after startup
-
Hide MENU for a clean black screen instead of setup menus
- Panel lock
- Tray lock
- IR lock
These features help prevent accidental or unauthorized operation.

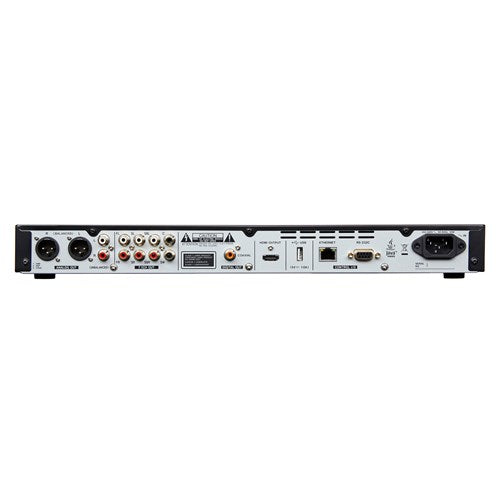

Versatile Analog & Digital I/O
The player provides extensive audio connectivity, including:
- Balanced stereo XLR outputs
- Unbalanced stereo RCA outputs
- Dedicated 7.1-channel RCA outputs
- Coaxial S/PDIF
- HDMI audio/video output
HDMI supports Dolby Atmos and DTS-HD passthrough for compatible AV processors and receivers.
Network & Serial External Control
Professional integration is supported through:
- Ethernet RJ45
- Telnet/IP control
- RS-232C
- Infrared remote control
Making the player suitable for integration with sophisticated control platforms and automated AV systems.
Broad File Format Compatibility
The BD-MP1MKII supports a wide selection of media files, including:
Audio: WAV, FLAC, APE, MP3, AAC, WMA
Video: MKV, MP4, MOV, AVI, WMV, M2TS, ASF, MPEG, 3GP, DAT, TP, TS
Images: JPEG, PNG, GIF
Product Specifications
| Specification |
Technical Detail |
| Form Factor |
1U Rackmount (19" Rack Ears Included) |
| Supported Disc Formats |
BD25, BD50, BD-ROM, BD-R, BD-RE, DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, CD, CD-DA, CD-R, CD-RW |
| Supported Solid-State Media |
SD/SDHC/SDXC Cards (Up to 512 GB), USB Flash Drives (FAT16, FAT32, NTFS, exFAT) |
| Supported Audio File Formats |
WAV, FLAC, APE, MP3, AAC, WMA |
| Supported Video File Formats |
MKV, MP4, MOV, AVI, WMV, M2TS, ASF, MPEG, 3GP, DAT, TP, TS |
| Frequency Response |
20 Hz – 20 kHz (±0.5 dB) |
| Signal-to-Noise Ratio (SNR) |
≥96 dB |
| Total Harmonic Distortion (THD) |
≤0.03% |
| Video Output |
1 × HDMI (Up to 1080p, HDMI CEC Supported) |
| Analog Audio Outputs |
2 × XLR (Balanced Stereo), 2 × RCA (Unbalanced Stereo), 8 × RCA (7.1 Surround Sound) |
| Digital Audio Outputs |
1 × HDMI (Dolby Atmos / DTS-HD Passthrough), 1 × Coaxial S/PDIF |
| Control Connections |
1 × Ethernet RJ45 (Telnet/IP Control), 1 × RS-232C (D-Sub 9-Pin), IR Remote |
| USB Ports |
1 × USB-A Front, 1 × USB-A Rear |
| Power Supply / Consumption |
AC 100–240 V, 50/60 Hz / 30 W |
| Dimensions (W × H × D) |
482.6 mm × 44.0 mm × 280.7 mm (19.0" × 1.7" × 11.1") |
| Net Weight |
2.64 kg (5.82 lbs) |
Why Choose Trimira Audio for Your Commercial & AV Installs?
-
Trimira Audio Commercial Experience – Explore professional rackmount players, media servers, and AV integration components for dedicated home theaters and commercial installations.
-
System Integration Specialists – Expert assistance with RS-232C and IP control, 7.1-channel routing, HDMI integration, rack installation, and system architecture.
-
National HiFi & Pro Audio Authority – Supporting AV professionals, integrators, home cinema builders, and commercial installations throughout Queensland and Australia.
What’s Included in the Box
- 1 × TASCAM BD-MP1MKII Professional Blu-ray Player
- 1 × RC-BDMP1MKII Wireless Remote Control with 2 × AAA Batteries
- AC Power Cord Set
- Rackmount Screw Kit
- Owner’s Manual & Warranty Documentation
