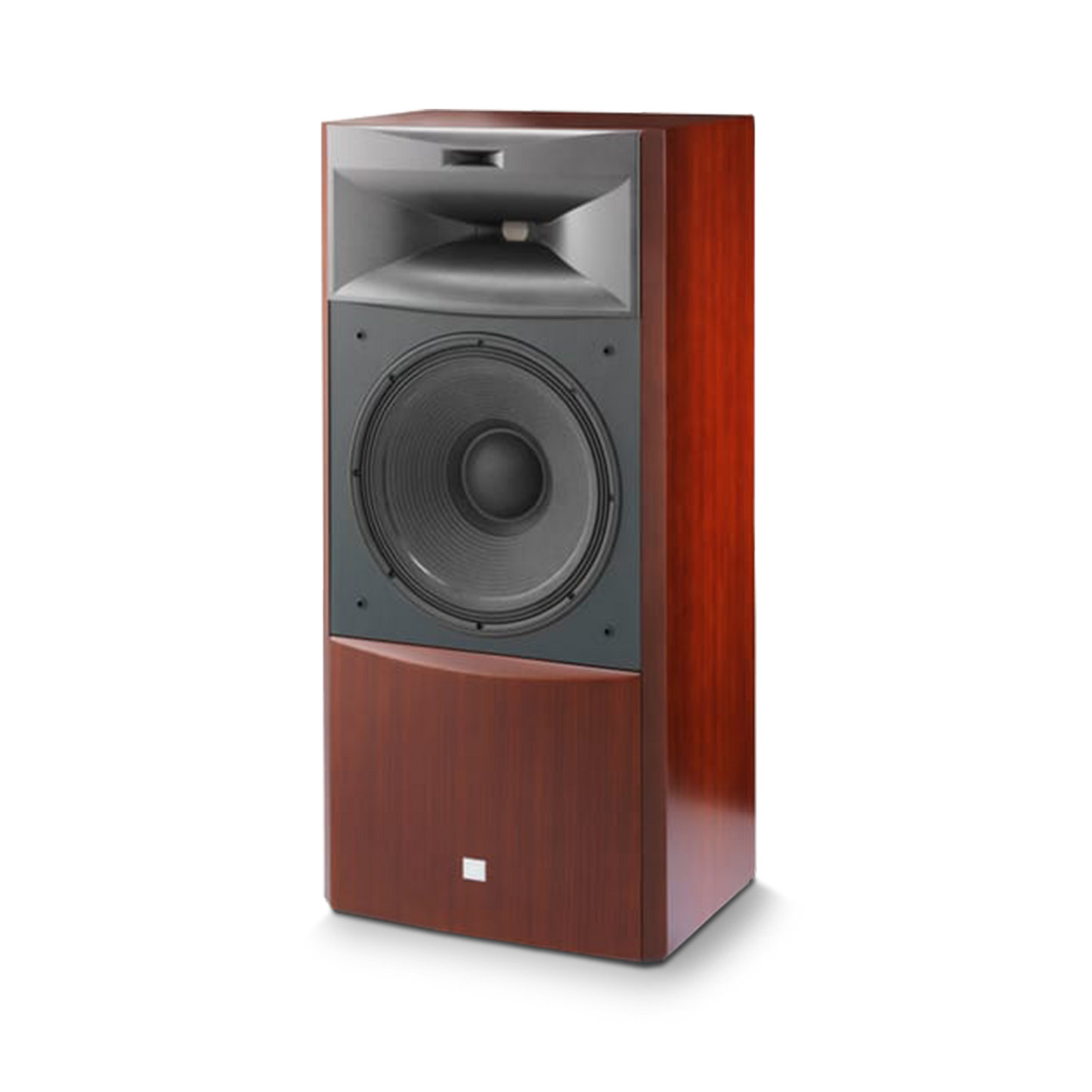

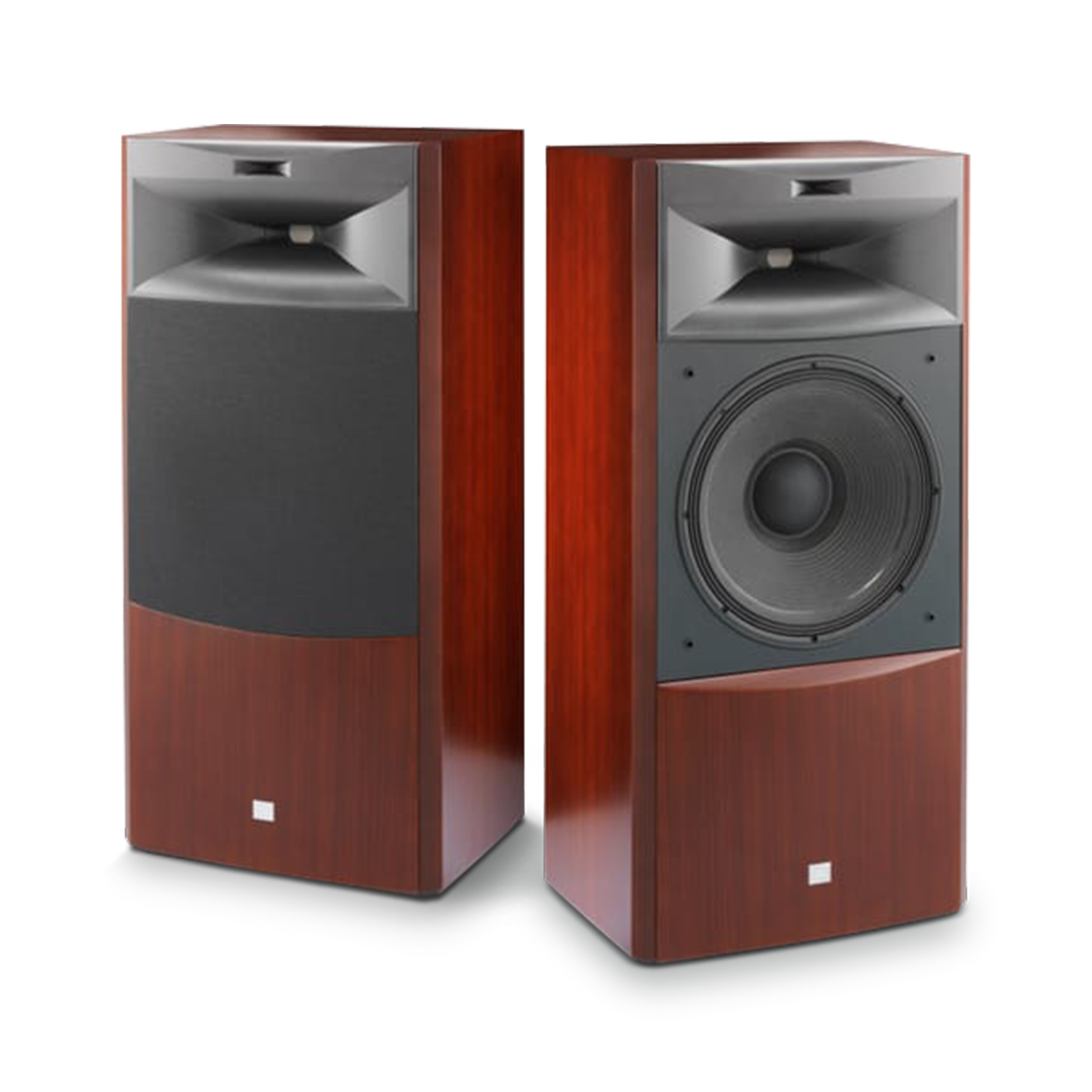

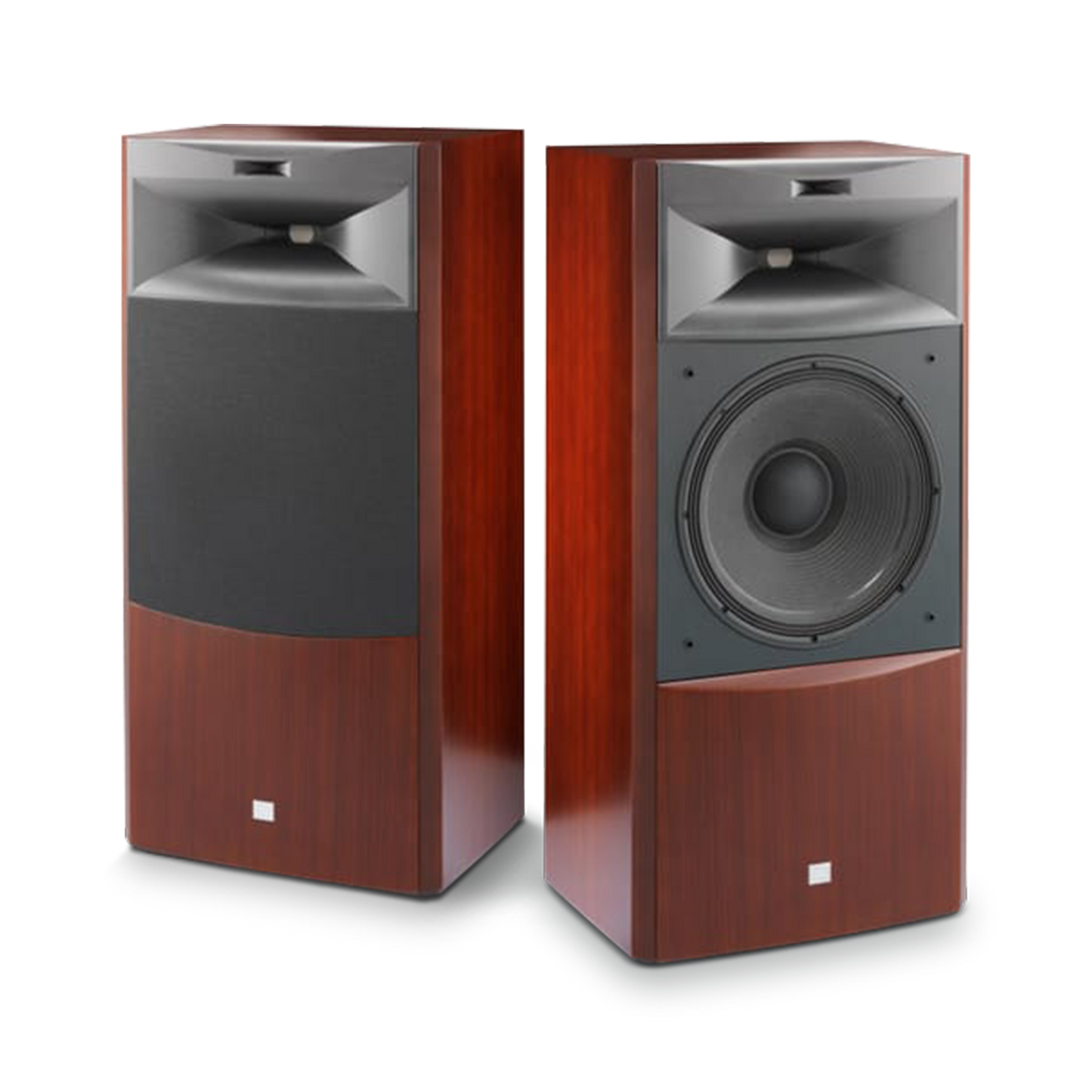

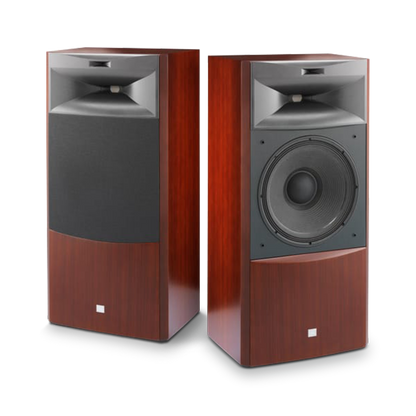

The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today. At its foundation, the S4700 uses a cast-frame 15-inch (380mm) woofer, a 1.75-inch (45mm) titanium compression driver and a 0.75-inch (20mm) titanium compression driver for lifelike dynamics and startling realism.
Mid- and high-frequencies are reproduced by a pair of titanium diaphragm compression drivers and a single-piece, SonoGlass® dual horn assembly. The 2-inch AquaPlas™-coated titanium diaphragm compression driver (175Nd-3) is mated to a 90° x 60° Bi-Radial® horn and delivers mid- and high-frequencies with lifelike dynamics and startling realism while an ultra-high frequency 0.75-inch titanium diaphragm compression driver (138Nd) with a 60° x 30° Bi-Radial horn recreates critical air and spaciousness. Premium-quality network components and dual binding post inputs ensure audiophile performance in any application. The attractive furniture-grade cherry wood veneer enclosure is internally braced at critical points and is tuned via a rear-firing port. The S4700 is intended for use in
high-performance 2-channel audio systems or as an LCR loudspeaker in a JBL Synthesis multi-channel home theater installation.
Description
3-way Floorstanding Loudspeaker
Frequency Response
38Hz - 40kHz (-6db)
Power Handling
300W RMS
Sensitivity (2.83V @ 1m)
94dB
Nominal Impedance
6 Ohms
Crossover Frequencies
80Hz, 12kHz
Dimensions (H x W x D)
42.1" x 19.7" x 14.6" (106.8 x 50.0 x 37.1cm)
Net Weight
120 lb (54.5kg)
