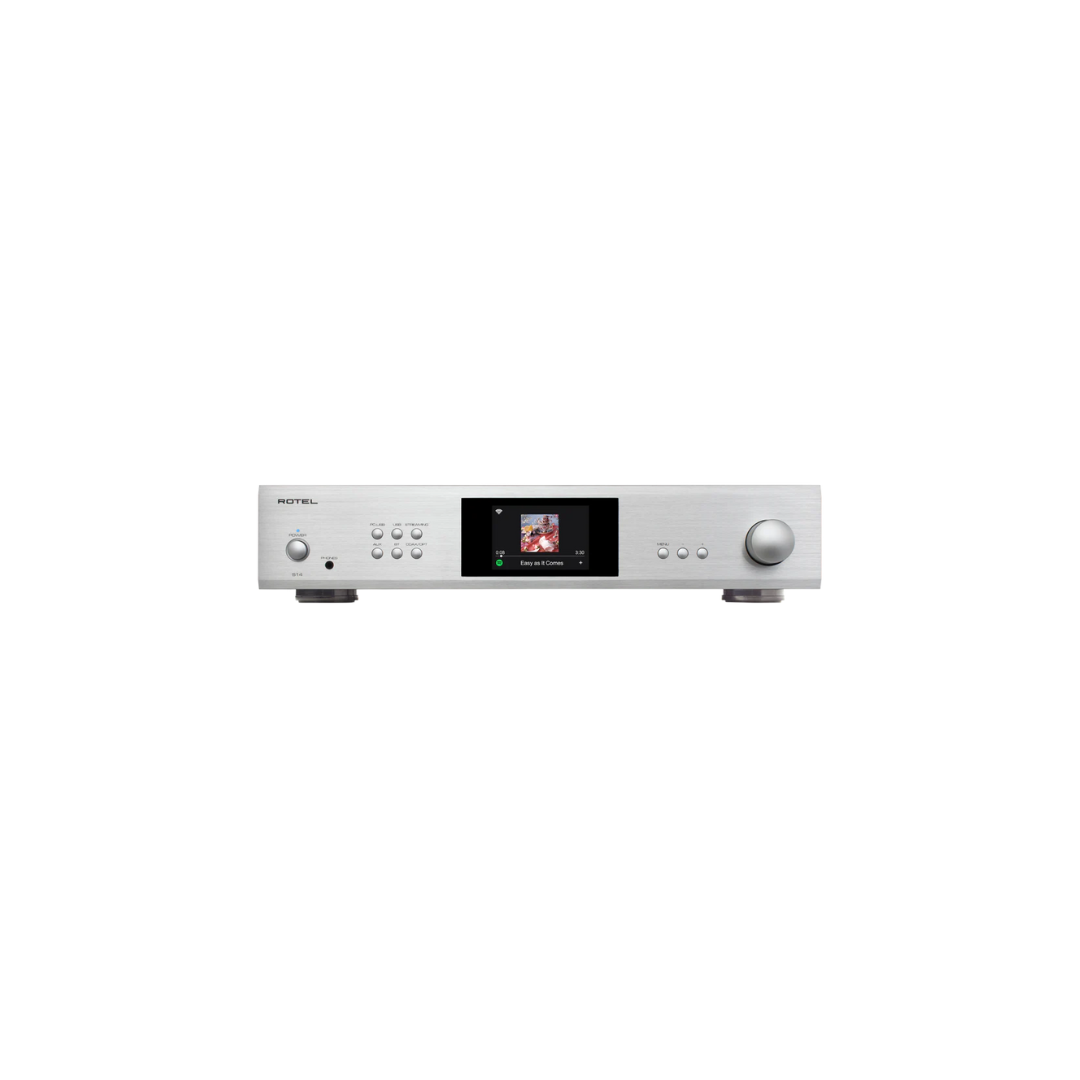

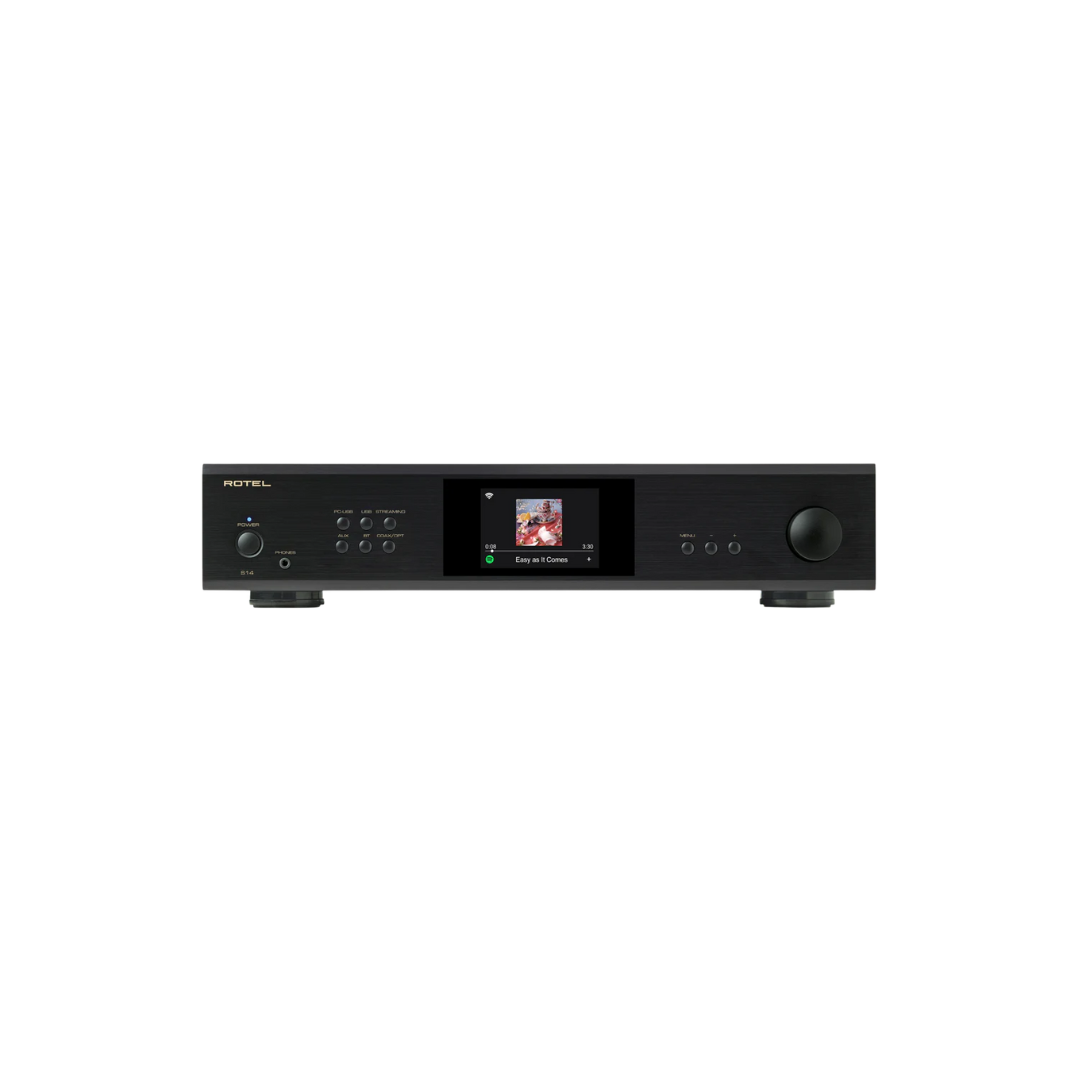

Leveraging over 60 years of design experience, the S14 delivers high performance music rendered through a 32-bit ESS Sabre digital-to-analog converter, feeding high current output transistors powered by an oversized toroidal transformer, delivering precision and control.
With the S14, users can stream music directly from popular streaming services including Spotify, Tidal, Qobuz, and podcasts as well as thousands of Internet Radio stations. Fully certified Roon Ready, AirPlay 2 and Google Cast are also supported as well as coaxial, optical, aptXTM HD Bluetooth, analogue RCA and PC-USB source inputs for legacy devices.
The all-in-one product streams music directly from popular music services, rendering the audio with precision, delivering 150 Watts of Class AB power at 4 Ohms directly to loudspeakers via 5-way binding posts and a front panel headphone connection. The S14 also comes with a newly engineered aluminium remote control for easy use in a design-forward package.
SPECIFICATIONS
Maximum Power Output - 150 watts/ch (4 ohms)
Continuous Power Output - 80 watts/ch (8 ohms)
Total Harmonic Distortion - < 0.04%
Intermodulation Distortion - < 0.03%(60 Hz : 7kHz, 4:1)
Frequency Response - Line Level Inputs - 10 Hz - 100k Hz, 0 ± 0.5 dB
Damping Factor - 400(20 Hz - 20 kHz, 8 ohms)
Input Sensitivity / Impedance - Line Level Inputs 200 mV / 47k ohms
Input Overload - Line Level Inputs 4.5 V
Tone Controls - Bass / Treble ± 10 dB at 100 Hz / 10k Hz
Signal to Noise Ratio (IHF A-weighted) - Line Level Inputs 100 dB
Digital to Analog Converters - ESS
Digital Section
Frequency Response - 10 Hz - 90k Hz (0 ± 2 dB, Max)
Signal to Noise Ratio (IHF A-weighted) - 98 dB
Input Sensitivity/Impedance - -20 dBfs / 75 ohms
Digital Inputs - SPDIF LPCM(up to 24-bit / 192k Hz)
PC-USB - USB Audio Class 2.0(up to 24-bit / 384k Hz )**Driver installation required
Support MQA and MQA Studio(up to 24-bit / 384k Hz )
Power Requirements - USA 120 V, 60 HzEC 230 V, 50 Hz
Power Consumption - 280 watts
Standby Power Consumption - Normal < 0.5 watts
BTU (4 ohms, 1/8th power) - 733 BTU/h
Dimensions (W x H x D) - 430 x 93 x 345 mm or 17 x 3 5/8 x 13 1/2 inches
Front Panel Height - 80 mm / 3 1/8 ins
Weight (net) - 9.15 kg, 20.17 lbs.
Finish Silver and Black
