Rotel A14MKII Stereo Integrated Amplifier

$2,199
$2,199
Tax included.
Vendor: Rotel
Color: Black

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Rotel A14MKII Stereo Integrated Amplifier
Rotel A14MKII Stereo Integrated Amplifier
Caret Down

Rotel

A14MKII Stereo Integrated Amplifier

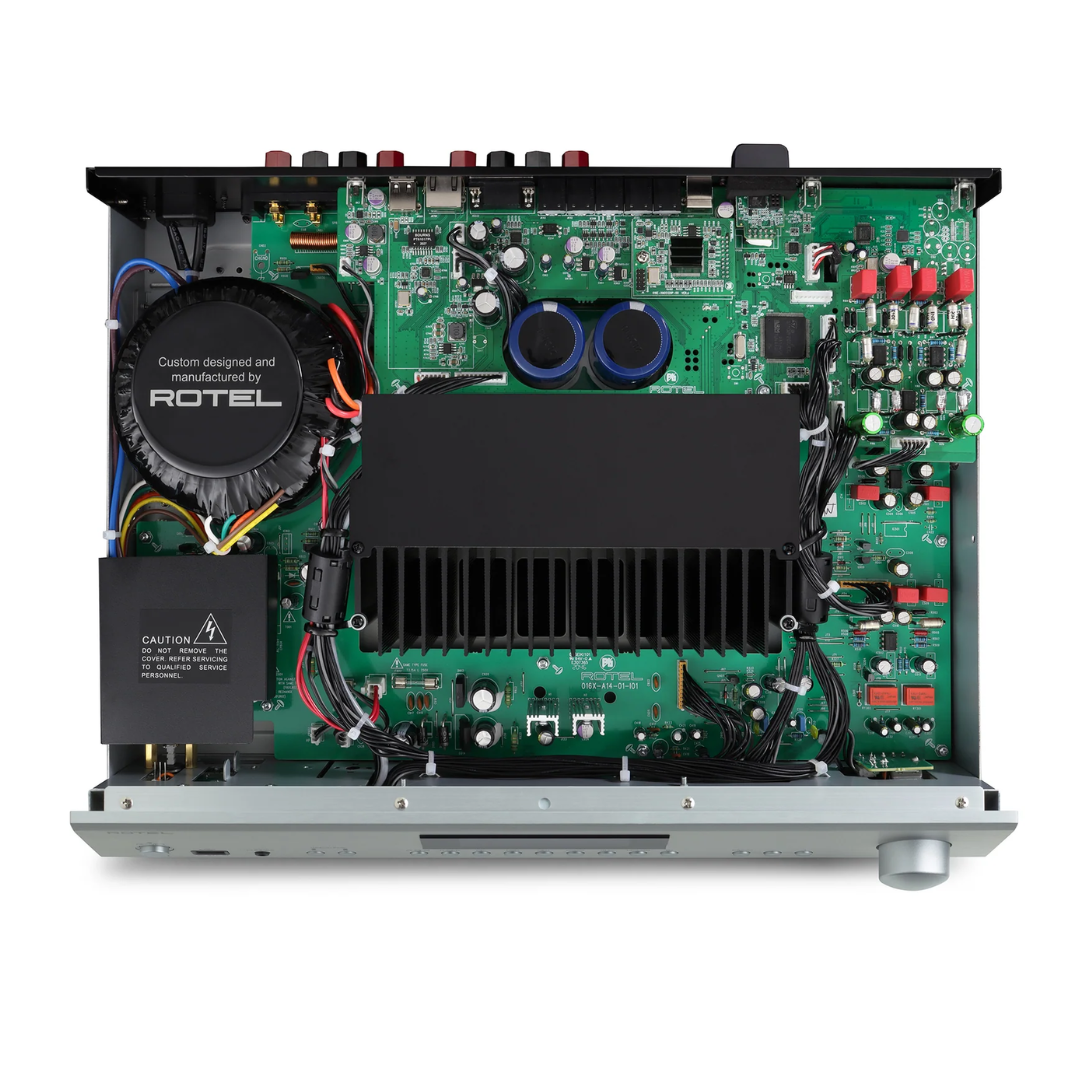

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

  • 2 x 150 Watts of robust Class AB power, 4 Ohms

  • Moving Magnet Phono input for turntable connection

  • Wireless aptX™ and AAC Bluetooth

  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter

  • Supports MQA and MQA Studio

  • Certified Roon Tested



A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

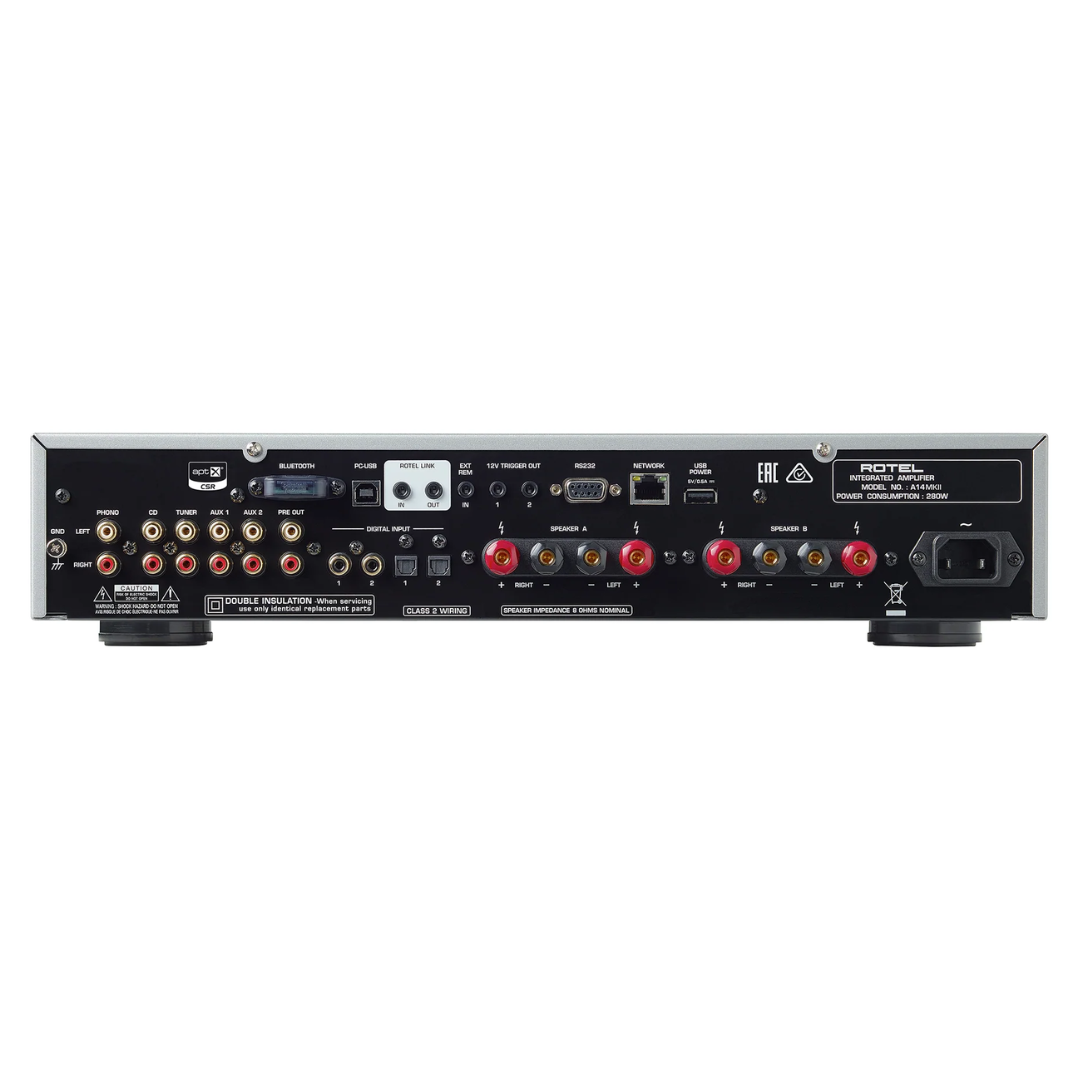

Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.



SPECIFICATIONS
Maximum Power Output 150 watts/ch (4 ohms)
Continuous Power Output 80 watts/ch (8 ohms)
Total Harmonic Distortion   < 0.018%
Intermodulation Distortion
(60 Hz : 7k Hz, 4:1)		 < 0.03%
Frequency Response
Phono Input   20 Hz - 20k Hz (0 ± 0.5 dB)
Line Level Inputs   10 Hz - 100k Hz (0 ± 0.5 dB)
Damping Factor
(20 Hz - 20k Hz, 8 ohms)		 220
Input Sensitivity / Impedance
Phono Input   3.4 mV / 47k Ohms
Line Level Inputs 230 mV / 24k Ohms
Input Overload
Phono Input   50 mV
Line Level Inputs 4 V
Preamp Output / Impedance 1.2 V / 470 Ohms
Tone Controls - Bass / Treble  ± 10 dB at 100 Hz / 10k Hz
Signal to Noise Ratio
(“A” weighting)
Phono Input   90 dB
Line Level Inputs 100 dB
Digital Section
Frequency Response  10 Hz - 90k Hz (0 ± 2.0 dB, Max)
Signal to Noise Ratio
(IHF “A” weighted)		 103 dB
Input Sensitivity/Impedance 0 dBfs / 75 Ohms
Preamplifier Output Level 1.4 V (at - 20 dB)
Digital Inputs  SPDIF LPCM
(up to 24-bit / 192k Hz)
PC-USB  USB Audio Class 1.0
(up to 24-bit / 96k Hz )
USB Audio Class 2.0
(up to 32-bit / 384k Hz )
* *Driver installation required
MQA and MQA Studio
(up to 24-bit / 384k Hz )
General
Power Requirements
Europe 230 V, 50 Hz
USA 120 V, 60 Hz
Power Consumption  280 watts
Standby Power Consumption  < 0.5 watts
BTU (4 ohms, 1/8 power) 632 BTU/h
Dimensions (W x H x D)   430 x 93 x 34 5 mm
17 x 3 5/8 x 13 1/2 in
Front Panel Height   80mm, 3 1/8 in
Weight (net)   8.94kg, 19.71 lb
Finish  Silver and Black
