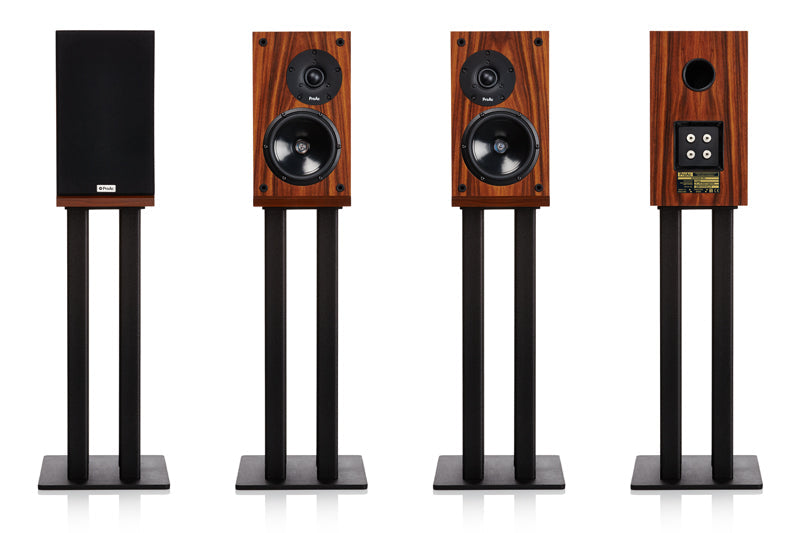

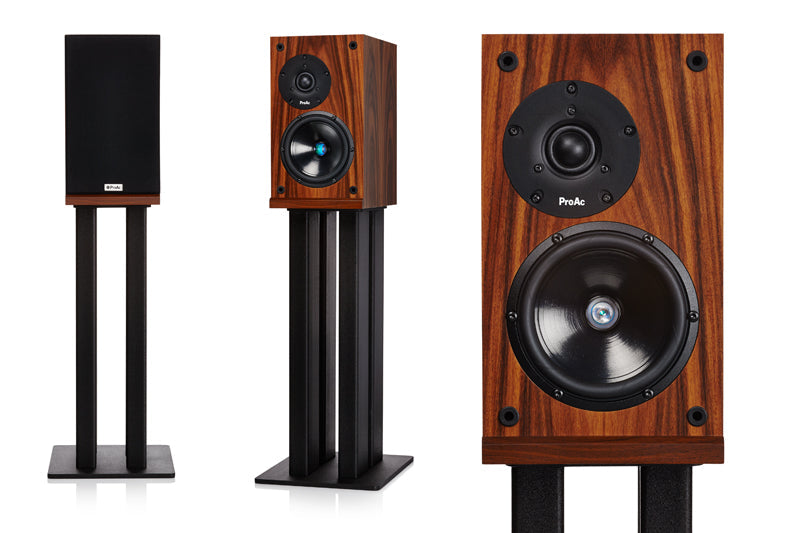

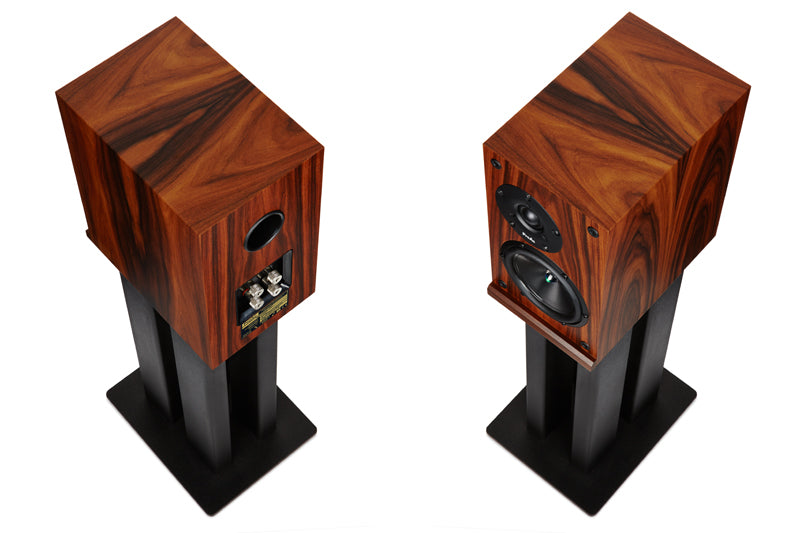

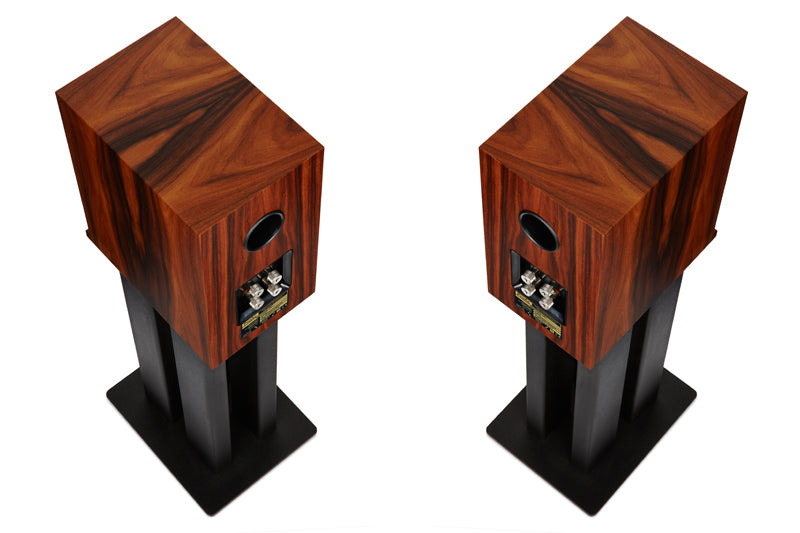

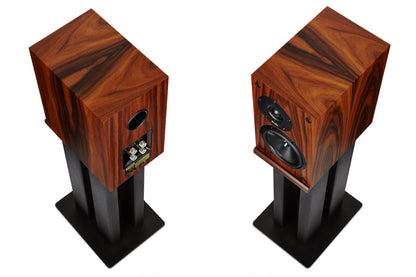

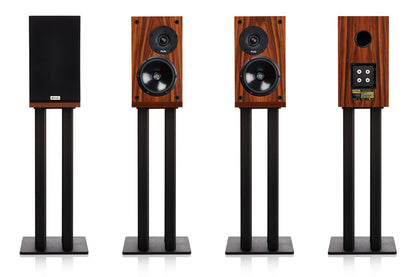

Small appearance with large stage presence. Meet the Response DB1. With the DB1, ProAc has achieved in a small speaker, a sound normally associated with a larger speaker, particularly the bass response.

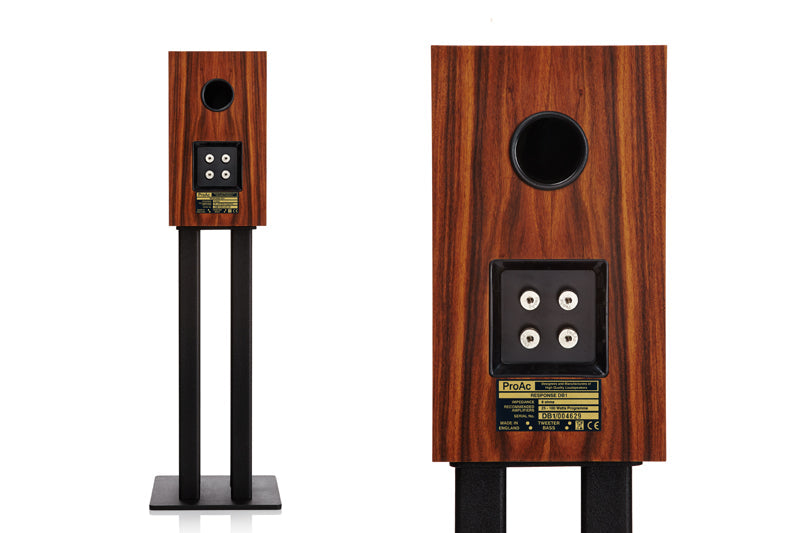

The DB1 cabinet is made from different thicknesses of high density MDF and further damped by bitumen to control cabinet resonance. A newly designed long throw bass driver was used and ported at the rear. The cone is made from pulp and mica which is then elastic coated and fitted with our ProAc acrylic pole damping phase plug.
The crossover was designed to give a flatter response at high levels and the tweeter is the ProAc 1-inch silk dome similar to that used in other ProAc Response models.
The midrange and high frequencies of the DB1 are superb and in the ProAc tradition, low in colouration and high in detail. The bass driver gives a wonderful bass quality, punchy and extended, similar to that which is experienced in a larger enclosure. The resulting sound stage is also comparable to that of a larger speaker.
Small mini monitor type loudspeakers, such as the DB1 have become very popular for those wishing for a high-quality sound with a minimal visual impact.
Specification
Nominal Impedance- 8 ohms
Recommended Amplifiers- 20 to 100 watts
Frequency Response- 35Hz-30kHz
Sensitivity- 87.5 dB linear for 1 watt at 1 metre
Bass /midrange- ProAc 127mm (5”) long throw unit with Pagina Mica cone and acrylic phase plug.
Tweeter- ProAc 25mm (1”) silk dome with special coolant
Crossover- Finest components on dedicated circuit board. Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification
Height (Cabinet)- 12.5”(320mm)
Width (Cabinet)- 7.28” (182mm)
Depth (Cabinet)- 10.4” (280mm)
Weight- each 8.8Kg (19.6lb)
Mode- Stand mounting
Grille- Acoustically transparent crimplene. Magnetic grilles available with certain finishes.
Standard Finishes- Black Ash, Mahogany, Cherry, Walnut, Natural Oak, Silk White.
Premium Finishes- Liquidambar, Rosewood, Ebony. *Premium Finishes to order at extra cost*
