Philips Dynalite DMRC210 Relay Controller
$0
Description
Specification
Installation
Returns
Description
Philips Dynalite

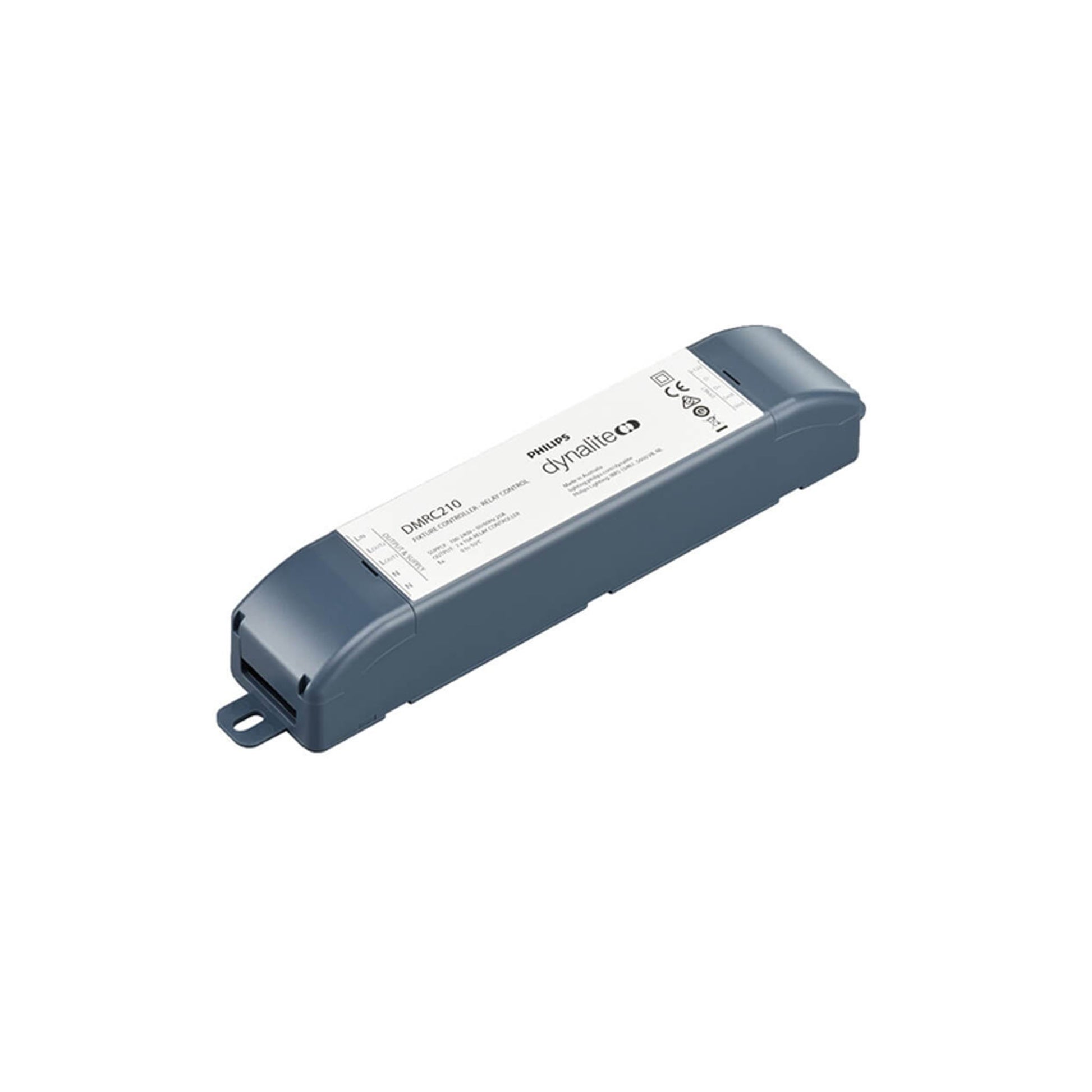

DMRC210 Relay Controller
Luminaire mount control of switched loads
The Philips Dynalite DMRC210 is a two channel device that provides intelligent networked control of individual lighting fixtures. The compact design enables mounting directly within the gear enclosure of many lighting fixtures.
• Incorporates two relay outputs — Used to control mains supply to the fixture and provide an intensity control when used with tapped drivers.
• Gear enclosure mounting — Compact design allows the device to be mounted directly within the gear enclosure of many light fittings.
• Fully rated device — Robust relays provide reliable control of difficult lighting loads.
• Inbuilt diagnostic functionality — Features Device Online/Offline status indication.
Specification
Item
Specification
Details

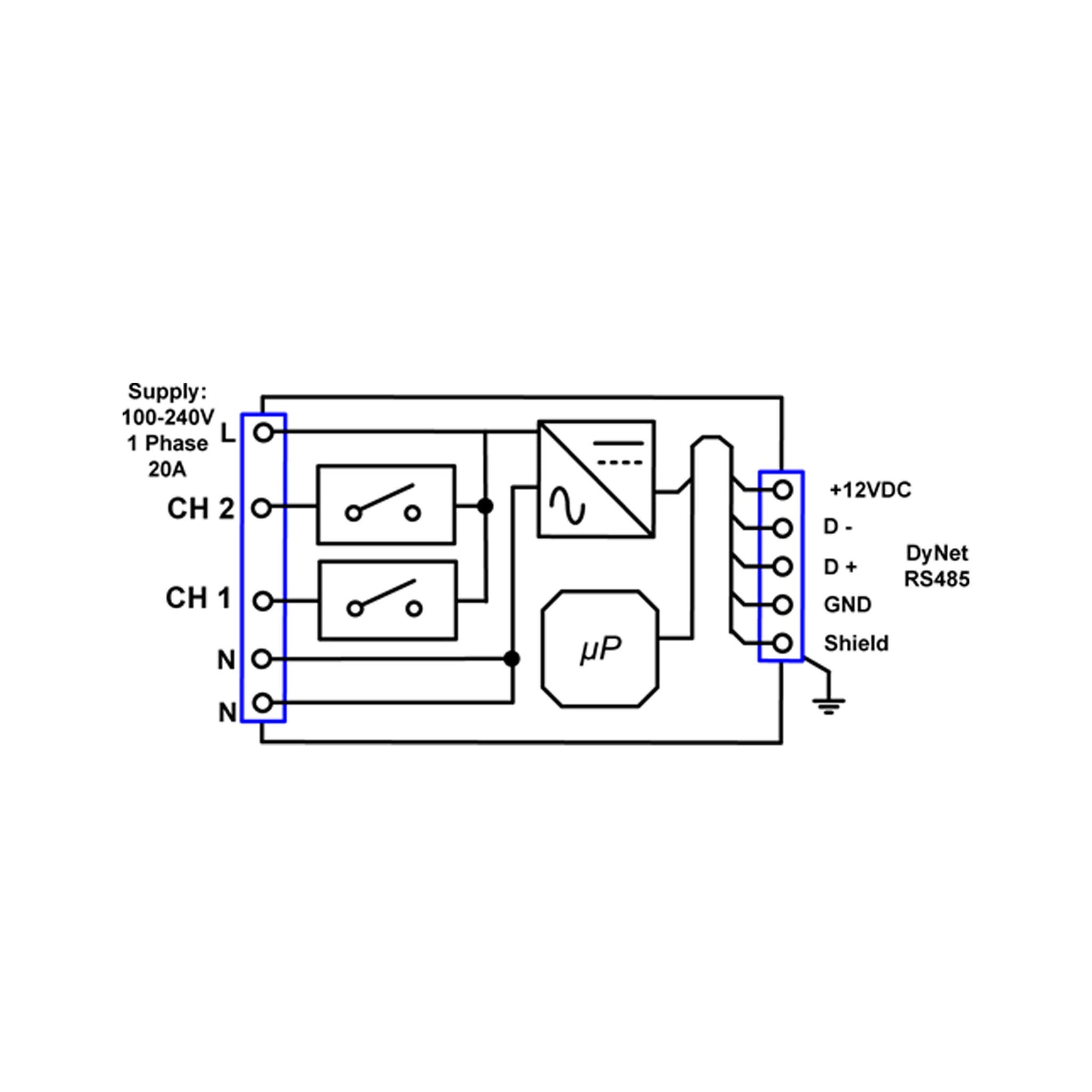

Input Voltage
100 – 240 VAC 50 / 60 Hz Single Phase @ 20 A
DyNet DC Supply
12 V @150 mA (supply for approx 7 user interfaces)
Electrical
Outputs
2 x switched @ 10 A (inductive)
Maximum device load 180 A
Switching Device
Relay, Tungsten pilot contact, 16 A inductive, 165 A surge
Control Inputs/Outputs
One DMX512 / RS-485 DyNet serial port
Control
Preset Scenes
170
Diagnostic Functions
Device online/offline status
SupplyTerminals
Line, Neutral
1 x 4 mm² maximum conductor size
Physical
Output Terminals
Line 1, Line 2, Neutral
1 x 4 mm² maximum conductor size

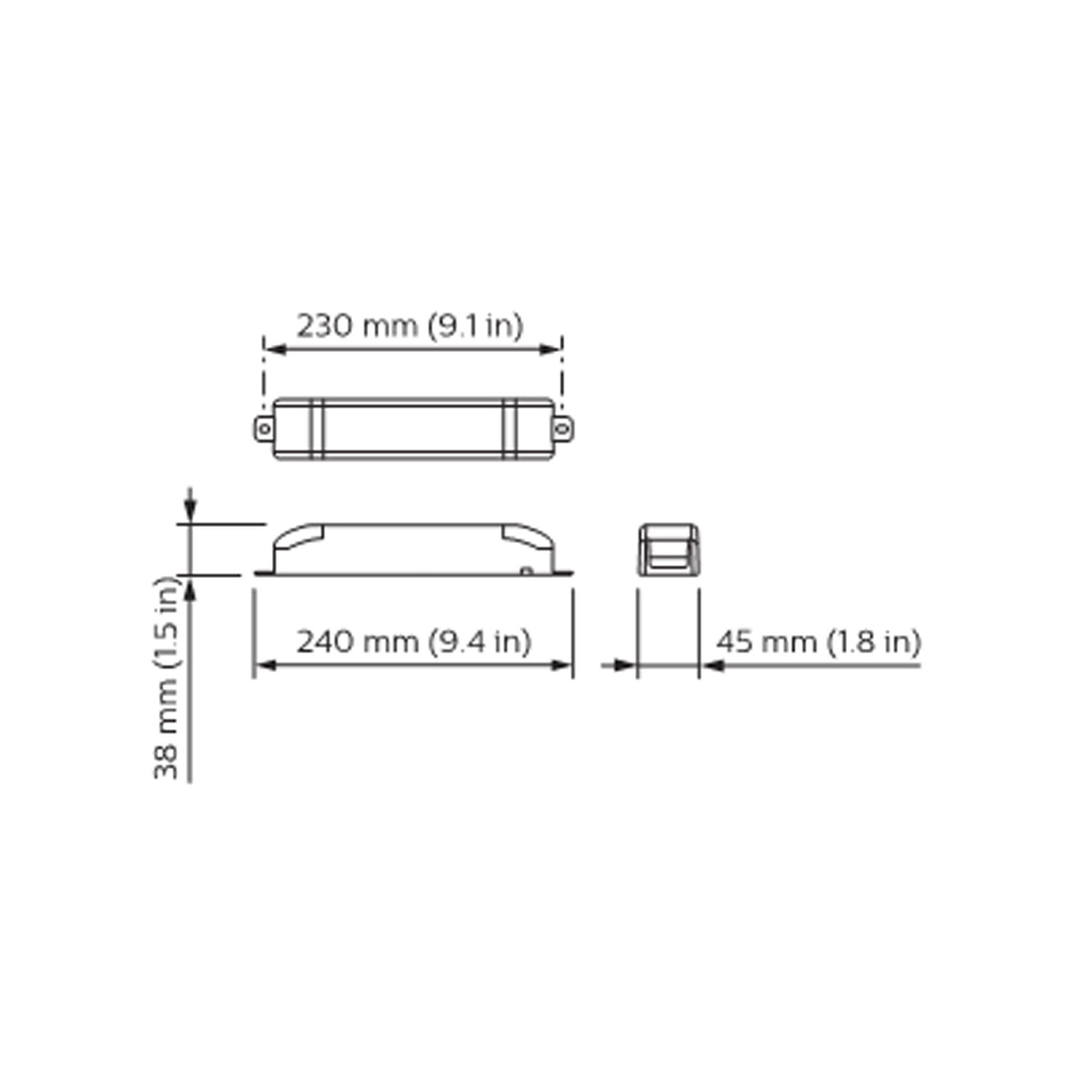

Dimensions (L x W x D)
240 mm x 45 mm x 38 mm
Packed Weight
0.19 kg
Construction
ABS plastic
Operating Conditions
Temperature: 0 to 50° C ambient
Humidity: 0 to 95% non-condensing
Storage & Transport
Temperature: -25 to 60°C ambient
Humidity: 0 to 90% non-condensing
Certification
Certification
CE, C-Tick
Options & Ordering
Standard Product
DMRC210 (Philips 12NC 913703050009)
