Philips Dynalite

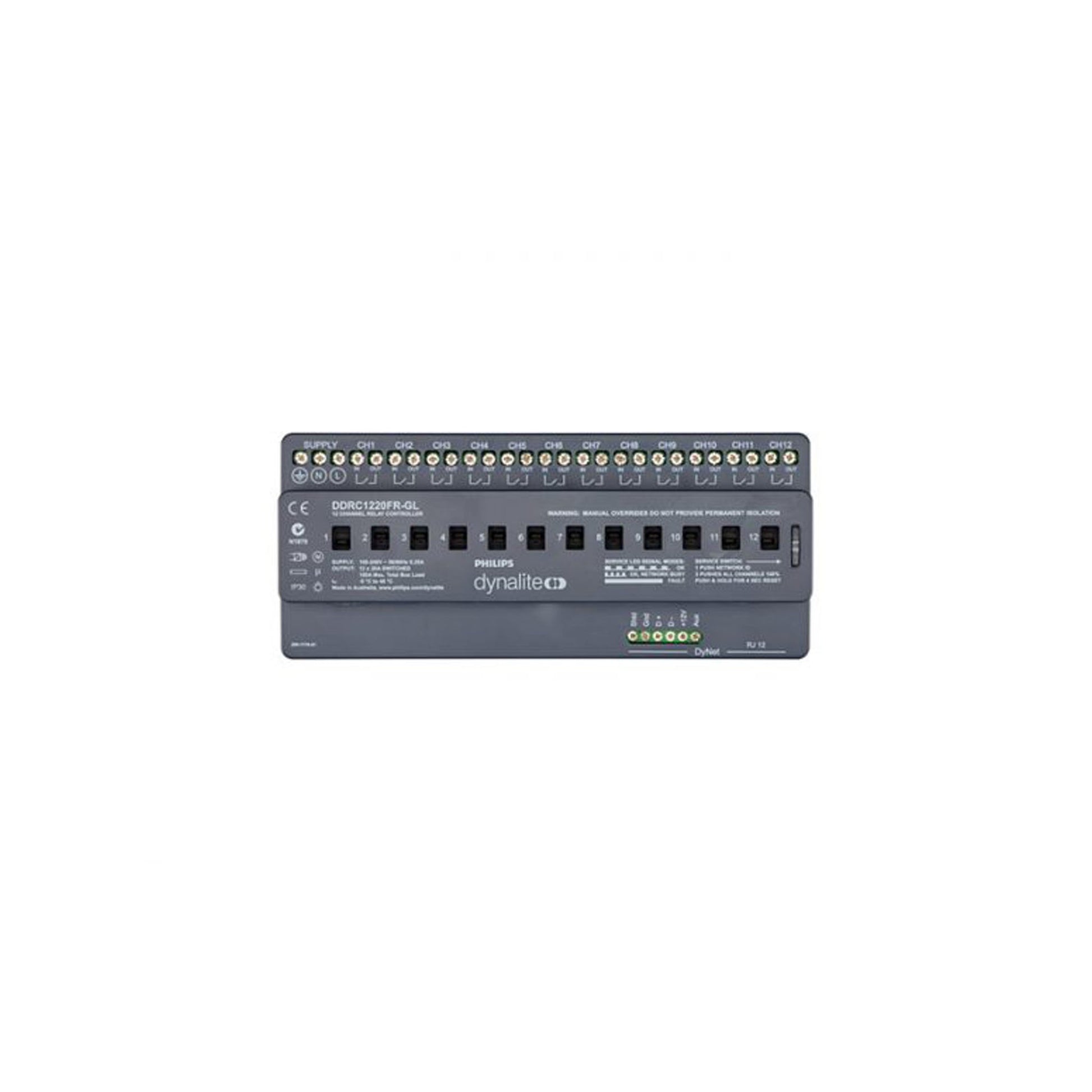

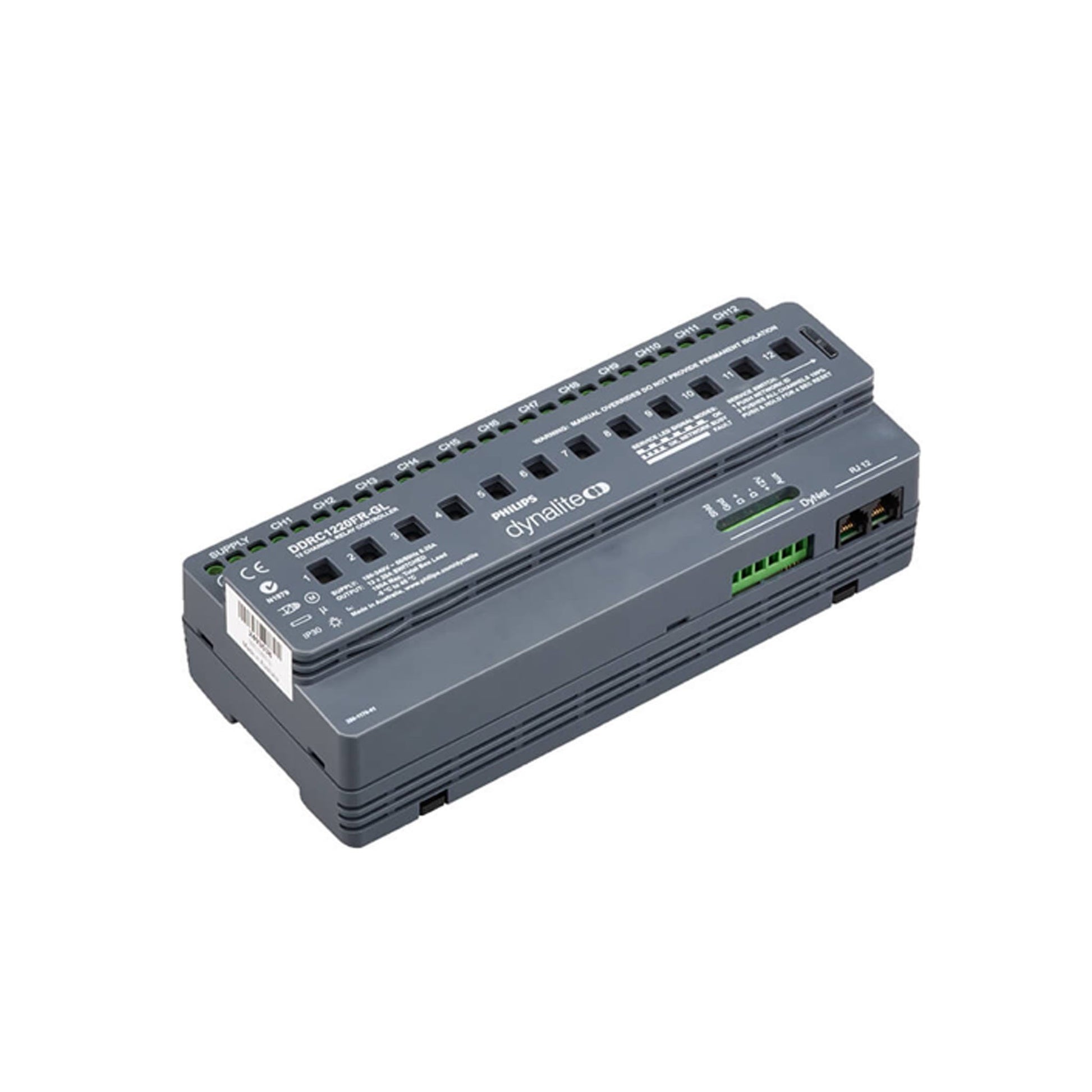

DDRC1220FR-GL Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.

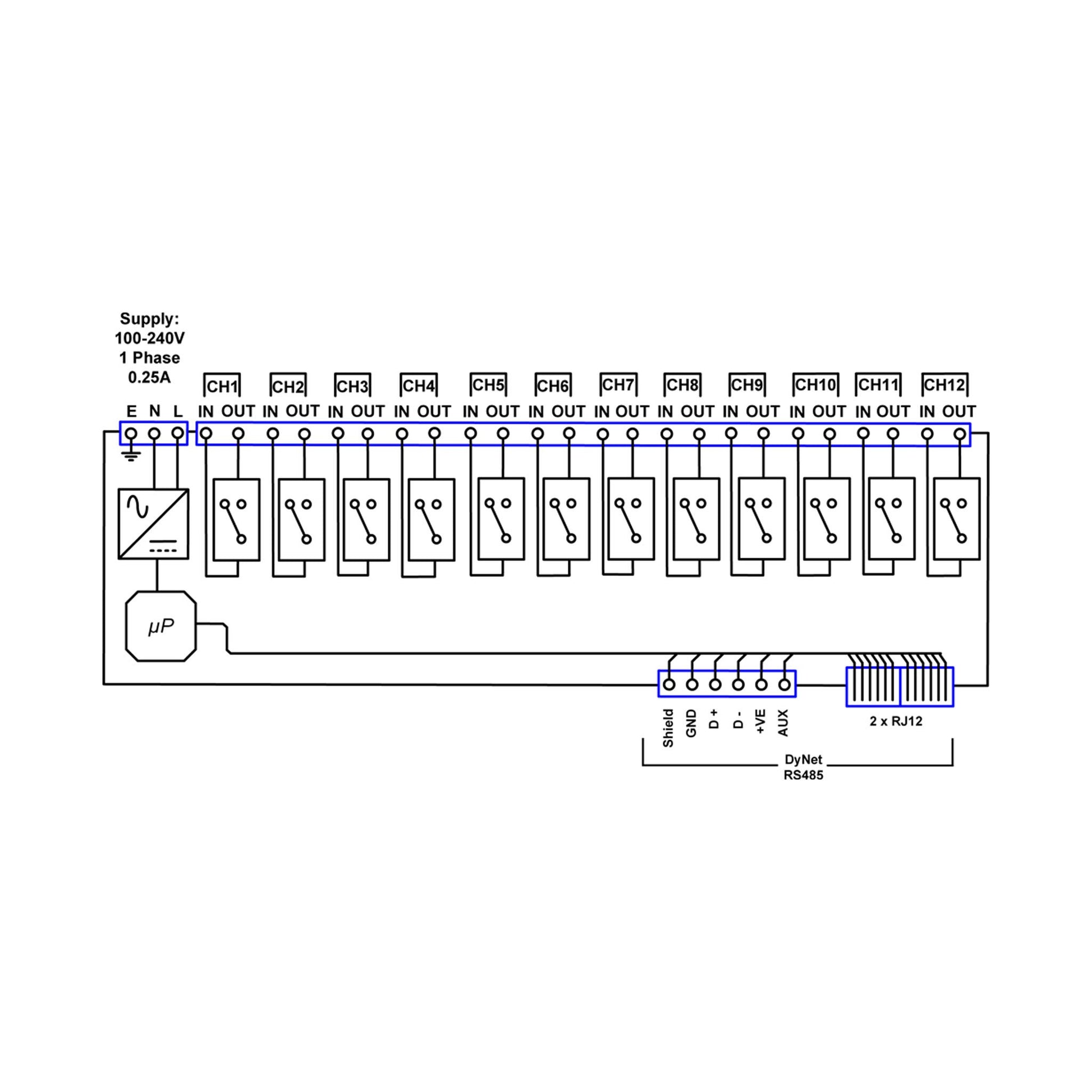

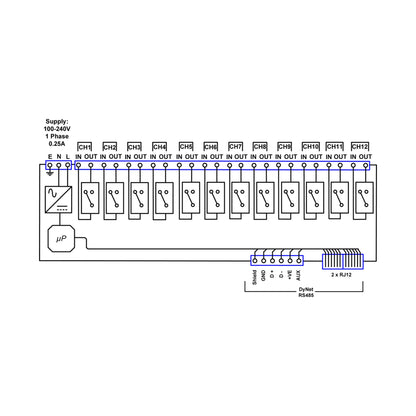

• Feed-through power circuit design — Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
• Flexible mounting solution — A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
• Inbuilt diagnostic functionality — Features circuit run time tracking on each channel and Device Online/Offline status indication.
• Multiple wiring schemes supported — Controls Single Phase and Neutral or Three Phase and Neutral (Star) wiring configurations.
• Hardware override — Service override switch accessible from front panel.
Item | Specification | Details |
Input Voltage | 100 – 240 VAC 50 / 60 Hz Single Phase @ 0.25 A | |
DyNet DC Supply | 12 V @120 mA (supply for approx 6 user interfaces) | |
Outputs | 12 x switched feed-through outputs @ 20 A (inductive) | |
Electrical | Maximum device load 180 A | |
Single Phase and Neutral | ||
Supported wiring schemes | Three Phase and Neutral (Star) | |
Maximum device load 180 A | ||
Rated switch current: 50 A resistive | ||
Relays | 20A lighting load | |
Rated inrush current: 500 A | ||
Control Inputs/Outputs | One DMX512 / RS-485 DyNet serial port | |
One programmable dry contact AUX input | ||
Control | User Controls | Manual override switch for each channel |
Service switch | ||
Diagnostic LED | ||
Internal Controls | Programmable Logic Controller | |
Preset Scenes | 170 | |
Diagnostic Functions | Device online/offline statu | |
Ciruit run time tracking on each channel | ||
Network Watchdog | ||
Supply Terminals | Line, Neutral, Earth | |
1 x 4 mm² maximum conductor size | ||
Output Terminals | Line In, Line Out for each channel | |
1 x 4 mm² maximum conductor size | ||

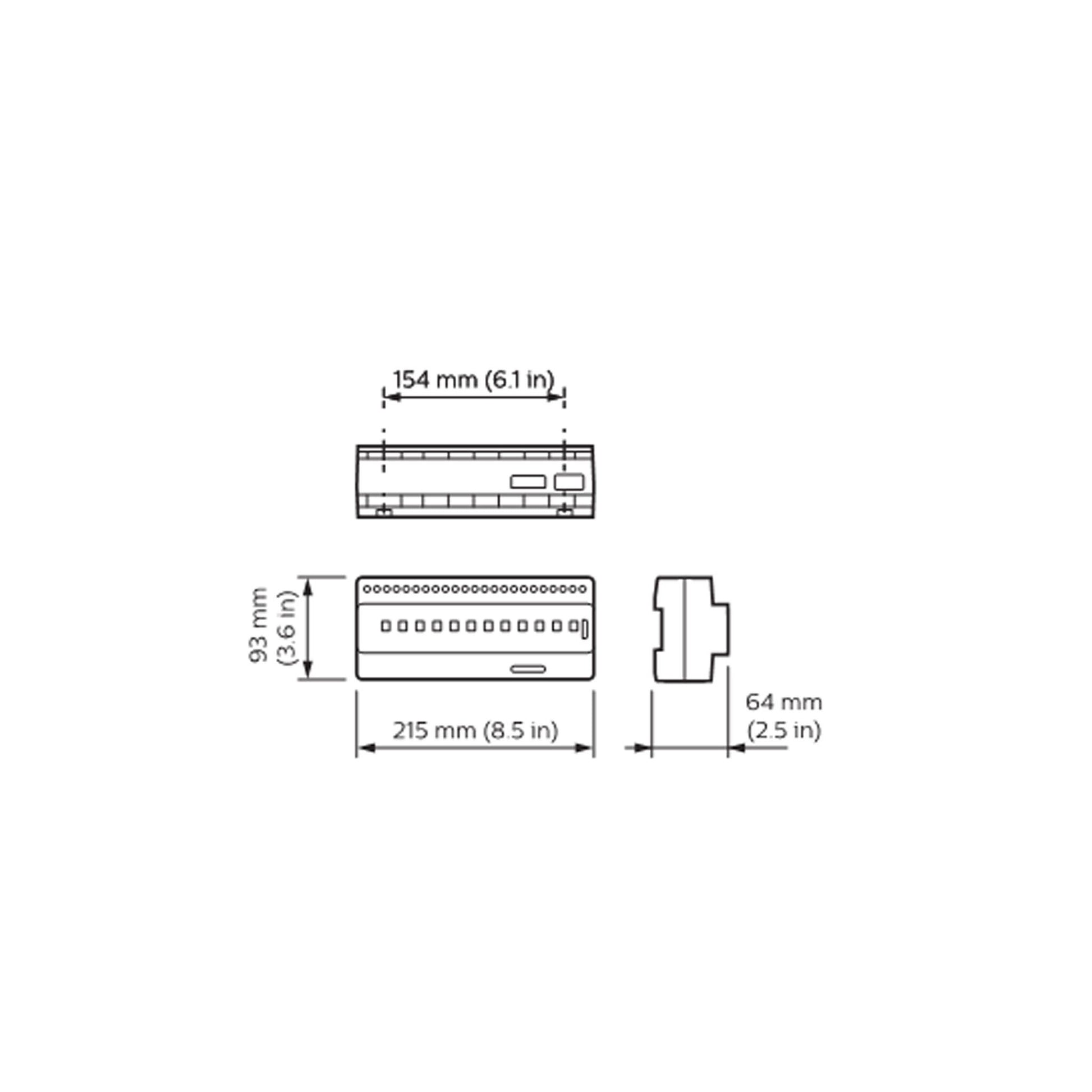

Physical | Dimensions (H x W x D) | 93 mm x 215 mm x 64 mm |
Packed Weight | 1.1kg | |
Construction | Polycarbonate DIN-rail enclosure (12 unit) | |
Operating Conditions | Temperature: 0 to 50° C ambient | |
Humidity: 0 to 95% non-condensing | ||
Storage & Transport | Temperature: -25 to 60°C ambient | |
Humidity: 0 to 90% non-condensing | ||
Certification | Certification | CE, RCM |
Options & Ordering | Standard Product | DDRC1220FR-GL (Philips 12NC 913703052309) |
