Philips Dynalite DDRC-GRMS – Room Controller
$0
Description
Specification
Installation
Returns
Description
Philips Dynalite

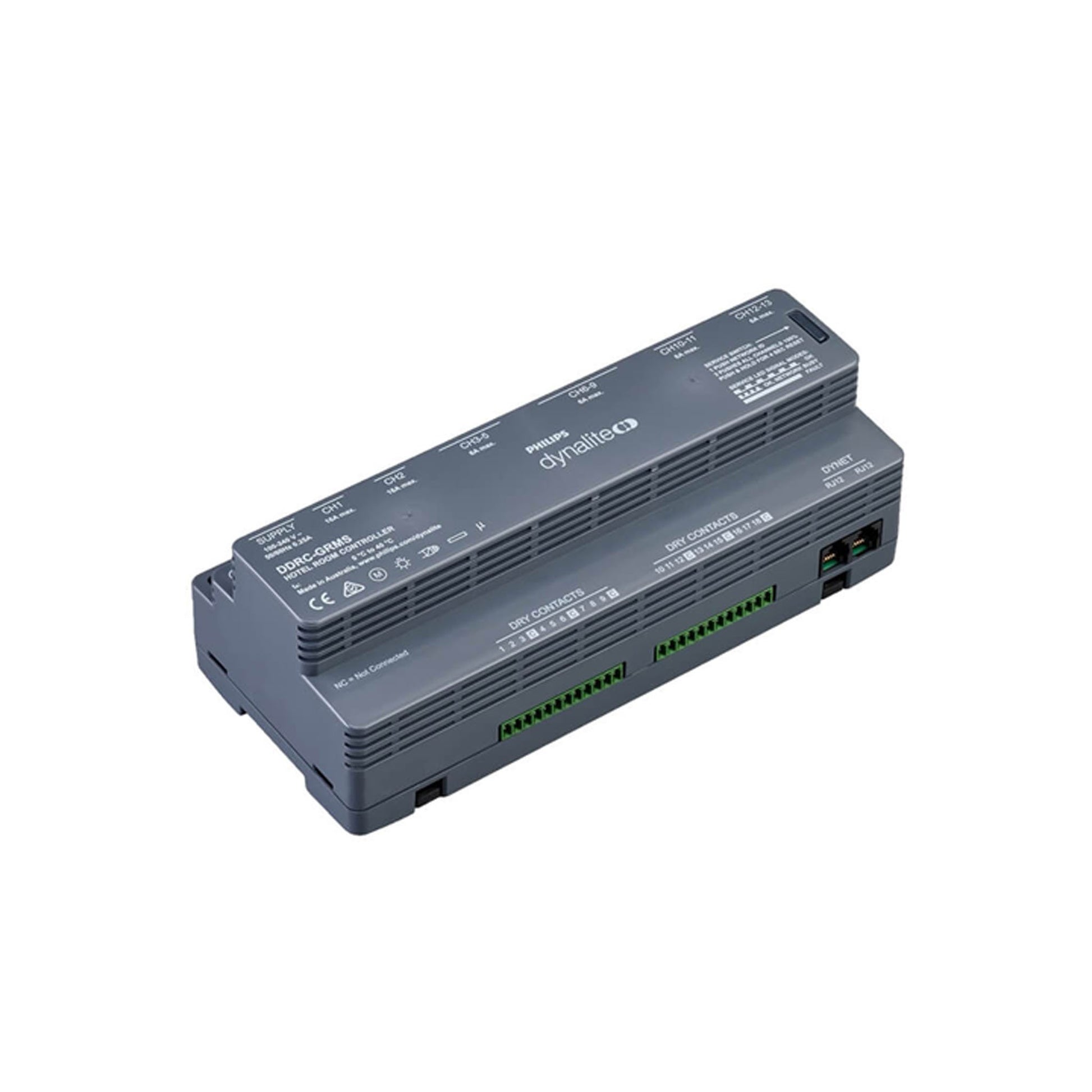

DDRC-GRMS – Room Controller
Compact switching controller for single room solutions
The Philips Dynalite DDRC-GRMS controller is a general room automation and energy management solution. This controller is completely self-contained and requires no external power supply, relays or processor.
• Dry contact inputs — The unit receives instructions from voltage-free button presses or a key card switch within the guest room.
• Pre-programmed — No programming required as the unit is supplied with complex functions such as ‘master on/off’, ‘room unoccupied’, ‘do not disturb’ or ‘make up room’ already configured.
• Built-in motor directional relays — Provides control of motorized blinds for a full automation solution.
• Two 16 A power relays — Enable a total energy management solution, reducing standby power consumption by powering GPOs and air conditioning systems only when required.
• Single box solution — Provides an economical total energy management solution for hotel guest rooms and suites.
Specification
Item
Specification
Details
Input Voltage
100 – 240 VAC 50 / 60 Hz Single Phase @ 0.25 A
DyNet DC Supply
12 V @200 mA (supply for approx 9 user interfaces)

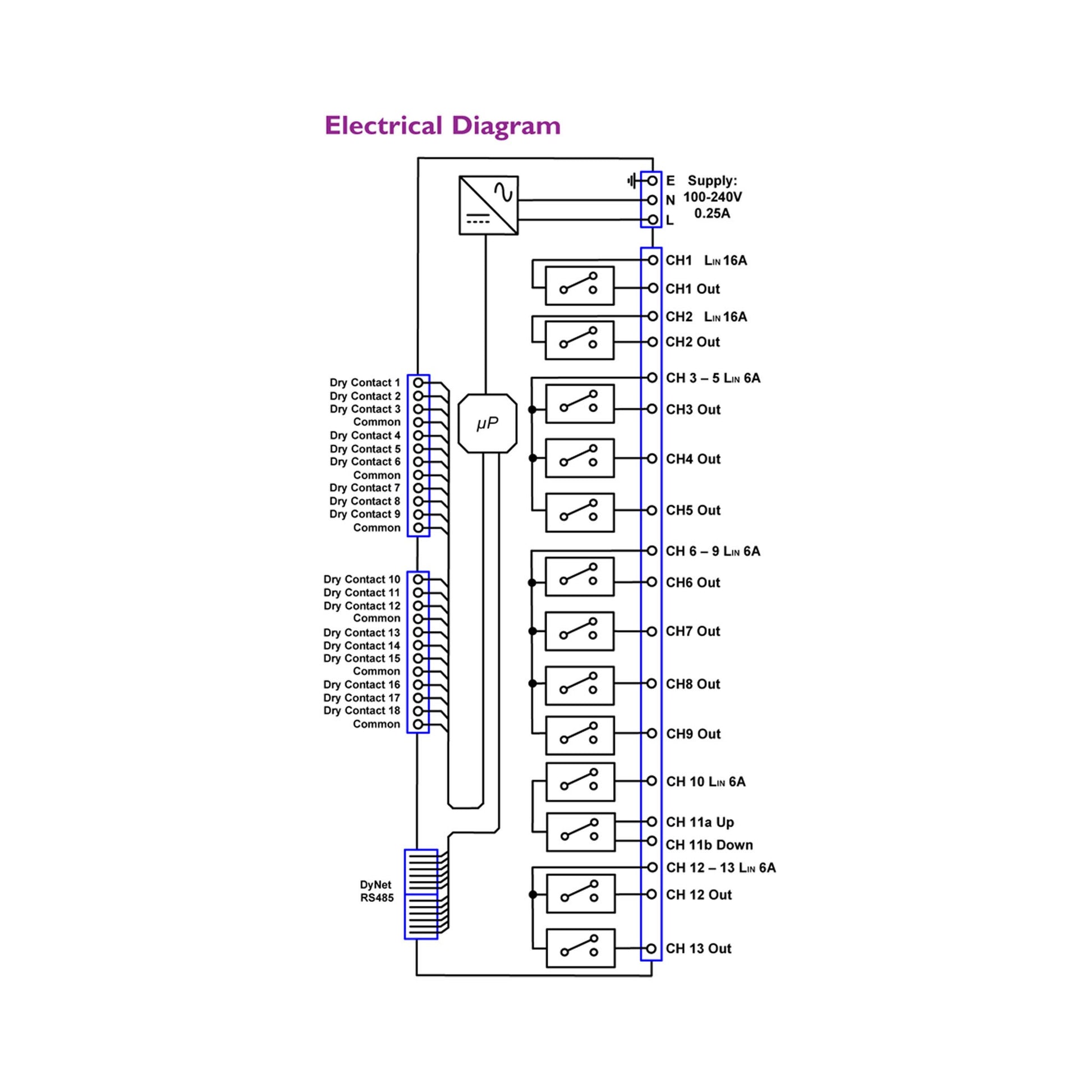

Outputs
CH1:
Electrical
Switching, feed-through, 240 VAC 16 A resistive, 165 / 800A inrush rated (20mS / 200μS). Mechanical endurance: >5 million cycles, Resistive Load: >100,000 cycles, Load with high inrush: > 25,000 cycles (UL508, TV-8, 240 VAC).
CH2:
Switching, feed-through, 240 VAC 16 A resistive, 100 A inrush rated. Mechanical endurance: >10 million cycles, Resistive Load: >50,000 cycles, Load with high inrush: >50,000 cycles (10 A rms / 100 A peak) and > 100,000 cycles (5 A rms / 50 A peak) per EN61810-1Ed.2
CH3-9:
Switching, common feed 6 A max, 240 VAC 8 A rated TV-8 type relays, 118 A inrush rated. Mechanical endurance: >1 million cycles, Resistive load: > 100,000 cycles
CH10-11:
Switching & direction control, feed 6 A max or ELV supply, Cascaded single SPST 8 A TV-8 and SPDT 8 A TV-5 relays 240 VAC 8 A rated, 100 A inrush rating
CH12-13
Switching, common feed 6 A max or ELV/SELV supply (subject to local wiring code, additional segregation may be required), 240 VAC 8 A rated TV-8 type relays, 118 A inrush rating
Maximum device load is 56 A
.
Control Inputs/Outputs
1 x RS-485 DyNet serial port
18 x preconfigured dry contact inputs
Control
User Controls
Service switch
Diagnostic LED
Internal Controls
Programmable Logic Controller
Preset Scenes
170
.
Supply Terminals
Line, Neutral, Earth
Conductor size 0.2 – 5 mm² (24 – 10 AWG)
Output Terminals
Ch 1 & 2: Line in, line out for each
Ch group 3-5, 6-9, 12 & 13: Supply in, Ch out
Ch 10 & 11: Supply in, motor up, motor down
Conductor size 0.2 – 5 mm² (24 – 10 AWG)
DyNet Termination
2 x RJ12 modular sockets
Dry Contact Terminals
2 x 12 pole pluggable DC1-DC18 with shared COM
Conductor size 0.13 – 1.5 mm2 (26 – 16 AWG)
Physical
Dimensions (H x W x D)
93 mm x 216 mm x 74 mm
Packed Weight
0.82kg
Construction
Polycarbonate DIN-rail enclosure (12 unit)
Operating Conditions
Temperature: 0 to 40° C ambient
Humidity: 0 to 95% non-condensing
Storage & Transport
Temperature: -25 to 70°C ambient
Humidity: 0 to 90% non-condensing
Certification
Certification
CE, RCM
IEC Overvoltage category III, IEC Pollution Degree II
Options & Ordering
Standard Product
DDRC-GRMS (Philips 12NC 913703667709)
