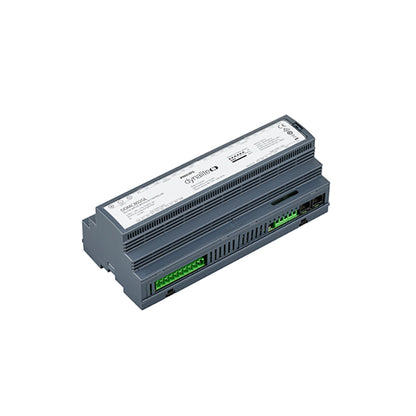

The Philips Dynalite DDMC802GL provides eight channels of control, with a maximum load per channel of 2A. The device is available with a variety of output modules to provide control of differing load types. The DDMC802GL can generally be loaded to a total of 10A.
• Single controller solution specifically suited to residential and hotel applications — Control a multitude of load types from one device.
• Trailing edge phase control dimmer module — Suitable for use with most types of dimmable electronic transformers.
• Leading edge phase control dimmer module — Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
• HF driver control module — Suitable for controlling 0-10V and digital drivers and transformers.
• Relay control module — Suitable for controlling most types of switched loads.
• Fan control module — 400 VA fan control module.
• Curtain control module — Provides control of curtains, blinds and other window treatments.
• Flexible mounting solution — A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Specification
Item
Specification
Details
Input Voltage
230 VAC ±14% 50/60 Hz Single Phase @ 16 A
DyNet DC Supply
12VDC @120mA (supply for approx 6 user interfaces)
Outputs
8 x output slots @ 2 A each. Maximum device load 10 A Some modules occupy 2 slots. Available modules include: DGBM200: 2 channel; DALI Broadcast, 1-10 V or digital HF driver control. Occupies 1 slot – DGCM102: 1 channel 2 A SPDT curtain control. Occupies 1 slot – DGFM102: 1 channel 400 VA fan control. Occupies 1 slot – DGLM402: 4 channel 2 A Leading Edge dimmer. Maximum module load 5 A. Regulating device: Triac 20 A, 600 V. Occupies 2 slots – DGLM105: 1 channel 5 A Leading Edge dimmer. Regulating device: Triac 20 A, 600 V. Occupies 2 slots – DGRM204: 2 channel 4 A relay. Switching device: Relay, 16 A, TV5, 100 A surge. Occupies 1 slot – DGLEDM401: 4 channel 1 A mains rated LED analogue dimmer. MOSFETs 25 A, 500 V, 62 A surge. Occupies 2 slots – DGTM402: 4 channel 2 A Trailing Edge dimmer. Maximum module load 4 A. Regulating device: MOSFETs 25 A, 500 V, 62 A surge. Occupies 2 slots – DGTM105: 1 channel 5 A Trailing Edge dimmer. Regulating device: MOSFETs 25 A, 500 V, 62 A surge. Occupies 2 slots
Control Inputs/Outputs
One DMX512 / RS-485 DyNet serial port
Dry Contacts
Eight programmable dry contact AUX inputs* Max cable length <20m – * Requires 10-pole pluggable terminal block, ordered separately. See 12NC product code in Options & Ordering below.
Control
User Controls
Service Switch – Diagnostic LED
Preset Scenes
170
Diagnostic Functions
Circuit run time tracking on each channel – Device online/offline status
Diagnostic Functions
Circuit run time tracking on each channel – Device online/offline status
Supply Terminals
Line, Neutral, Earth 2 x 2.5mm² or 1 x 4 mm² conductor size
Supply Terminals
2 x 2.5mm or 1 x 4mm conductor size LINE, NEUTRAL, EARTH
Output Terminals
Channel, Common for each channel 2 x 2.5mm² or 1 x 4 mm² conductor size
Dry Contact Input Terminals
1 x 10 pole removable terminal socket – PTR item code: AK950/10-5-0-GREEN
Physical

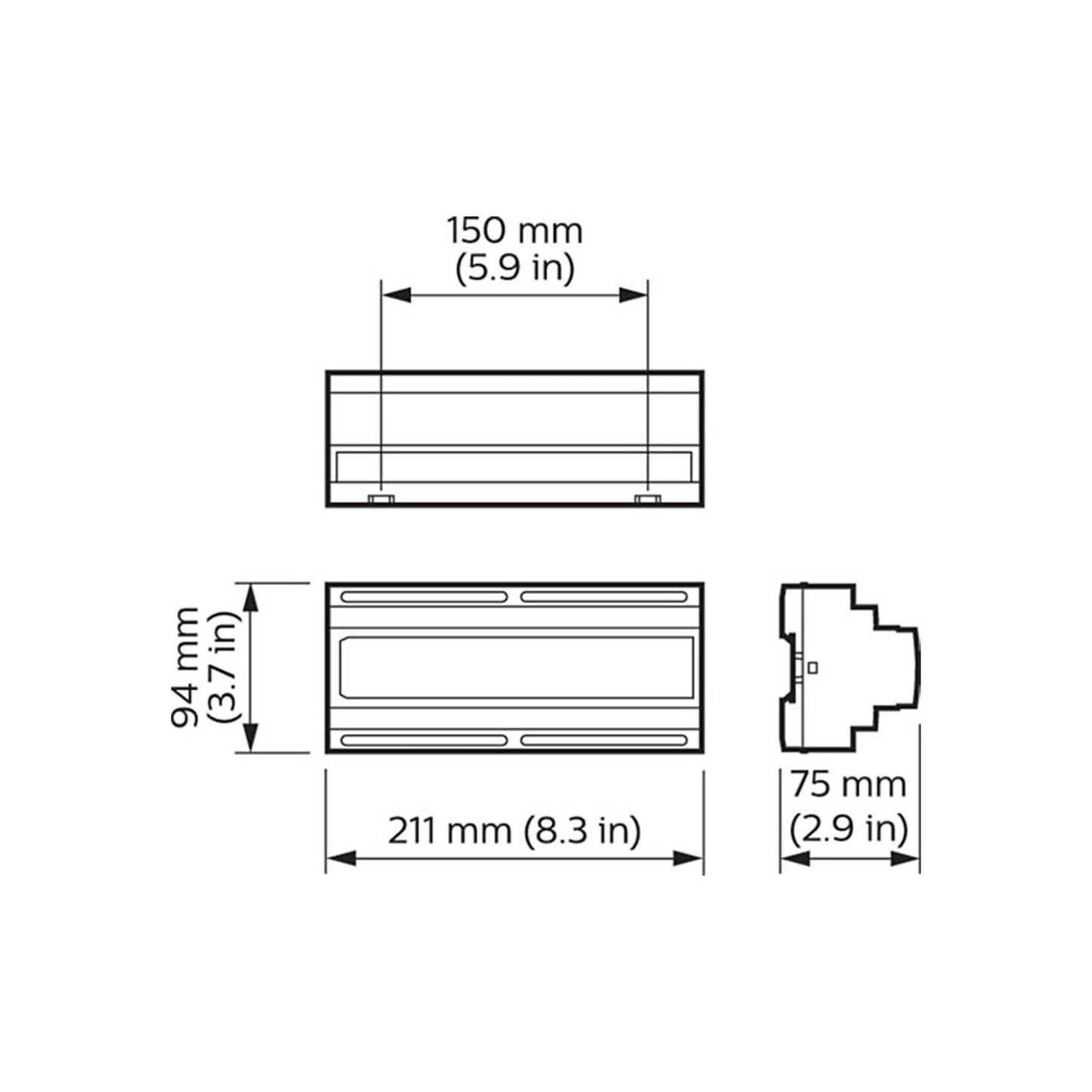

Dimensions (HxWxD)
94 mm x 211 mm x 75 mm
Packed Weight
0.94 kg
Construction
Polycarbonate DIN-rail enclosure (12 unit)
Operating Conditions
Temperature: 0 to 40° C ambient – Humdity: 0 to 95% non-condensing
Storage & Transport
Temperature: -25 to 70° C ambient – Humidity: 0 to 90% non-condensing
