Description

Philips Dynalite

DDMBC110-Signal Dimmer Controller

 



Luminaire mount multi-protocol control solution

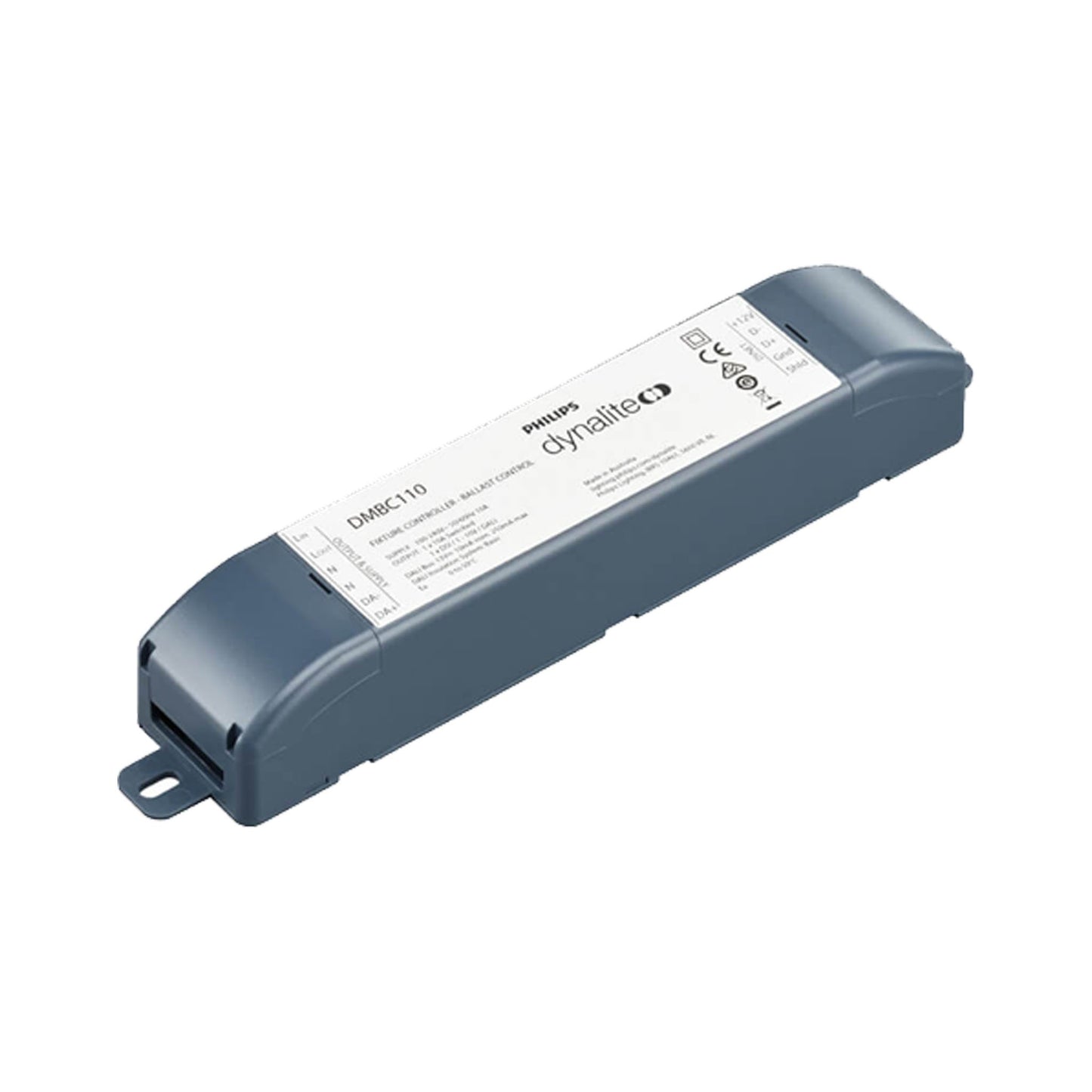

The Philips Dynalite DMBC110 provides intelligent networked control of individual lighting fixtures. The compact design enables mounting directly within the gear enclosure of many lighting fixtures.

  • Incorporates one relay output and one signal dimmer output – Provides dimming control of DALI, 1-10V and DSI compatible drivers and transformers.
  • Gear enclosure mounting – Compact design allows the device to be mounted directly within the gear enclosure of many light fittings.
  • Fully rated device – Robust relays provide reliable control of difficult lighting loads.
  • Inbuilt diagnostic functionality – Features Device Online/Offline status indication.



Specification



Item Specification Details
Electrical Input Voltage

230 VAC ± 14% 50 / 60 Hz Single Phase @ 10 A
DyNet DC Supply

12 V @120 mA (supply for approx 6 user interfaces)
Switched Output

1 x relay output @ 10 A (inductive)
Control Output

1 x output selectable to: DALI Broadcast, 1-10V, DSI
Control Output  Capacity

DALI drivers and transformers: 5

0-10 V: 10 mA source or 20 mA sink

DSI drivers and transformers: 15
Switching Device

Relay, Tungsten pilot contact, 16 A inductive, 165 A surge
Control Control Inputs/Outputs

One DMX512 / RS-485 DyNet serial port
Preset Scenes  170
Diagnostic Functions

Device online/offline status
Physical Supply Terminals

Line in, Neutral
1 x 4 mm2 maximum conductor size
Output Terminals

Mains:

Line 1, Line 2, Neutral
1 x 4 mm2 maximum conductor size

Control:

D+, D-
1 x 1.5 mm2 maximum conductor size

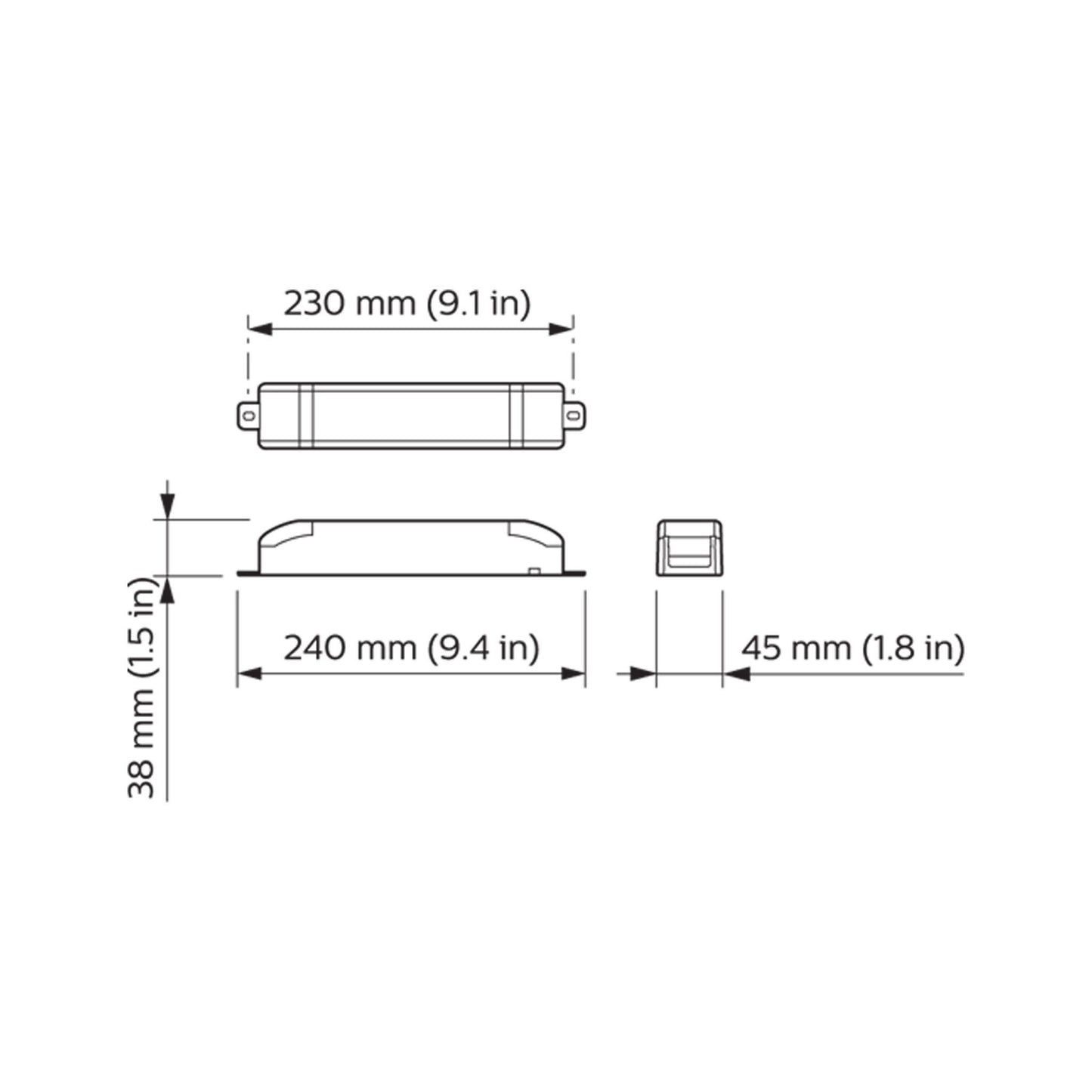

Dimensions (L x W x D)

240 mm x 45 mm x 38 mm (9.4” x 1.8” x 1.5”)
Packed Weight

0.19 kg
Construction

ABS plastic
Operating Conditions

Temperature: 0 to 50° C ambient

Humdity: 0 to 95% non-condensing
Storage & Transport

Temperature: -25 to 60° C ambient

Humidity: 0 to 90% non-condensing
Certification Certification

CE, C-Tick,
Options & Ordering Standard Product

DMBC110 (Philips 12NC - 913703030009)
