DDLEDC605 – LED PWM Controller

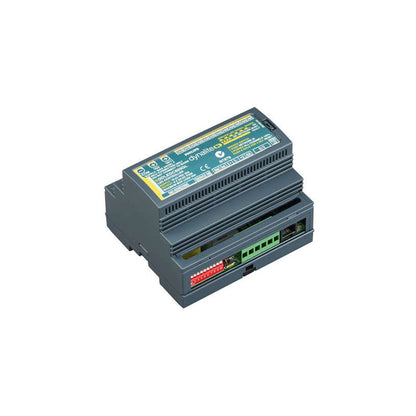

The DDLEDC605-GL is designed to control LED loads in decorative architectural lighting applications where creative color mixing and sequencing is required. The controller provides six pulse width modulated common anode voltage mode outputs suitable for directly driving high intensity LED sources. The controller is designed for connection to an external DC power supply enabling the unit to deliver a range of nominal output voltages. The device is supplied with a DIN-rail mountable housing, designed for installation within a switchboard or suitable electrical enclosure. The DDLEDC605-GL is DMX512 compatible and is suitable for the high chase speeds commonly found in display lighting.
• 6 x 5A voltage mode, common anode Nominal output voltage is equal to the supply voltage, less internal voltage drop of max 0.5V• Outputs are short circuit protected with integral self-resetting thermal overload protection
|Electrical||Supply||External 20A regulated power supply – Controller supply voltage range is 10-24VDC.|
|LED Outputs||6 x 5A voltage mode, common anode – Nominal output voltage is equal to the supply voltage, less internal voltage drop of max 0.5V – Outputs are short circuit protected with integral self-resetting thermal overload protection – Maximum Total Box Load 20A|
|DyNet DC Supply||12V @ 120mA (supply for approx. 6panels)|
|Control Inputs||1 x RS485 DyNet/DMX512 serial port|
|Controls||User Controls||Service switch – Diagnostic LED|
|Supply Terminals||Positive, Negative, Earth 1 x 4mm max conductor size|
|Output Terminals||CH, COM for each channel 1 x 2.5mm max conductor size|
|Diagnostic Functions||Device Online/Offline status|
|Physical||Operating Environment||0º to 40ºC ambient temperature – 0% to 95% RH non-condensing|
|Storage and Transport||-25 to 60ºC ambient temperature – 0% to 90% RH non-condensing|
|Construction||Polycarbonate DIN-rail enclosure (6 unit)|
|Dimensions (HxWxD)||H 93mm x W 105mm x D 75mm|
|Packed Weight||1.0 kg|
