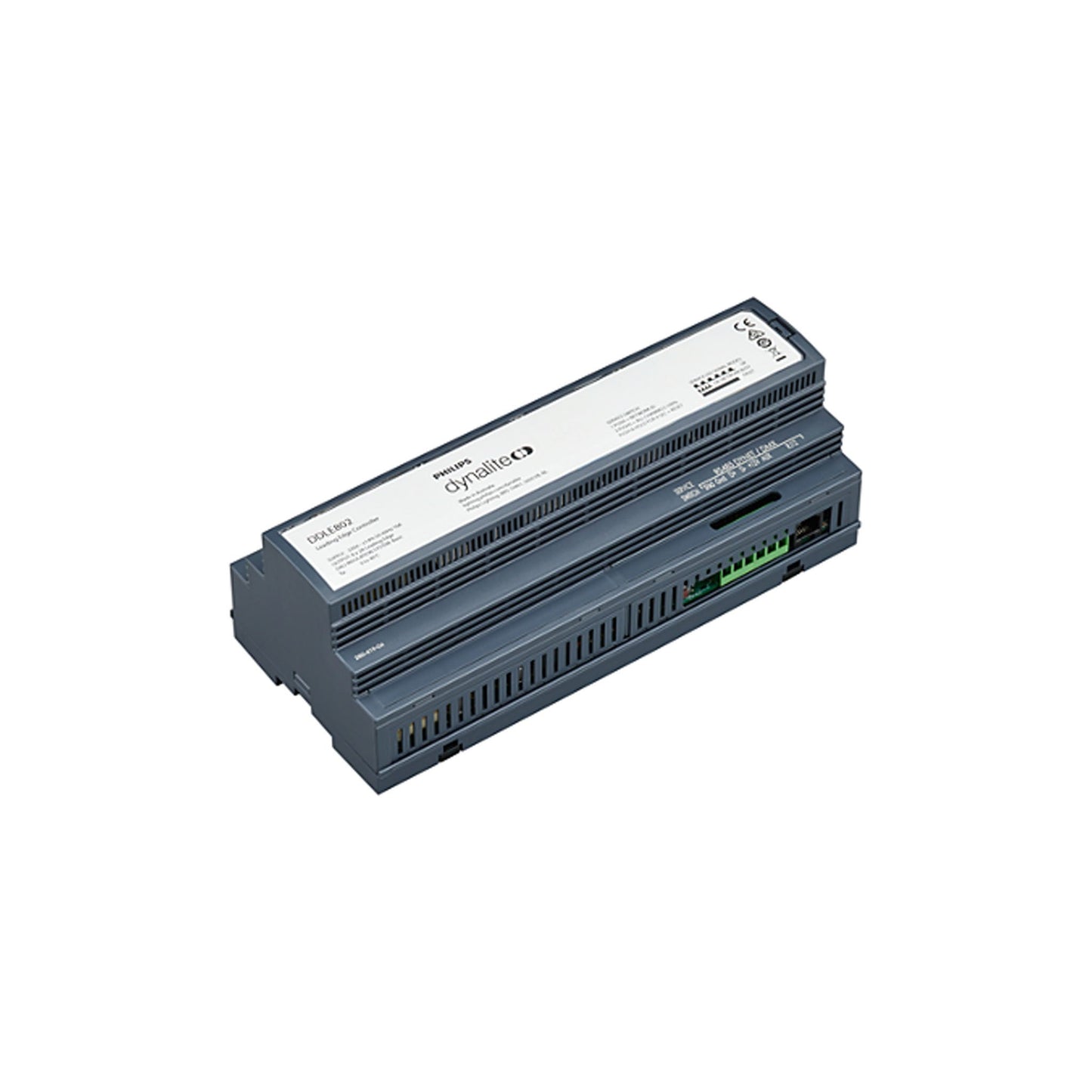

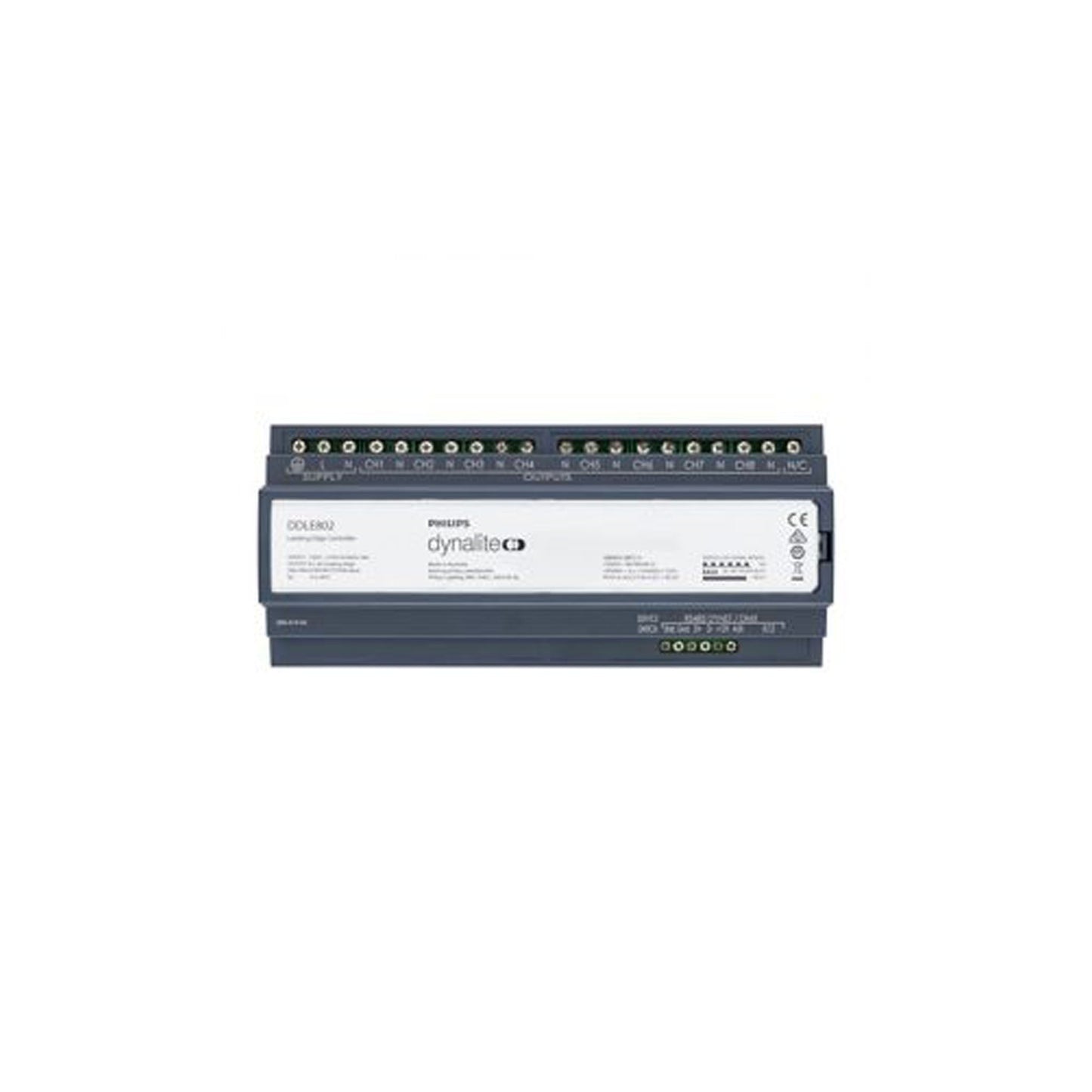

DDLE802 – Leading Edge Dimmer
The DDLE802 is an eight-channel leading edge dimmer with a maximum load per channel of 2 Amps. It is suitable for use with incandescent, low voltage, neon and selected fluorescent fixtures. It is also highly recommended for use in residential
and hotel applications. The DDLE802 features Philips Dynalite’s superior voltage regulation and soft start technologies, which protect low voltage lamps and dramatically increase lamp life.
• Optional manual override LED illuminated server switch — Provides diagnostic and local override capability.
• Soft start and voltage regulation technologies — Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs.
• Naturally ventilated — No forced cooling required, no maintenance required.
• Flexible mounting solution — A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
|Input Voltage||230 VAC ±14% 50/60 Hz Single Phase @ 16 A|
|DyNet DC Supply||12VDC @120mA (supply for approx 6 user interfaces)|
|Outputs||8 x dimmed outputs leading edge phase control @ 2A per channel. Maximum device load is 16A|
|Protection||Each pair of channels protected by a replaceable 6.3A time delay M205 fuse|
|Electrical||Regulating Device||Triac – 20A, 600V, 200A surge|
|Power Conditioning||Regulated Outputs – Over Voltage Protection – Surge Protection – Brownout – Sag Protection – Soft Start – 16 Bit Fade Resolution|
|Control Input/Outputs||One DMX512/RS-485 Dynet serial port – One programmable dry contact AUX input|
|Control||User Controls||Service Switch – Service Indicating LED|
|Diagnostic Functions||Circuit run time tracking on each channel – Device online/offline status|
|Dynet Terminations||2 x RJ12 modular jack and 6 way scre terminals|
|Supply Terminals||2 x 2.5mm or 1 x 4mm conductor size LINE, NEUTRAL, EARTH|
|Output Terminals||LINE, NEUTRAL for each channel – 2 x 2.5mm or 1 x 4mm conductor size|
|Cooling System||Naturally ventilated, no forced cooling, no maintenance|

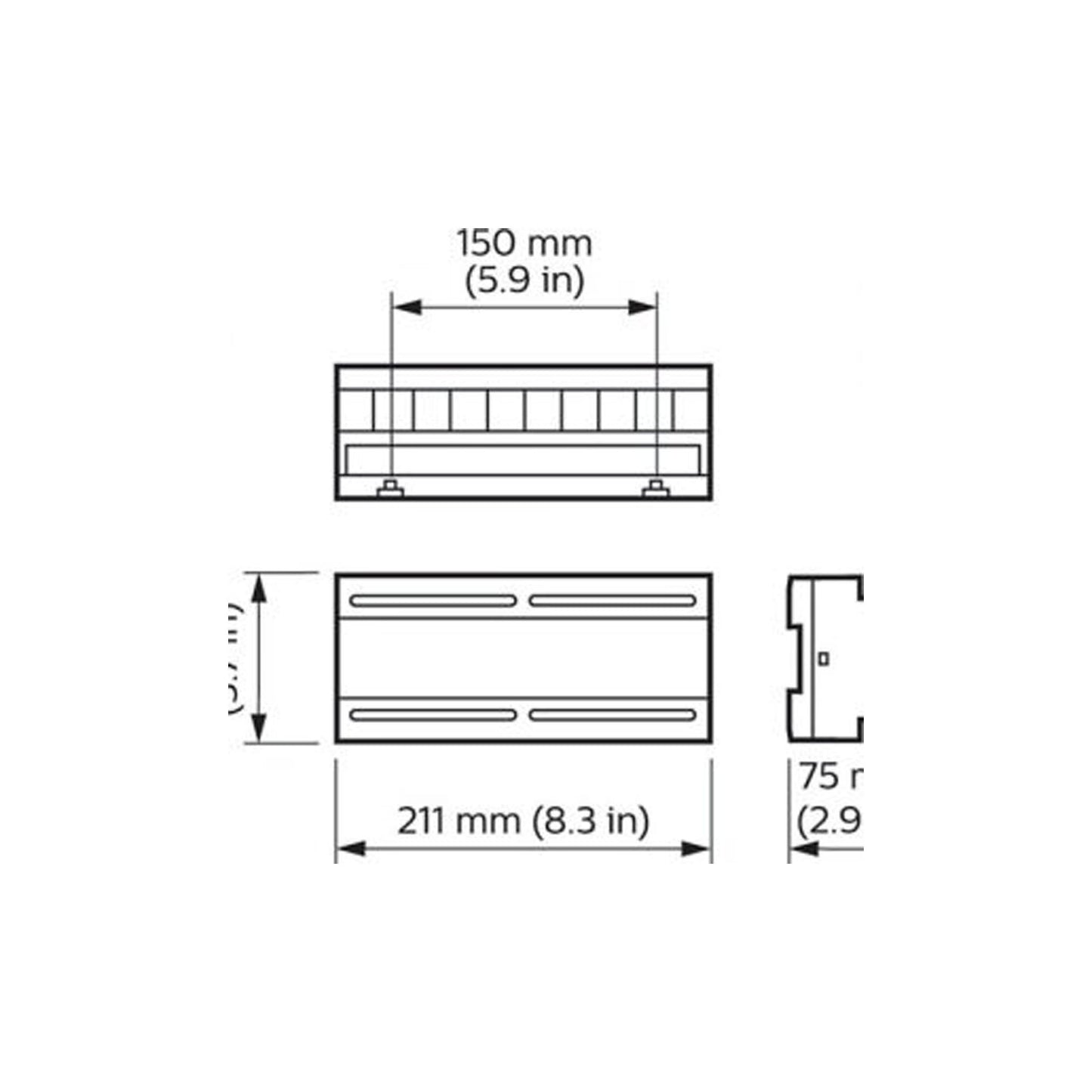

|Physical||Dimensions (HxWxD)||94 mm x 211 mm x 75 mm|
|Packed Weight||0.94 kg|
|Construction||Polycarbonate DIN-rail enclosure (12 unit)|
|Operating Conditions||Temperature: 0 to 40° C ambient – Humdity: 0 to 95% non-condensing|
|Storage & Transport||Temperature: -25 to 70° C ambient – Humidity: 0 to 90% non-condensing|
|Options & Ordering||Standard Product||DDLE802 (Philips 12NC – 913703000009)|
|Manual Override||DDLE802-MO (Philips 12NC – 913703000109)|
