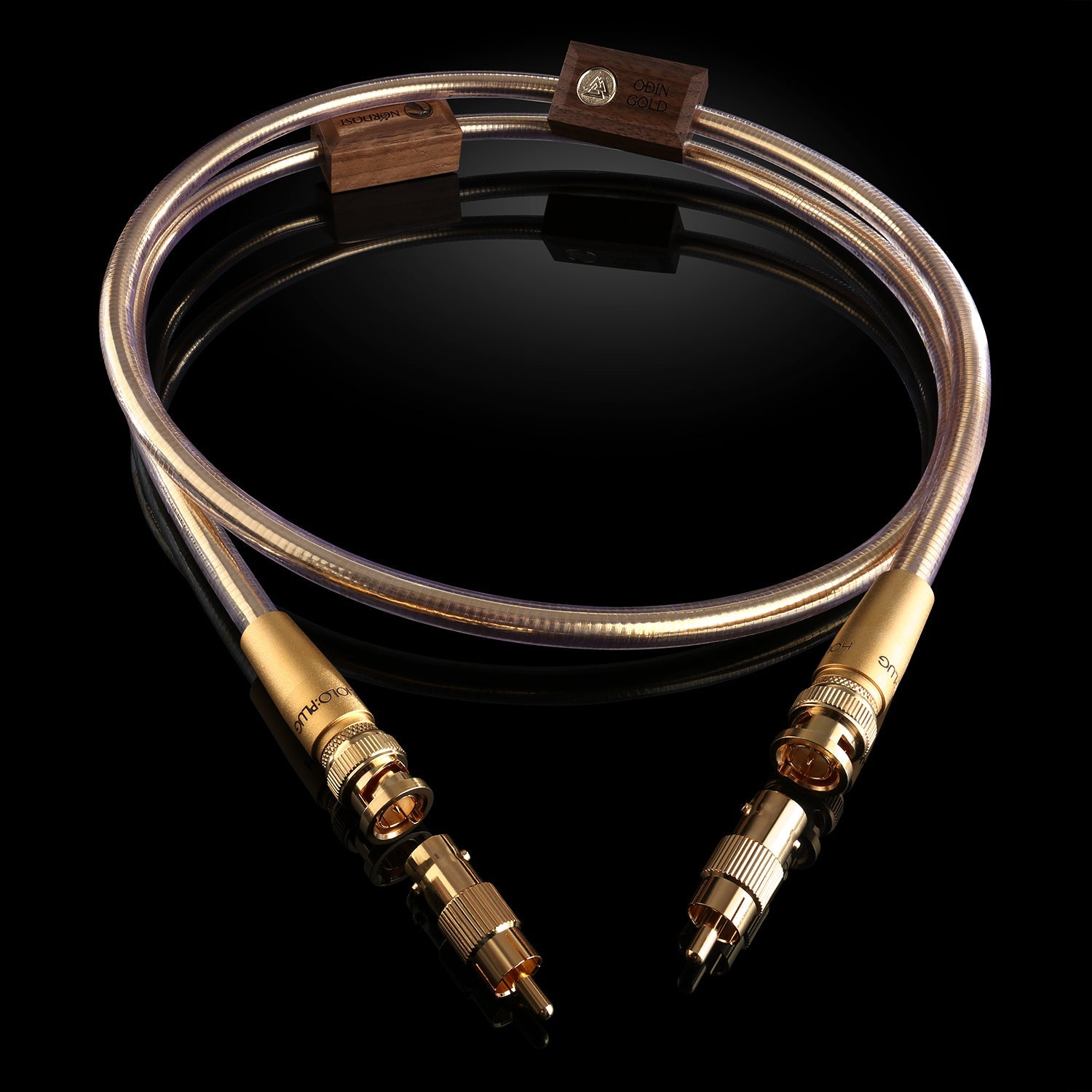

Exacting impedance, minimal capacitance, impeccable shielding, rapid transmission— for most cable manufacturers these characteristics are only found on a wish list; for Nordost’s Odin Gold Digital Interconnects, they are simply accurate descriptions.
The sweeping, state-of-the-art, proprietary technology and high-quality materials used to construct the Odin Gold S/PDIF and AES/EBU digital cables make it possible to exceed all transmission standards. Both Odin Gold Digital Interconnects use Nordost’s patented Dual Mono-Filament technology, offering superior dielectric performance and mechanical damping. The delicate signals carried through Nordost’s Odin Gold digital cables are protected by gold-plated TSC technology, providing a virtual solid shield that serves two functions — safeguarding the necessary RF signals inside the cables, while simultaneously keeping harmful, external EMI and RFI signals out. The results are superlative cables capable of getting the utmost fidelity of sound, dynamics, tonality, and timing from digitally-driven, reference systems.
Specifications
| Feature |
Specification |
| Insulation |
High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
| Construction |
Mechanically tuned length and Dual Mono-Filament, TSC and Co-axial design |
| Conductors |
1 x 14 AWG |
| Material |
Gold-plated 99.999999% solid core OFC |
| Capacitance |
15.3pF/ft |
| Impedance |
75 Ohm |
| Overall Shield Coverage |
100% Total coverage |
| Velocity of Propagation |
90% |
| Termination |
HOLO:PLUG® gold-plated BNC
(Gold-plated BNC to RCA adaptor included)
|
