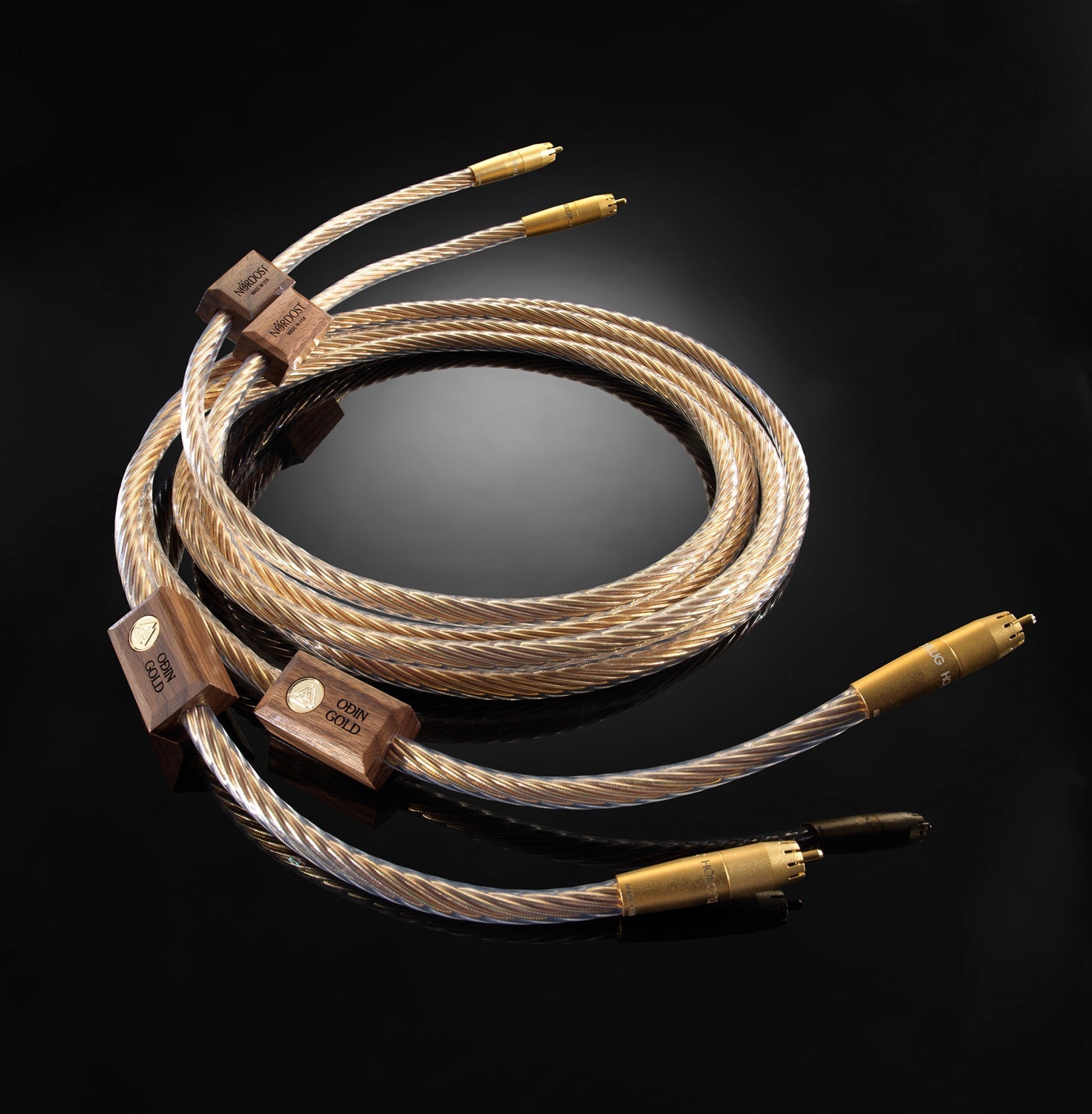

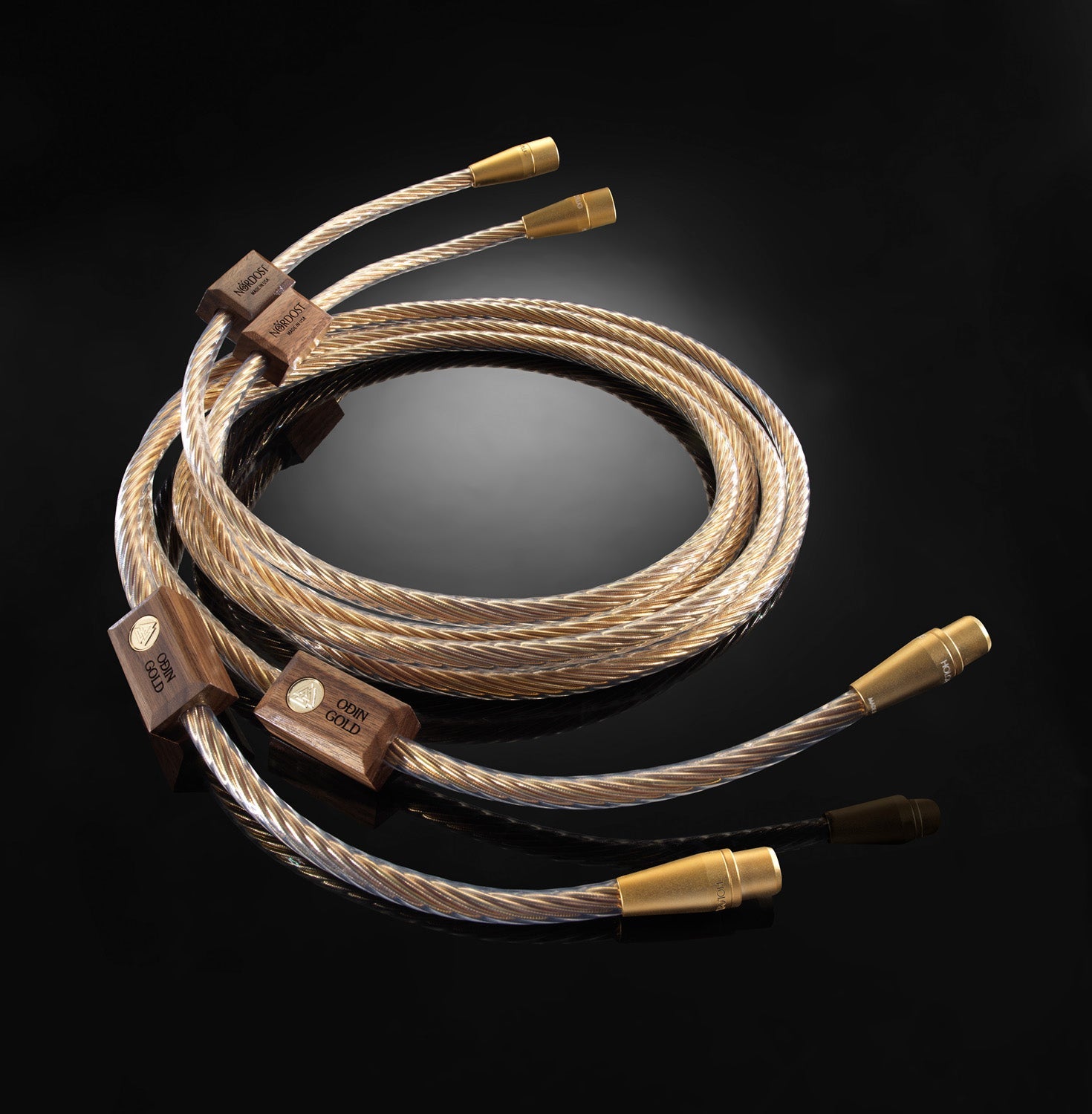

Odin Gold Analog Interconnects provide the quintessential interface, linking essential system elements to create a cohesive and inspiring sound system. This cable runs the gamut when it comes to Nordost’s technological offerings, each imparting its own unique benefit towards the cable’s resulting function and performance. The implementation of Nordost’s patented, gold-plated HOLO:PLUG® connectors, in both phono and balanced varieties, gives the Odin Gold Analog Interconnect an overwhelming advantage. Notably, the low mass RCA HOLO:PLUG® offers an ingeniously devised dual ring design which creates an “asymmetrically balanced” cable. Gold-plated, solid brass alloy pins, also present in the RCA termination, reduce vibrations, and eddy currents.
The duality of sweeping technological advances and intricate, precise manufacturing techniques produces an interconnect that promises record-breaking signal transfer speeds while embodying Nordost’s trademark neutral and realistic sonic signature.
Specifications
| Feature |
Specification |
| Insulation |
High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
| Construction |
Mechanically tuned lay, length and Dual Mono-Filament, TSC design |
| Conductors |
10 x 23 AWG |
| Material |
Gold-plated 99.999999% solid core OFC |
| Capacitance |
18.5pF/ft |
| Inductance |
0.05μH/ft |
| Overall Shield Coverage |
100% Individually shielded, gold-plated, total coverage |
| Velocity of Propagation |
90% |
| Termination |
HOLO:PLUG® gold-plated RCA or HOLO:PLUG® gold-plated XLR |
