The Uncompromised Benchmark in Analogue Interconnects | Available at Trimira Audio
The Nordost Odin 2 Analog Interconnect represents Nordost's flagship approach to high-performance analogue signal transmission. Designed for uncompromising reference audio systems, it combines advanced conductor geometry, Dual Mono-Filament construction, comprehensive Total Signal Control (TSC) shielding, and proprietary HOLO:PLUG® terminations.
The Odin 2 is engineered to provide an exceptionally controlled signal path between ultra-high-resolution source components, preamplifiers, integrated amplifiers, and power amplifiers.
At Trimira Audio, we recommend the Odin 2 Analog Interconnect for reference systems where transparency, dynamic resolution, spatial precision, and signal integrity are paramount.
Key Features & Technological Innovations
Patented Dual Mono-Filament Construction
Each solid-core conductor is wrapped with two helical FEP strands before being enclosed within an extruded FEP outer jacket.
This creates a low-contact dielectric environment designed to minimize dielectric interaction and energy storage while supporting rapid signal propagation.
Ten 23 AWG Solid-Core Conductors
The Odin 2 uses 10 × 23 AWG solid-core conductors manufactured from 99.999999% ultra-high-purity OFC copper with 85 µm high-purity silver plating.
The solid-core construction provides consistent conductor geometry while avoiding the strand interaction associated with conventional multi-stranded cables.
Total Signal Control (TSC) Shielding
The Odin 2 employs individual 100% total-coverage braid/foil shielding around its signal structures.
This extensive shielding architecture is designed to protect low-level analogue signals from:
- Radio-frequency interference
- Electromagnetic interference
- External electrical noise
- Signal crosstalk
Mechanically Tuned Spacing & Lengths
The conductor layers, spacing, and cable lengths are mechanically controlled to manage:
- Internal resonance
- Microphonic behavior
- Electrical interaction
- Mechanical vibration
Custom Low-Mass HOLO:PLUG® Terminations
Odin 2 is available with proprietary HOLO:PLUG® connectors in:

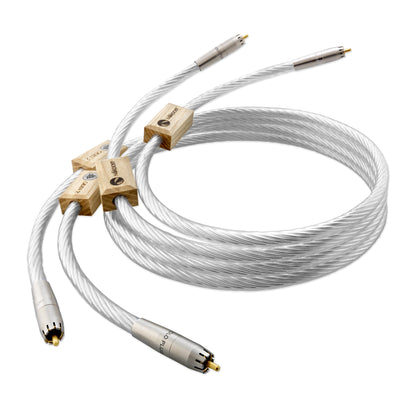

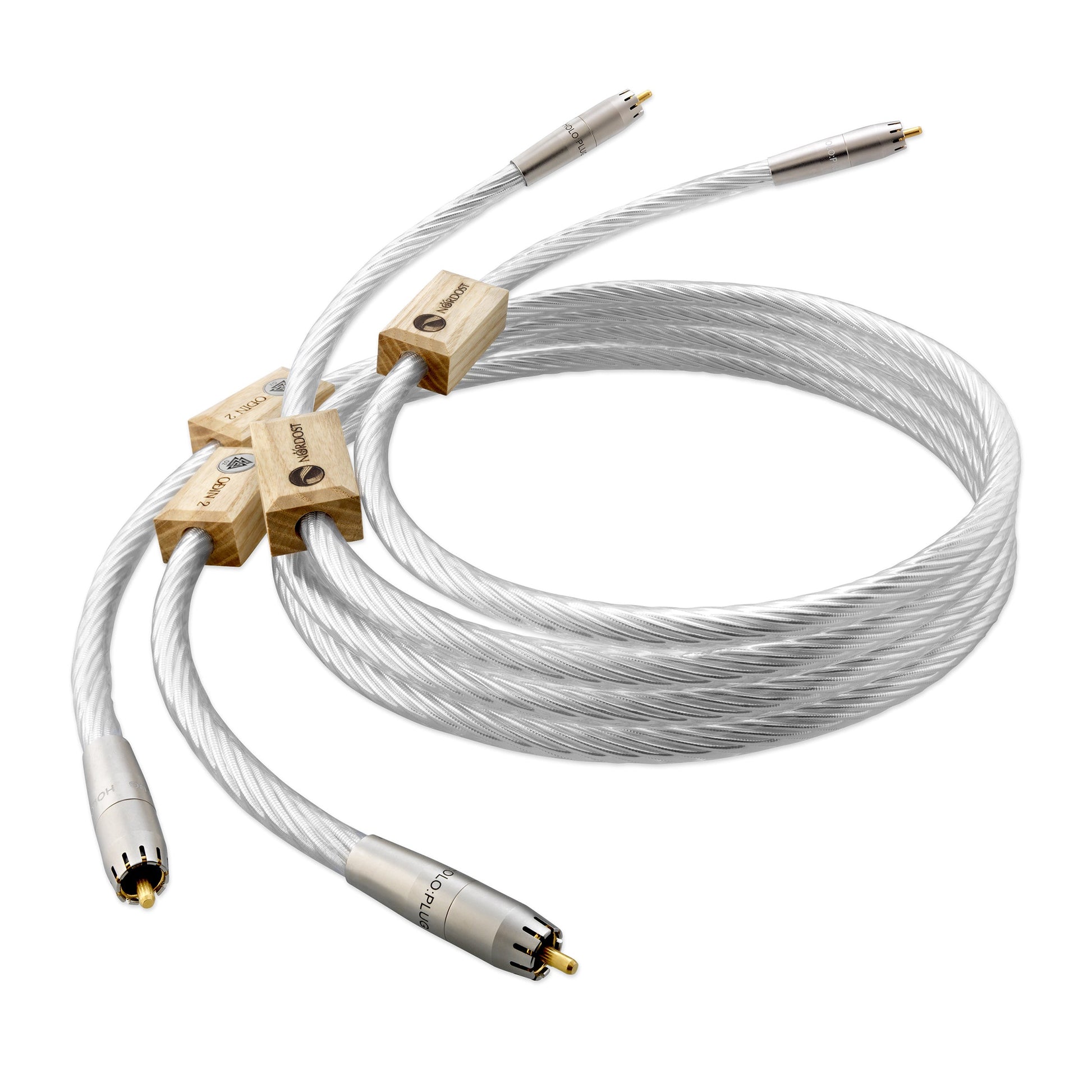

- Gold/silver-plated RCA

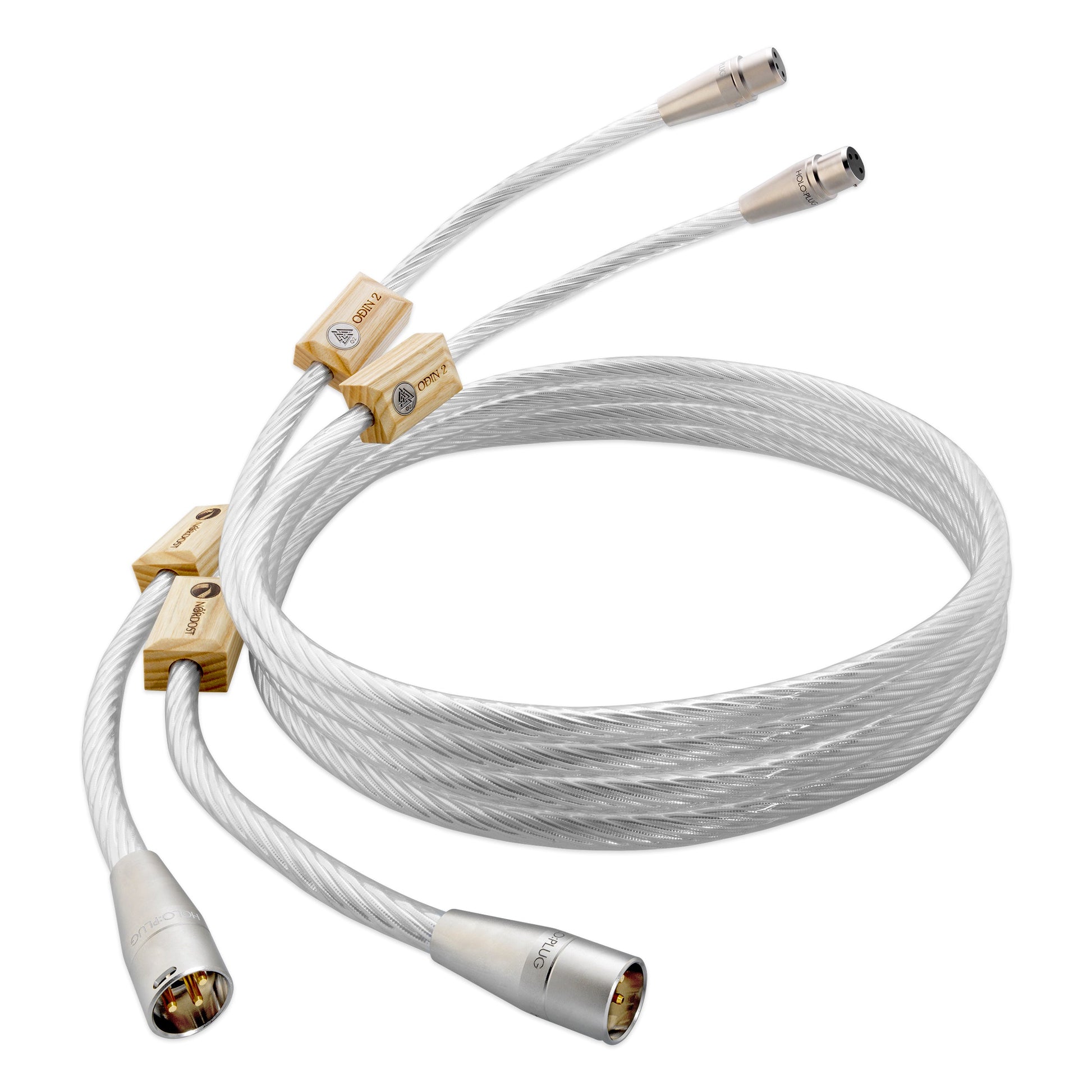

- Silver-plated 3-pin XLR
The low-mass connector design is intended to preserve the cable's controlled mechanical and electrical characteristics at the component interface.
Technical Specifications
| Specification |
Odin 2 Analog Interconnect |
| Series |
Odin 2 Series |
| Insulation |
High-Grade Extruded Fluorinated Ethylene Propylene (FEP) |
| Construction |
Mechanically Tuned Lay, Spacing & Dual Mono-Filament Design |
| Conductors |
10 × 23 AWG Solid-Core |
| Conductor Material |
99.999999% Solid-Core OFC with 85 µm Pure Silver Plating |
| Capacitance |
18.5 pF/ft (RCA) / 18.5 pF/ft (XLR) |
| Inductance |
0.05 µH/ft (RCA) / 0.05 µH/ft (XLR) |
| Shielding |
100% Total Coverage, Individually Shielded (TSC) |
| Velocity of Propagation |
90% Speed of Light |
| Termination Options |
Custom HOLO:PLUG® Gold/Silver-Plated RCA or Silver-Plated XLR |
| Standard Lengths |
0.6 m, 1.0 m, 1.5 m, 2.0 m, 2.5 m, 3.0 m, 3.5 m, 4.0 m + Custom Lengths |
RCA vs XLR Configuration
RCA
The single-ended configuration is suited to conventional analogue connections between compatible source and amplification components.
XLR
The balanced configuration is appropriate when both connected components support a genuine balanced analogue signal path.
Trimira Audio can help determine the correct termination based on the actual architecture of your equipment.
Consult with the Audio Specialists at Trimira Audio
The Nordost Odin 2 Analog Interconnect is designed for reference systems where the analogue signal path demands uncompromising attention to conductor material, dielectric construction, shielding, geometry, and termination.
Trimira Audio can assist with:
- RCA versus XLR selection
- Cable length selection
- Source-to-preamplifier matching
- Preamplifier-to-power-amplifier connections
- Complete Nordost cable-system planning
- Private reference-system auditions
For Nordost's flagship analogue interconnect, the Odin 2 combines Dual Mono-Filament construction, 23 AWG silver-plated solid-core OFC, 100% TSC shielding, mechanically tuned geometry, and HOLO:PLUG® termination in an uncompromising reference cable.
