Supreme Reference 75-Ohm Digital Precision | Available at Trimira Audio

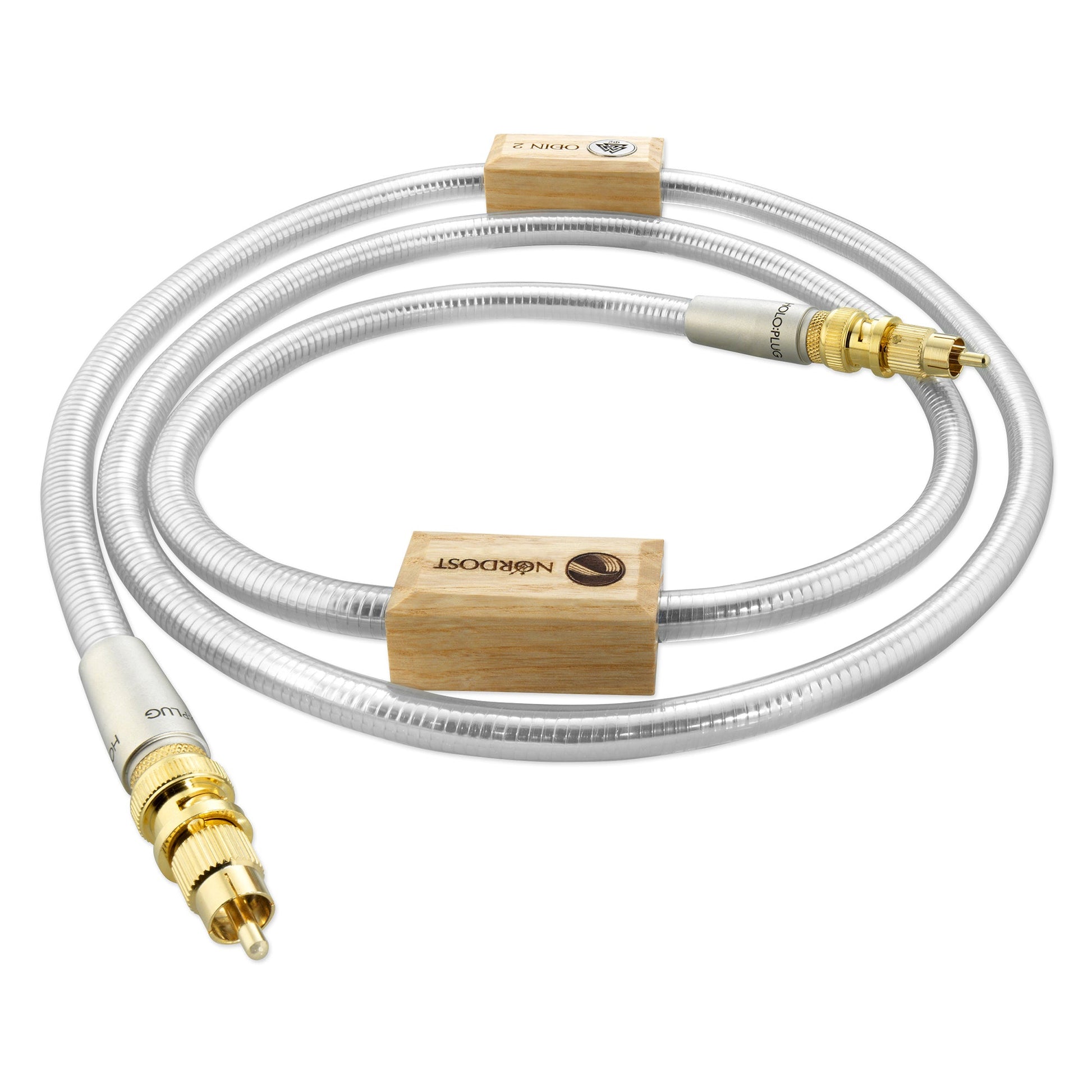

The Nordost Odin 2 75-Ohm Digital Interconnect is a flagship coaxial digital cable designed for reference-level digital audio systems using 75-ohm interfaces such as S/PDIF.
As part of Nordost's Odin 2 Series, it combines Dual Mono-Filament technology, Total Signal Control (TSC) shielding, ultra-pure silver-plated solid-core OFC, and custom HOLO:PLUG® 75-ohm BNC termination.
The cable is specifically engineered around a controlled 75-ohm characteristic impedance, providing the appropriate electrical architecture for high-speed coaxial digital transmission.
At Trimira Audio, we recommend the Odin 2 75-Ohm Digital Interconnect for reference CD transports, network streamers, digital bridges, DACs, and digital processors.
Key Features & Technological Innovations
Patented Dual Mono-Filament Technology
The solid-core conductor is wrapped with two helical FEP strands before the outer FEP jacket is applied.
This creates a low-contact dielectric environment designed to minimize dielectric interaction and energy storage while supporting rapid signal propagation.
Heavy-Gauge 11 AWG Solid-Core OFC
Odin 2 uses 1 × 11 AWG solid-core conductor manufactured from 99.999999% ultra-high-purity OFC copper with 85 µm pure silver plating.
The solid-core construction provides consistent conductor geometry throughout the coaxial transmission path.
Total Signal Control (TSC) Shielding
A 100% total-coverage braid/foil TSC shielding structure surrounds the digital signal path, providing extensive protection against:
- RF interference
- Electromagnetic interference
- External electrical noise
- High-frequency crosstalk
True 75-Ohm Characteristic Impedance
The cable is specifically engineered around a true 75-ohm characteristic impedance, making it appropriate for 75-ohm digital interfaces.
Consistent impedance helps minimize electrical reflections along the digital transmission path.
Custom HOLO:PLUG® 75-Ohm BNC Terminations
The cable is hand-terminated with custom HOLO:PLUG® 75-ohm BNC connectors.
Gold-plated 75-ohm BNC-to-RCA adapters are supplied for components equipped with RCA-type S/PDIF connections.
Technical Specifications
| Specification |
Odin 2 75-Ohm Digital Interconnect |
| Series |
Odin 2 Series |
| Insulation |
High-Grade Extruded Fluorinated Ethylene Propylene (FEP) |
| Construction |
Mechanically Tuned Spacing, Dual Mono-Filament, Coaxial Design |
| Conductors |
1 × 11 AWG Solid-Core |
| Conductor Material |
99.999999% Solid-Core OFC with 85 µm Pure Silver Plating |
| Capacitance |
15.3 pF/ft |
| Impedance |
True 75 Ω |
| Shielding |
100% Total Coverage Total Signal Control (TSC) |
| Velocity of Propagation |
90% Speed of Light |
| Terminations |
Custom HOLO:PLUG® 75-Ohm BNC, Including Gold-Plated BNC-to-RCA Adapters |
| Standard Lengths |
1.25 m, 2.0 m, 3.0 m + Custom Lengths |
75 Ω Coaxial Digital Connection
The Odin 2 75-Ohm Digital Interconnect is intended for digital interfaces designed around 75-ohm coaxial transmission, including compatible S/PDIF connections.
For 110-ohm AES/EBU, a dedicated balanced 110-ohm digital cable should be used instead.
| Digital Interface |
Appropriate Odin 2 Version |
| 75 Ω S/PDIF Coaxial |
Odin 2 75-Ohm |
| 110 Ω AES/EBU Balanced |
Odin 2 110-Ohm |
Consult with the Digital Audio Specialists at Trimira Audio
The Nordost Odin 2 75-Ohm Digital Interconnect is designed for reference digital systems where impedance, shielding, conductor geometry, and termination quality are given particular attention.
Trimira Audio can assist with:
- Confirming 75-ohm S/PDIF compatibility
- BNC versus RCA connectivity
- Cable length selection
- Transport-to-DAC matching
- Streamer-to-DAC configuration
- Complete reference digital-cable planning
- Private system auditions
For a flagship coaxial digital connection, Odin 2 combines Dual Mono-Filament construction, 11 AWG silver-plated solid-core OFC, 100% TSC shielding, true 75-ohm coaxial architecture, and HOLO:PLUG® BNC termination.
