Flagship Analogue Signal Transfer in the Norse 2 Series | Available at Trimira Audio
The Nordost Tyr 2 Analog Interconnect is the flagship analogue interconnect within Nordost's Norse 2 Series, designed for demanding high-resolution audio systems where transparency, low-level resolution, shielding, and controlled conductor geometry are paramount.
Combining Dual Mono-Filament technology, seven silver-plated solid-core OFC conductors, mechanically tuned construction, FEP insulation, and high-coverage shielding, Tyr 2 provides a carefully engineered signal path between source components, preamplifiers, integrated amplifiers, and power amplifiers.
At Trimira Audio, we recommend the Tyr 2 Analog Interconnect for reference-oriented systems seeking the highest-performance analogue interconnect within the Norse 2 range.
Key Features & Technological Innovations
Proprietary Dual Mono-Filament Construction
Each conductor is wrapped with two helical FEP strands before being enclosed within an extruded FEP outer jacket.
This creates a low-contact dielectric environment designed to minimize dielectric interaction and energy storage while supporting rapid signal propagation.
Seven 24 AWG Silver-Plated Solid-Core OFC Conductors
Tyr 2 employs 7 × 24 AWG solid-core conductors manufactured from 99.99999% high-purity OFC copper with pure silver plating.
The solid-core architecture provides consistent conductor geometry without the strand interaction associated with conventional stranded cables.
Mechanically Tuned Lay & Spacing
The conductors are arranged using controlled geometry designed to manage:
- Electrical interaction
- Electromagnetic coupling
- Mechanical resonance
- Microphonic behavior
- Channel-to-channel interaction
97% Coverage Braided Shielding
A high-coverage braided shield provides approximately 97% coverage, helping protect the analogue signal from:
- RF interference
- Electromagnetic interference
- External electrical noise
- Environmental crosstalk
Precision Hand Terminations
Tyr 2 is available with:

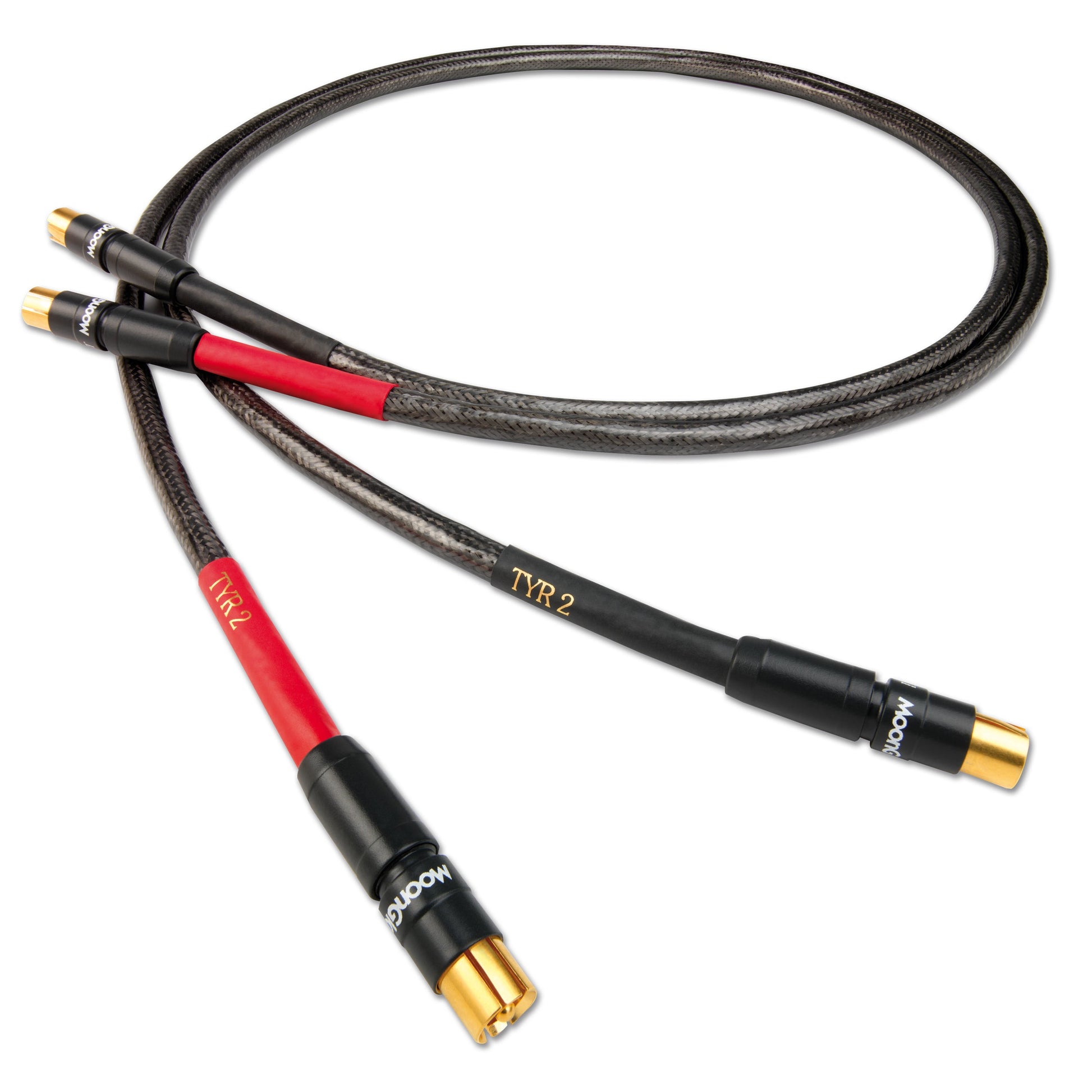

- Gold-plated MoonGlo® RCA connectors

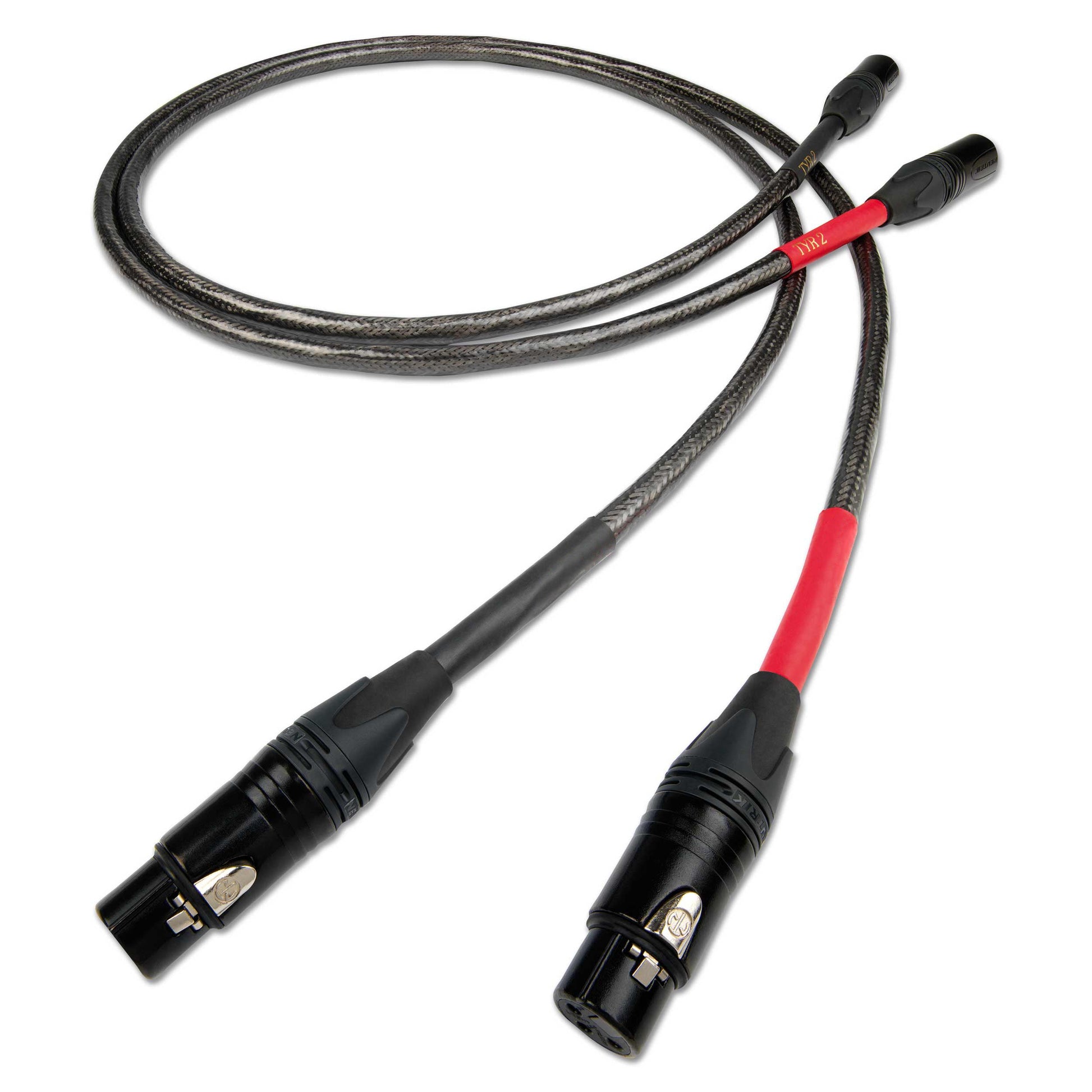

- Neutrik 3-pin XLR connectors
The XLR configuration is suited to compatible balanced analogue systems.
Technical Specifications
| Specification |
Tyr 2 Analog Interconnect |
| Series |
Norse 2 Series |
| Insulation |
High-Grade Extruded Fluorinated Ethylene Propylene (FEP) |
| Construction |
Mechanically Tuned Lay, Spacing & Dual Mono-Filament Design |
| Conductors |
7 × 24 AWG Solid-Core |
| Conductor Material |
Silver-Plated 99.99999% Solid-Core Oxygen-Free Copper (OFC) |
| Capacitance |
33.0 pF/ft |
| Inductance |
0.045 µH/ft |
| Shield Coverage |
97% Braided Shielding |
| Velocity of Propagation |
80% Speed of Light |
| Termination Options |
Custom Gold-Plated MoonGlo® RCA or Neutrik 3-Pin XLR |
| Standard Lengths |
0.6 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m + Custom Lengths |
RCA vs XLR Configuration
RCA
The single-ended RCA configuration is suitable for conventional analogue connections between compatible source and amplification components.
XLR
The balanced XLR configuration is appropriate when both connected components support a genuine balanced analogue signal path.
Trimira Audio can assist with selecting the appropriate termination according to your equipment's architecture.
Consult with the Audio Specialists at Trimira Audio
The Nordost Tyr 2 Analog Interconnect represents the top of the Norse 2 analogue range, combining advanced dielectric construction with a substantial seven-conductor architecture and extensive shielding.
Trimira Audio can assist with:
- RCA versus XLR selection
- Cable length selection
- Source-to-preamplifier matching
- Preamplifier-to-amplifier connections
- Complete Nordost cable-system planning
- Private reference-system auditions
For a flagship Norse 2 analogue connection, Tyr 2 combines 24 AWG silver-plated solid-core OFC, Dual Mono-Filament FEP construction, 97% shielding, mechanically controlled geometry, and precision RCA or XLR termination.
