High-Current 5-Channel Surround Power & Dynamic Impact | Available at Trimira Audio

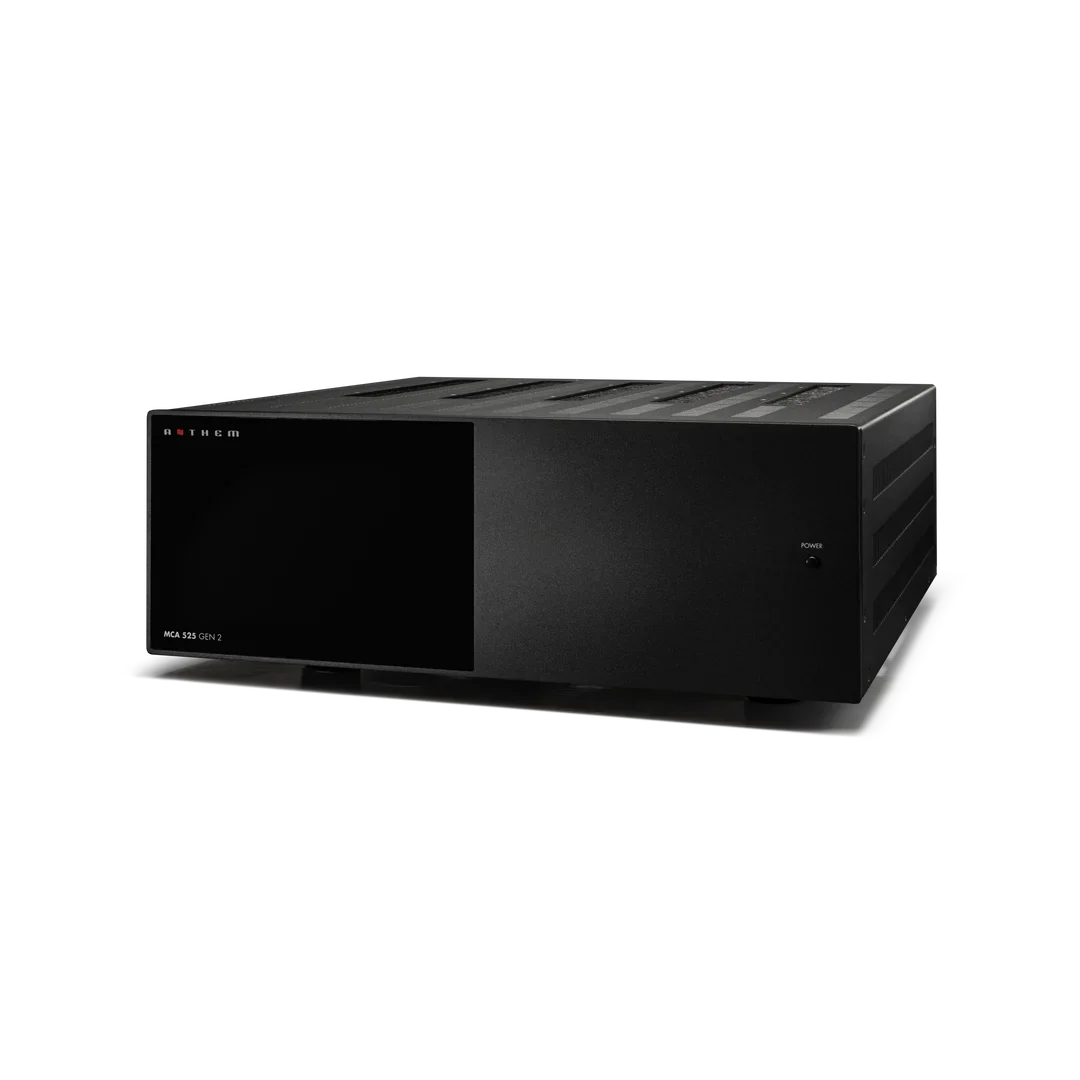

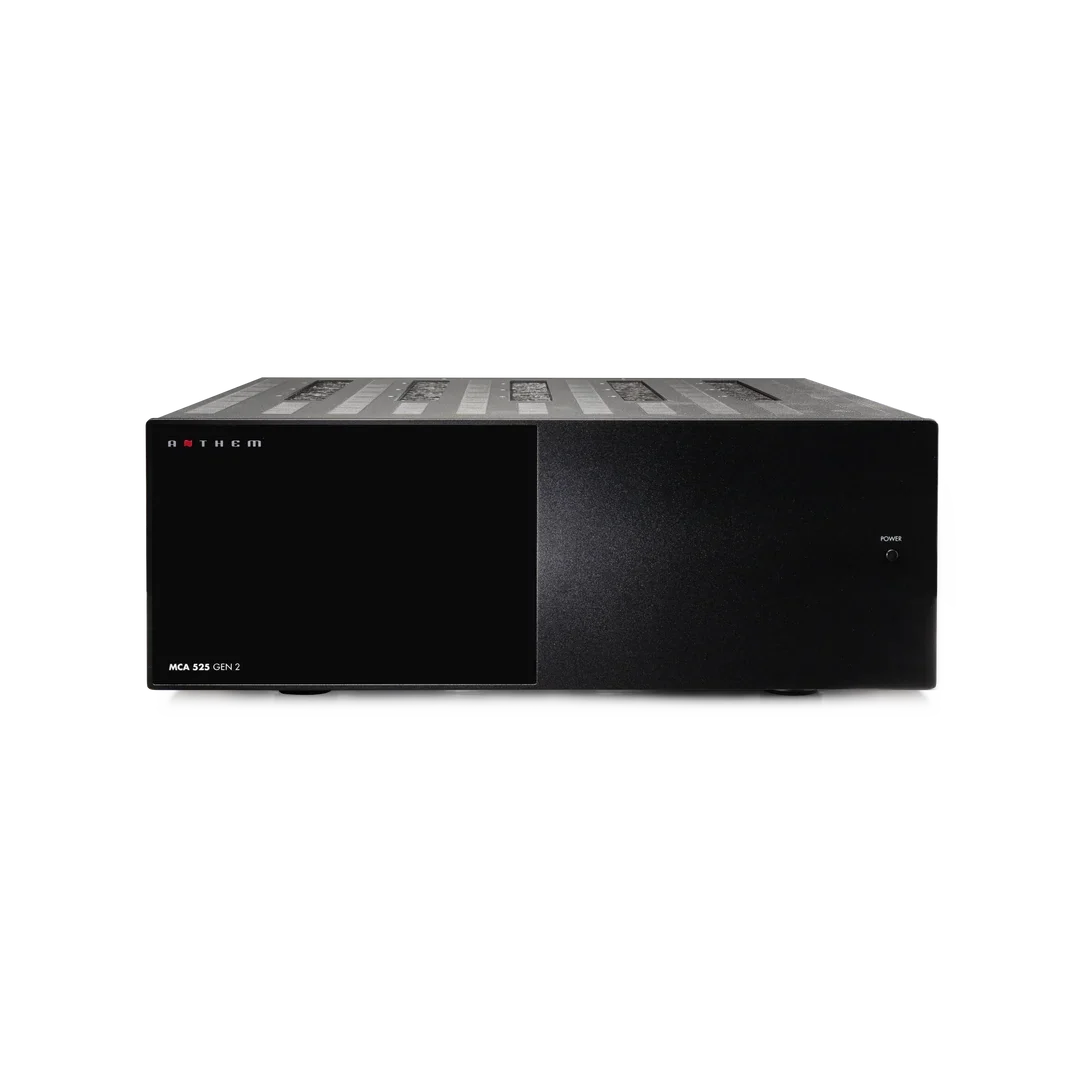

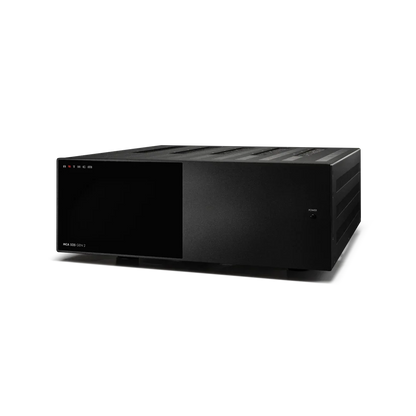

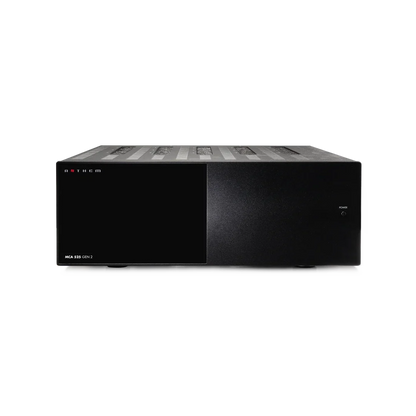

Designed and manufactured in Canada, the Anthem MCA 525 Gen 2 Power Amplifier provides 5 channels of high-current Class AB amplification designed to drive complete 5.1-channel surround configurations or main bed channels in complex immersive home theatre installations. Delivering 225 Watts continuous per channel into 8 Ohms (400 Watts into 4 Ohms and 600 Watts into 2 Ohms) across all 5 channels simultaneously, the MCA 525 Gen 2 handles high-volume movie soundtracks and complex musical dynamics with absolute authority and thermal stability.
The Gen 2 design features a streamlined internal layout that minimizes internal wiring to create a direct signal path, substantially reducing noise and magnetic crosstalk. Driven by twin custom low-flux toroidal power transformers and 8 high-current bipolar output devices per channel, the MCA 525 Gen 2 produces a 120 dB signal-to-noise ratio for a whisper-quiet noise floor. To maintain operational stability during demanding listening sessions, Anthem’s proprietary Advanced Load Monitoring (ALM™) system actively tracks temperature, voltage, and current without introducing sound-degrading fuses into the audio signal path.
Key Features & Technological Innovations
-
5-Channel High-Current Architecture: Delivers equal power and dynamic headroom across all five main surround channels for seamless multi-channel voice matching.
-
Twin Low-Flux Toroidal Power Transformers: Heavy-duty toroidal transformers supply continuous power while eliminating stray magnetic field interference.
-
High-Current Bipolar Output Transistors: Utilizes 8 discrete output transistors per channel to distribute electrical load and ensure linear response into low-impedance loads.
-
Advanced Load Monitoring (ALM™): Microprocessor-driven protection system continuously monitors thermal and electrical parameters without fuses in the signal path.
-
Direct Low-Cabling Signal Topology: Redesigned circuit layout maximizes power bandwidth (-3 dB at 90 kHz) and delivers a fast 30 V/µs slew rate for accurate transient response.
-
Individual XLR and RCA Inputs: Gold-plated single-ended RCA and balanced XLR inputs for all 5 channels provide clean connectivity with Anthem AVM processors or third-party preamplifiers.
-
Flexible Power Management: Features 3-way turn-on triggers (manual switch, 12V DC trigger, auto-sensing signal detection) and low-power standby mode (<2W).
Technical Specifications
-
Amplifier Topology: 5-Channel Class AB Power Amplifier
-
Power Output into 8 Ohms: 225 Watts RMS per channel (20 Hz - 20 kHz, <1% THD, all channels driven)
-
Power Output into 4 Ohms: 400 Watts RMS per channel (20 Hz - 20 kHz, <1% THD)
-
Power Output into 2 Ohms: 600 Watts RMS per channel (20 Hz - 20 kHz, <1% THD)
-
Total Harmonic Distortion (THD): 0.0010% @ 100W (1 kHz); 0.015% @ 100W (20 kHz)
-
Signal-to-Noise Ratio (SNR): 120 dB (IEC-A, ref. 225 W)
-
Frequency Response: 20 Hz - 20 kHz (±0.1 dB into 8 Ohms)
-
Power Bandwidth: 90 kHz (-3 dB @ 200 W into 8 Ohms)
-
Slew Rate: 30 V/µs
-
Damping Factor: 300 (20 Hz to 1 kHz)
-
Channel Separation: >65 dB (100 Hz to 10 kHz)
-

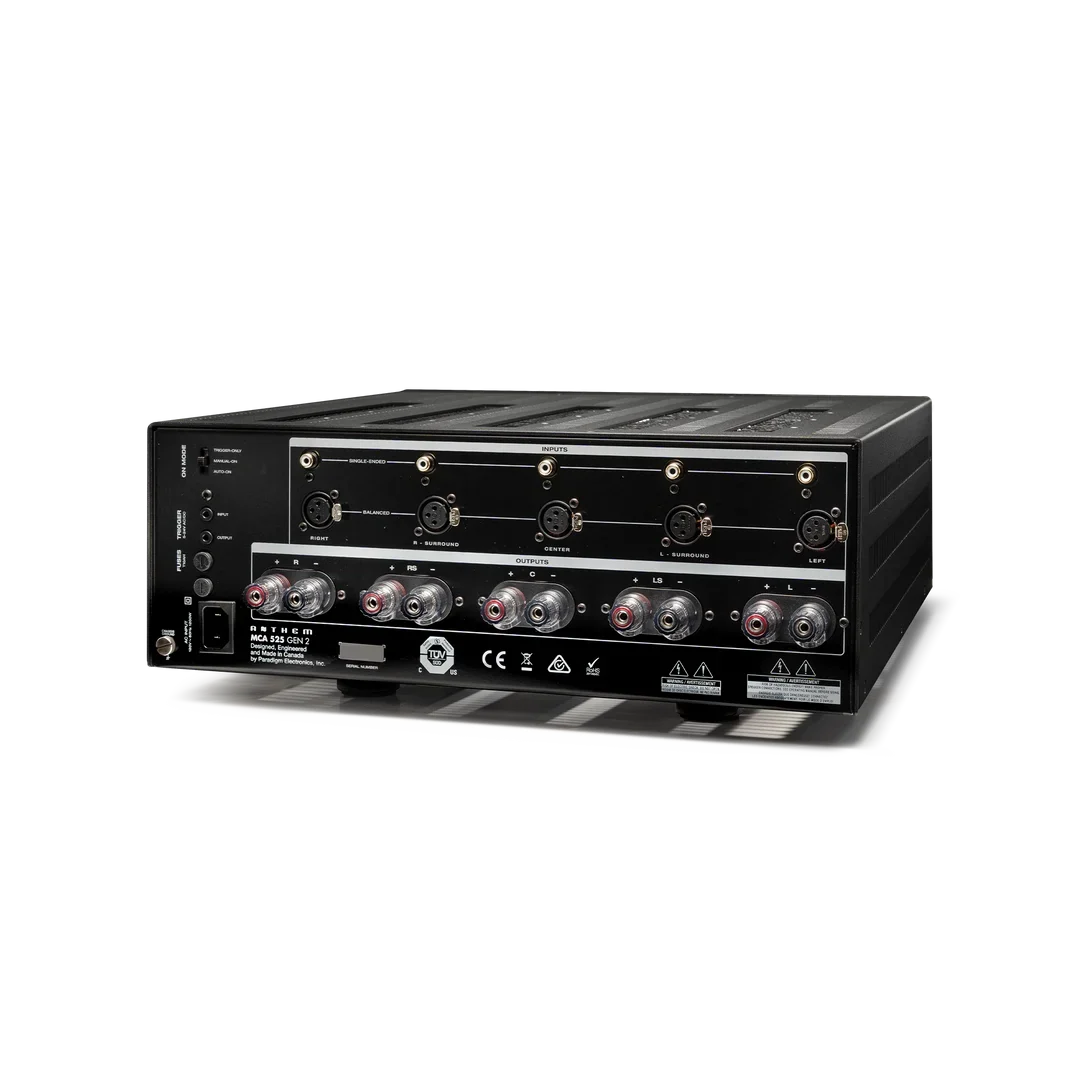

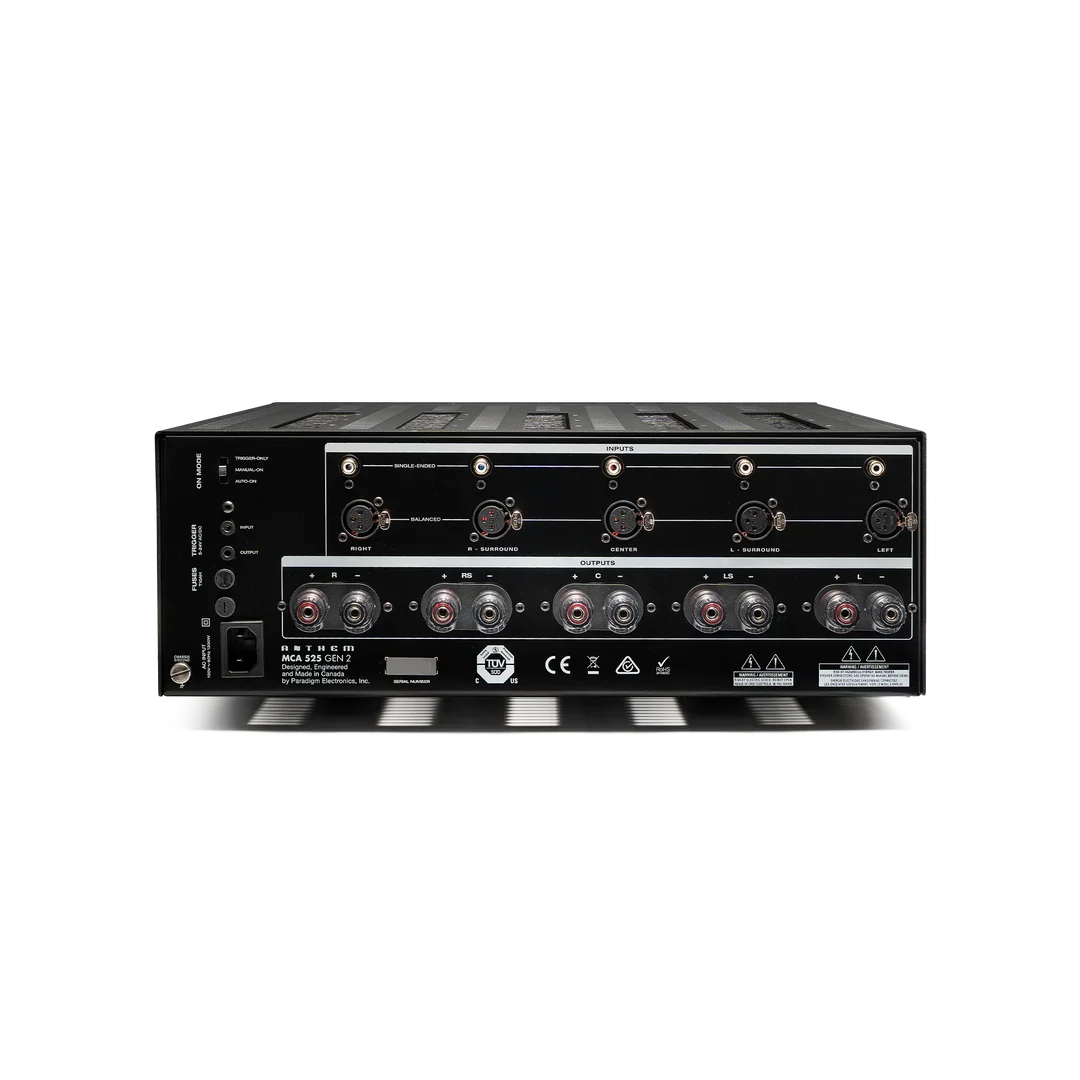

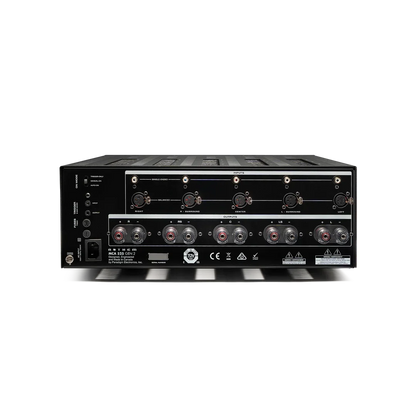

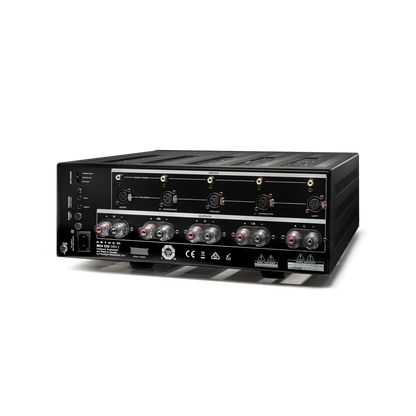

Analogue Inputs: 5 x Balanced XLR, 5 x Single-Ended RCA
-
Speaker Outputs: 5 Pairs of Custom Oversized Audiophile Binding Posts
-
Control Connections: 1 x 12V Trigger Input (3.5 mm), 1 x 12V Trigger Output (3.5 mm)
-
Dimensions (H x W x D): 16.9 cm x 43.8 cm x 46.0 cm (4U Rackmount Height)
-
Net Weight: 27.5 kg (60.5 lbs)
Consult with the High-End Audio Specialists at Trimira Audio
Power your entire surround system with reference-grade Canadian amplification. Contact the home theatre and custom integration specialists at Trimira Audio in Brisbane to discuss AVM processor matching, system design, or to schedule a private audition.
