JL Audio

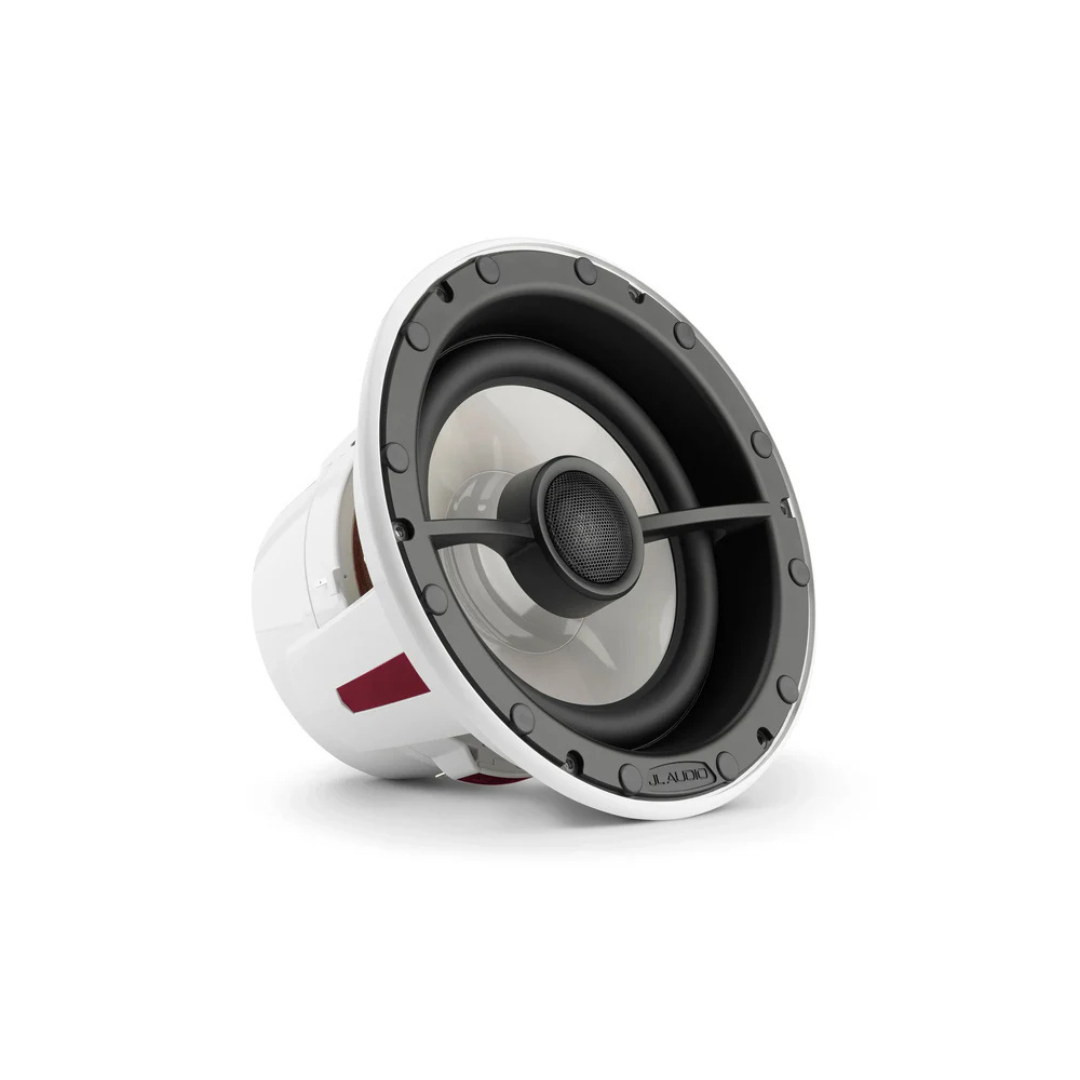

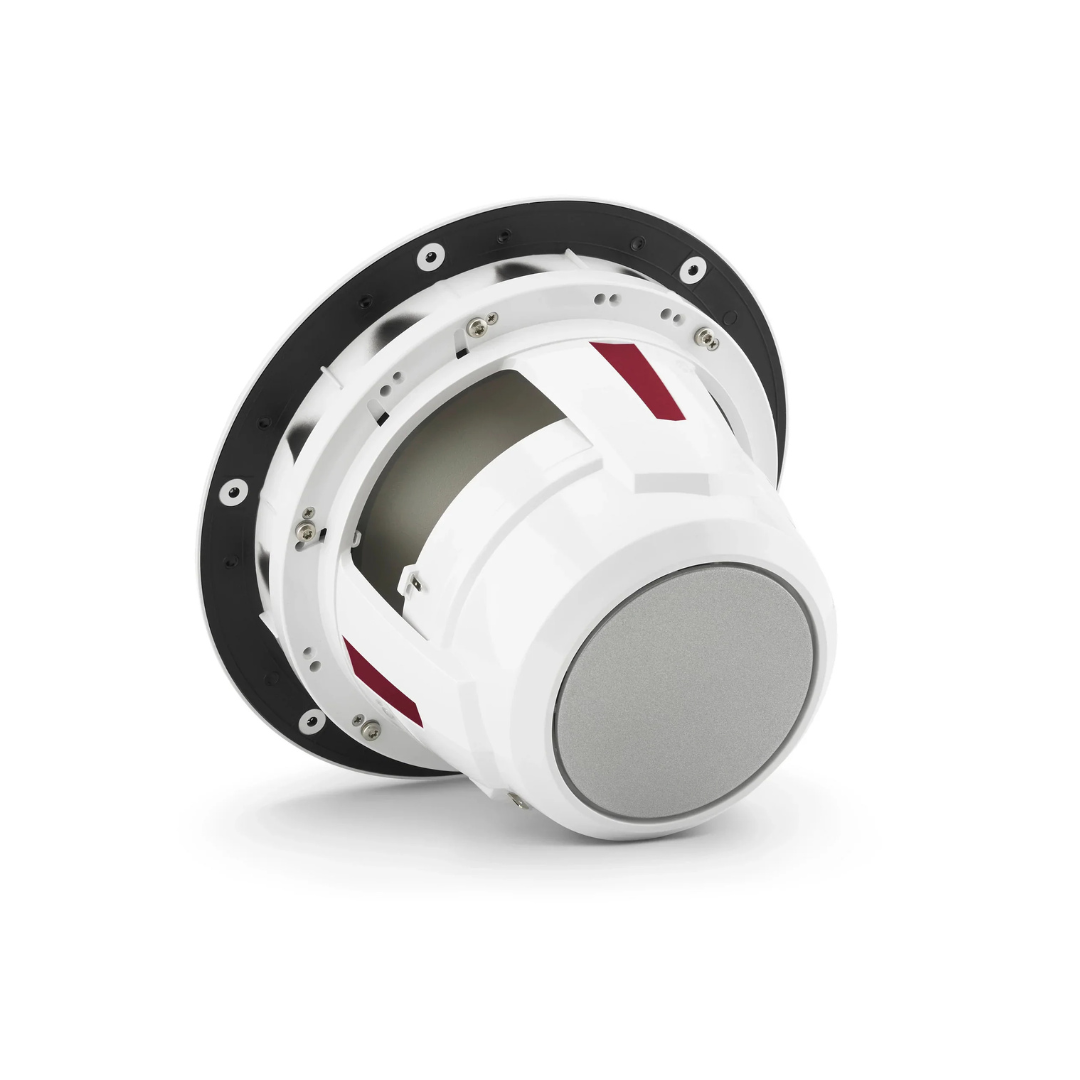

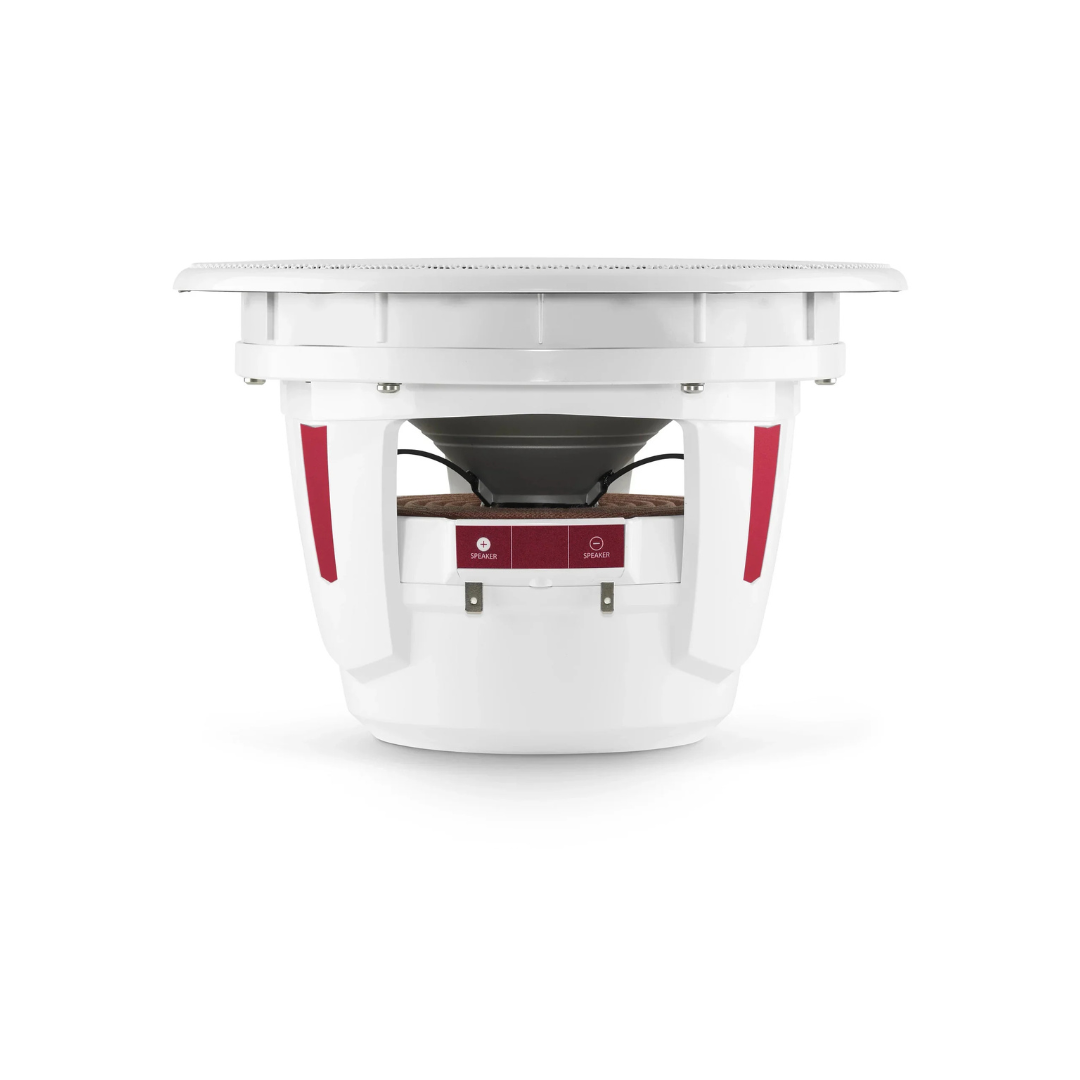

JL Audio 8.8-inch (224 mm) Pavilion™ Outdoor In-Ceiling Speaker, Flush-Mount Coaxial
PavilionTM in-ceiling speakers are engineered to deliver remarkable audio performance and durability in outdoor residential applications. Each model features a low-profile mounting bezel with an integrated tweeter bridge and a flush-mount grille for a discreet visual appearance.
For ease of installation, all PavilionTM speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
A monstrous, DMA-optimized, 8.8-inch long excursion woofer design ensures excellent power handling and a 1.25-inch (32 mm) pure silk dome tweeter, specially treated to withstand the harshest outdoor environments, delivers crystal-clear high-frequency sound, especially at higher volume levels. The bass is so impressive that the PV-FX8 can be used without a subwoofer while still packing a very serious low-frequency punch. Used with a subwoofer, it offers vastly better dynamics and mid-bass impact than smaller speakers, making it the best choice when ultimate performance is desired.
To make sure that the high-frequencies sound just as good as the bass, our engineers have designed an oversized, 1.25-inch (32 mm), silk dome tweeter for this model. This tweeter plays louder, cleaner and extends lower in frequency to better mate with the 8.8-inch woofer. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, guarded against the elements. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although PV-FX8 Coaxial Speakers can be used with as little as 50 W per channel, for best audio performance we recommend amplifiers capable of between 100-200 W of continuous power per channel.
Production of all PavilionTM loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.
Features
-
Outdoor Design: Specifically designed for outdoor use, with a flush-mount, in-ceiling design.
-
Coaxial Design: Features a coaxial configuration with an 8.8-inch woofer and a 1.25-inch silk dome tweeter.
-
Power Handling: Handles 100W RMS power continuously and is recommended for amplifiers with 50-200W per channel.
-
Frequency Response: Offers a wide frequency response of 38 Hz - 20 kHz ± 3 dB.
-
High-Frequency Driver: The 1.25-inch silk dome tweeter is designed to play louder, cleaner, and extend lower in frequency.
-
Crossover: Includes a multi-order, true 2-way passive crossover within the woofer chassis, protected from the elements.
-
Tweeter Protection: Features an automatic, solid-state tweeter protection circuit to minimize the risk of tweeter failure.
-
Grille: Comes with a white Luxe grille.
- Mounting: Flush-mount design for a clean look when installed in ceilings.
