JL Audio

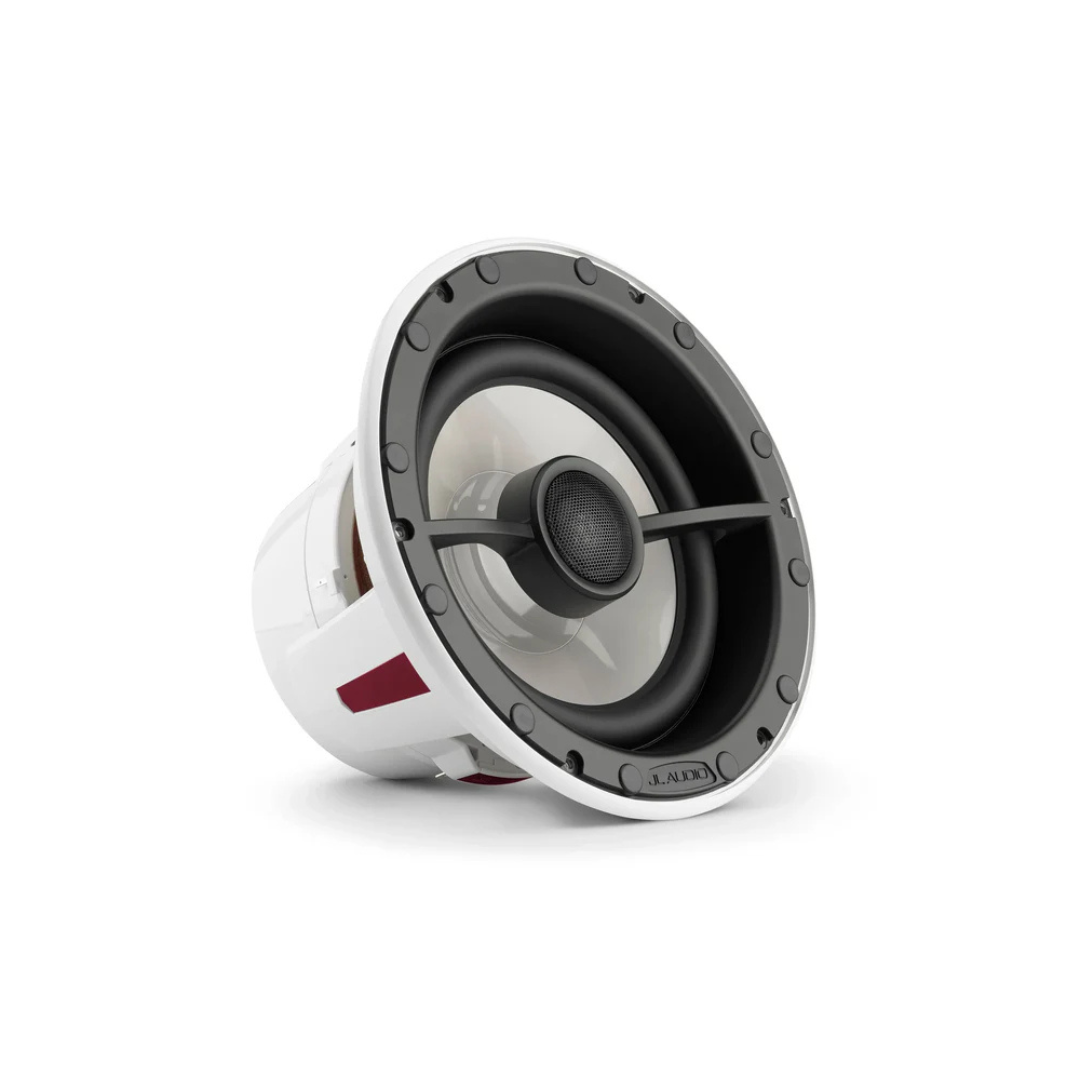

JL Audio 6.5-inch (165 mm) PavilionTM Outdoor In-Ceiling Speaker, Flush-Mount Coaxial (PV-FX6-GwSw)

PavilionTM in-ceiling speakers are engineered to deliver remarkable audio performance and durability in outdoor residential applications. Each model features a low-profile mounting bezel with an integrated tweeter bridge and a flush-mount grille for a discreet visual appearance.

For ease of installation, all PavilionTM speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.

A DMA-optimized, long excursion woofer design ensures excellent power handling and a 0.8-inch (20 mm) pure silk dome tweeter, specially treated to withstand the harshest outdoor environments, delivers crystal-clear high-frequency sound, especially at higher volume levels.

A multi-order, true 2-way passive crossover is concealed within the woofer chassis, guarded against the elements. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.

Although PV-FX6 Coaxial Speakers can be used with as little as 30 W per channel, for best audio performance, we recommend amplifiers capable of between 60-
120 W of continuous power per channel.

Production of all PavilionTM loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

• Type: In-ceiling, flush-mount, coaxial speaker.
• Size: 6.5-inch (165 mm).
• Series: Pavilion.
• Outdoor Use: Specifically designed for outdoor environments.
• Power Handling (RMS): 60 Watts.
• Recommended Amplifier Power: 30-120 Watts per channel.
• Impedance: 4 ohms.
• Frequency Response: 55 Hz - 25 kHz ± 3 dB.
• Sensitivity: 89.5 dB @ 1 W / 1 m.
• Frontal Grille Protrusion: 9 mm / 0.37".
• Mounting Hole Diameter: 175 mm / 6.875".
• Mounting Depth: 98 mm / 3.87".
• Net Weight: 1.45 kg / 3.21 lb.
