JL Audio

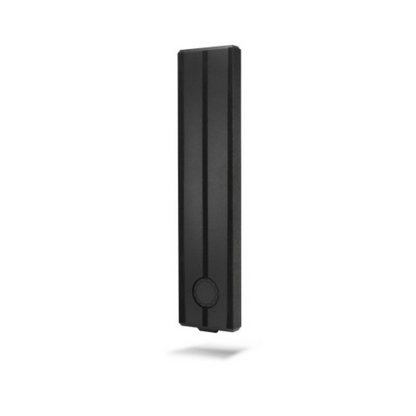

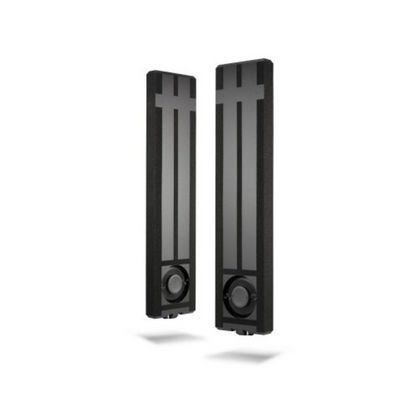

JL Audio Fathom® 8-inch (200 mm) In-Wall Powered Subwoofer System (IWS)

The JL Audio Fathom IWS-SYS-208 is a dual 8-inch in-wall powered subwoofer system. It features a ported enclosure, a black texture-coated finish, and delivers 600 watts of RMS power. The system includes a complete set of Fathom signal processing features, such as a 18-band Digital Automatic Room Optimization (D.A.R.O.) system and a true 2-way crossover with high-pass outputs.

Features

• Dual 8-inch Drivers: The system uses two 8-inch woofers per enclosure to deliver powerful bass.
• Ported Enclosure: The ported design enhances low-frequency response and extension.
• Black Texture-Coated Finish: The enclosure has a durable, aesthetically pleasing finish.
• 600W RMS Amplifier: The built-in amplifier provides ample power for the drivers.
• Signal Processing: The system includes a comprehensive suite of signal processing features for optimal performance and room correction.
• D.A.R.O.: The 18-band Digital Automatic Room Optimization system helps to minimize room acoustics issues.
• Two-way Crossover: A true two-way crossover with high-pass outputs allows for seamless integration with other speakers.
• Easy-to-use Interface: The system features an LCD display and menu-driven interface for easy setup and control.
• Floating Cone Attach Method (FCAM™): This patented JL Audio technology ensures proper surround geometry and excursion control for better sound quality.
• DMA (Dynamic Motor Analysis): This technology analyzes the speaker's dynamic behavior under real power conditions, providing a more accurate model than traditional methods.

• Frequency Response: 24.9 Hz – 109 Hz (± 1.5 dB)
• Effective Piston Area: 63.24 sq in / 0.0408 sq m
• Effective Displacement: 95.0 cu in / 1.56 L
• Amplifier Power: 600 W RMS short-term
• Power Modes: Off, On, or Automatic (Signal-sensing or 12V trigger)
• Input Impedance: 50k Ohms (unbalanced), 4.4k Ohms (speaker/high-level)
• Level Control: Variable from -50dB to +15dB over reference gain (0.5 dB increments)
• Filter Modes: Low-Pass, with tracking High-Pass Outputs
• Filter Slope(s): 12/24 dB/octave
• Filter Frequency Range: 30 Hz – 130.1 Hz
• Delay (Phase): Variable from 0 – 25 ms
• Enclosure Type: Ported
• Enclosure Finish: Black Texture-Coated
• Grille Finish: White (paintable)
• Enclosure Dimensions (HxWxD): 61.63 in. x 14 in. x 3.25 in. (1,565 mm x 355 mm x 83 mm)
• Wall Opening Dimensions (HxW): 248 mm x 248 mm (9.75 in. x 9.75 in.)
• Grille Dimensions (HxW): 267 mm x 267 mm (10.50 in. x 10.50 in.)
• Amplifier Dimensions (HxWxD): 44 mm x 428 mm x 346 mm (1.75 in. x 16.84 in. x 13.63 in.)
• Amplifier Net Weight: 6.12 kg (13.5 lbs)
