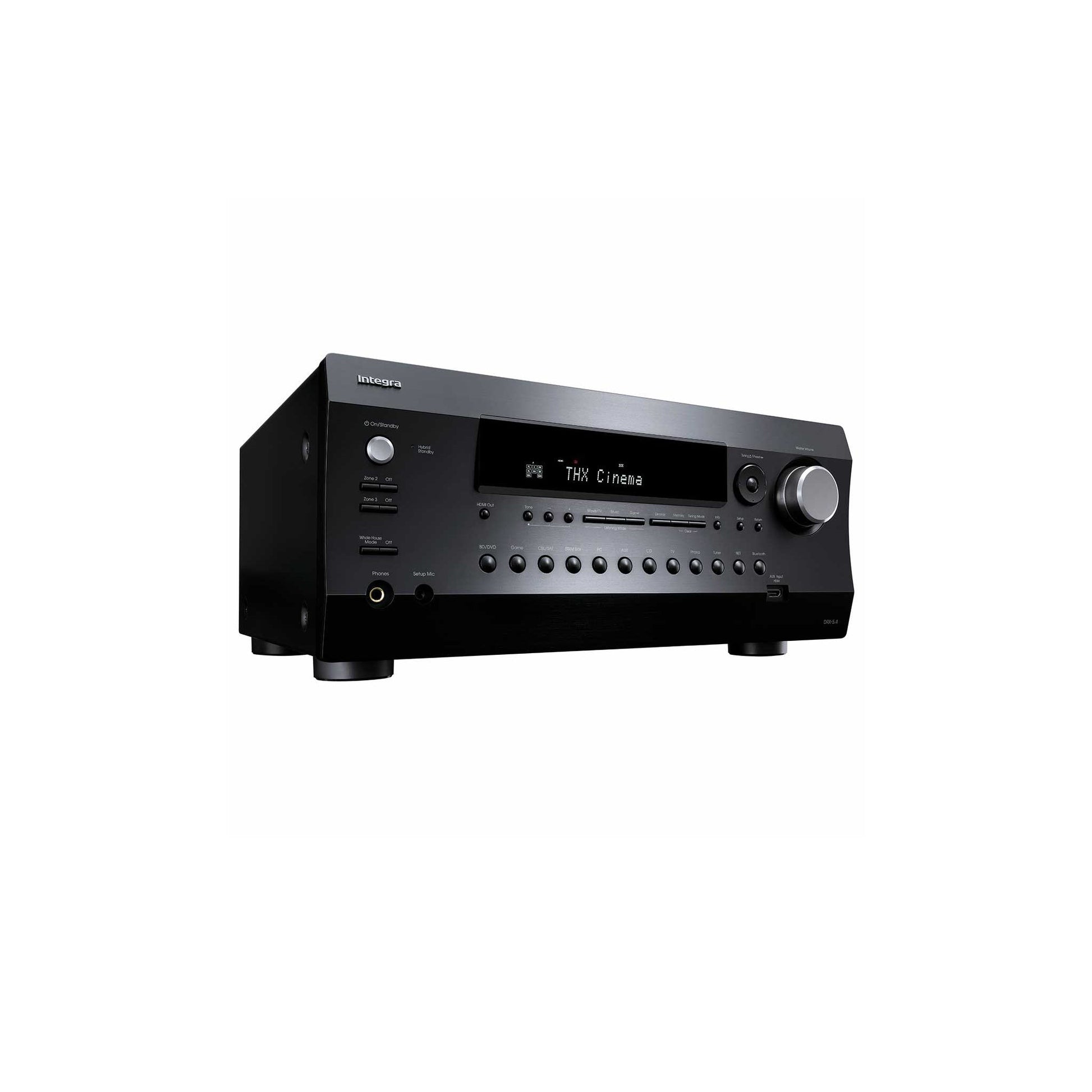

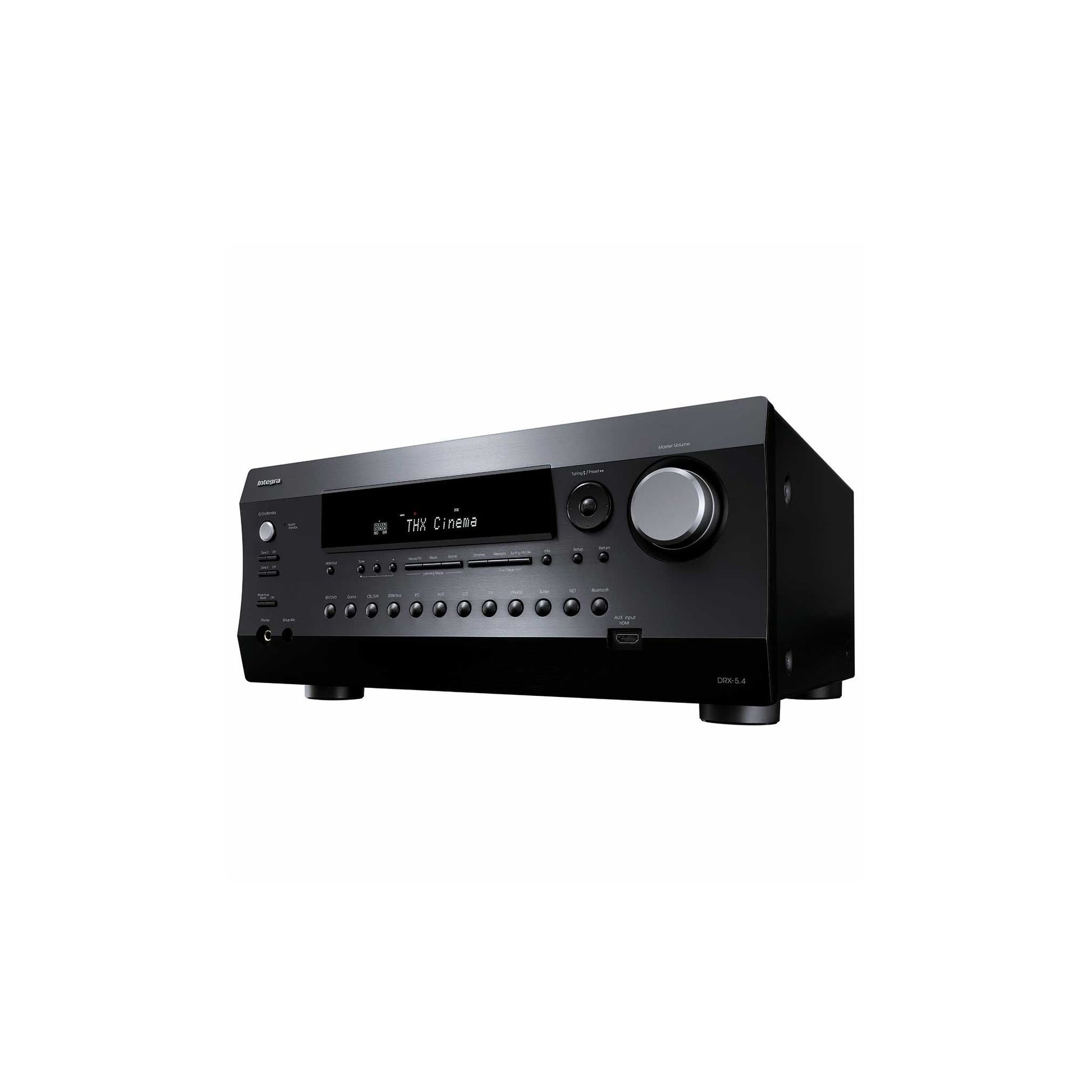

Integra DRX 5.4 Integra DRX 5.4

Vendor: Integra
Integra DRX 5.4 Integra DRX 5.4 - Trimira
Integra DRX 5.4 Integra DRX 5.4

$3,199

Integra

DRX 5.4

9.2 Channel 8K Network AV Receiver w/ Dolby Vision, Dolby Atmos, HDR10+, DTS:X, IMAX Enhanced, Apple Airplay 2, DTS Play-Fi, Bluetooth, WiFi, Chromecast, Roon Certified & Dirac Live Room Correction

Overview

Theater-reference Dolby Atmos® or DTS:X® sound through up to 7.2.4 channels* complements 8K HDR video passthrough. Connect 5.2.4-ch speakers and Zone 2 speakers and switch between 5.2.4-ch and 5.2.2-ch + Zone 2 playback, or use 5 GHz/2.4 GHz Wi-Fi® and your voice to control music all around your home.

*Requires connection of an external stereo power amp.


Audio & Video Highlights

  • 5.2.4/7.2.2-ch Dolby Atmos® and DTS:X® playback
  • Dolby Atmos Height Virtualization
  • Dolby Surround® and DTS® Neural:X upmixing
  • HDMI® supports 8K/60p (4:4:4/12-bit, 4:2:2/12-bit, 4:2:0/10-bit), 8K/30p (4:4:4/12-bit, 4:4:4/10-bit, 4:2:2/12-bit, 4:2:0/12-bit), 4K/120p (4:4:4/12-bit, 4:4:4/10-bit, 4:2:2/12-bit, 4:2:0/12-bit) video passthrough, HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
  • 11.2-ch pre-outs and processing for 7.2.4-ch layouts
  • HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD
  • Bi-directional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
  • Separate Zone 2 speaker outputs enable 5.2.4-ch + Zone 2 speaker connection, 5.2.4-ch playback switching to 5.2.2-ch + Zone 2 playback
  • Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out and Zone 3 pre-out
  • Share any MAIN audio source to a wireless headphone dock via Zone B line-out
  • Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
  • Dirac Live® Room Correction supports multi-point acoustic calibration
  • AccuReflex™ phase-matching solution for Dolby Atmos enabled speakers
  • Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

Amplification Technology

  • 120 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
  • THX® Certified Select for Theater Reference Sound
  • IMAX® Enhanced certified for IMAX® digital remasters
  • Low-impedance amp system with 4-ohm speaker-driving capability
  • Massive custom transformer and customized 15,000 μF capacitors
  • Copper bus-bar connects capacitors to amplifiers
  • Non-phase-shift amp-circuit topology, audio-grade parts, and separate digital/analog circuit boards
  • Extruded anti-resonant aluminum heat-sink
  • Precision DAC supports 192 kHz/24-bit multichannel D/A conversion
  • VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)
  • PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
  • Front L/R speaker bi-amping capability in 5.2/7.2/5.2.2-ch configuration
  • Independent tone controls (bass/treble) for all channels

Network Features and Multi-Zone Audio

  • Isolated quad-core SoC board supports high-speed 802.11ac (2x2 MIMO) Wi-Fi®
  • Amazon Music HD, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer
  • Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode
  • Works with Alexa supporting multi-room music
  • Works with Hey Google and Chromecast built-in™
  • AirPlay 2 multi-room audio with Siri voice control
  • DTS Play-Fi® multi-room audio via Integra Music Control App
  • Compatible with the Integra Remote app for iPad®, iPhone®, and Android™
  • Roon Tested certified for the Roon Core
  • Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit)



Custom Integration Features

  • 10BASE-T/100BASE-TX Ethernet supports setup and IP control via web browser
  • Works with Crestron®, Control4®, Savant, URC, ELAN, and RTI automation
  • RS-232 input for external control and automation
  • 2 IR inputs and 1 output
  • 3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)
  • Dealer-settings memory storage and recall function
  • AC inlet for detachable IEC power cable
  • Optional rack-mount kit (IRK-180-4C)

Additional Features

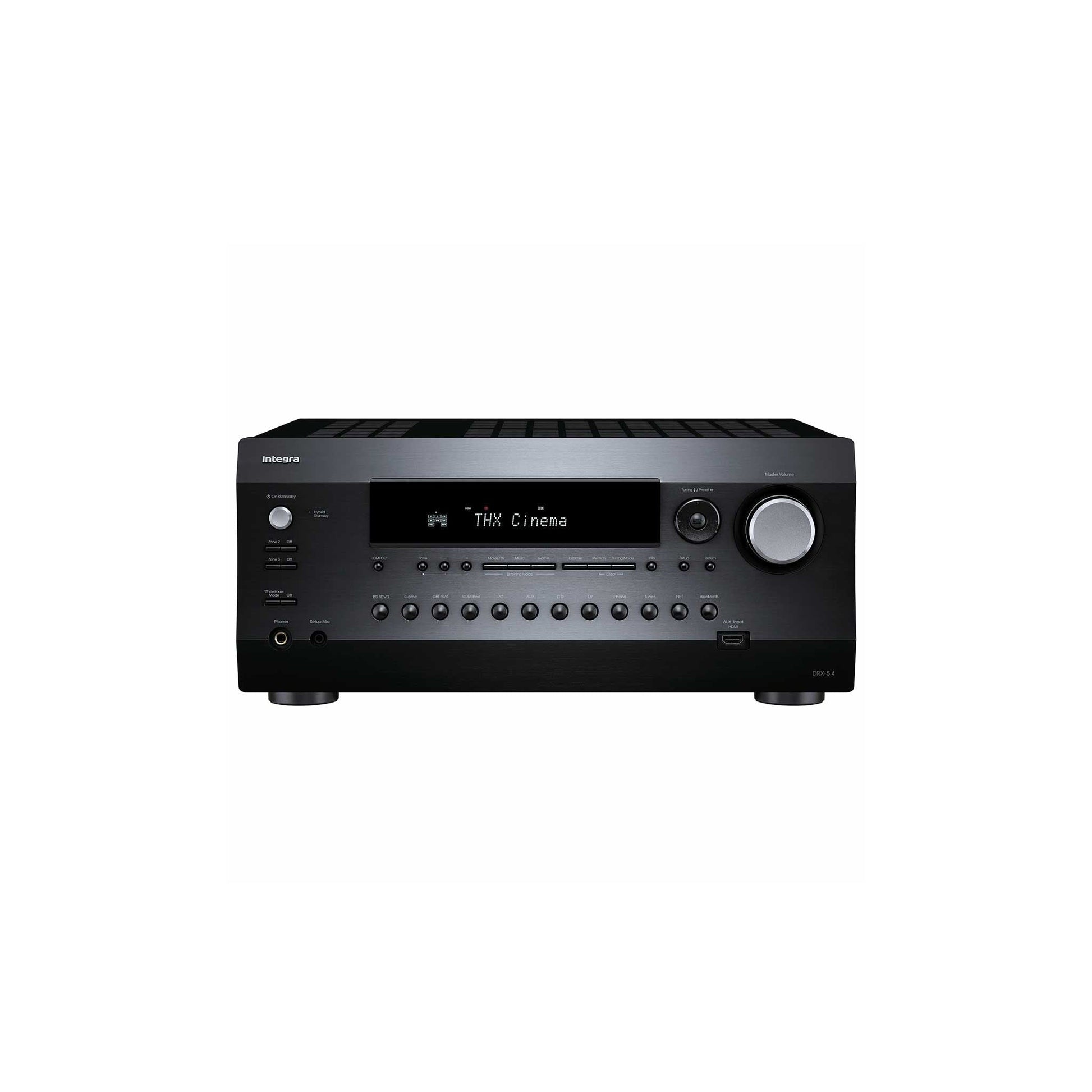

  • Aluminum front panel and volume knob
  • Front-to-Surround/Height speaker switching in Stereo Assign Mode
  • One-touch volume memory preset assignment to individual A/V inputs via front panel
  • OSD function displays A/V input signal data, output signal/settings data, and network information
  • Dolby® TrueHD and DTS-HD Master Audio® decoding
  • THX® listening modes for films, games, and music
  • Advanced Music Optimizer™ improves compressed audio playback quality
  • High-definition GUI over HDMI
  • Super Resolution 1080p to 4K and 1080p/4K to 8K video upscaling via HDMI
  • Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)
  • A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz)
  • Sleep timer, HDMI passthrough, and network standby
  • 40 FM/AM/internet radio presets with station-naming (10 characters)
  • 3-Mode display dimmer (Normal/Dim/Dimmer)



Amplifier Section

  • Power Output Front L/R -
    • 250 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven
    • 120 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC
  • Dynamic Power -
    • 250 W (3 Ohms, Front)
    • 220 W (4 Ohms, Front)
    • 130 W (8 Ohms, Front)
  • Input Sensitivity and Impedance -
    • 200 mV rms/47 k-Ohms (Line/Unbalance)
    • 3.5 mV rms/47 k-Ohms (Phono MM)
  • THD+N (Total Harmonic Distortion + Noise) - 0.08% (20 Hz–20 kHz, Half Power)
  • Rated RCA Output Level and Impedance -
    • 1 V rms/470 Ohms (Subwoofer Pre-out)
    • 200 mV rms/470 Ohms (Zone 3/Height 2/Pre-/Line-out)
  • Phono Overload - 70 mV (MM, 1 kHz, 0.5%)
  • Frequency Response - 10 Hz–100 kHz / +1 dB, -3 dB (Direct Mode)
  • Tone Control -
    • ±10 dB, 20 Hz (Bass)
    • ±10 dB, 20 kHz (Treble)
  • Signal-to-Noise Ratio -
    • 106 dB (IHF-A, Line)
    • 80 dB (IHF-A, Phono)
  • Speaker Impedance - 4 Ohms–16 Ohms

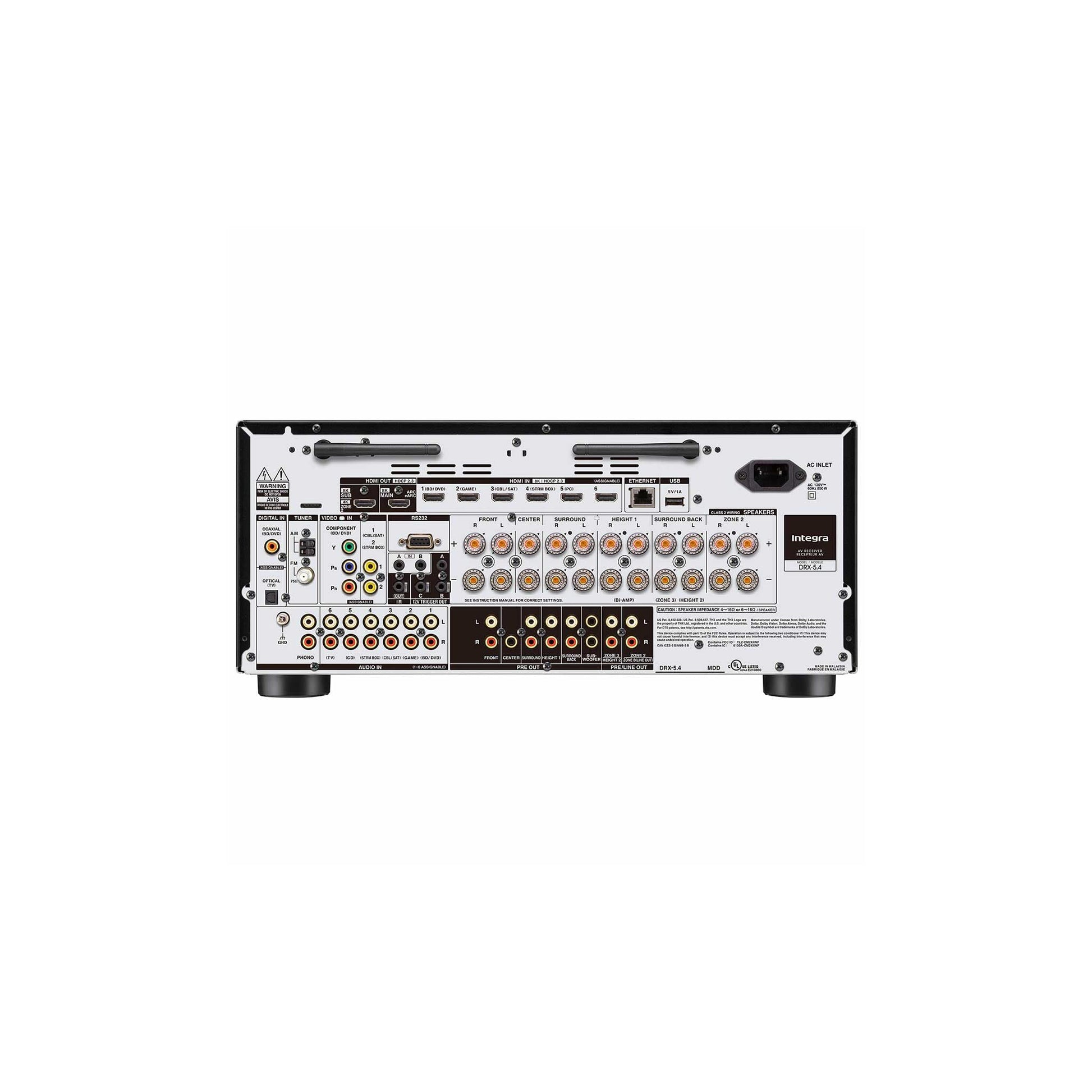

Audio-Video Connections

  • 7 HDMI inputs (1 front), Main Out (eARC), Sub/Zone 2 Out
  • 2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
  • 6 gold-plated analog audio inputs (rear, assignable)
  • Gold-plated phono input and built-in equalizer (MM) for turntable connection
  • USB input (5 V/1 A) for audio playback (rear)
  • 1/8 ̋ (3.5 mm) Dirac Live/AccuEQ Advance setup mic input (front)
  • 2 gold-plated composite video inputs (rear, assignable)
  • 1 gold-plated component video input (rear, assignable)
  • 1/4 ̋ (6.3 mm) gold-plated headphone jack
  • 11 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2)
  • Dedicated gold-plated Zone 2 speaker outputs
  • Gold-plated 11.2-ch pre-outs
  • Gold-plated Zone 2 pre-out / Zone B line-out (analog RCA)
  • Ethernet LAN terminal

Video Section

  • Signal Level -
    • 1 Vp-p/75 Ohms Composite Video
    • 1 Vp-p/75 Ohms Component Video (Y)
    • 0.7 Vp-p/75 Ohms Component Video (Pb/Pr )

Tuner Section

  • Tuning Frequency Range -
    • FM 87.5 MHz–107.9 MHz
    • AM 530 kHz–1,710 kHz
  • FM/AM Preset Memory - 40 Stations

General

  • Power Supply - AC 120 V~, 60 Hz
  • Power Consumption - 850 W
  • Standby Power Consumption - 0.1 W
  • Dimensions (W x H x D) - 171/8 ̋ x 713/16 ̋ x 155/16 ̋ (435 x 198 x 388.5 mm)
  • Weight - 30.9 lbs. (14.0 kg)
  • Carton Dimensions (W x H x D) - 221/16 ̋ x 125/8 ̋ x 183/16 ̋ (560 x 320 x 462 mm)
  • Carton Weight - 37.5 lbs. (17.0 kg)
More Information
MPN DRX5.4
UPC 889951003380
Weight 30.90 lbs
Features Apple Airplay 2, Bluetooth Audio Streaming, Bluetooth Enabled, Built-In Phono Stage, Component Video Inputs, Composite Video Inputs, Dolby Atmos, Dolby Digital, DTS:X, Ethernet Port, HDMI eARC, HDMI Inputs, HDR, MM Compatible, Multiple Outputs, Music Streaming, Optical Digital Audio Output, Phono Input, Room EQ, Roon Ready, Spotify Connect, Stereo, USB, 4K Ultra HD, 8K Resolution
