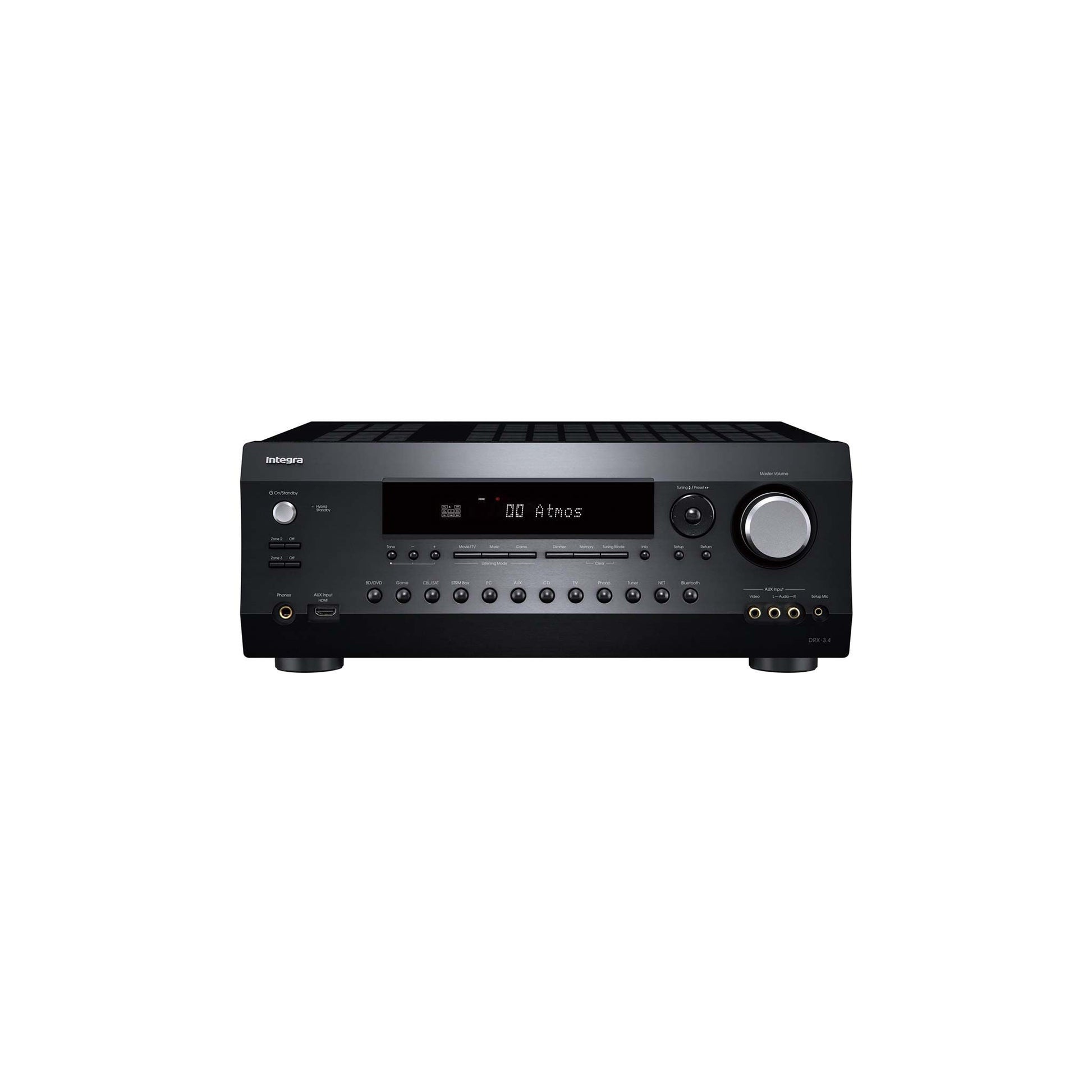

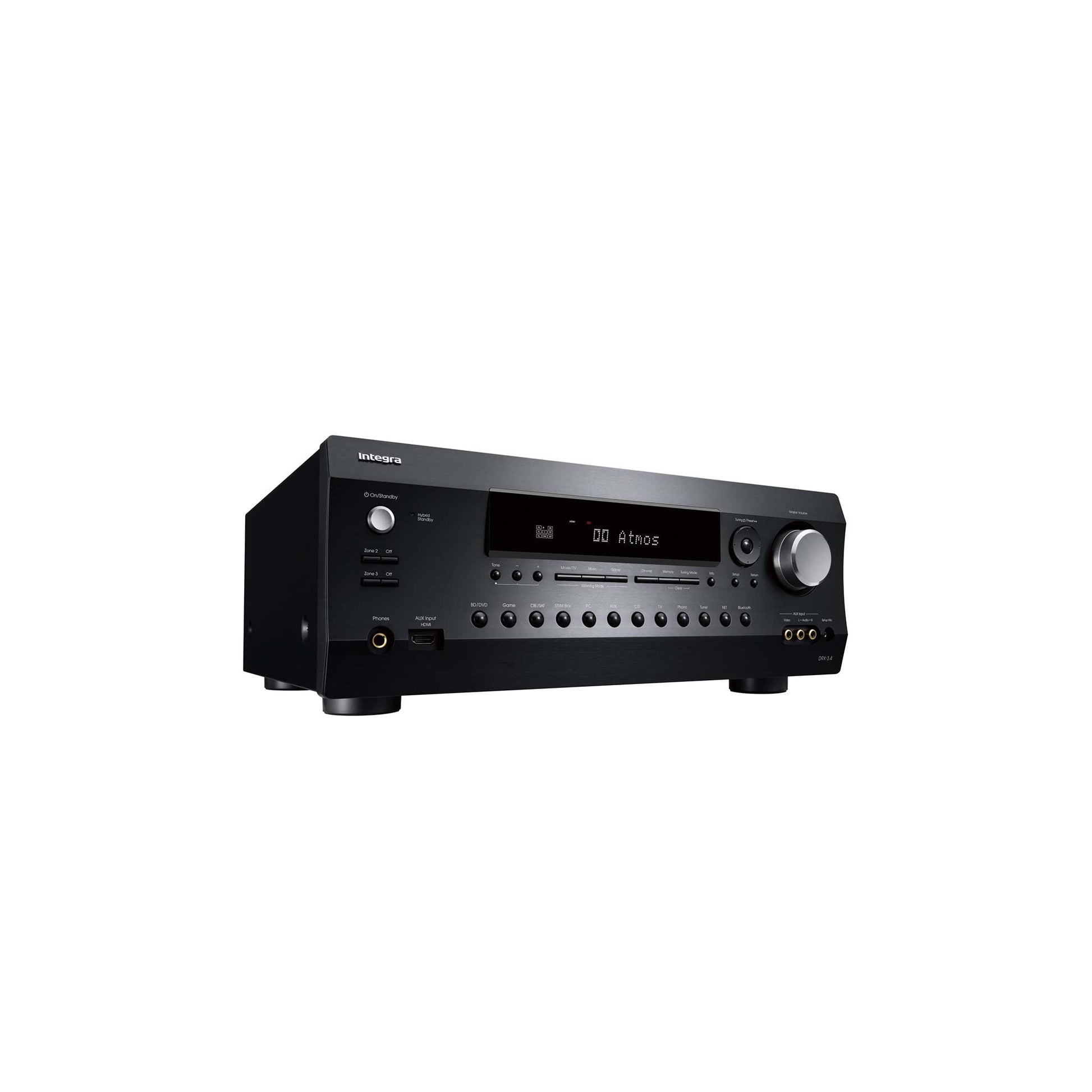

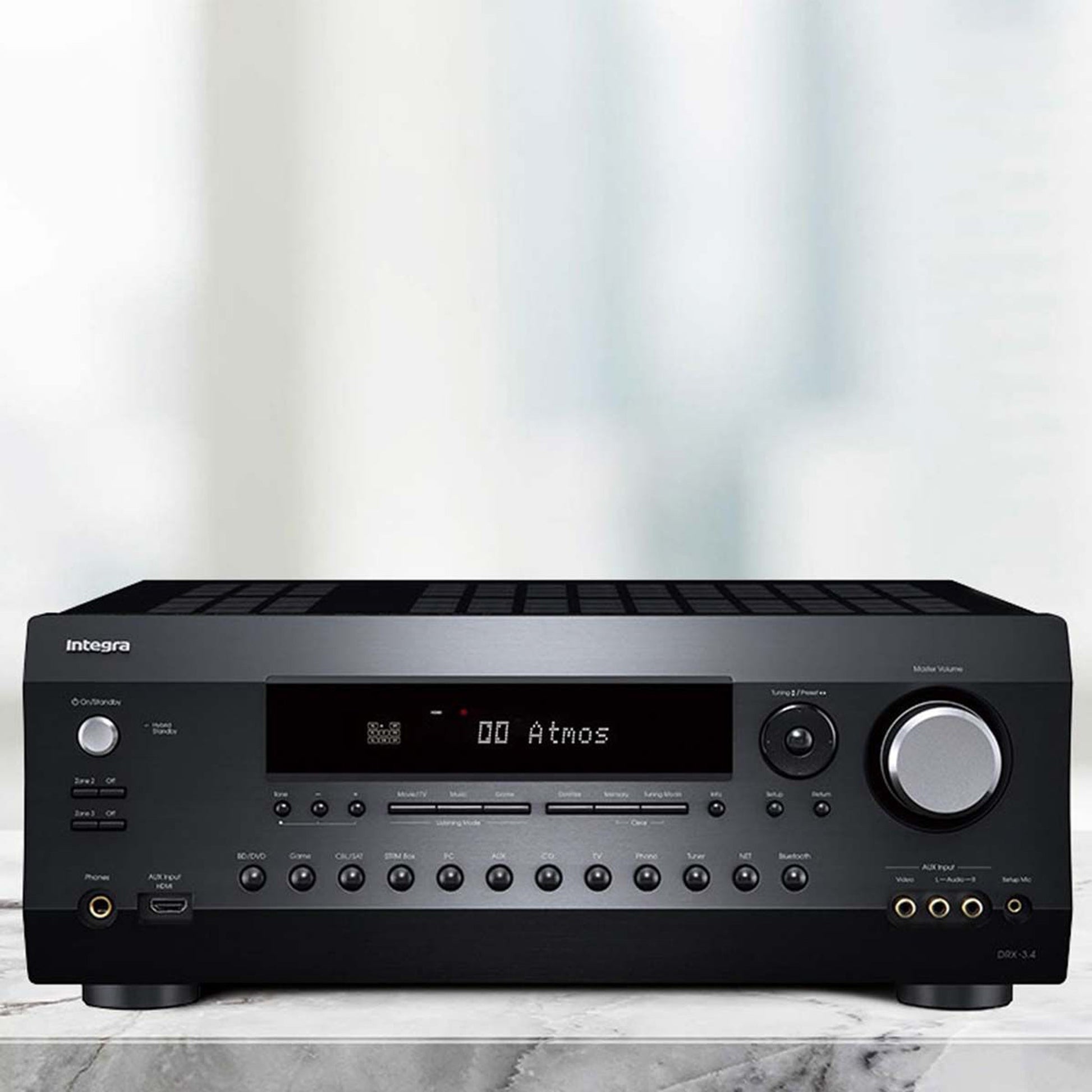

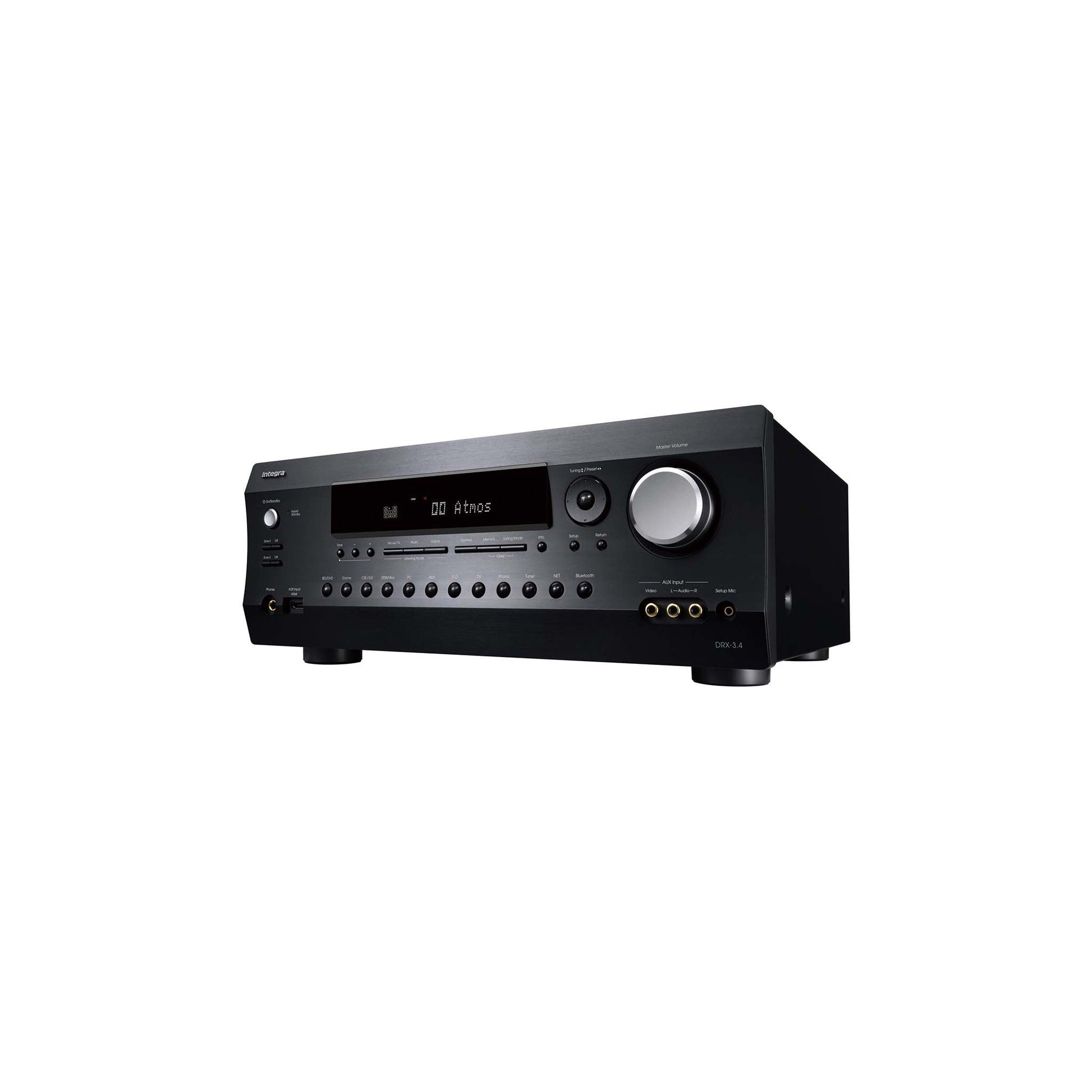

DRX 3.4 9.2-Channel Network Home Theater ReceiverOverview
A Perfect Blend of Features, Ready to Integrate
Just right for your living room, media room, or bespoke home theater, the DRX-3.4 has the power to drive Dolby Atmos® and DTS: X® through 9 channels of onboard amplification. 8K HDR video passthrough provides the bandwidth needed for cutting-edge visuals and gaming. DIRAC Live room correction ensures your immersive surround experience is delivered with the highest fidelity. 9.2 channel pre-outs make the DRX-3.4 perfect for updating an existing separates system to HDMI 2.1, DIRAC Live and Object-Based Surround.
DIRAC LIVE Room Correction
Considered by industry leaders in music and movie production to be the state-of-the-art digital room correction solution, Dirac Live offers professional-grade, studio-quality calibrated sound with simple, easy-to-navigate tools. The result is a home theater experience that reveals your movies, music, and games in ways you’ve never heard before. Unlock the full potential of your loudspeakers in any listening space with Dirac Live.
Hear the sound filmmakers intended. This IMAX Enhanced A/V receiver features DTS:X sound technology optimized for the IMAX® signature experience, reproducing the full dynamic range of IMAX theatrical sound-mixes available with digitally re-mastered IMAX Enhanced content. A pre-set IMAX Mode reproduces audio at the highest levels and delivers an unmatched IMAX sound experience. Requires a free firmware update.
Dolby Atmos Height Virtualizer
When playing any Dolby® format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without the need for additional surround or height speakers.
Perfect for Custom Installation
Integra products are designed and engineered to meet the demands of leading custom installers. CI Centric features such as Web Setup, Onboard HDMI Diagnostics, and compatibility with Remote Monitoring systems like OVRC Pro and Domotz make Integra AVRs the choice of the modern integrator. Optional rack mount kits provide a clean, finished look when installed in racks and cabinets, while a unique bright white back panel facilitates connections in hard-to-reach areas.
- Power Output:
- Front L/R: 225 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven, 100 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC
- Dynamic Power: 250 W (3 Ohms, Front) 220 W (4 Ohms, Front) 130 W (8 Ohms, Front)
- Input Sensitivity and Impedance: 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM)
- THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)
- Rated RCA Output Level and Impedance: 1 V rms/470 Ohms (Subwoofer Pre-out) 200 mV rms/470 Ohms (Zone 3/Height 2/Surround Back Pre-/Line-out)
- Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
- Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
- Tone Control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
- Signal-to-Noise Ratio: 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono)
- Speaker Impedance: 4 Ohms–16 Ohms
- Signal Level:
- 1 Vp-p/75 Ohms Composite Video
- 1 Vp-p/75 Ohms Component Video (Y)
- 0.7 Vp-p/75 Ohms Component Video (Pb/Pr)
- Tuning Frequency Range: FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz
- FM/AM Preset Memory: 40 Stations
- Power Supply: AC 120 V~, 60 Hz
- Power Consumption: 750 W
- Standby Power Consumption: 0.1 W
- Dimensions (W x H x D): 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm)
- Weight: 24.3 lbs. (11.0 kg)
- Carton Dimensions (W x H x D): 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm)
- Weight: 29.8 lbs. (13.5 kg)
|Features||Amp Built In, Bluetooth Audio Streaming, Bluetooth Enabled, Dolby Atmos, Dolby Digital, DTS:X, HDMI eARC, HDMI Inputs, Surround Processing, WiFi Enabled, 4K Ultra HD, 8K Resolution|
