Gryphon Essence Preamplifier

Pure Class A Line-Stage Fidelity | Available at Trimira Audio

The Gryphon Essence Preamplifier is a high-performance reference line stage designed to provide a direct, low-noise control centre for demanding two-channel audio systems.

Drawing on engineering developed for Gryphon's flagship preamplification platforms, the Essence combines Pure Class A operation, zero global negative feedback, dual-mono circuitry, regulated local power supplies, and a precision relay-controlled volume attenuator.

Its deliberately focused architecture omits unnecessary circuitry such as tone controls and headphone amplification, concentrating instead on the analogue signal path.

At Trimira Audio, we recommend the Essence Preamplifier for listeners seeking transparent source control, precise volume adjustment, and sophisticated integration with Gryphon power amplification.

Key Features & Technological Innovations

Pure Class A Dual-Mono Topology

The Essence uses independent left- and right-channel gain circuitry, creating a true dual-mono analogue architecture.

Each channel has its own local power-supply regulation and energy storage, helping minimise interaction between channels and preserve stereo separation.

Zero Global Negative Feedback

The line stage operates without global negative feedback and provides a specified bandwidth extending from 0.1 Hz to 1 MHz (-3 dB).

The wide bandwidth provides substantial margin beyond the audible frequency range while maintaining a direct signal architecture.

43-Step Relay Volume Attenuator

Volume control is handled through a 43-step microprocessor-controlled relay attenuator using precision resistors.

The architecture is designed to provide accurate channel tracking while keeping the volume-control circuitry highly controlled.

Modular Digital & Phono Expansion

The Essence can be configured with optional internal modules for additional source flexibility.

Available expansion options include:

• PCM/DSD DAC Module
• PS2 MM/MC Phono Stage Module

This allows the preamplifier to serve as a more comprehensive analogue and digital control centre.

Discrete Class A Input Buffer

A discrete Class A input-buffer stage provides impedance matching between connected source components and the preamplifier's gain circuitry.

The architecture is designed to minimise loading while maintaining a highly controlled signal path.

Green Bias Control

The Essence supports Gryphon's Green Bias link, allowing compatible Gryphon power amplifiers to communicate with the preamplifier.

This provides coordinated control of Class A amplifier bias according to operating conditions.

Configurable AV Throughput

A selectable 0 dB fixed-level AV bypass mode allows the Essence to be incorporated into a multi-channel home-theatre system.

This provides a practical way to integrate the high-end stereo preamplifier with an AV processor without compromising normal stereo operation.

Technical Specifications

Reference Two-Channel System Integration

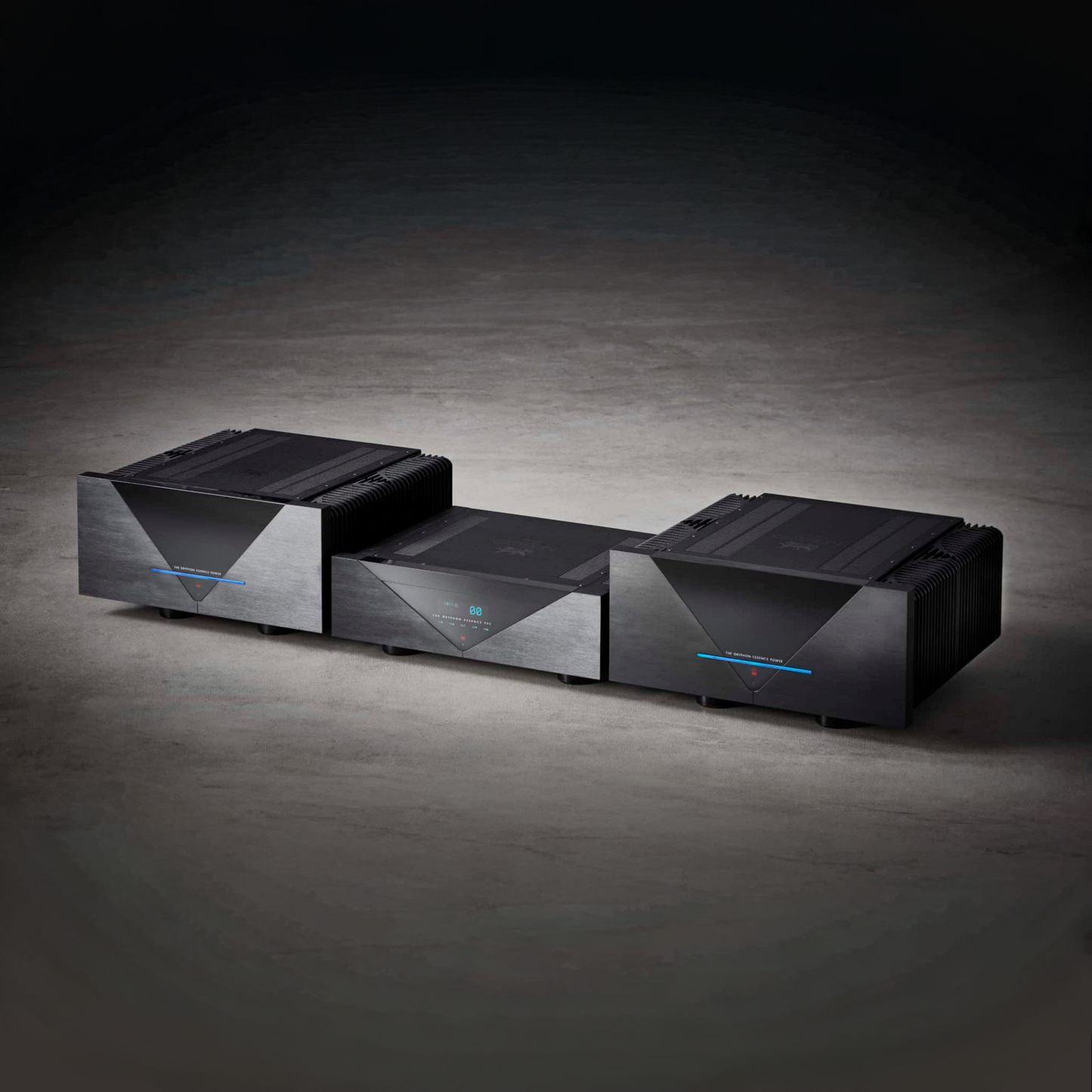

The Essence is designed to sit between high-quality source components and a dedicated power amplifier:

Digital / Analogue Sources → Gryphon Essence → Power Amplifier → Reference Loudspeakers

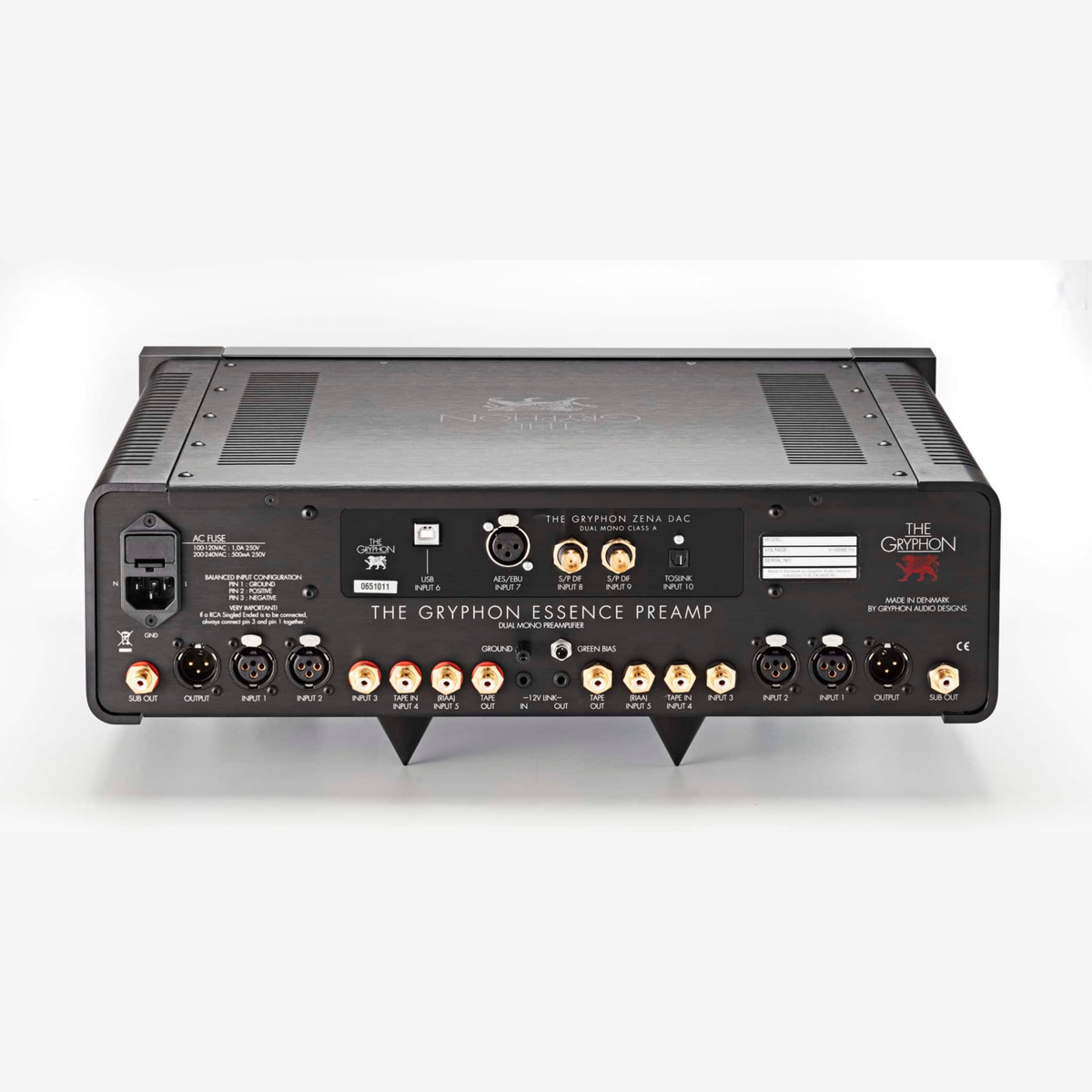

Its balanced XLR and RCA connectivity allows integration with both fully balanced and single-ended systems.

The optional DAC and phono modules can further simplify a reference system by incorporating additional source functionality directly into the preamplifier.

Source & Amplifier Matching

With +18 dB gain, high maximum output capability, and selectable balanced/single-ended operation, careful system gain matching remains important.

Trimira Audio can assist with:

• Source-component matching
• DAC module configuration
• MM/MC phono-stage selection
• Power-amplifier matching
• Balanced XLR integration
• RCA system configuration
• Green Bias setup
• AV bypass integration

Home-Cinema Integration

The selectable fixed-level 0 dB AV bypass provides a useful option for combining a high-performance stereo system with an AV processor.

A typical arrangement can be:

Stereo Sources → Essence → Stereo Power Amplifier

while:

AV Processor → Essence AV Bypass → Stereo Power Amplifier

This allows the same main loudspeakers and amplification to participate in both dedicated stereo and multi-channel playback.

Consult with the High-End Audio Specialists at Trimira Audio

The Gryphon Essence Preamplifier combines Pure Class A dual-mono circuitry, zero global negative feedback, a 43-step relay attenuator, independent regulated power supplies, optional DAC and phono modules, and Green Bias control in a focused high-end line-stage design.

Trimira Audio can assist with complete Essence system integration, including source selection, optional module configuration, power-amplifier matching, balanced cabling, and AV-system integration.

Contact the Trimira Audio specialists in Brisbane to arrange a private Essence listening demonstration or discuss a complete Gryphon reference system.
