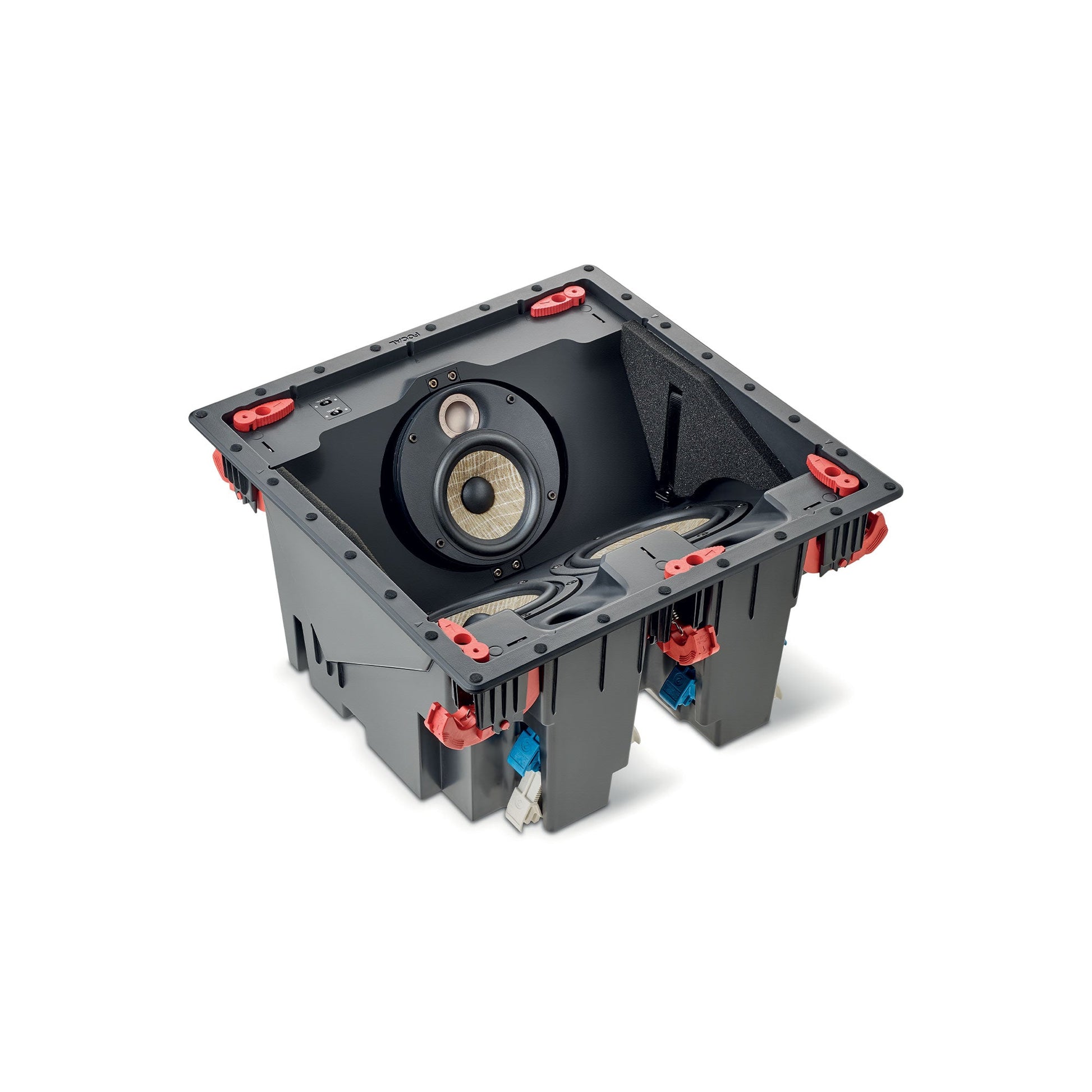

With this LCR hi-fi speaker (left, center and right), you can create a home theater installation without compromise. Ceiling integration is easy and ideal, especially where there's no rear wall, and its adjustable turntable allows precise adjustment to the listening position. It incorporates exclusive Focal technologies, such as the Flax diaphragm and the aluminum/magnesium inverted-dome tweeter, for a deep, homogeneous sound in the room and high hi-fi quality.
POLYVALENCE
The loudspeaker can be used for a wide range of applications: front left, center or right channels, rear channels and high channels, to discreetly and efficiently meet all layout constraints. Its adjustable mid-range tweeter allows sound to be targeted at the listening point, even if the loudspeaker is off-axis, reproducing the complexity of film soundtracks.
THE PINNACLE OF CINEMA
The 10 cm bass/mid-range loudspeaker inherits the Flax linen membrane. This Focal technology diffuses a very natural, uncolored sound, offering excellent intelligibility of voices: cinematographic scenes and film dialogues take on another dimension.
PRACTICAL AND DISCREET
With Easy Quick Install (EQI), no tools are required for installation! Installation is fast, and the supplied Pre-mounting kit adapts to all ceilings. For perfect integration into any interior, the grilles are designed to be painted.
SPECIFICATIONS
Design
Height : 370 mm / 14.56 in
Width : 370 mm / 14.56 in
Depth : 195 mm / 7.06 in
Minimum allowable ceiling thickness : 12 mm / 0.0833 in
Maximum allowable ceiling thickness : 54 mm / 2.12 in
Easy Quick Install : Yes
Mounting height : 340 mm / 13.37 in
Mounting width : 340 mm / 13.37 in
Depth behind surface (Mounting depth) : 7.5 in / 7.5 in
Sound - Acoustics
Product type : 3-way built -in ceiling
Membrane : Flax
Medium : 4" (25mm) Flax midrange
Response at - 6dB (Low frequency point) : 45 Hz
Minimum impedance : 2.9 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 50 - 150 W
Sensitivity : 91 dB
Included Accessories
Black and white felt : Black and white felt ready to stick
Cut Out template : Yes

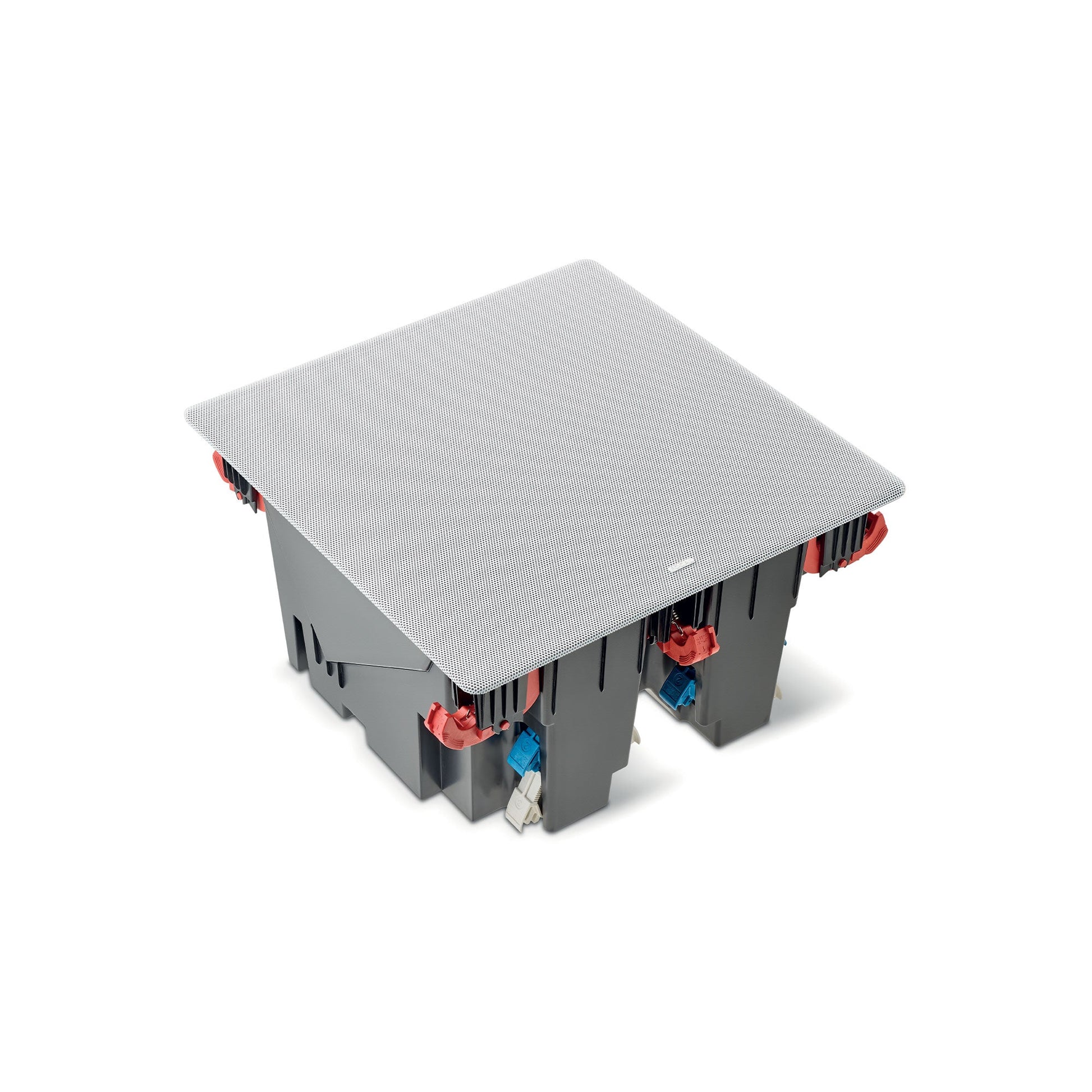

Grilles : Supplied with square grille ready to paint
