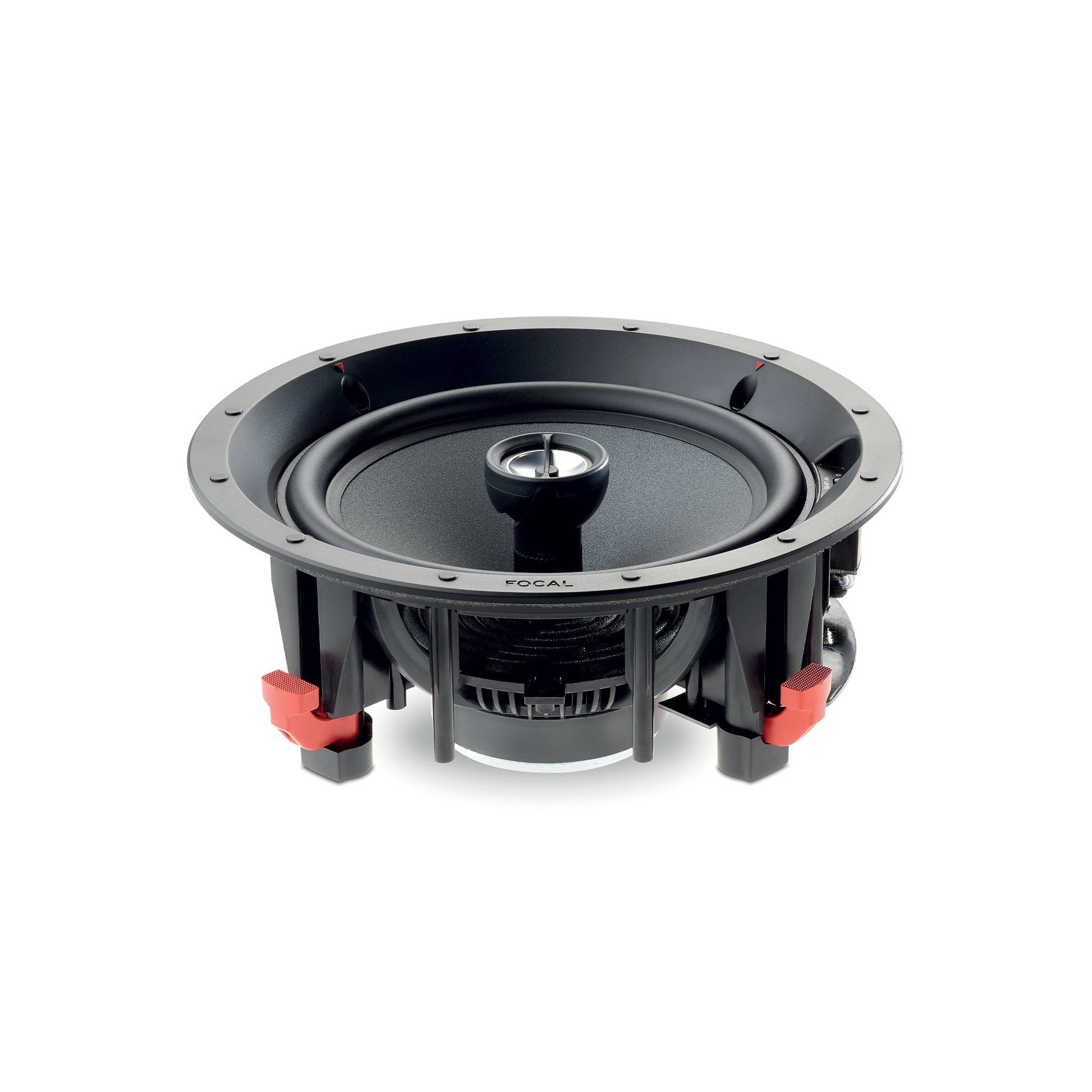

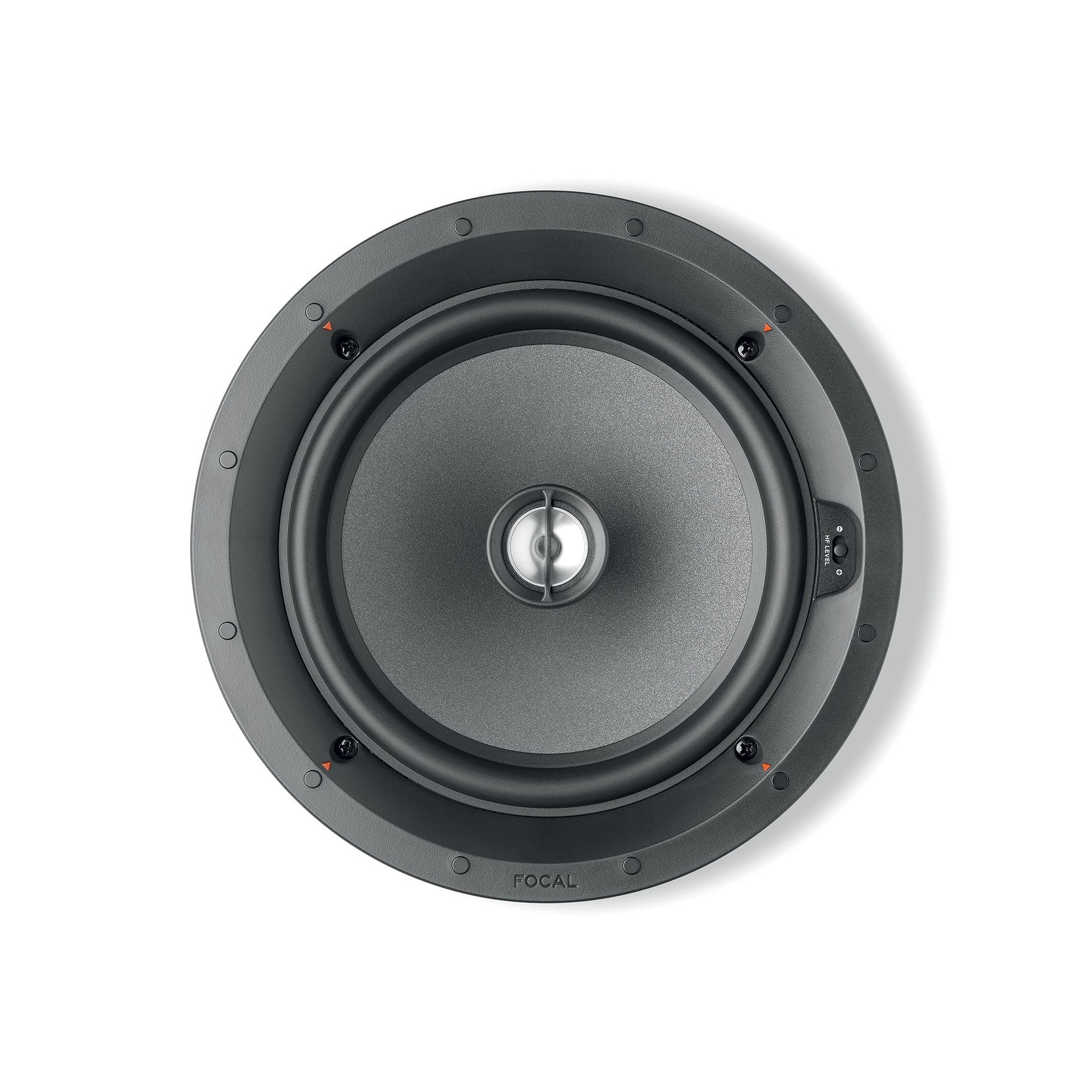

The elder statesman of the 100 Series ICW loudspeakers (wall and ceiling integration), 100 ICW8 features a 21 cm driver. It combines sound performance, compactness and ease of installation for hi-fi listening in the home. Versatile, it ensures perfect sound diffusion in a variety of spaces (hallway, living room, bedroom, kitchen...), making it ideal for both stereo and home cinema installations.
OPTIMIZED ACOUSTICS
An inverted dome tweeter, adjustable for perfect adaptation to your room, combines with a 21 cm Polyglass diaphragm loudspeaker and a special crossover for defined sound and extended sound coverage. You can adjust the treble level (-3 dB, 0 dB, +3 dB) to match the acoustics of your room.
MOISTURE RESISTANCE
Thanks to the tropicalization of the Polyglass membrane, 100 Series in-wall and in-ceiling loudspeakers are perfectly suited to use in damp environments, such as bathrooms.
ADAPTATION AND DISCRETION

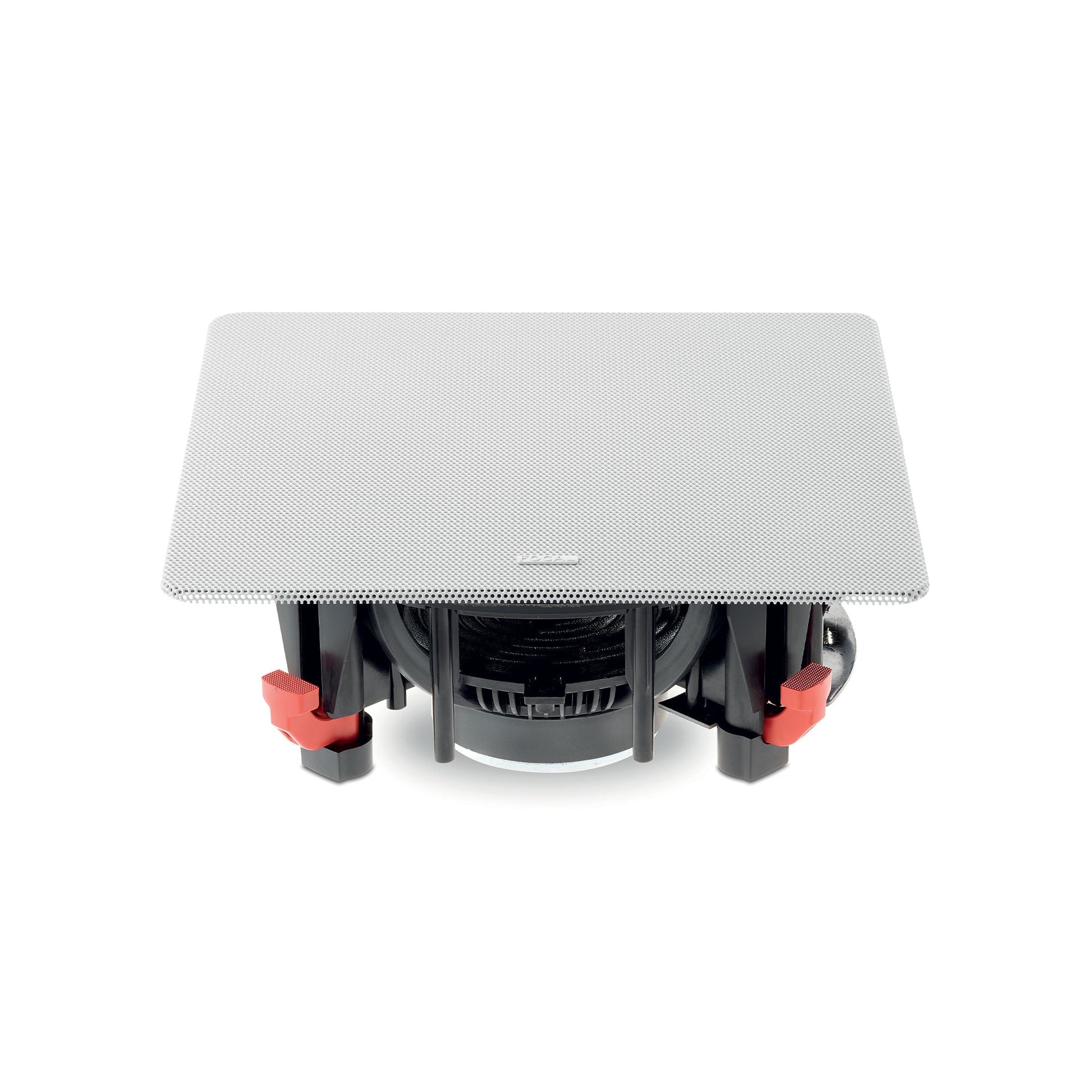

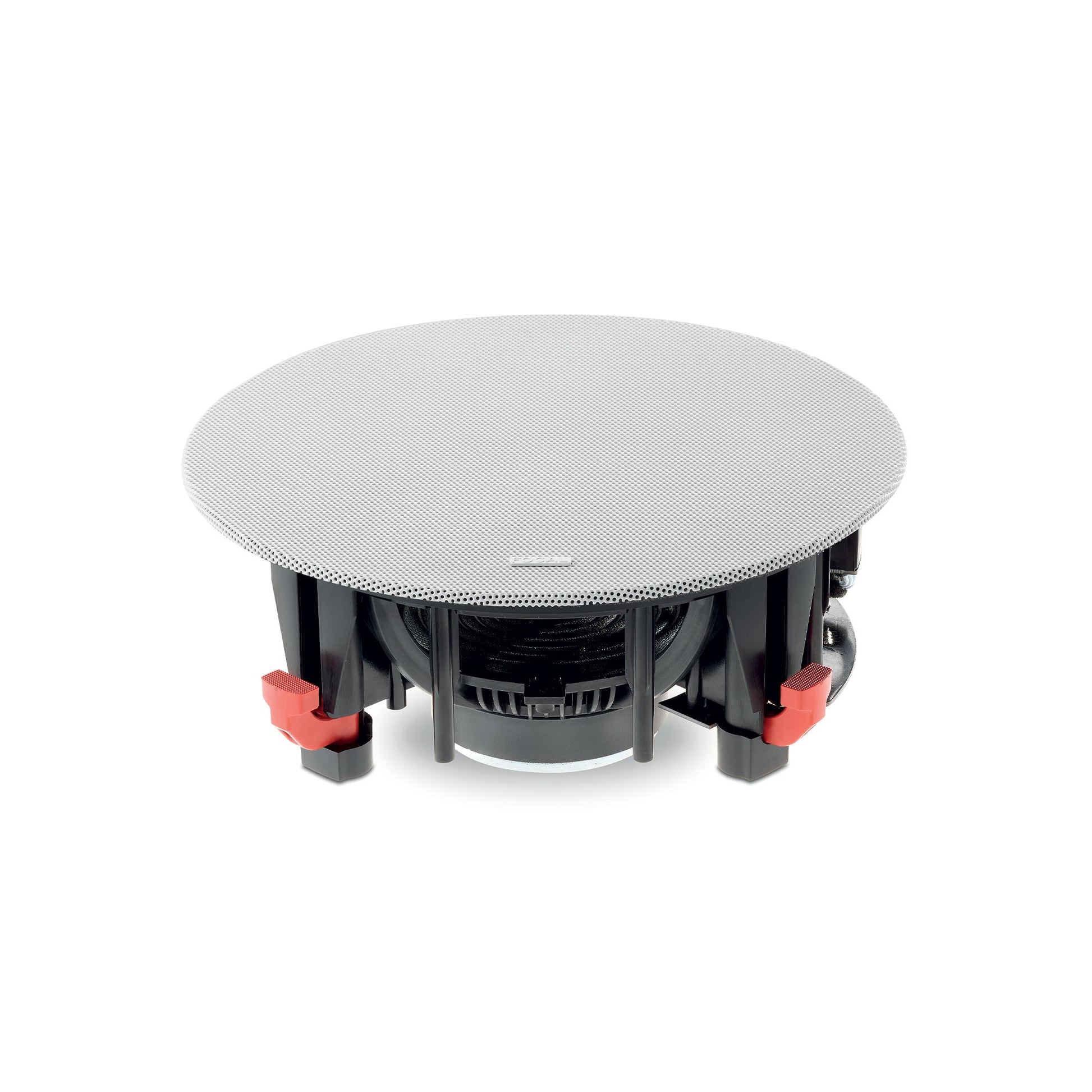

With its shallow mounting depth, the loudspeaker is quick and easy to install in walls or ceilings. Ready-to-paint magnetic grilles, circular or square, ensure discreet, aesthetic integration into your environment.
SPECIFICATIONS
Design
Depth : 111 mm / 4.37 in
Weight : 1.5 kg /
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 40 mm / 1.56 in
Cut-Out diameter : 224 mm / 8.81 in
Depth behind surface (Mounting depth) : 4.19 in / 4.19 in
Sound - Acoustics
Product type : Wall/Ceiling - 2 Coxial Ways
Membrane : Polyglass
Medium : 8" (21cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 40 Hz
Frequency response (+/- 3dB) :
53 Hz - 23 kHz
Minimum impedance : 6.9 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 25 - 150 W
Sensitivity : 90 dB
Included Accessories
Black and white felt : Black and white felt ready to stick
Cut Out template : Yes
Grilles : Ready-to-paint grille
