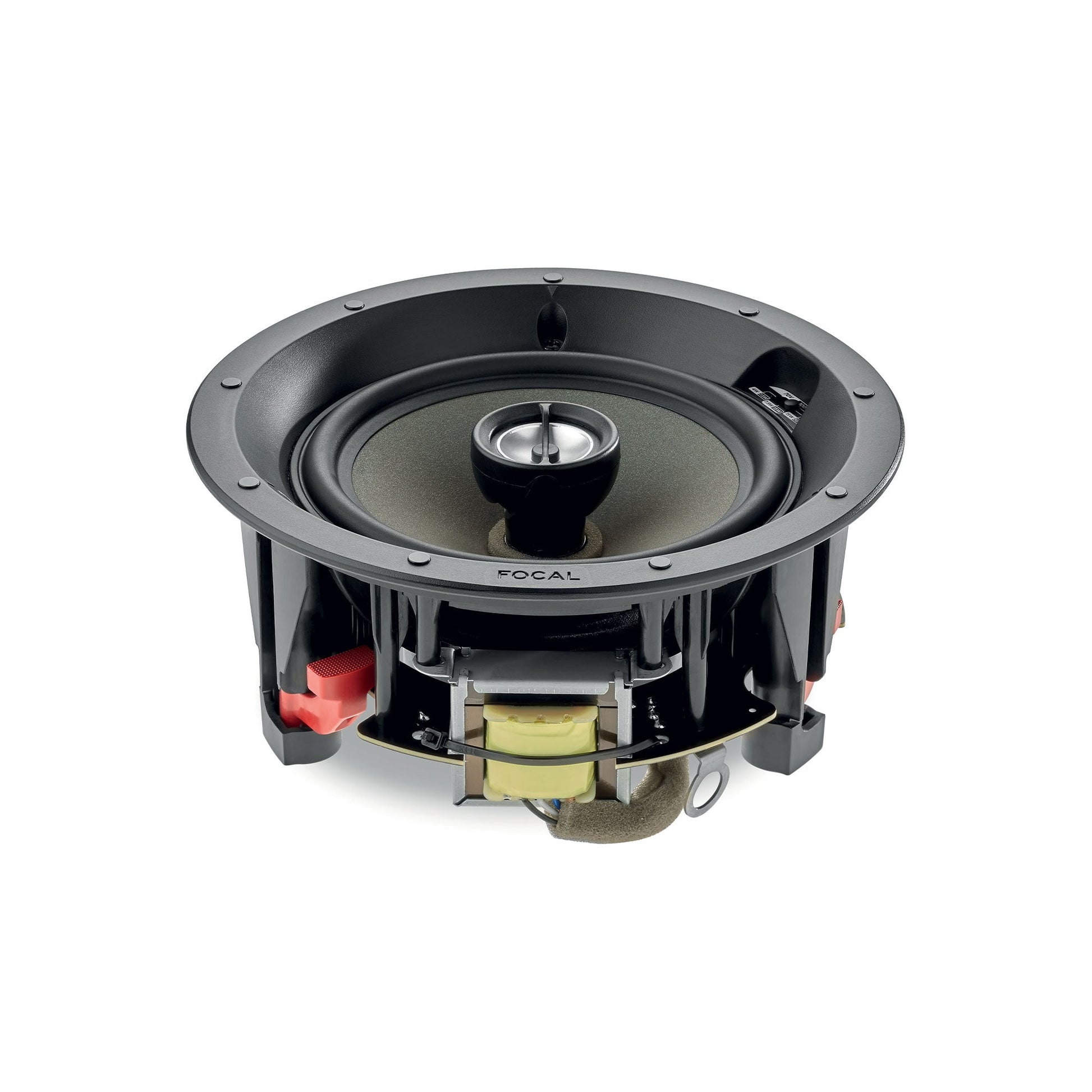

The elder brother of the 100 ICW5-T, the 100 ICW6-T wall and ceiling loudspeaker features a 16.5 cm driver. Benefiting from Focal know-how, it delivers natural sound, rich bass and silky highs, all with controlled directivity for extended sound coverage. Like all 100-T Series speakers, it is equipped with a transformer that adapts its power to a 70/100 volt installation, ideal for large spaces (shopping malls, hotels, restaurants...).
FOR OPEN SPACES

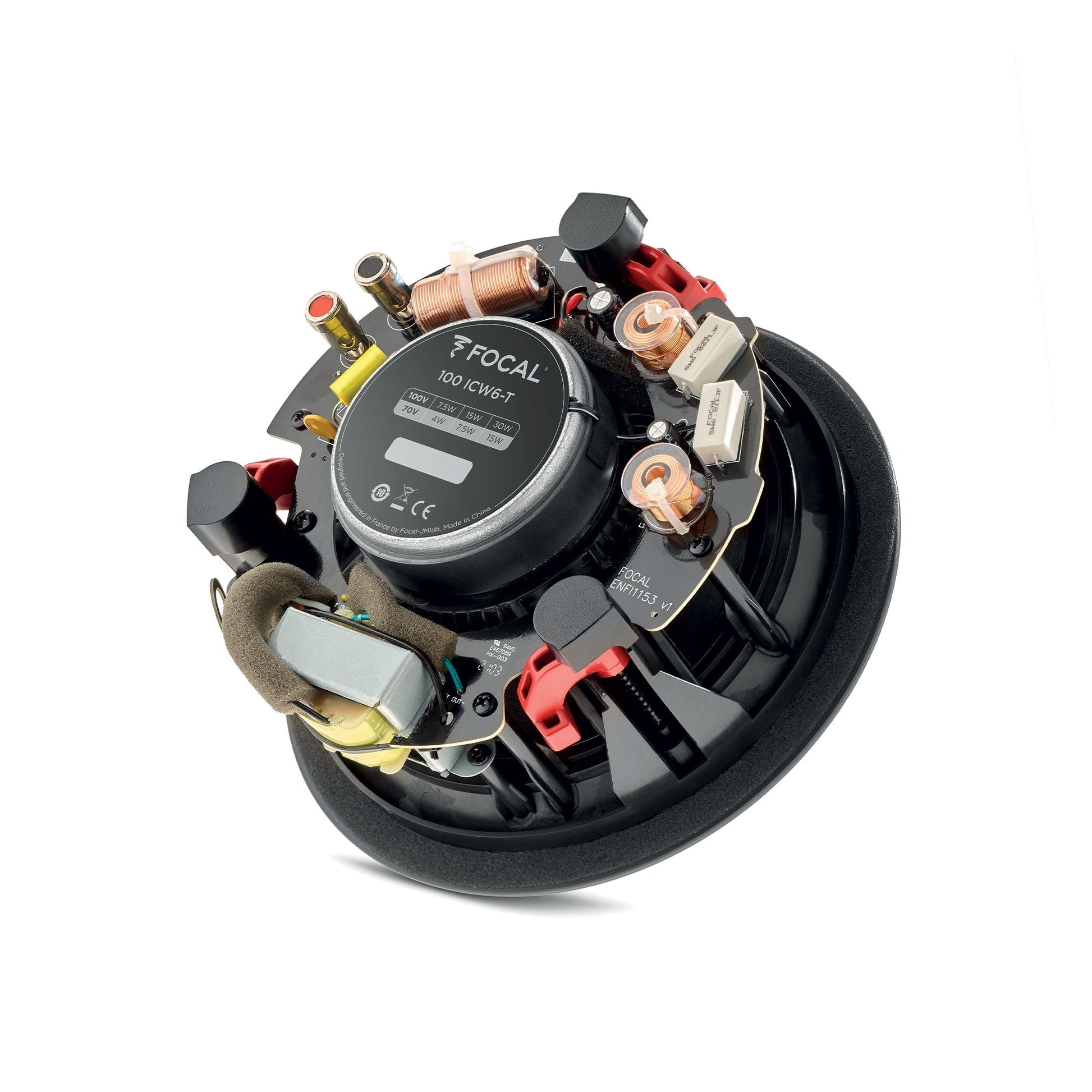

The 100-T Series loudspeakers feature an adjustable power transformer that adapts the power of each loudspeaker, enabling them to be daisy-chained together in a 70V/100V installation. They guarantee clear, intelligible sound in large spaces, while minimizing the number of amplification channels required.
FOCAL KNOW-HOW

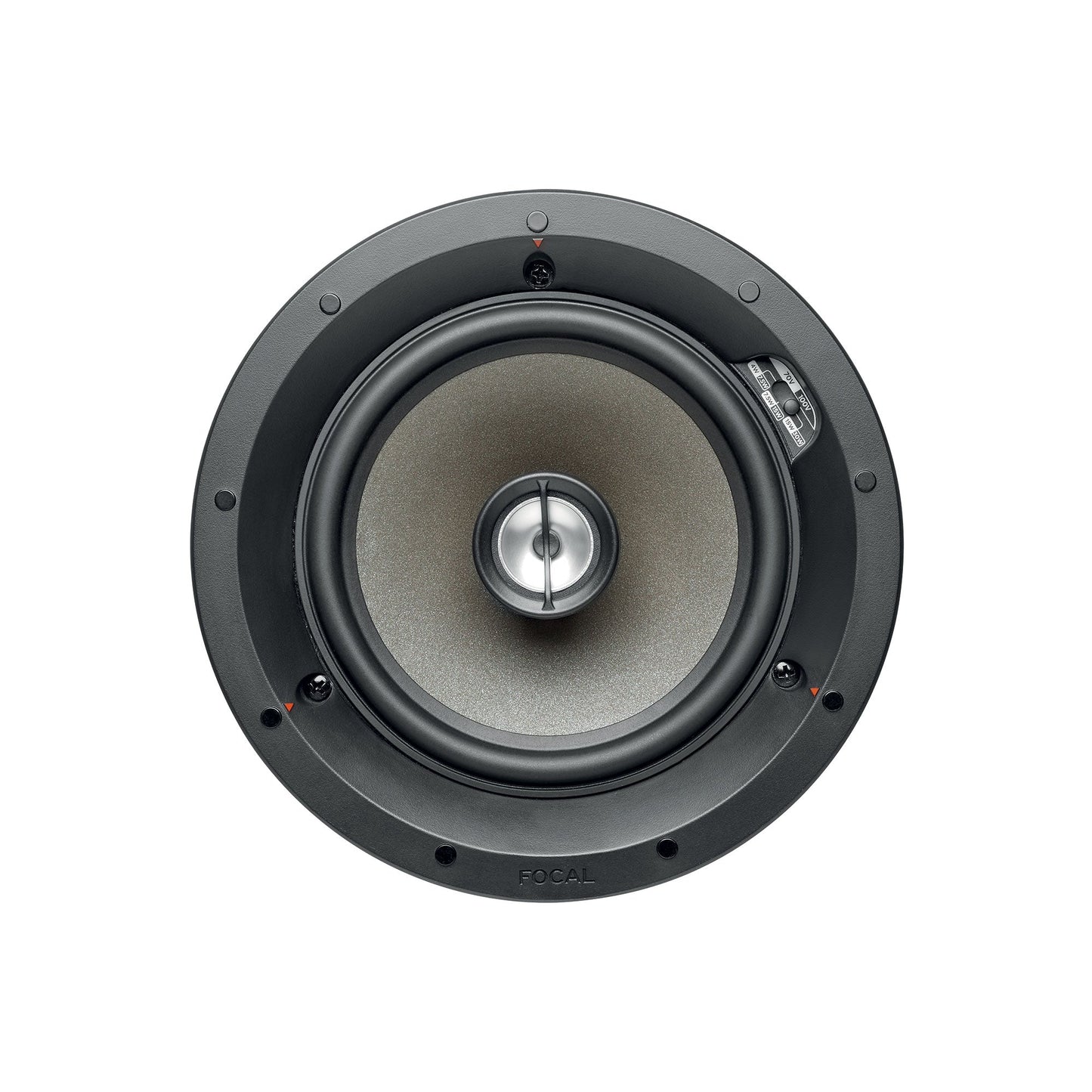

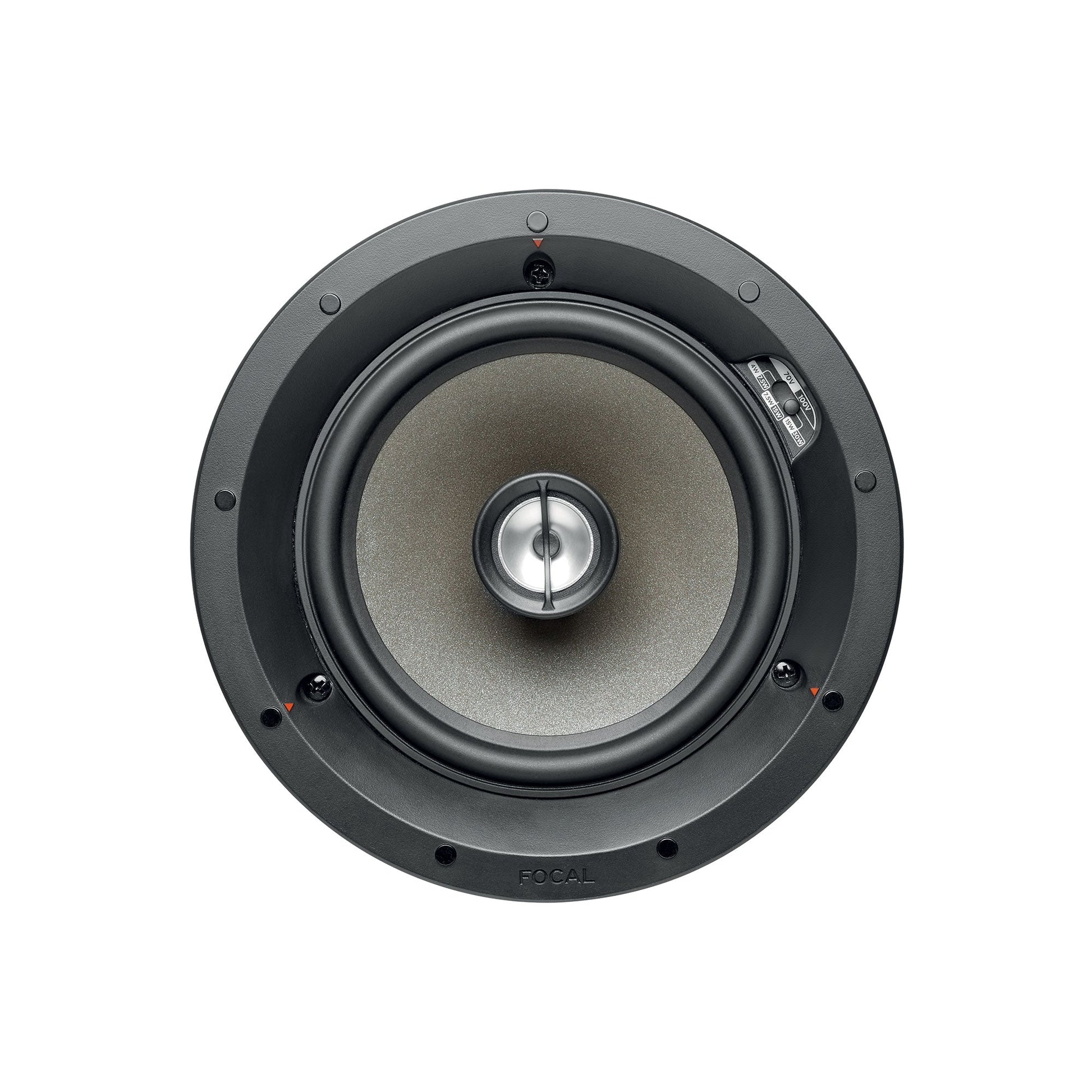

The loudspeakers' Polyglass membrane delivers a natural, uncolored midrange and rich bass. This is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.
COMPACT AND DISCREET
Compactness and shallow mounting depth characterize the 100-T Series in-wall and in-ceiling loudspeakers for discreet integration. Installation is made easy thanks to mounting brackets with optimized grip and ready-to-paint grilles.
SPECIFICATIONS
Design
Depth : 95 mm / 3.75 in
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 40 mm / 1.56 in
Cut-Out diameter : 184 mm / 7.5 in
Depth behind surface (Mounting depth) : 3.62 in / 3.62 in
Sound - Acoustics
Product type : Wall / Ceiling - 2 Coxial channels for installation on line 70V / 100V
Membrane : Polyglass
Medium : 6.5" (16.5cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 50 Hz
Frequency response (+/- 3dB) : 62 Hz - 23 kHz
Sensitivity : 89 dB
Included Accessories
Cut Out template : Yes

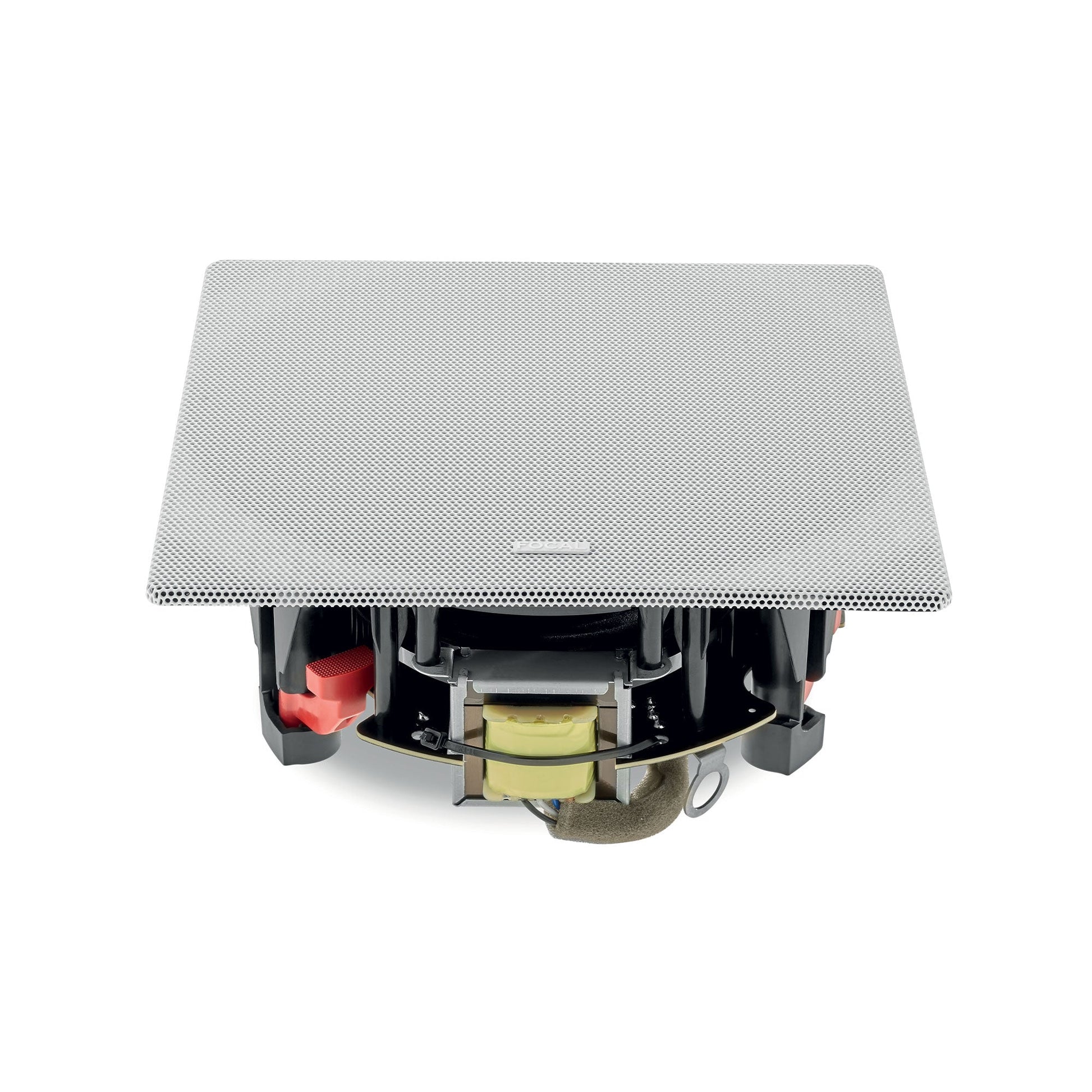

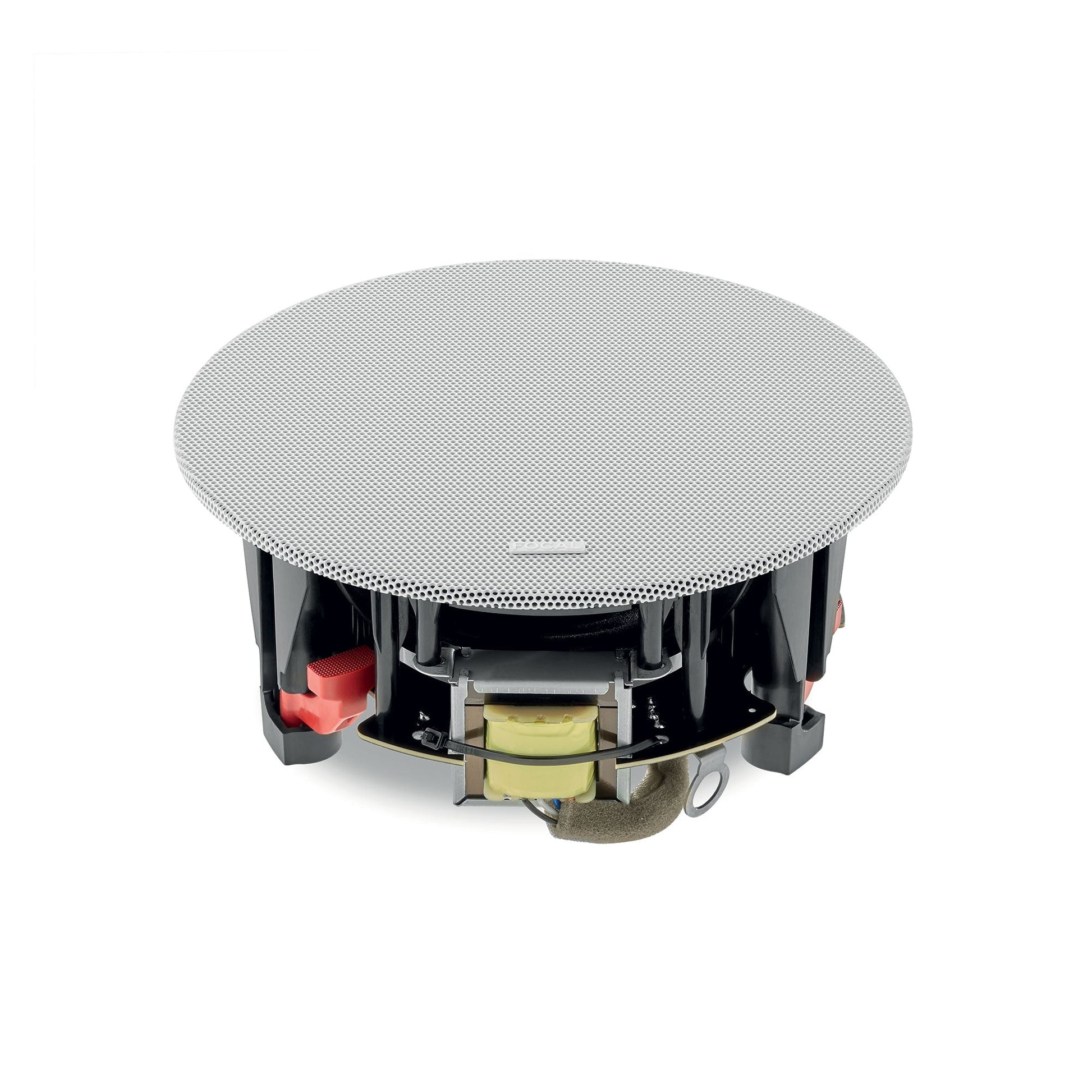

Grilles : Ready-to-paint grille
Sling : Yes
