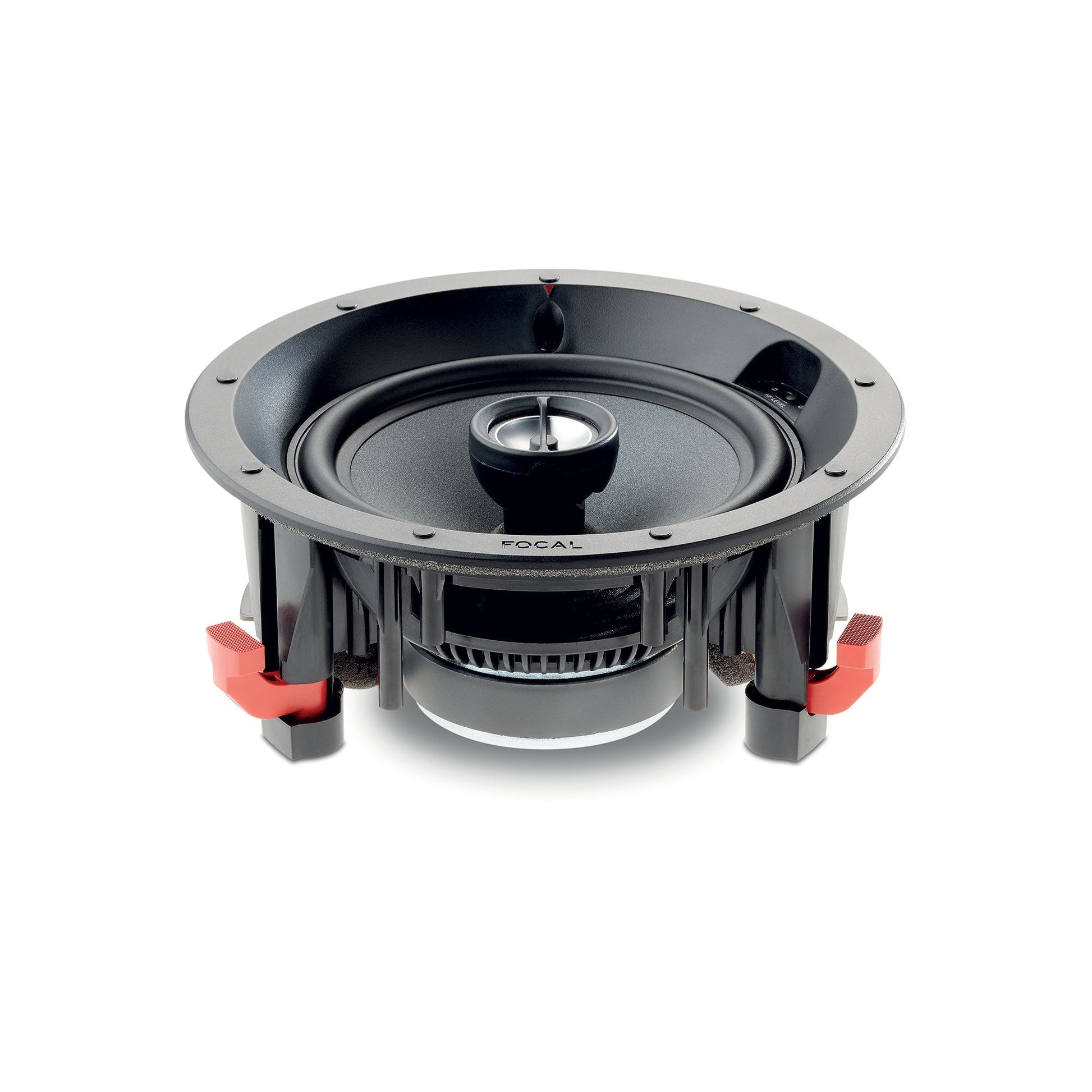

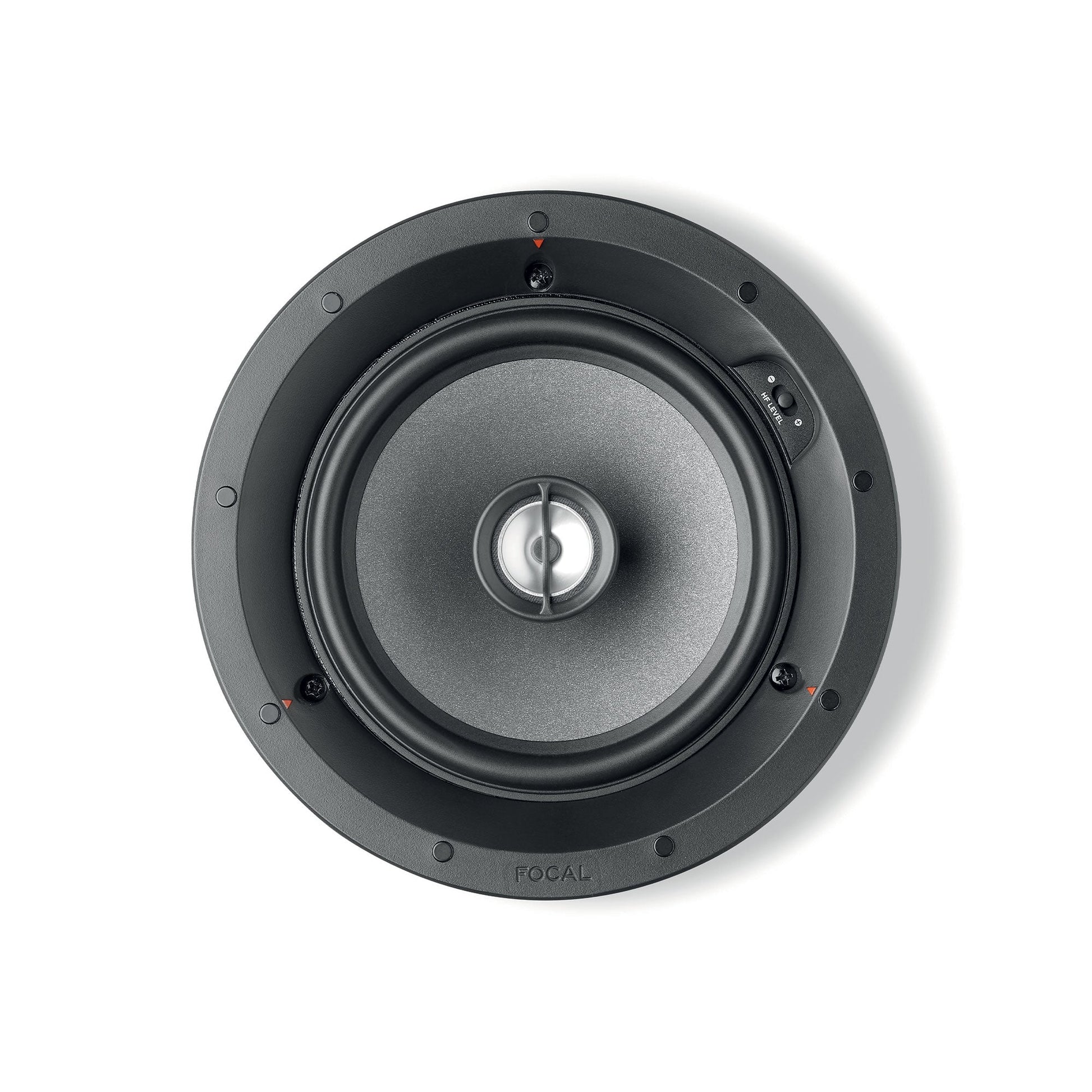

The big sister of the 100 ICW5, the 100 ICW6 features a 16.5 cm driver. The speaker can be flush-mounted in walls and ceilings, and offers perfect sound diffusion for stereo use (bedroom, kitchen...) or home cinema configuration (living room, dedicated installation). It combines acoustic technologies, discreet design and functionality for listening pleasure.
BALANCED SOUND DIFFUSION
The loudspeaker features a compact, directional tweeter and a Polyglass diaphragm driver for defined, spatial highs and mids. A crossover reduces the sound's "shower effect". In addition, the treble level can be equalized according to the acoustics of your room, via a choice of three available positions.
RESISTANCE
The "tropicalization" of the Polyglass membrane enables 100 Series products to adapt to humid environments such as bathrooms.
SIMPLICITY AND DISCRETION

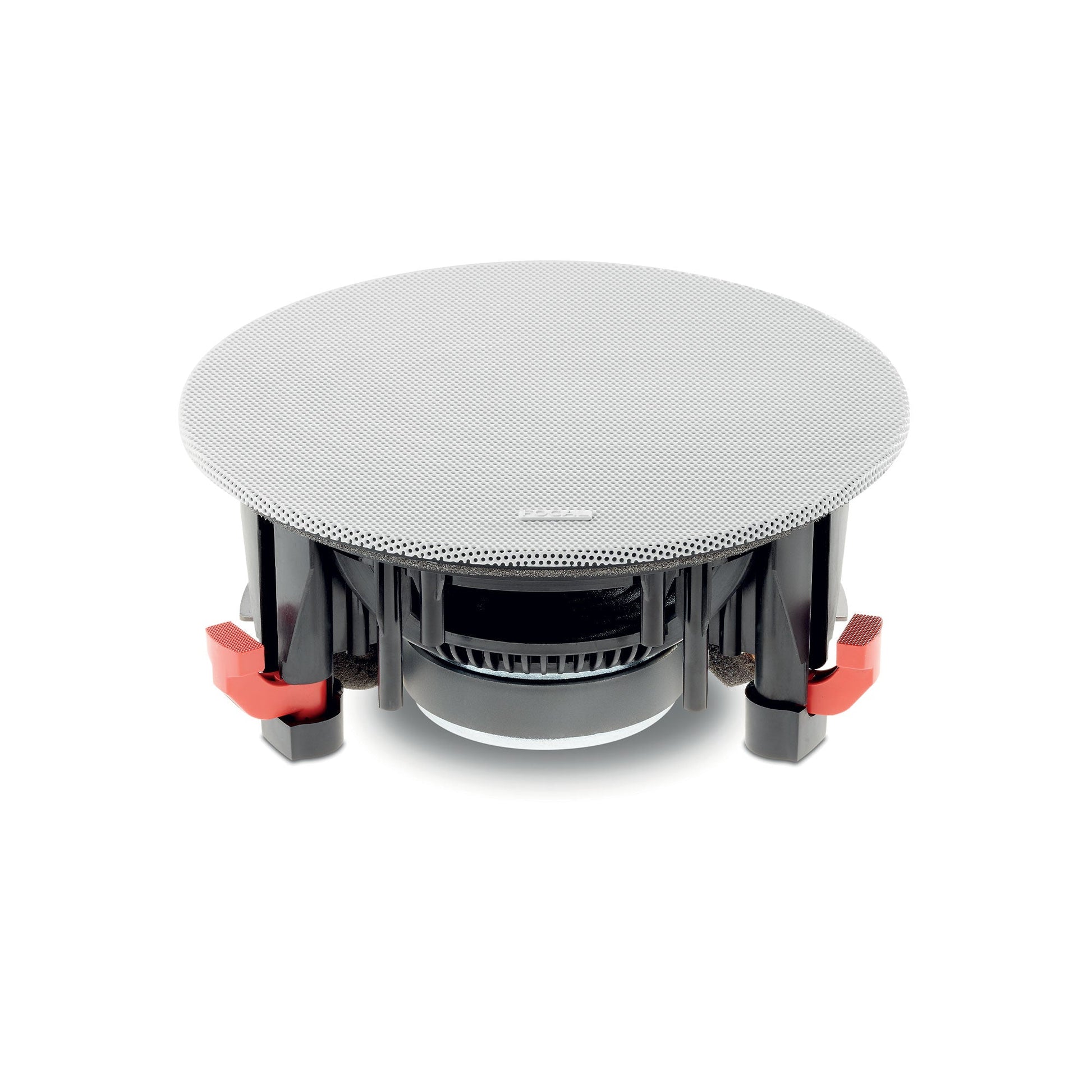

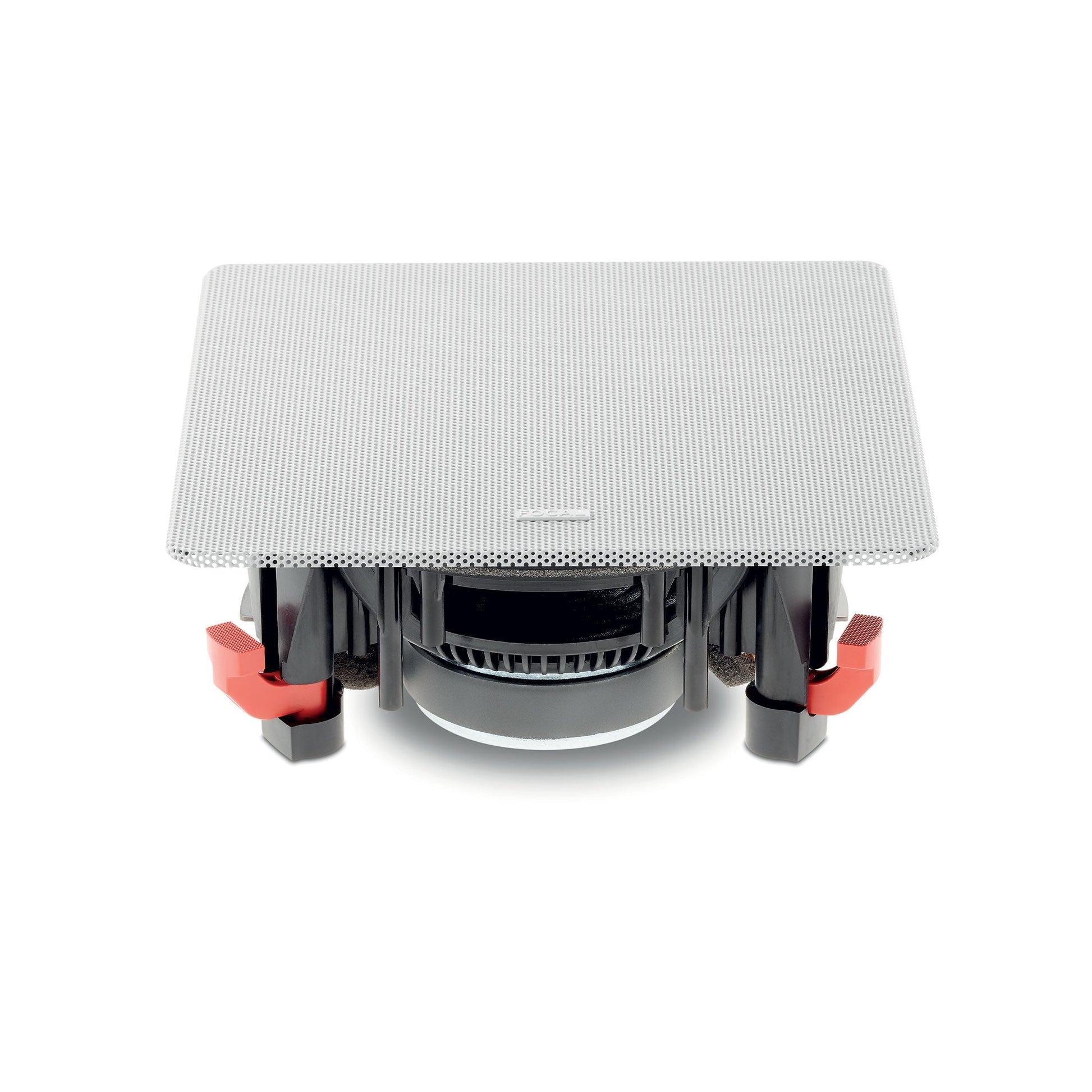

With its shallow mounting depth and optimized mounting brackets, the loudspeaker is quick and easy to install. The unibody frame and ready-to-paint magnetic grilles ensure discreet integration in any living space.
SPECIFICATIONS
Design
Depth : 95 mm / 3.73 in
Weight : 1.6 kg /
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 40 mm / 1.56 in
Cut-Out diameter : 184 mm / 7.25 in
Depth behind surface (Mounting depth) : 3.56 in / 3.56 in
Sound - Acoustics
Product type : Wall/Ceiling - 2 Coxial Ways
Membrane : Polyglass
Medium : 6.5" (16.5cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 50 Hz
Frequency response (+/- 3dB) :
62 Hz - 23 kHz
Minimum impedance : 7.3 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 25 - 100 W
Sensitivity : 89 dB
Included Accessories
Black and white felt : Black and white felt ready to stick
Cut Out template : Yes
Grilles : Ready-to-paint grille
