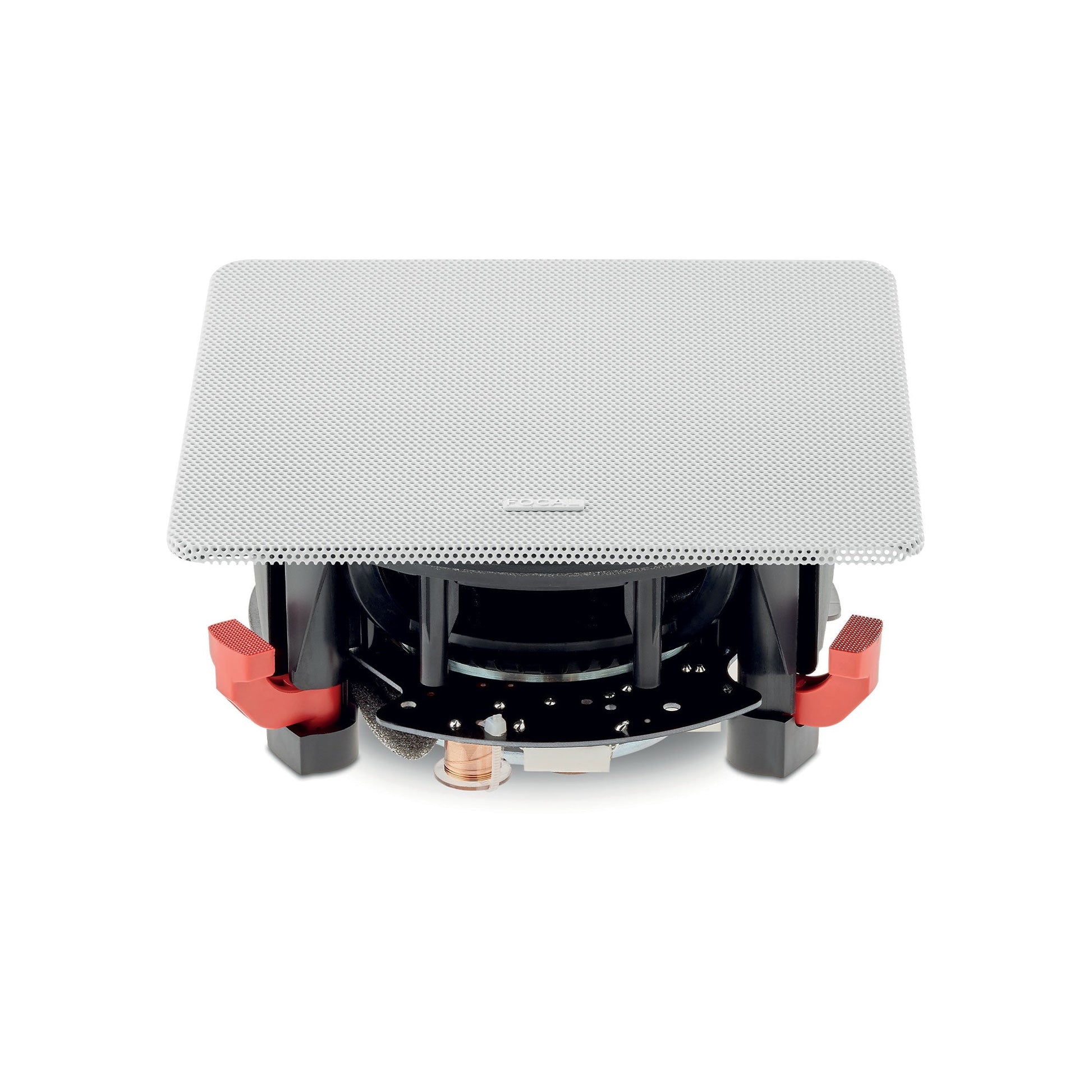

Dedicated to residential use, the 100 ICW5 coaxial wall or ceiling speaker with its 13 cm driver stands out for its sound performance and discretion. Proven technology, discreet, efficient design, a host of features, easy, appropriate use: let the 100 Series surprise you and create the installation to suit your needs and desires.
POLYVALENCE

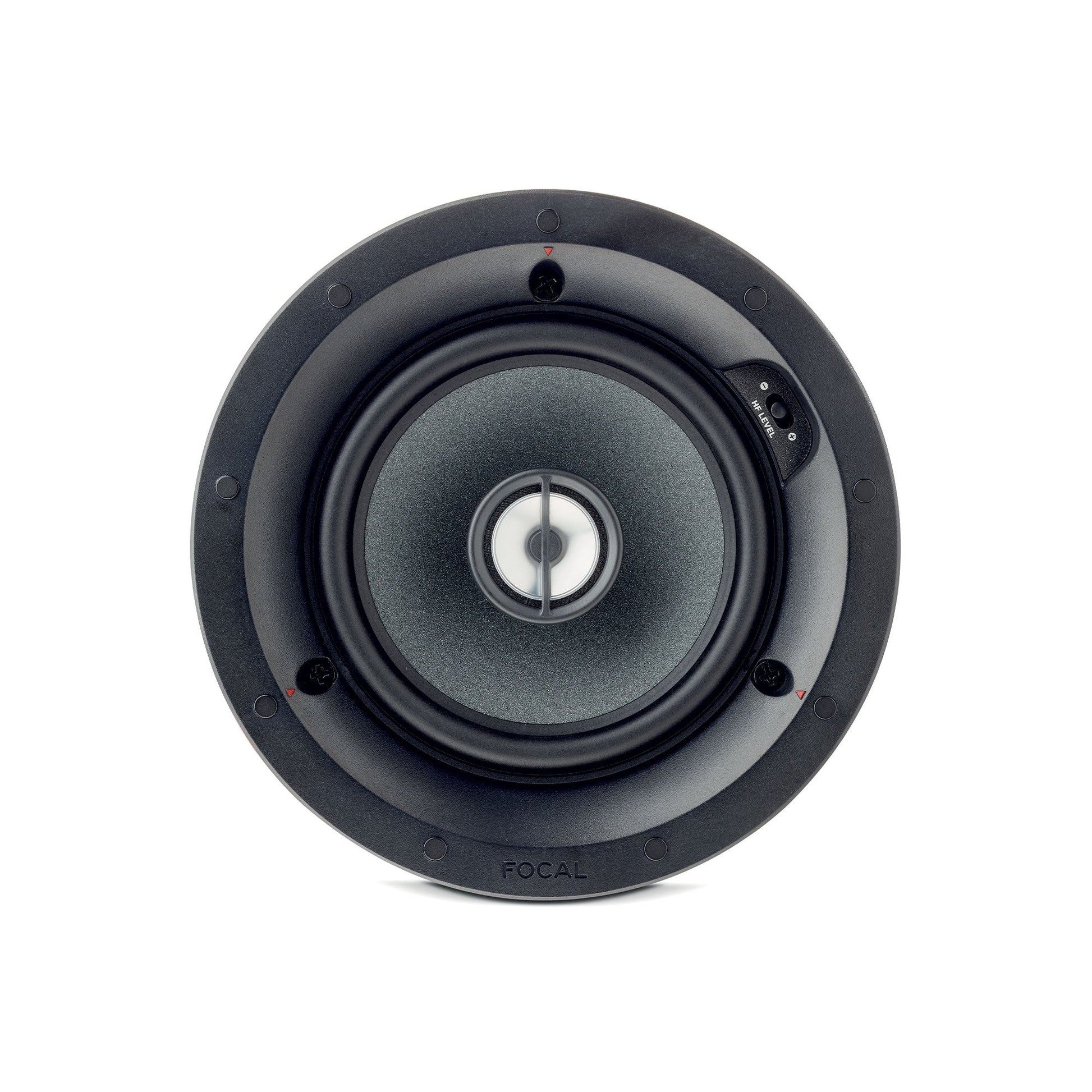

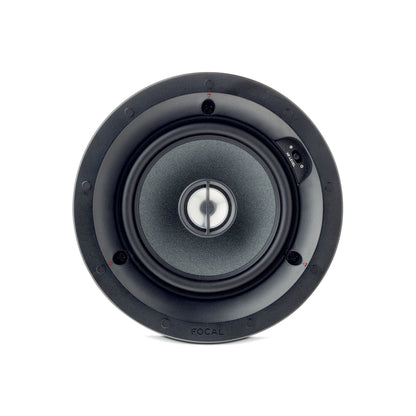

Flush-mountable in walls or ceilings from 8 to 35 mm thick, 100 ICW5 is perfect for sound diffusion in high-traffic areas (hallway, living room), for stereo use (bedroom, kitchen...) or in Home Cinema configuration (living room, dedicated installation). The tweeter level can be adjusted to match the acoustics of your room.
MOISTURE RESISTANCE
Thanks to the "tropicalization" of Polyglass midrange drivers, 100 Series products can be adapted to humid environments, such as bathrooms.
SIMPLICITY AND DISCRETION

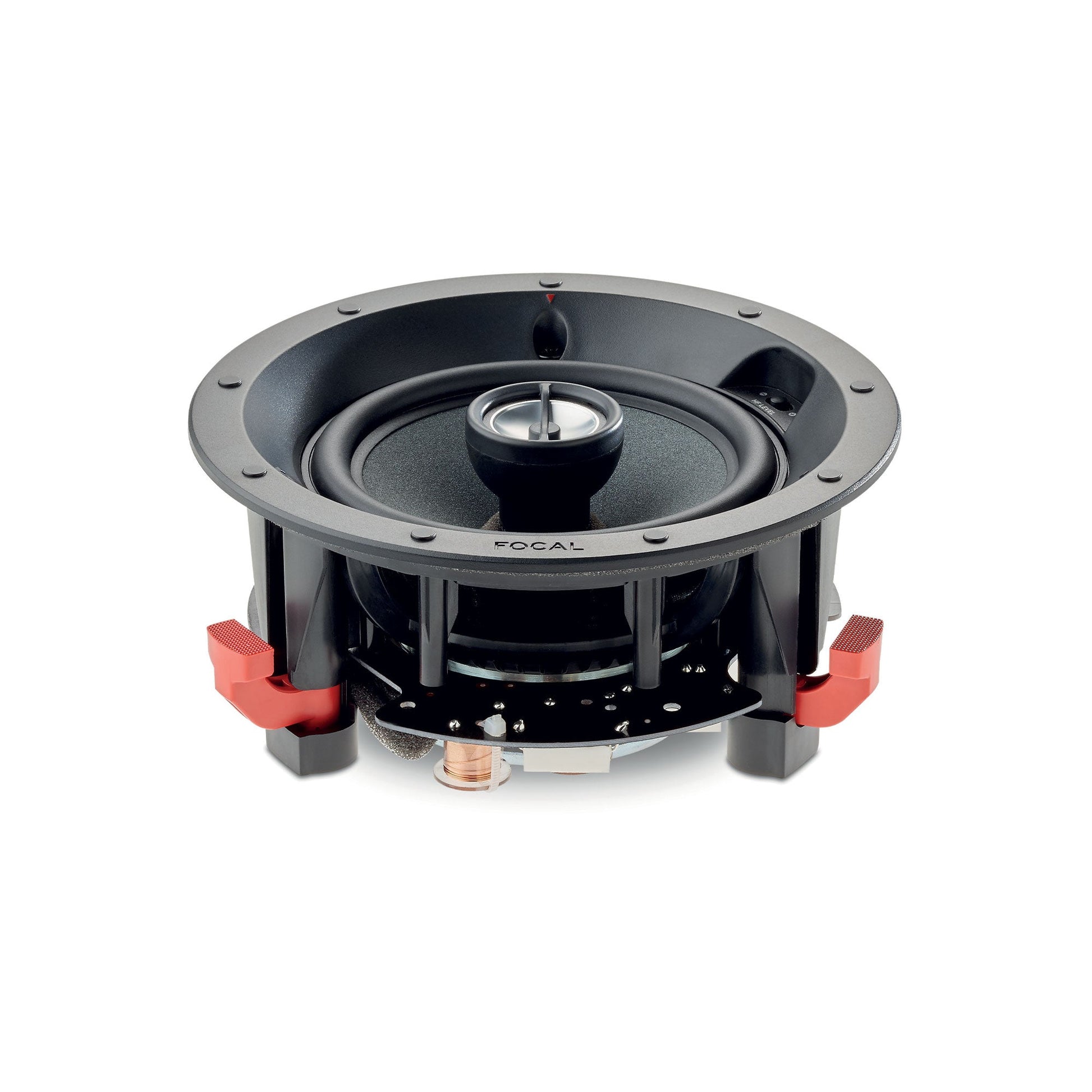

With its shallow mounting depth and optimized mounting brackets, the loudspeaker is quick and easy to install. The unibody frame and ready-to-paint magnetic grilles ensure discreet integration in any living space.
SPECIFICATIONS
Design
Depth : 87 mm / 3.42 in
Weight : 1.45 kg /
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 35 mm / 1.56 in
Cut-Out diameter : 160 mm / 6 in
Depth behind surface (Mounting depth) : 3.23 in / 3.23 in
Sound - Acoustics
Product type : Wall/Ceiling - 2 Coxial Ways
Membrane : Polyglass
Medium : 5" (13cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 56 Hz
Frequency response (+/- 3dB) :
65 Hz - 23 kHz
Minimum impedance : 7.3 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 15 - 100 W
Sensitivity : 88 dB
Included Accessories
Black and white felt : Black and white felt ready to stick
Cut Out template : Yes

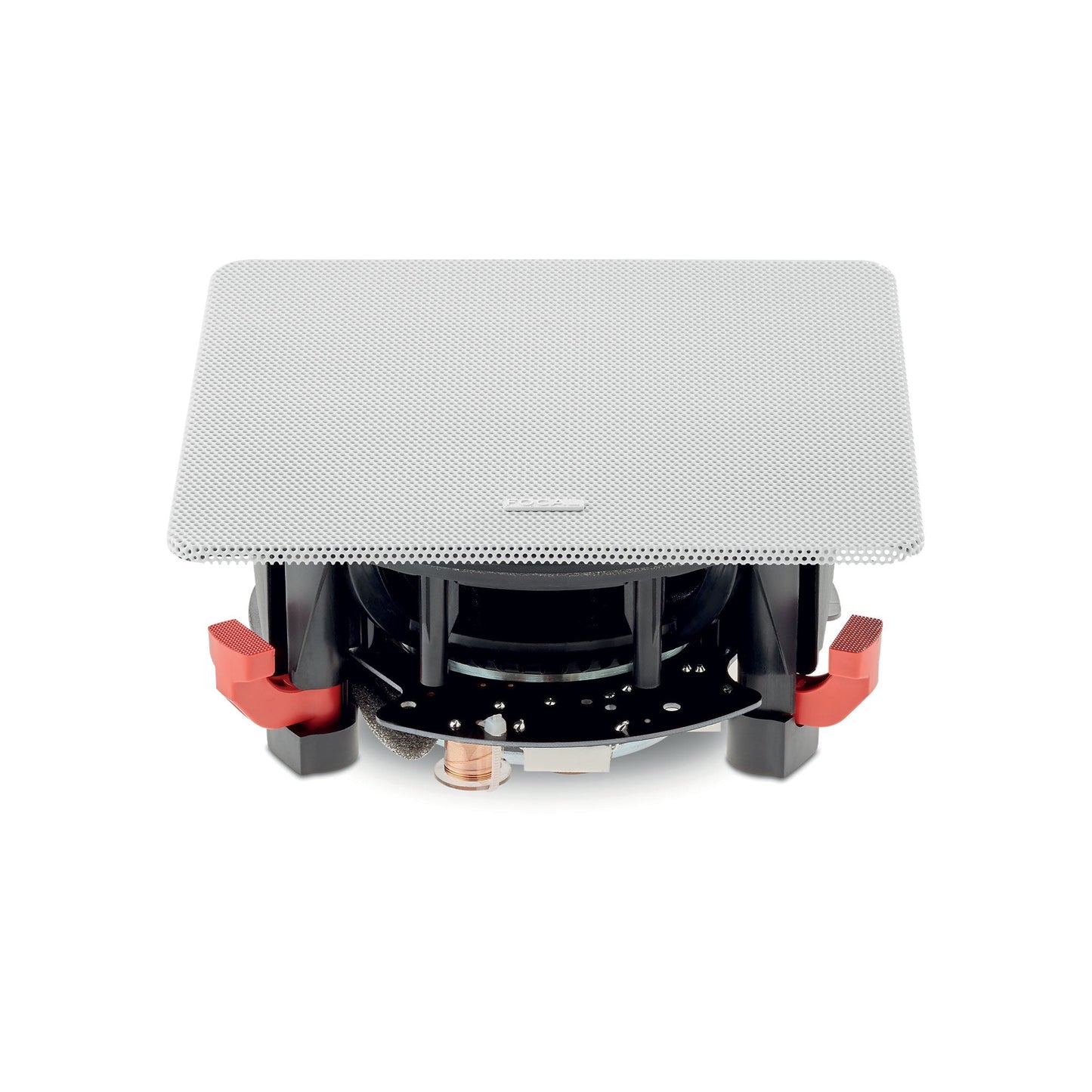

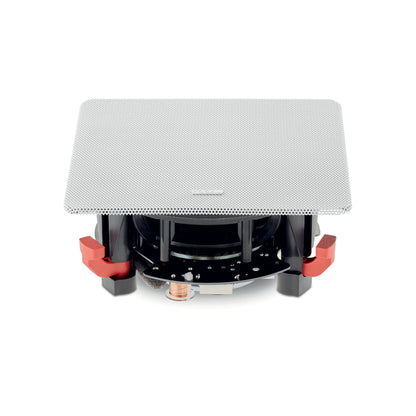

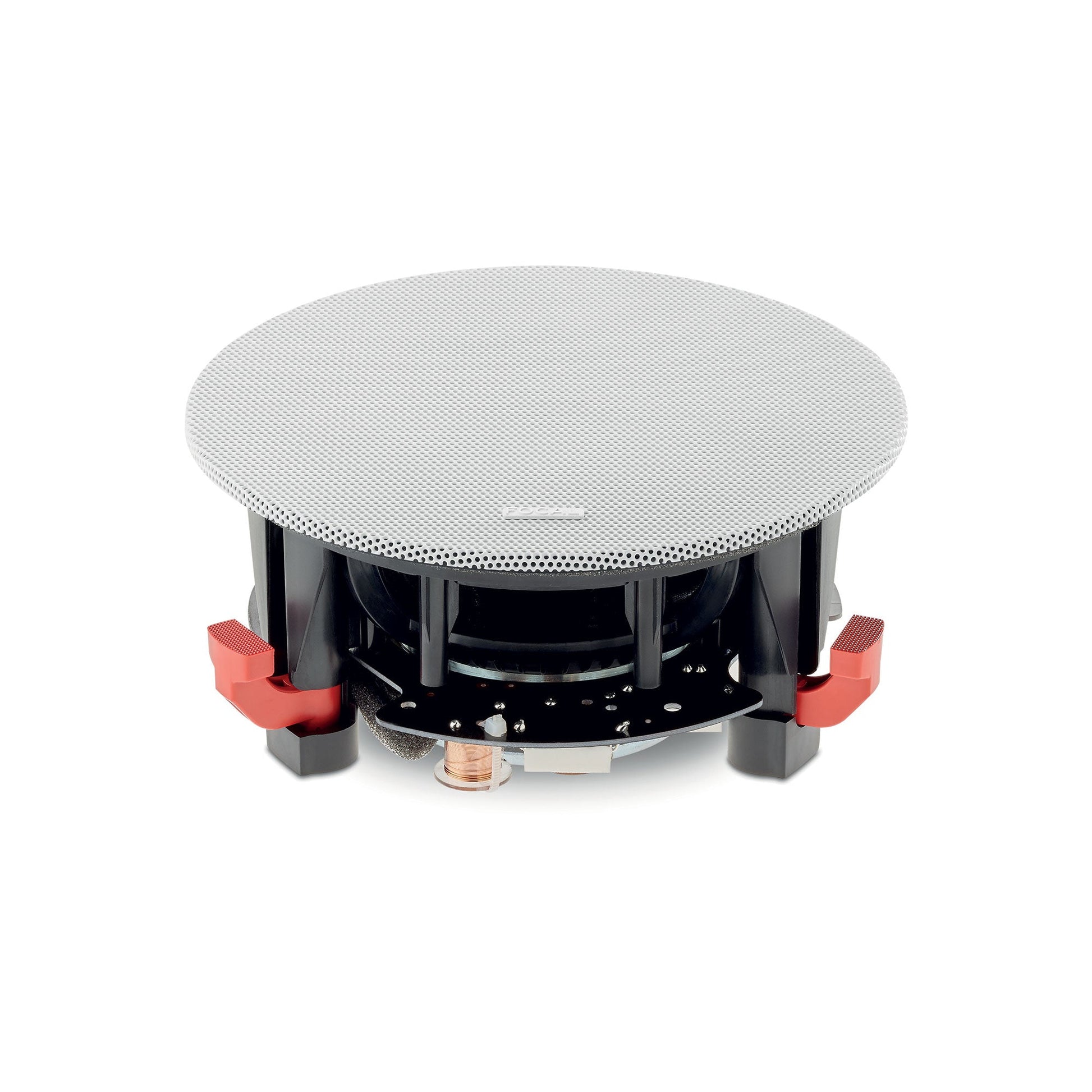

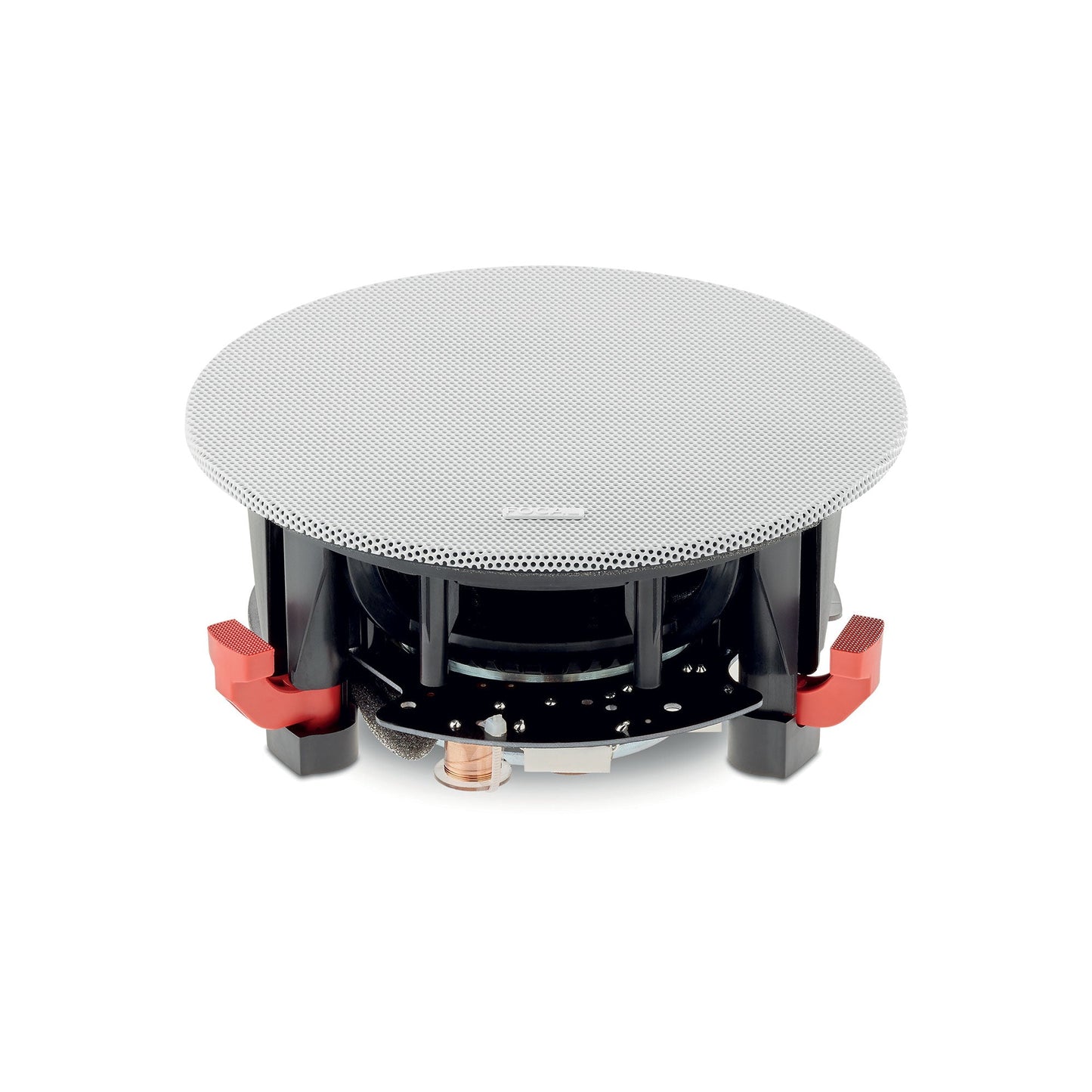

Grilles : Ready-to-paint grille
