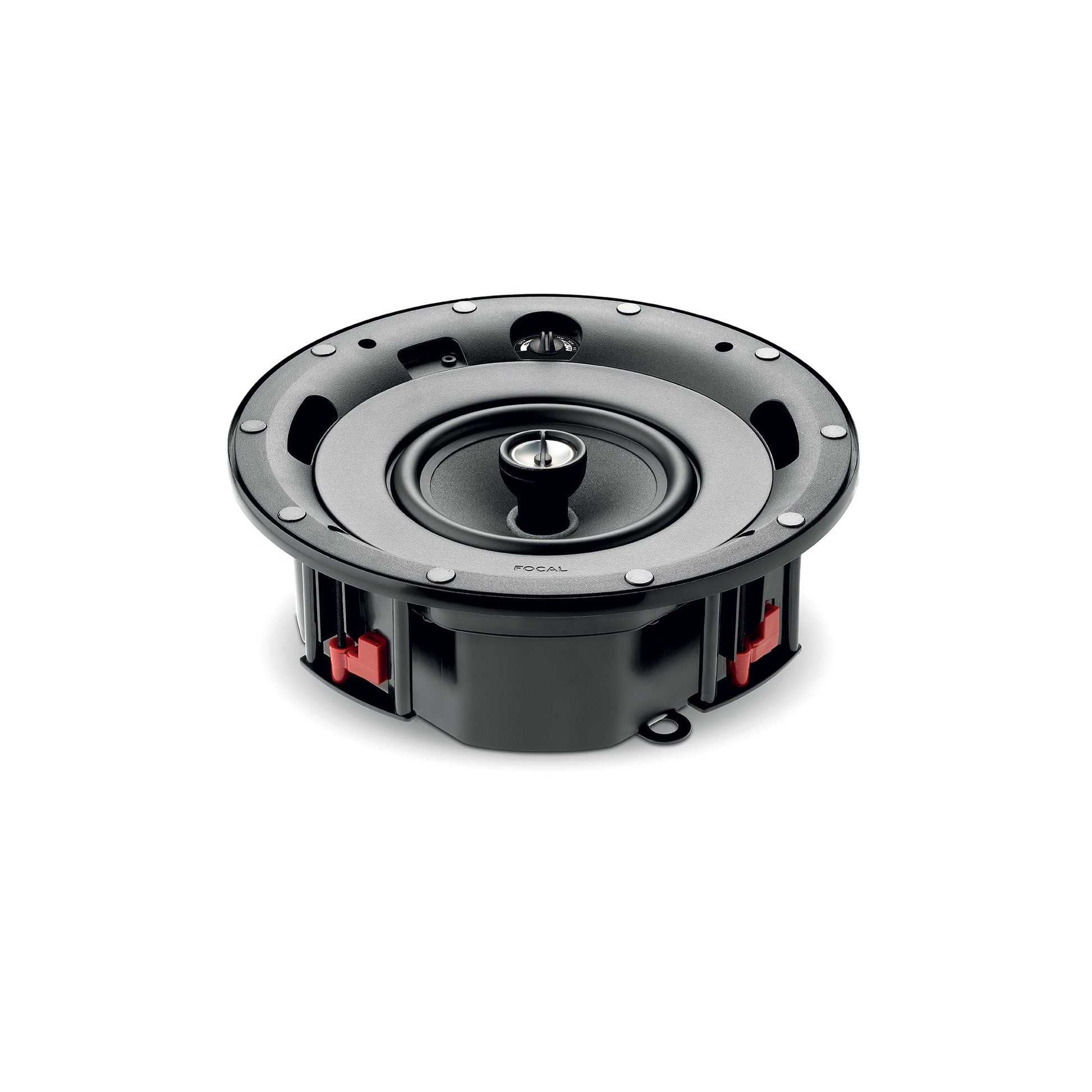

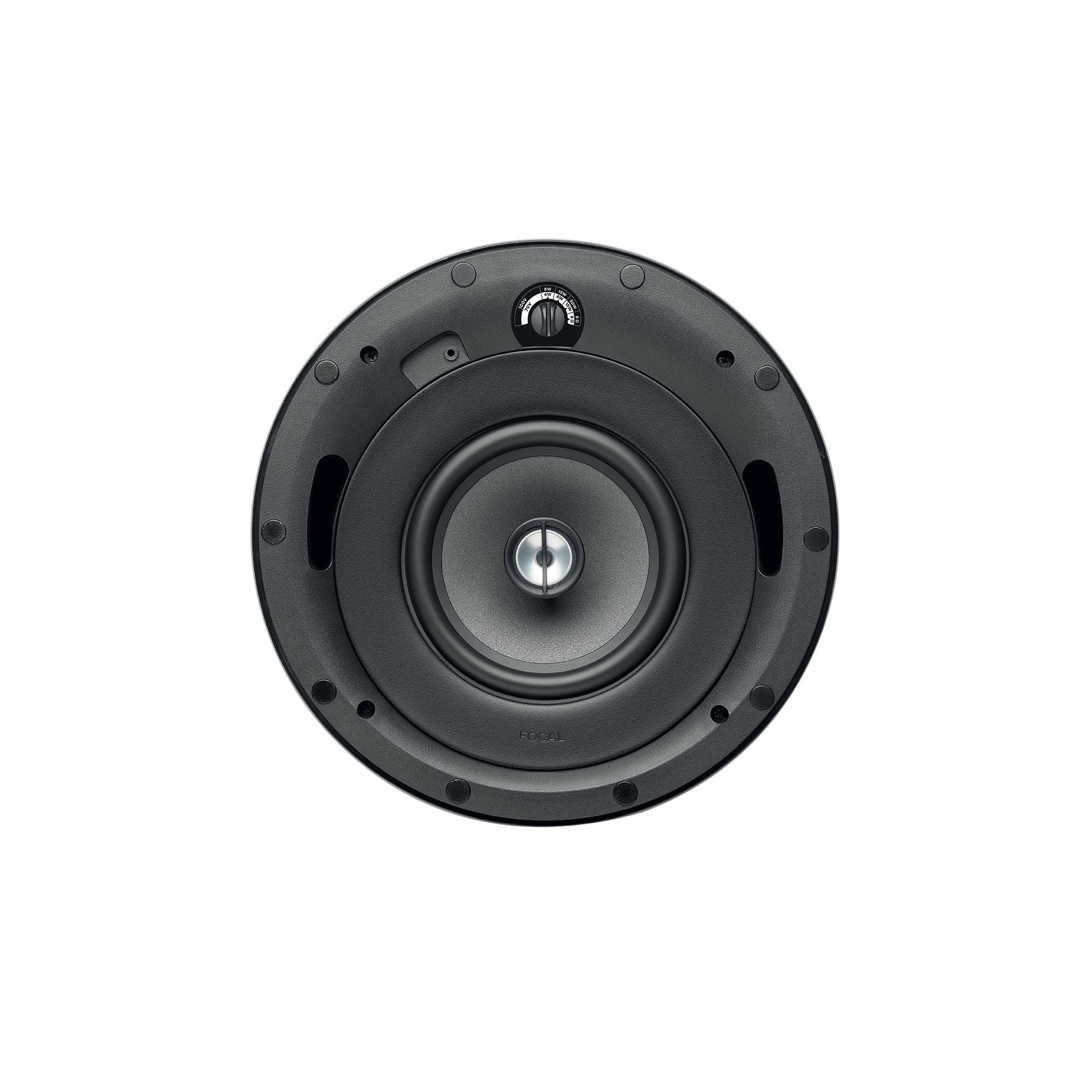

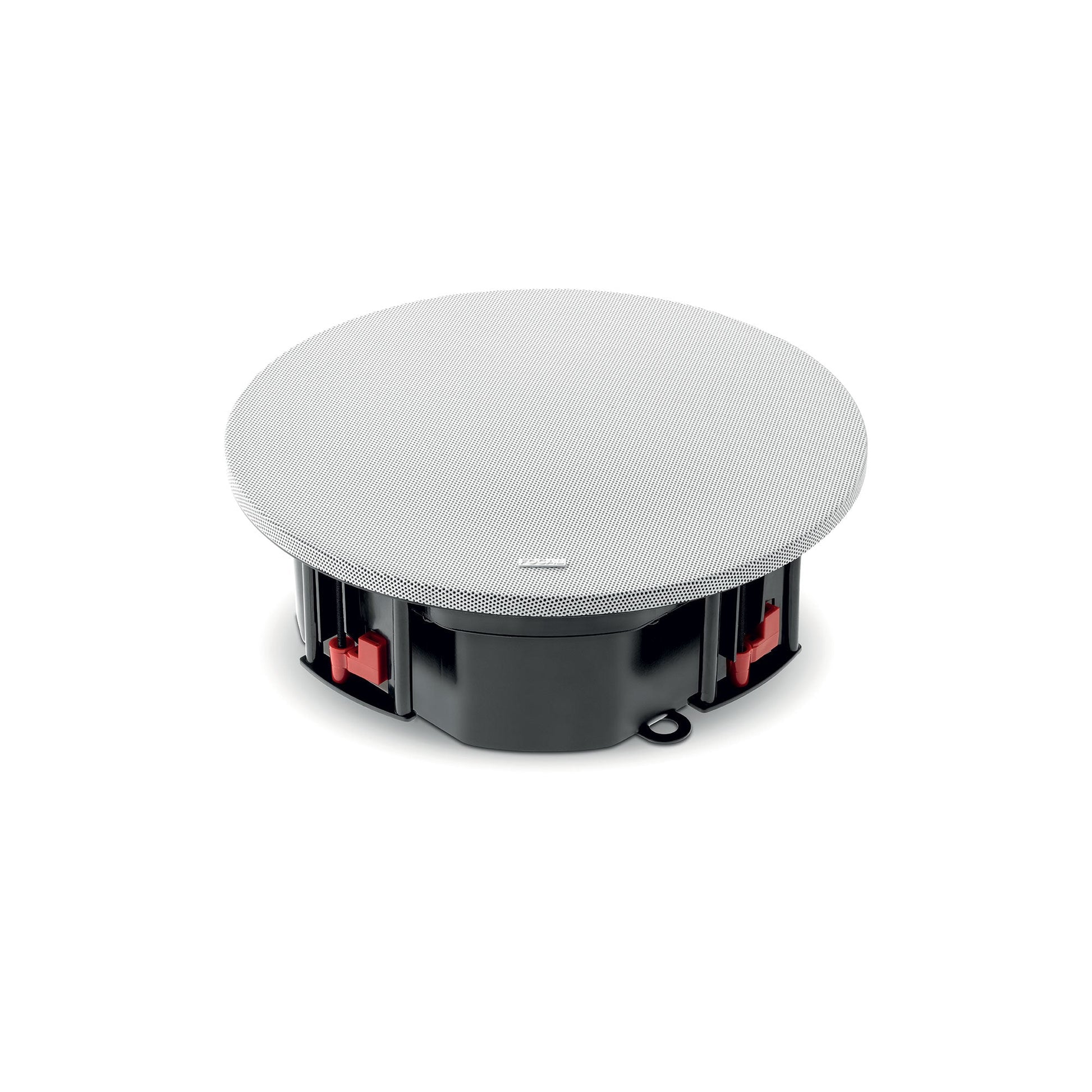

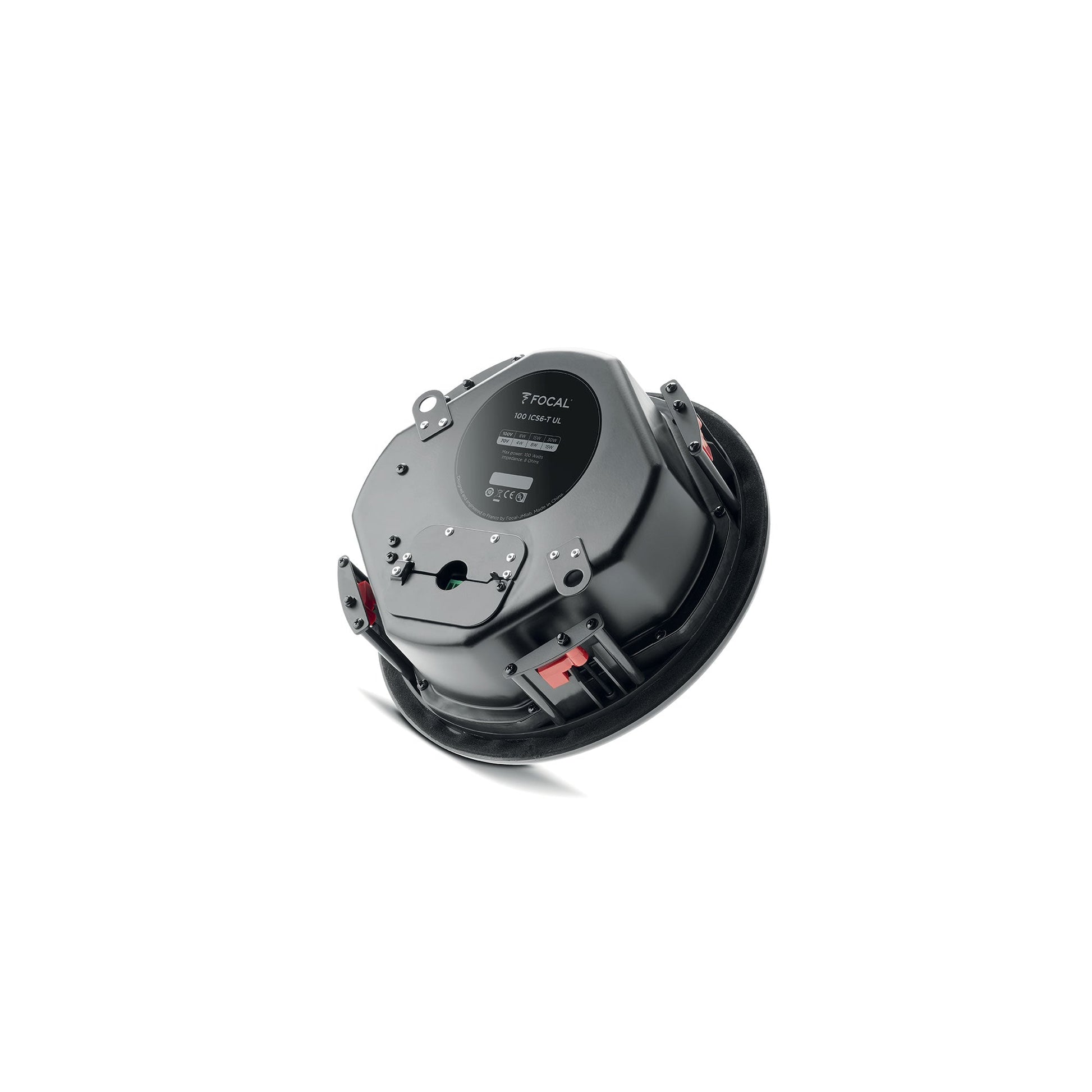

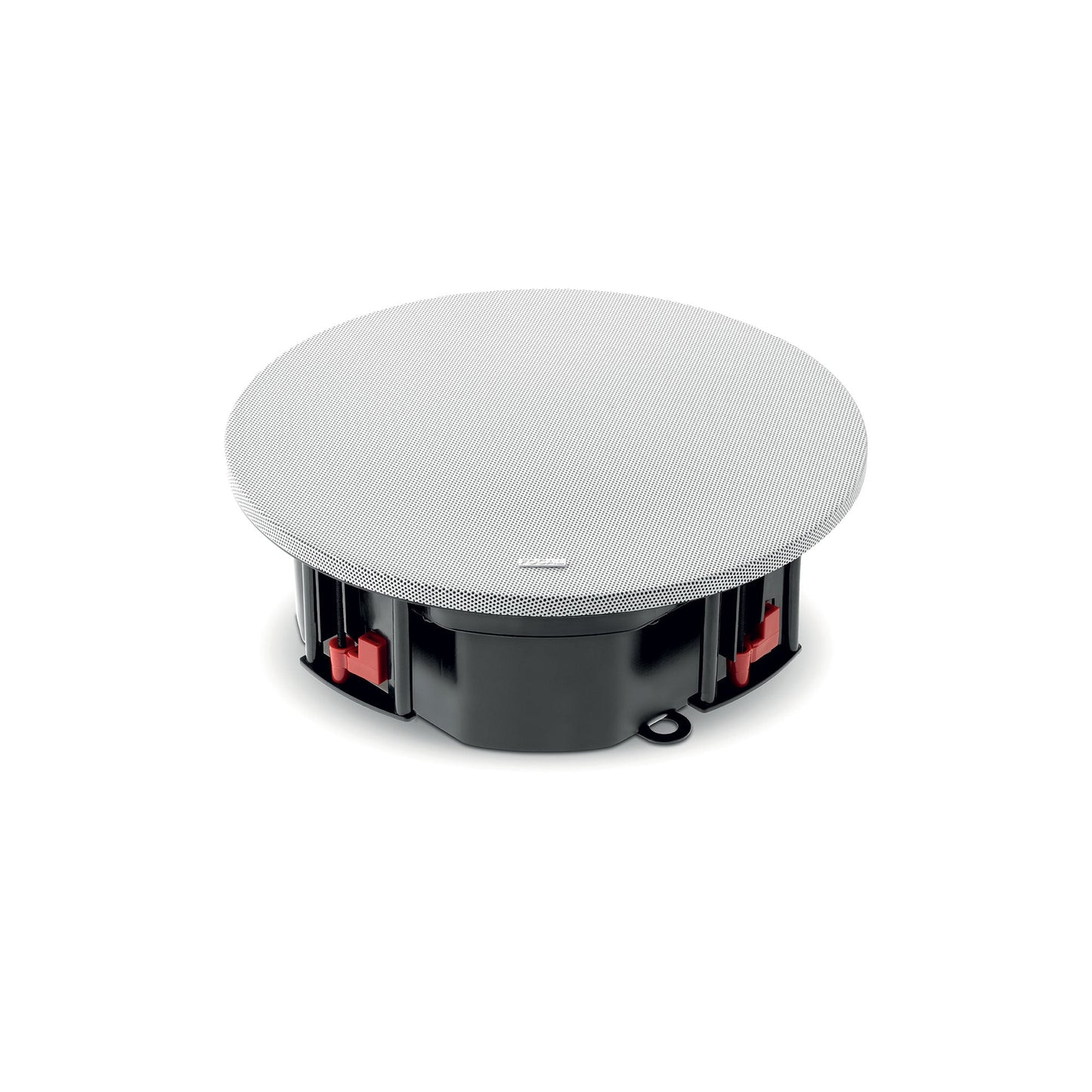

With its slim profile, the 100 ICS6-T UL bass-reflex speaker fits easily into ceilings and offers the clarity, precision and quality of Focal sound. Thanks to its adjustable transformer, it is capable of providing sound in large spaces (shops, hotels, restaurants, etc.). Its UL 1480 and UL 2043 certifications make it perfectly safe against fire and flammability risks.
QUALITY & RELIABILITY
Like the 100 IC8-T UL loudspeaker, the 100 ICS6-T UL is UL 1480 and UL 2043 certified. While the former meets safety standards for fire alarm systems, the latter assesses resistance to flames and smoke emissions. A guarantee of quality and reliability essential for any public environment.
COMPACT YET POWERFUL
With its slim, 10.3 cm deep profile, the loudspeaker fits discreetly into ceilings. Optimized grip mounting brackets and the optional C-Ring Tile Bridge false ceiling mounting kit guarantee optimal installation. Its power-adjusting transformer enables it to be connected in series in an 8 ohm or 70V/100V installation: it covers large listening areas with quality, while reducing the number of amplification channels required.
FOCAL KNOW-HOW
Thanks to its 16.5 cm (6.5") Polyglass cone, the loudspeaker delivers a natural, uncolored midrange and rich bass. Another Focal technology, the aluminum inverted dome tweeter, guarantees wide sound dispersion and enhanced spatialization. For an even more demonstrative and complete installation, it pairs perfectly with the Naim CI Series range.
SPECIFICATIONS
Design
Height : 12.9 cm /
Width : 29.7 cm /
Depth : 12.9 cm /
Weight : 3.75 kg /
Net weight (with grille) : 3.75 kg /
Minimum allowable ceiling thickness : 0 cm /
Maximum allowable ceiling thickness : 3.6 cm /
Easy Quick Install : No
Cut-Out diameter : 26.5 cm /
Depth behind surface (Mounting depth) : 10.3 cm /
Packaging Depth : 17.2 cm /
Packaging height : 37.4 cm /
Packaging Width : 37.5 cm /
Weight with the packaging : 4.9 g /
Product certifications : UL1480 & UL2043
Sound - Acoustics
Product type : 2-way ceiling
Response at - 6dB (Low frequency point) : 60 Hz
Nominal Impedance : 8 Ω
Sensitivity : 89 dB
Power in 100 V : Yes
Power in 70 V : Yes
Included Accessories
Cut Out template : Yes
Sling : Yes
