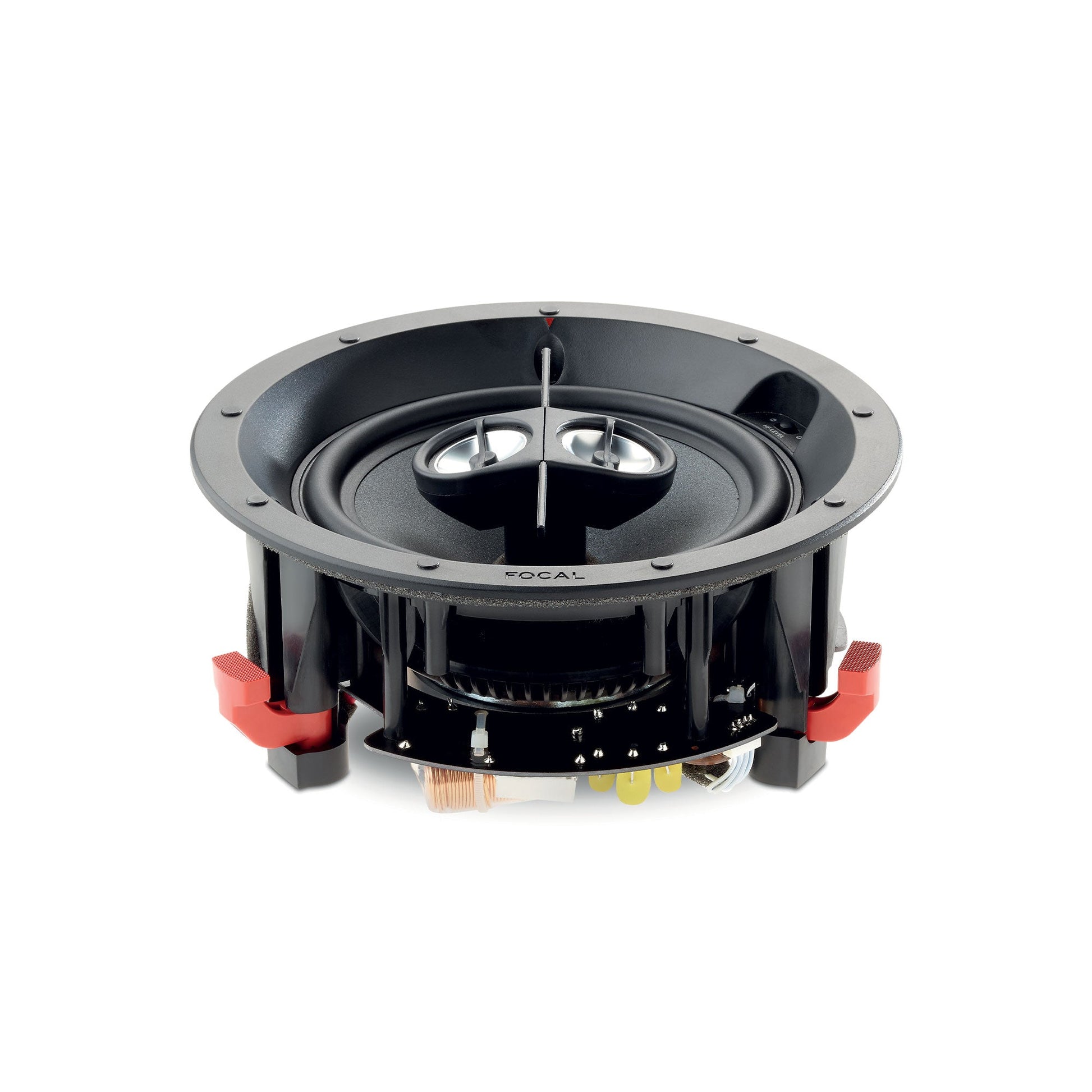

Dedicated to residential installations, the IC6ST 100 ceiling speaker stands out for its sonic performance and compactness. Thanks to its double tweeter, it's ideal for stereo sound in small to medium-sized rooms (bedrooms, kitchens, hallways) or humid environments (bathrooms), thanks to its tropicalization process. All in all, a highly effective piece of equipment at this price level.
PERFORMANCE

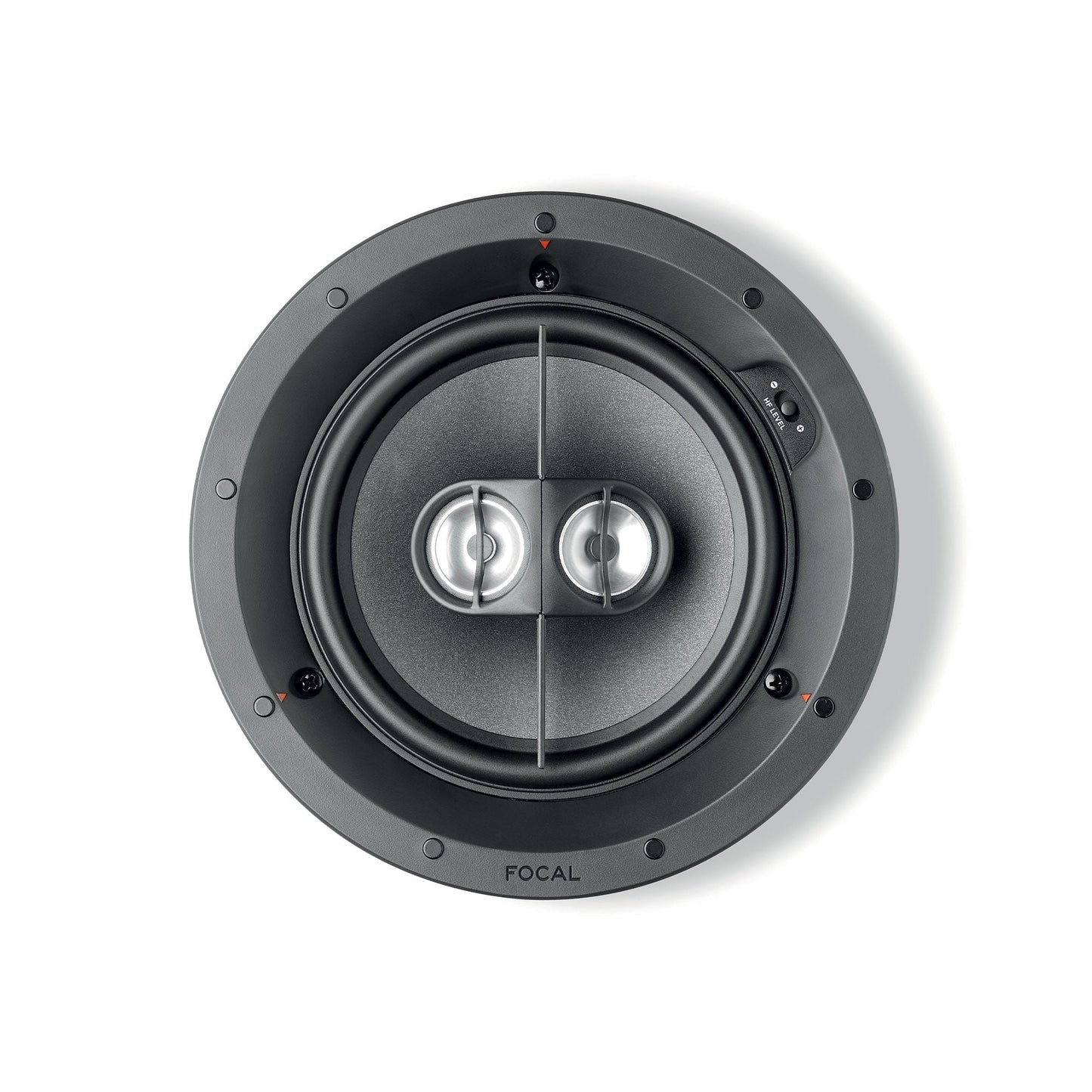

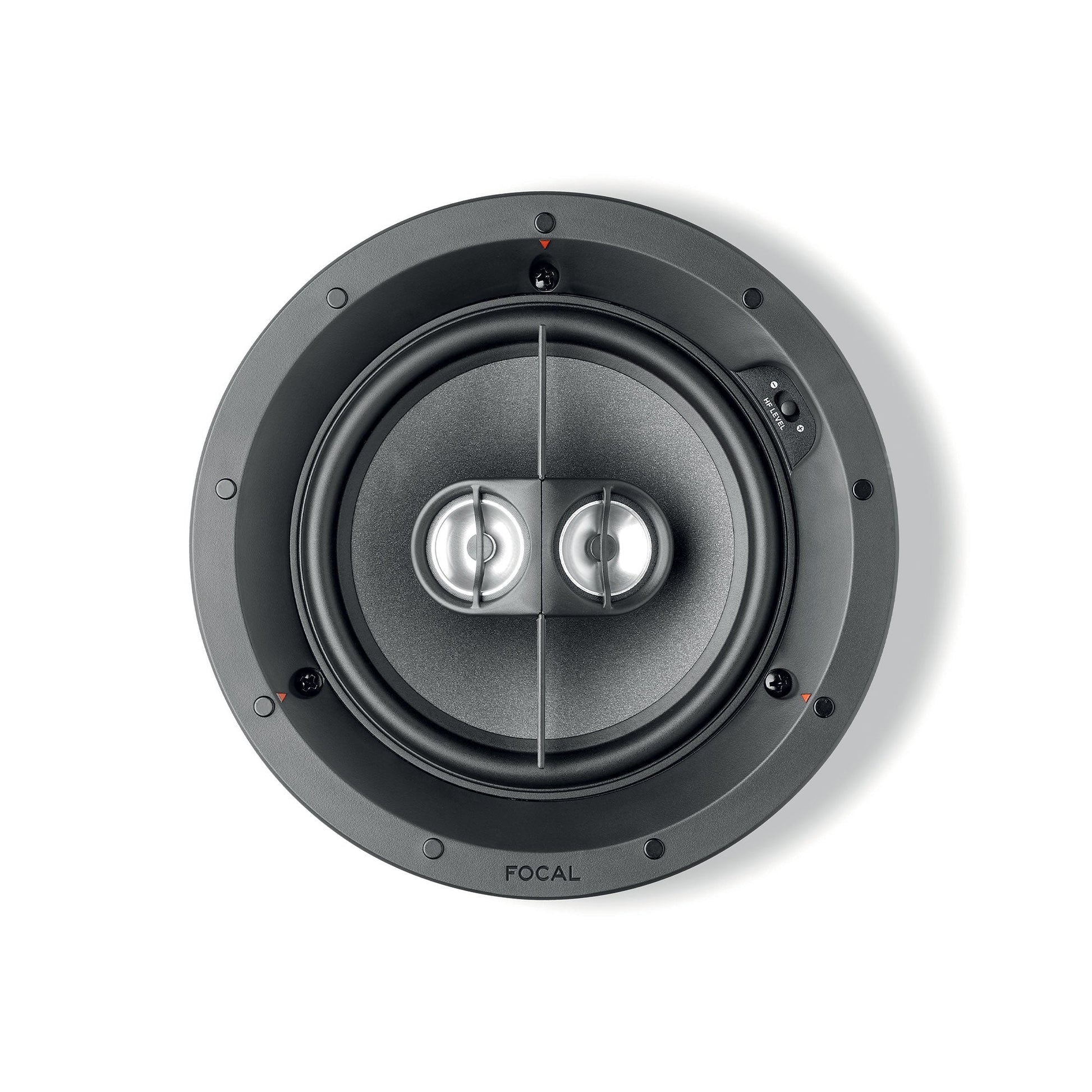

The loudspeaker features a compact, directional tweeter and a Polyglass cone driver. A crossover facilitates off-axis listening and reduces the "shower effect".
HI-FI OR HOME CINEMA
100 IC6ST features a 3-position treble equalizer to match room acoustics. It can be connected to a single amplifier and used with conventional hi-fi systems for Home Cinema installation.
EASY INSTALLATION
Simplicity of installation and design are key criteria: robust mounting brackets and magnetic grilles reduce installation time. The shallow depth of 100 Series products ensures discreet integration.
SPECIFICATIONS
Design
Depth : 95 mm / 3.75 in
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 40 mm / 1.56 in
Cut-Out diameter : 184 mm / 7.25 in
Depth behind surface (Mounting depth) : 3.56 in / 3.56 in
Sound - Acoustics
Product type : Ceiling - 2 coxial stereo lanes
Membrane : Polyglass
Medium : 6.5" (16.5cm) Dual voice coil Polyglass Midbass
Response at - 6dB (Low frequency point) : 48 Hz
Frequency response (+/- 3dB) :
60 Hz - 23 kHz
Minimum impedance : 6.7 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 25 - 100 W
Sensitivity : 89 dB
Included Accessories
Black and white felt : Black and white felt ready to stick
Cut Out template : Yes

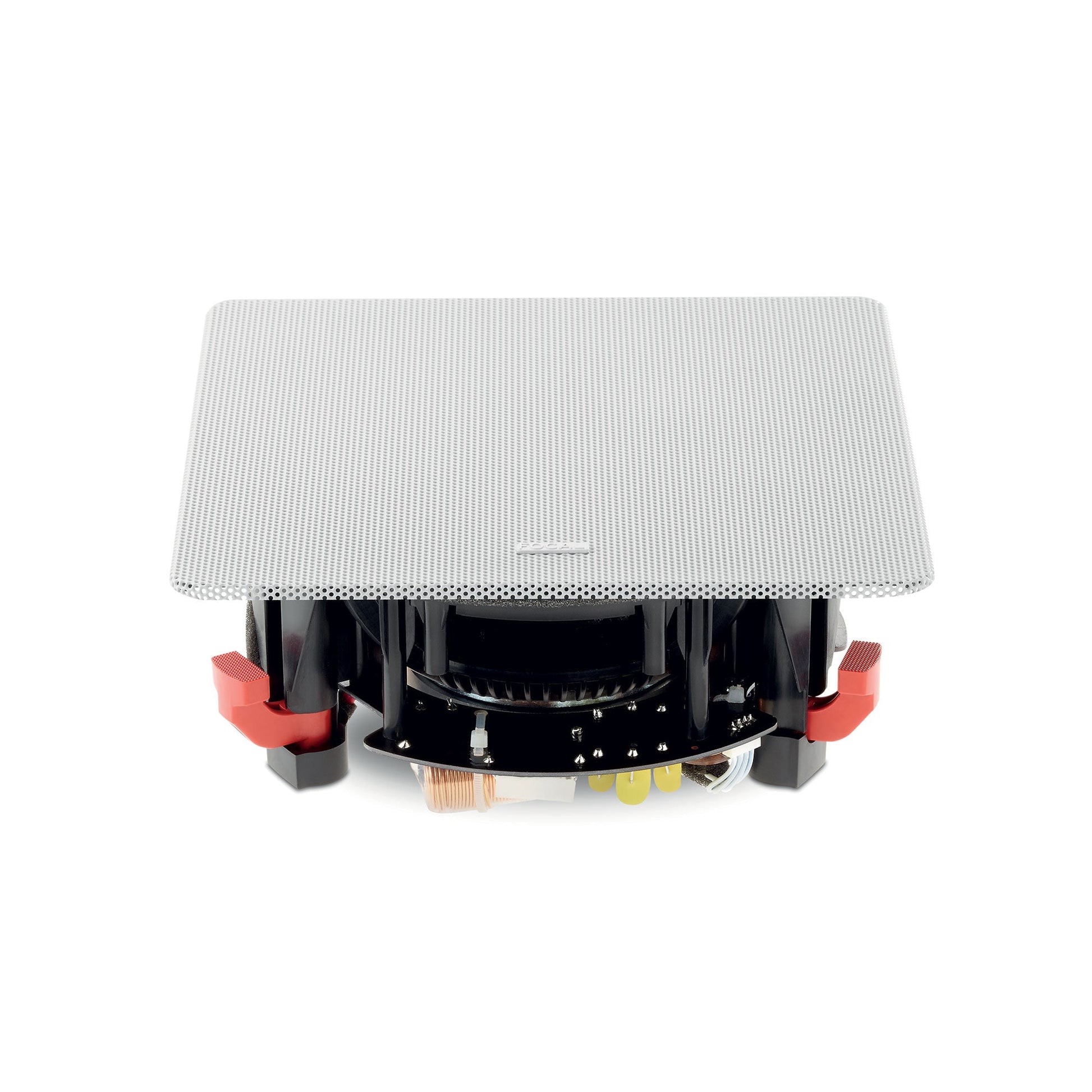

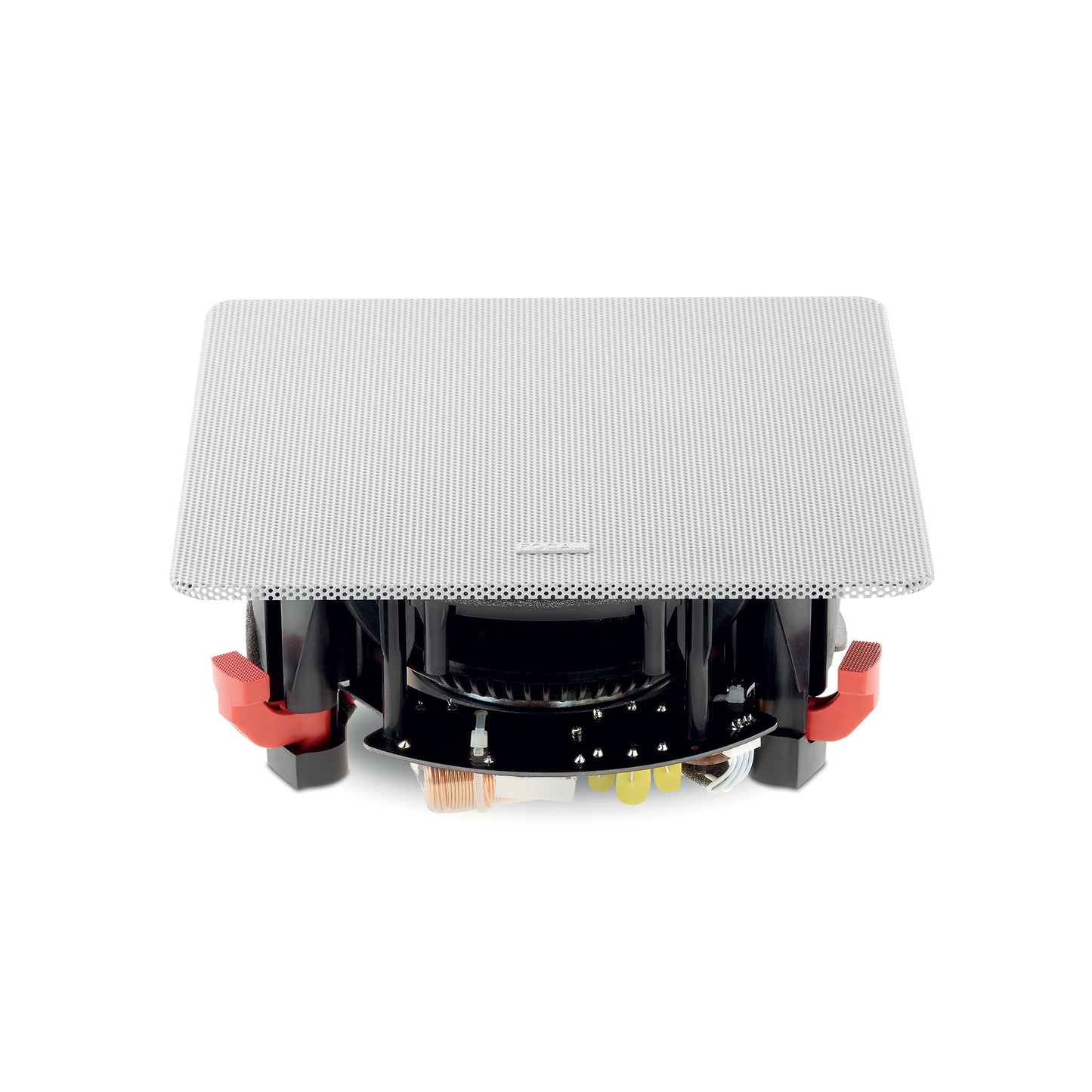

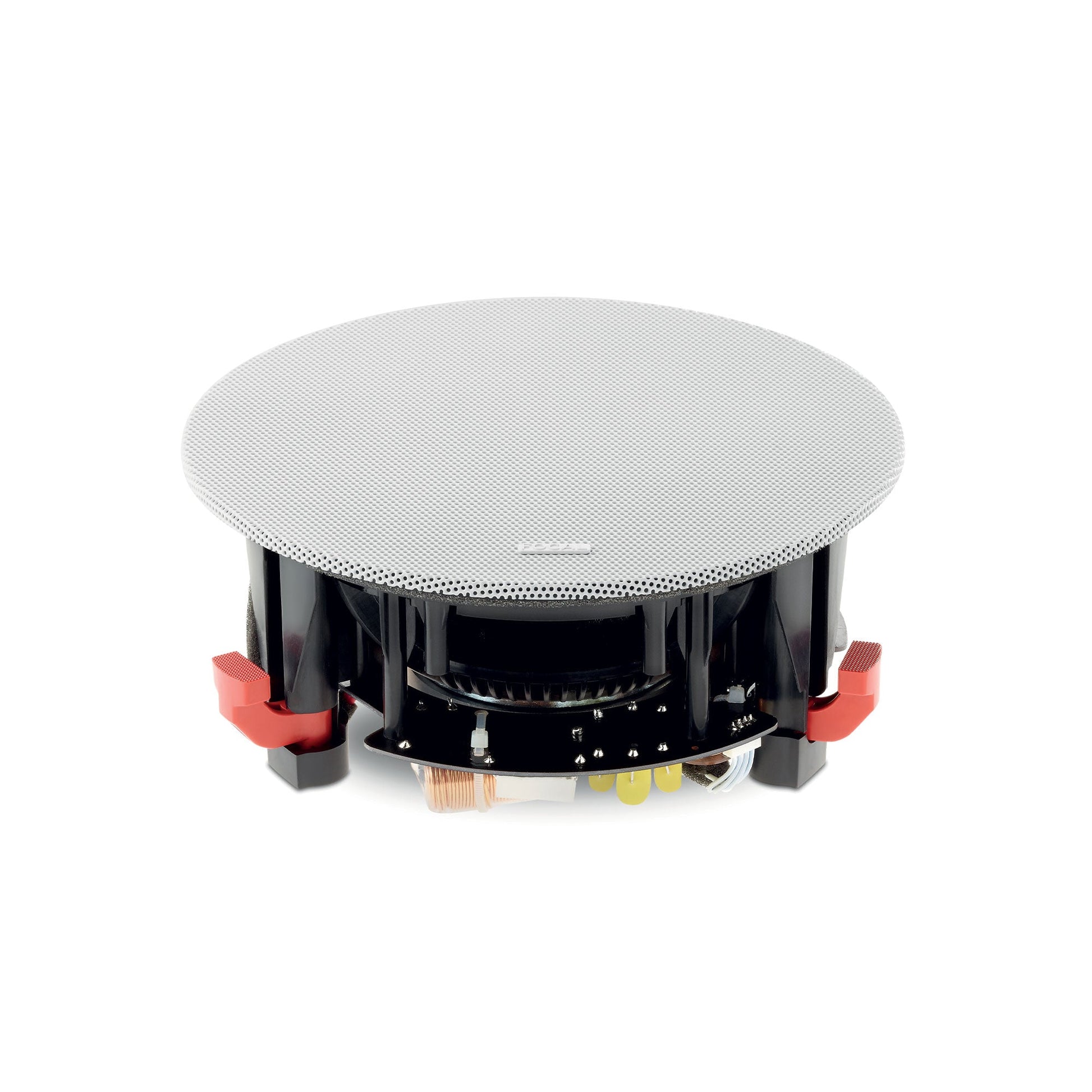

Grilles : Ready-to-paint grille
