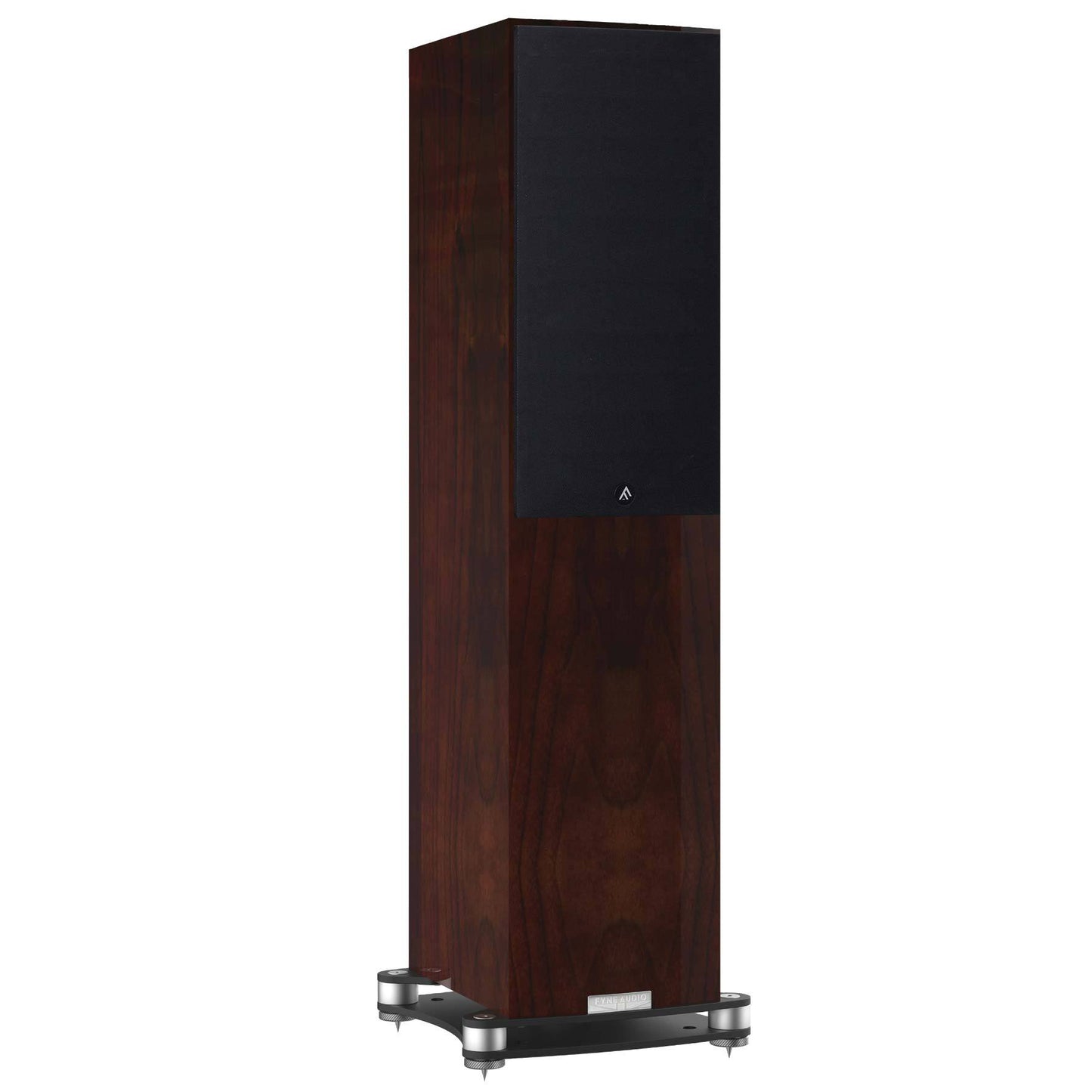

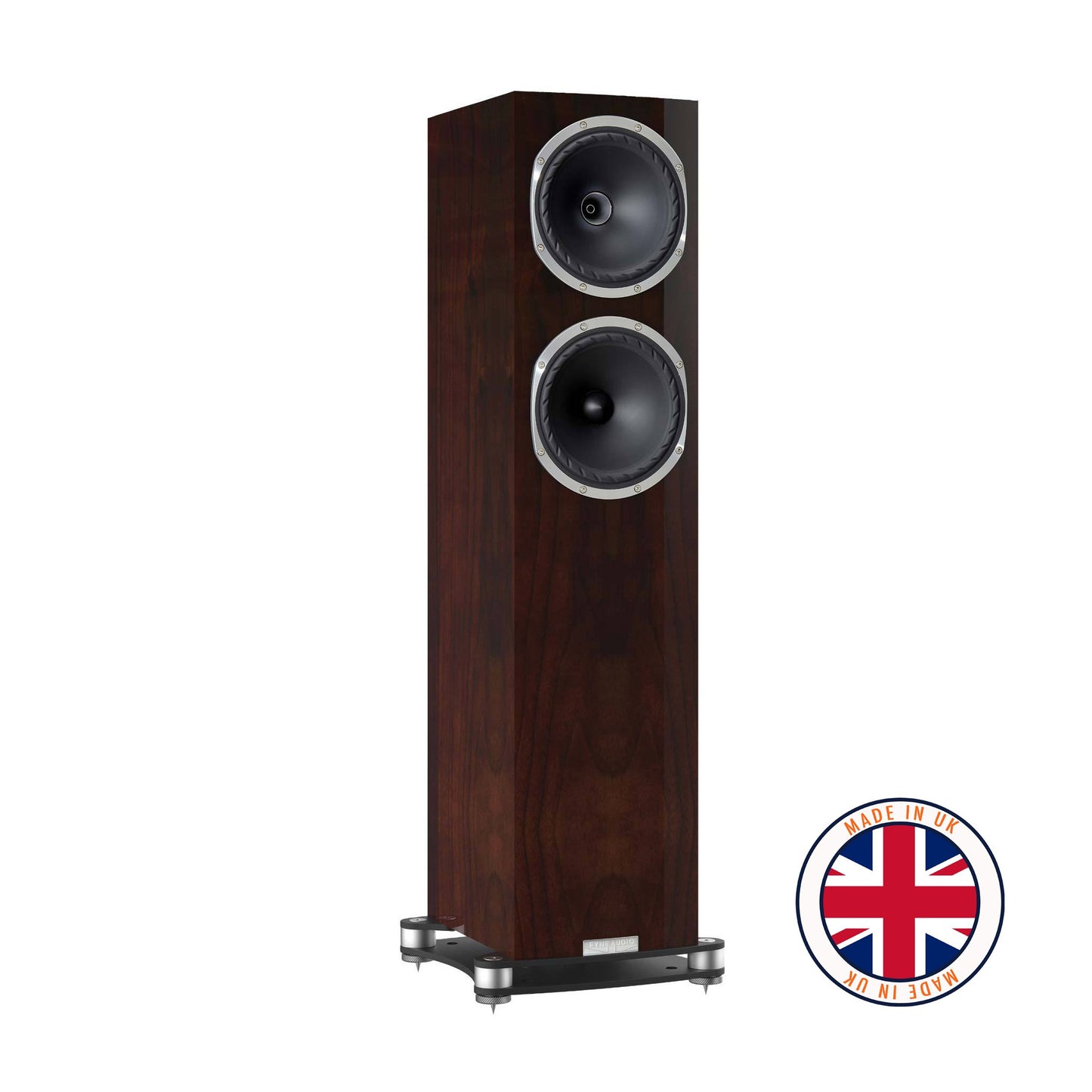

F502SP Floorstanding Speaker
Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The SP is available in high-gloss black and high gloss white as standard, or in a new, luxurious deep gloss lacquered walnut veneer with diamond machine cut finish on the aluminium chassis.
BASSTRAX PORT SYSTEM
The bookshelf and floorstanding models employ an internal, downwards-firing port system. Below the port, a Tractrix profile diffuser (patent applied for) converts plain wave port energy to a spherical 360-degree wave front, integrating energy uniformly into the room. This clever design ensures that the loudspeaker is less critical of room positioning.
Low-loss, laminated core inductors and audiophile-grade polypropylene capacitors are used exclusively throughout the F500 series crossovers. The result is an exceptionally clean signal path and very low crossover losses, ensuring the very best in detail resolution and musical communication.
HOME THEATRE & MUSIC
The F500 range is as impressive with movies as it is with music. FYNE AUDIO’s point source driver technology is ideal for articulating the finest of movie detail with pin-point accuracy. High efficiency and high-power handling means the F500 series delivers an incredibly dynamic and lifelike performance whether you are listening to DTS Master Audio or Dolby True HD.
|System Type||2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system|
|Recommended amplifier power (Watt RMS)||30- 200|
|Continuous power handling (Watt RMS)||100|
|Sensitivity (2.83 Volt @ 1m)||92dB|
|Nominal impedance||8 Ohm|
|Frequency response (-6dB typical in room)||30Hz - 34kHz|
|Drive unit complement||1 x 200mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system. 1 x 200mm multi-fibre bass cone, FyneFluteTM surround.|
|Crossover frequency||250Hz & 1.7kHz|
|Crossover type||Bi-wired passive low loss, 2nd order low pass, 1st order high pass|
|Dimensions - HxWxD||1111 x 338 x 380mm (43.7 x 13.3 x 15.0”)|
|Weight - Each||30.4kg (67.0lb)|

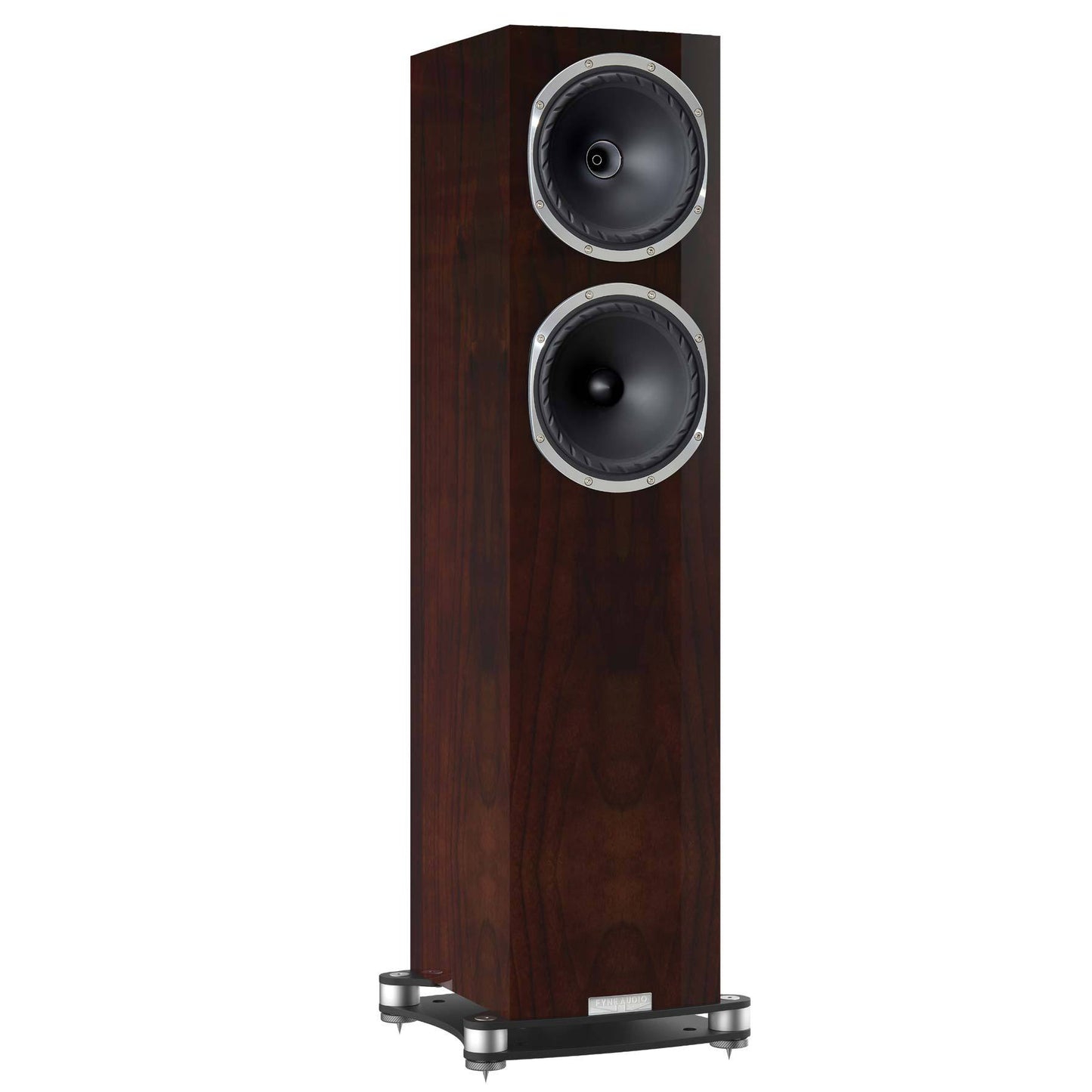

Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
