dCS Lina Headphone Amplifier

$15,900
$15,900
Taxes included.
Vendor: dCS
Color: Black
View full details

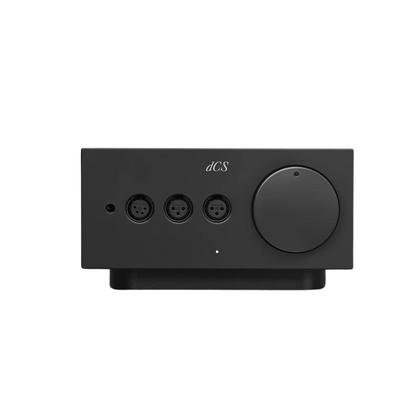

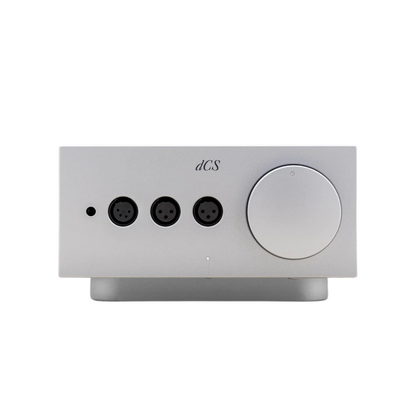

dCS Lina Headphone Amplifier
dCS Lina Headphone Amplifier
Caret Down

Pure Analogue Class AB Authority, Ultra-Low Noise Floor & Effortless Headphone Control | Available at Trimira Audio

Designed, hand-assembled, and tested in Cambridgeshire, UK, the dCS Lina Headphone Amplifier is a dedicated analogue headphone amplifier engineered for high-end personal audio systems. Machined from solid billet aluminium and weighing 7.5 kg, it combines a fully balanced Class AB topology with DC servo control for wide bandwidth, low distortion, and high-current headphone drive.

The Lina Headphone Amplifier is designed to accommodate everything from sensitive in-ear monitors to demanding planar-magnetic and high-impedance headphones. Its selectable two-position gain control, low output impedance, and high signal-to-noise ratio provide flexibility across a wide range of headphones.

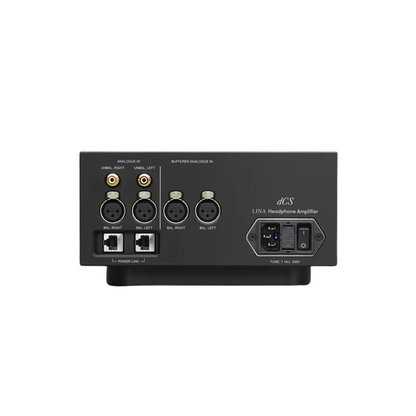

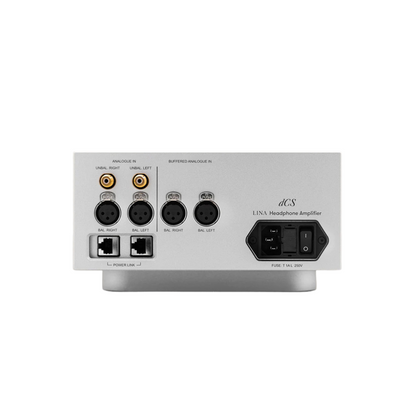

With buffered and unbuffered balanced XLR inputs, RCA connectivity, and three headphone output configurations, the amplifier integrates naturally with the dCS Lina Network DAC, Lina Master Clock, and other high-end analogue sources.

Key Features & Technological Innovations

  • Balanced Class AB Architecture with DC Servo: Provides wide bandwidth, low distortion, and controlled current delivery without coupling capacitors in the signal path.

  • Two-Position Gain Selection: Low and High gain settings accommodate both sensitive IEMs and demanding full-size headphones.

  • Buffered & Unbuffered Balanced Inputs: Provides dedicated 16 kΩ unbuffered XLR and 96 kΩ buffered XLR inputs, alongside RCA connectivity.

  • Multiple Headphone Outputs: Supports dual 3-pin balanced XLR, 4-pin balanced XLR, and 6.35 mm single-ended connections.

  • Solid Billet Aluminium Chassis: Precision-machined enclosure provides a rigid platform and shields sensitive analogue circuitry.

  • Power Link Synchronisation: Dual RJ45 Power Link connections allow synchronised power control with compatible dCS Lina components.

  • High-Current Headphone Drive: Delivers up to 2.0 W per channel into 30 Ω through balanced outputs for demanding headphone loads.

Technical Specifications

Specification Technical Detail
Device Type Pure Analogue Solid-State Balanced Headphone Amplifier
Amplifier Topology Fully Balanced Class AB with DC Servo System
Balanced Output Power 2.0 W per channel into 30 Ω; 0.48 W per channel into 300 Ω
Unbalanced Output Power 1.6 W per channel into 30 Ω; 0.2 W per channel into 300 Ω
Frequency Response 1 Hz – 100 kHz (better than +0 / -3 dB)
Total Harmonic Distortion (THD+N) Less than 0.005% @ 1 kHz (6V RMS balanced output into 30 Ω, 80 kHz bandwidth)
Signal-to-Noise Ratio (SNR) 110 dB (20 Hz – 20 kHz A-weighted, referenced to 6V RMS balanced input and output)
Channel Separation Better than 100 dB @ 1 kHz; better than 80 dB (20 Hz – 20 kHz, balanced into 30 Ω)
Analogue Inputs 1 × Stereo Unbuffered Balanced XLR (16 kΩ input impedance), 1 × Stereo Buffered Balanced XLR (96 kΩ input impedance), 1 × Stereo Unbalanced RCA (48 kΩ input impedance)
Headphone Outputs 1 × Dual 3-Pin Balanced XLR (Left & Right), 1 × Single 4-Pin Balanced XLR, 1 × Single 6.35 mm (1/4-inch) Stereo Jack
User Controls Precision Analogue Rotary Volume Control, Input Selector, Two-Position Gain Switch
System Synchronization 2 × RJ45 Power Link Connectors (synchronizing power state with dCS Lina DAC & Master Clock)
Included Accessories 1 × 2.0m Mains Power Cable, 1 × 0.5m Power Link Cable
Power Requirements 90–127V / 220–240V AC, 50/60 Hz (Automatic Voltage Switching)
Dimensions (W × H × D) 220 mm × 121.5 mm × 356 mm
Net Weight 7.5 kg (16.5 lbs)
Finish Options Silver Anodised Aluminium, Black Anodised Aluminium


Consult with the High-End Personal Audio Specialists at Trimira Audio

Experience the dCS Lina Headphone Amplifier alongside the Lina Network DAC, Lina Master Clock, and reference headphones.

Contact the high-end audio specialists at Trimira Audio in Brisbane to discuss headphone matching, balanced connectivity, complete Lina stack configurations, or to arrange a private audition.
