Grade 1 Dual-Crystal Precision Clocking & Reference Timing Architecture | Available at Trimira Audio

The dCS Lina Master Clock is a dedicated Grade 1 reference clock designed to provide an ultra-stable timing reference for the dCS Lina Network DAC and Lina DAC X. Hand-assembled and tested in Cambridgeshire, UK, it combines dual oven-controlled crystal oscillators with a precision-machined aluminium chassis and dedicated power regulation.

The Lina Master Clock uses separate oscillators for the 44.1 kHz and 48 kHz sample-rate families, maintaining frequency accuracy better than ±1 ppm across its specified operating temperature range. Two independently buffered 75 Ω BNC outputs provide dedicated Word Clock connections for compatible dCS components.

Designed as part of the Lina ecosystem, the Master Clock also incorporates dual RJ45 Power Link connections for synchronised system power control.

Key Features & Technological Innovations

  • Dual Grade 1 OCXO Architecture: Separate oven-controlled crystal oscillators are dedicated to the 44.1 kHz and 48 kHz sample-rate families.

  • Better Than ±1 ppm Accuracy: Thermal stabilisation maintains extremely precise frequency accuracy across the specified operating temperature range.

  • Standalone Billet Aluminium Chassis: Precision-machined enclosure provides a rigid, isolated platform for the clock circuitry and power supply.

  • Dual Buffered Word Clock Outputs: Two 75 Ω BNC outputs provide dedicated 44.1 kHz and 48 kHz clock references.

  • Power Link Synchronisation: Dual RJ45 connections allow coordinated power control between compatible dCS Lina components.

  • Complete Integration Package: Supplied with BNC Word Clock cables, Power Link cable, and mains power cable for straightforward Lina system integration.

Technical Specifications

Specification Technical Detail
Device Type Grade 1 Dual-Crystal Reference Master Clock
Oscillator Architecture Dual Oven-Controlled Crystal Oscillators (44.1 kHz & 48 kHz)
Clock Accuracy Better than ±1 ppm when shipped (over an ambient temperature range of +5°C to +45°C)
Warm-Up / Startup Time Typically 10 minutes to rated accuracy

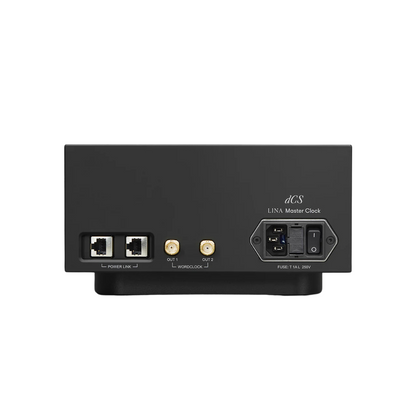

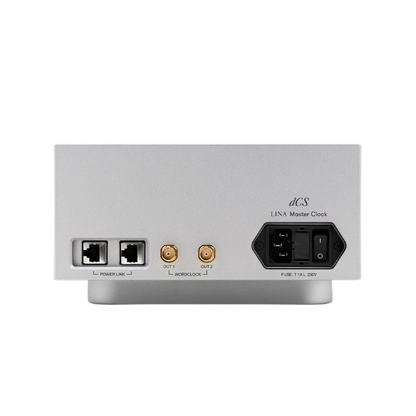

Word Clock Outputs 2 × Independently Buffered TTL-Compatible Outputs on 75 Ω BNC Connectors (Output 1: fixed at 44.1 kHz; Output 2: fixed at 48 kHz)
System Control & Synchronization 2 × RJ45 Power Link Connectors (synchronizing on/off state with dCS Lina components)

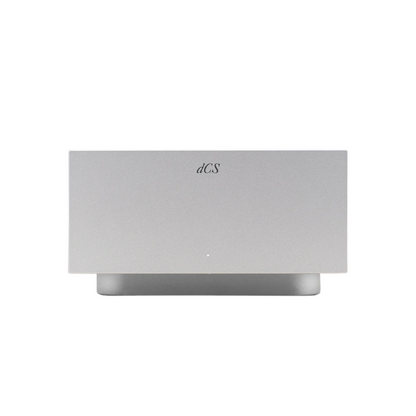

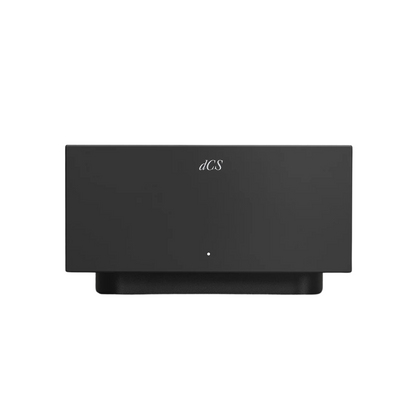

Chassis Construction Precision Machined Solid Billet Aluminium with Crystal LED Status Display
Included Accessories 2 × 0.5m 75 Ω BNC Cables, 1 × 0.5m Power Link Cable, 1 × 2.0m Mains Power Cable
Power Requirements 90–120V / 220–240V AC, 50/60 Hz Nominal (10W power consumption)
Dimensions (W × H × D) 220 mm × 121.5 mm × 339 mm
Net Weight 7.0 kg (15.4 lbs)
Finish Options Black Anodised Aluminium, Silver Anodised Aluminium


Consult with the High-End Digital Audio Specialists at Trimira Audio

Optimise a compatible dCS Lina Network DAC or Lina DAC X with the dedicated Lina Master Clock.

Contact the high-end digital audio specialists at Trimira Audio in Brisbane to discuss Lina system configurations, Word Clock connections, digital cabling, or to arrange a private audition.
