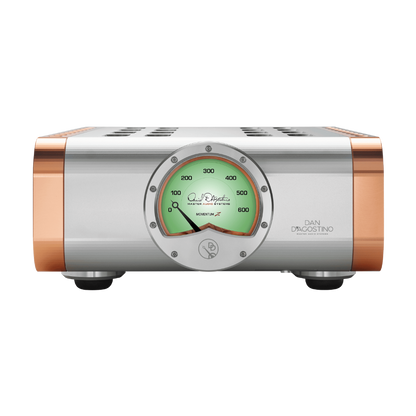

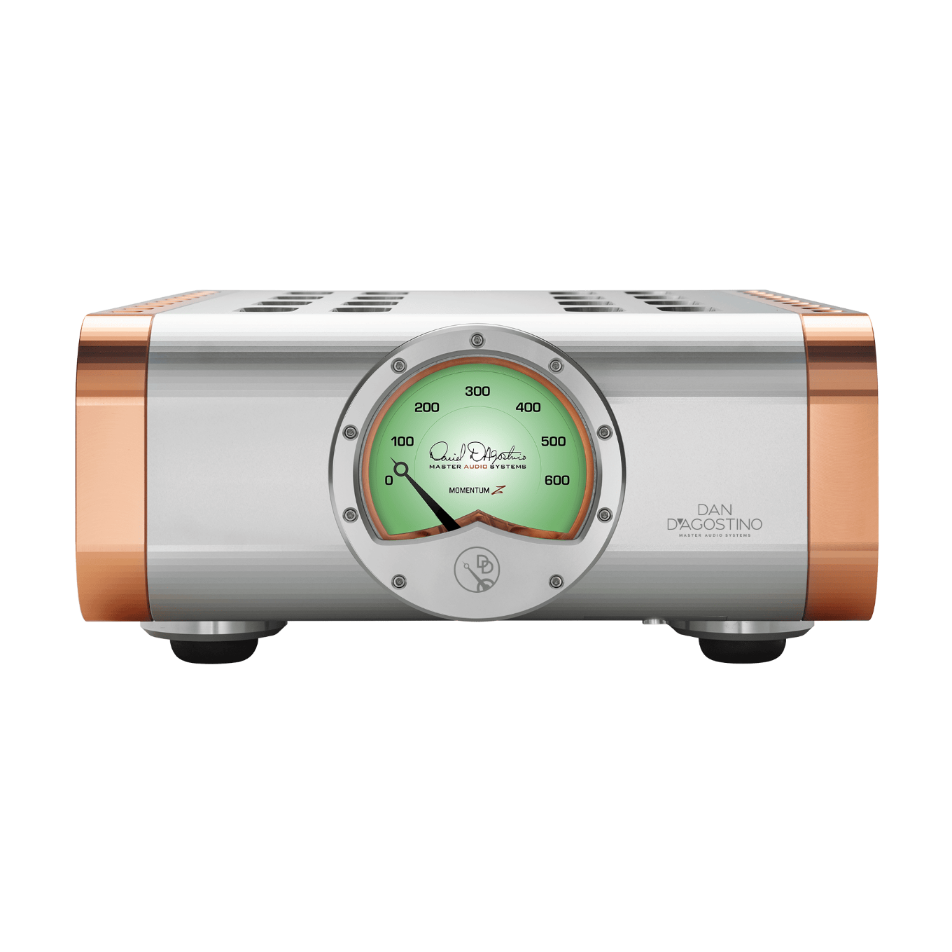

Released in celebration of Dan D'Agostino's 15th anniversary, the Momentum Z Monaural Amplifier marks a historic evolutionary leap for the iconic Momentum series. Available through Trimira Audio, Brisbane's authority in ultra-high-end audio, the Momentum Z replaces the M400 MxV with groundbreaking circuit innovations, real-time software monitoring, and an all-new power regulation architecture.
Delivering a continuous 500 Watts into 8 Ohms, 1,000 Watts into 4 Ohms, and 2,000 Watts into 2 Ohms, the Momentum Z combines effortless current drive with vanishingly low noise and silky micro-detail to command any loudspeaker in existence.
Key Features & Technological Innovations
-
Kinetic Drive Regulation: A revolutionary power supply technology paired with dual 1,200VA toroidal transformers that isolates voltage rails from AC line variations and speaker back-EMF, providing ripple-free DC power under maximum demand.
-
First-Ever JFET Input Stage: Introduces ultra-high input impedance JFETs at the critical initial gain stage, dropping the noise floor to near zero while preserving micro-spatial cues, natural vocal warmth, and harmonic depth.
-
Dual Impedance Input Mode: Features a selectable input impedance switch (1 MΩ Standard setting / 300 Ω Z-Input setting) engineered specifically to create perfect impedance matching when paired with D'Agostino Z-Series preamplifiers.
-

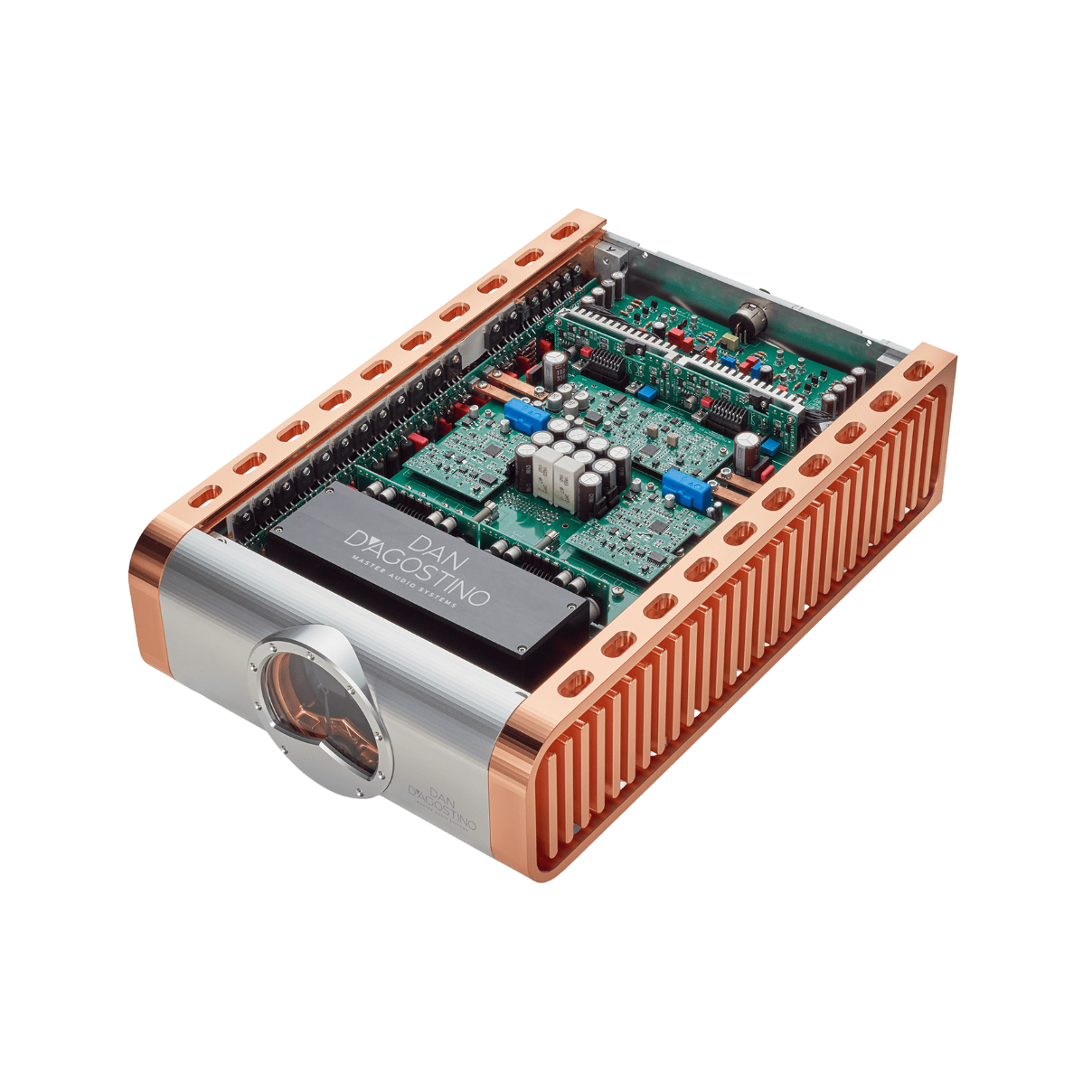

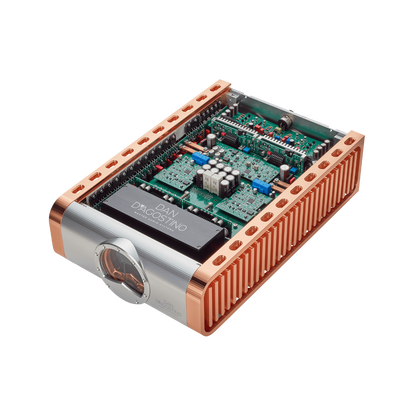

5-Axis Machined Copper Heatsinks: Each side features heatsinks sculpted from a single 42 lb (19 kg) slab of solid copper billet, providing nearly double the thermal conductivity of aluminum for absolute thermal and sonic stability.
-

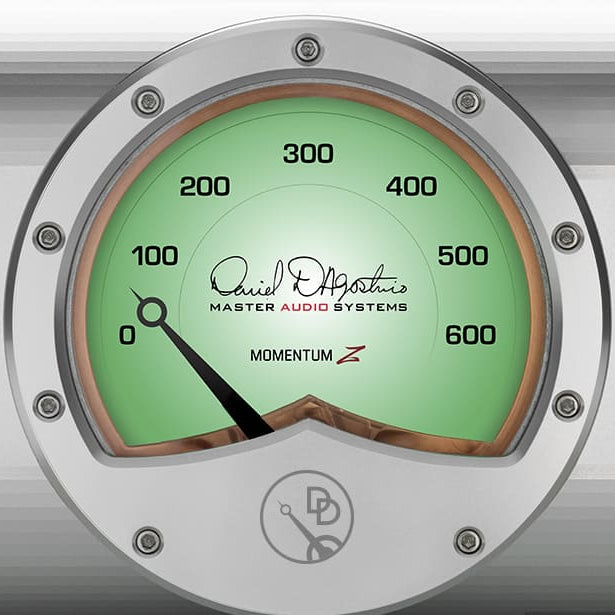

Dual Domain LCD Meter Display: Combines traditional Swiss watch aesthetics with modern digital precision, embedding a classic analog meter wand inside a high-resolution 3.5-inch LCD readout.
-
Ethernet Real-Time Network Monitoring: Integrated RJ45 Ethernet connection allows real-time diagnostics—including rail voltages, bias current, operating temperature, and DC offset—accessible through any web browser.
Technical Specifications
| Feature / Metric |
Specification |
| Output Power |
500 W @ 8Ω / 1,000 W @ 4Ω / 2,000 W @ 2Ω |
| Frequency Response |
1 Hz – 200 kHz (-1 dB) / 20 Hz – 20 kHz (±0.1 dB) |
| Distortion (THD) |
0.02% @ 1 kHz @ 500 W into 8Ω |
| Signal-to-Noise Ratio |
>115 dB (unweighted) / >75 dB (A-weighted) |
| Input Impedance |
1 MΩ (Standard Input) / 300 Ω (Z Input) |
| Peak Output Voltage / Current |
190 V peak-to-peak / 60 A peak-to-peak |
| Output Impedance |
<0.05 Ω (20 Hz to 20 kHz) |
| Network Connectivity |
RJ45 Ethernet for real-time browser-based diagnostics |

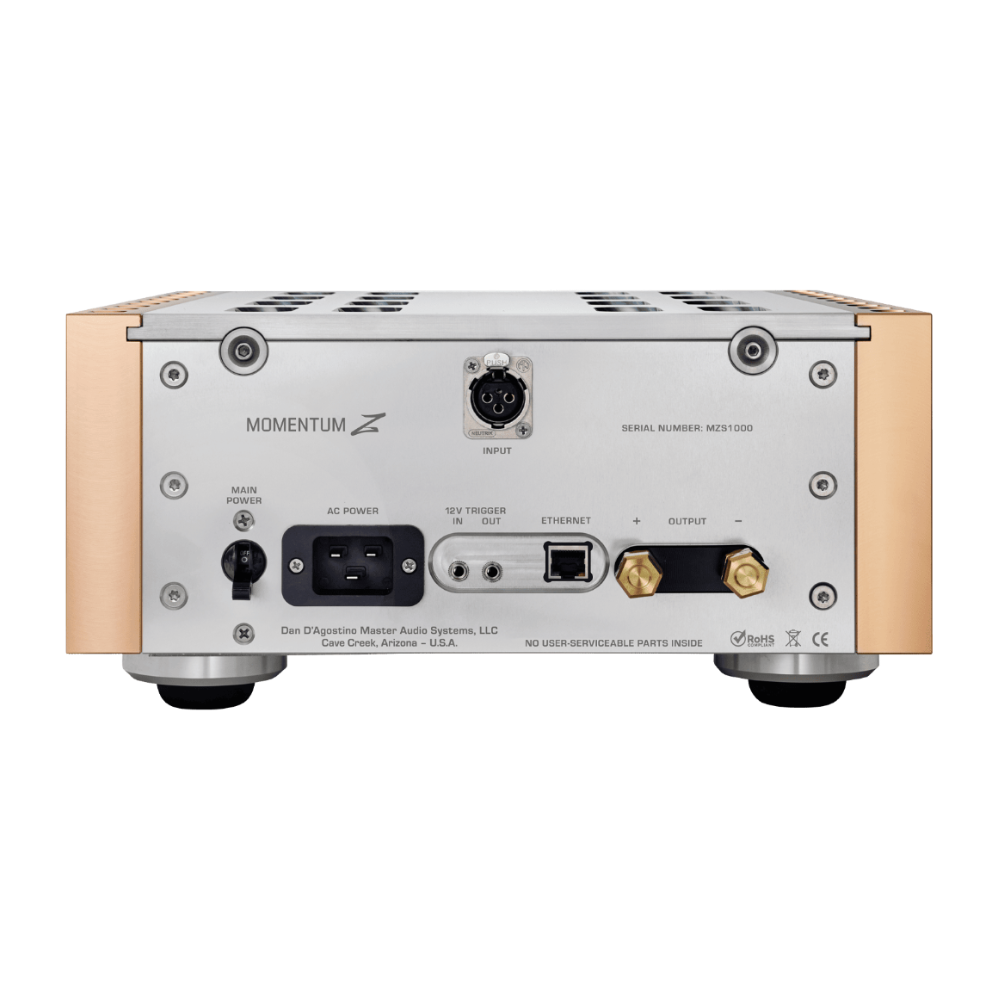

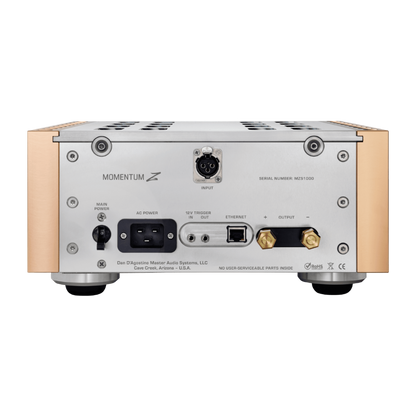

| Inputs / Outputs |
1 Balanced XLR Input / 1 Pair Heavy-Duty Speaker Binding Posts |
| Dimensions (W x H x D) |
13.5 x 5.0 x 20.5 in / 32.0 x 13.0 x 54.0 cm |
| Weight |
100 lbs / 45 kg per unit |
| Finishes Available |
Anodized Silver or Stealth Black |
Experience Momentum Z at Trimira Audio
To discuss system integration, examine matching Z-Series components, or book an audition of the Dan D'Agostino Momentum Z Monoblock Amplifier, contact the audio specialists at Trimira Audio.
