Bowers & Wilkins

CCM683 In-Ceiling Speaker


See nothing, hear everything

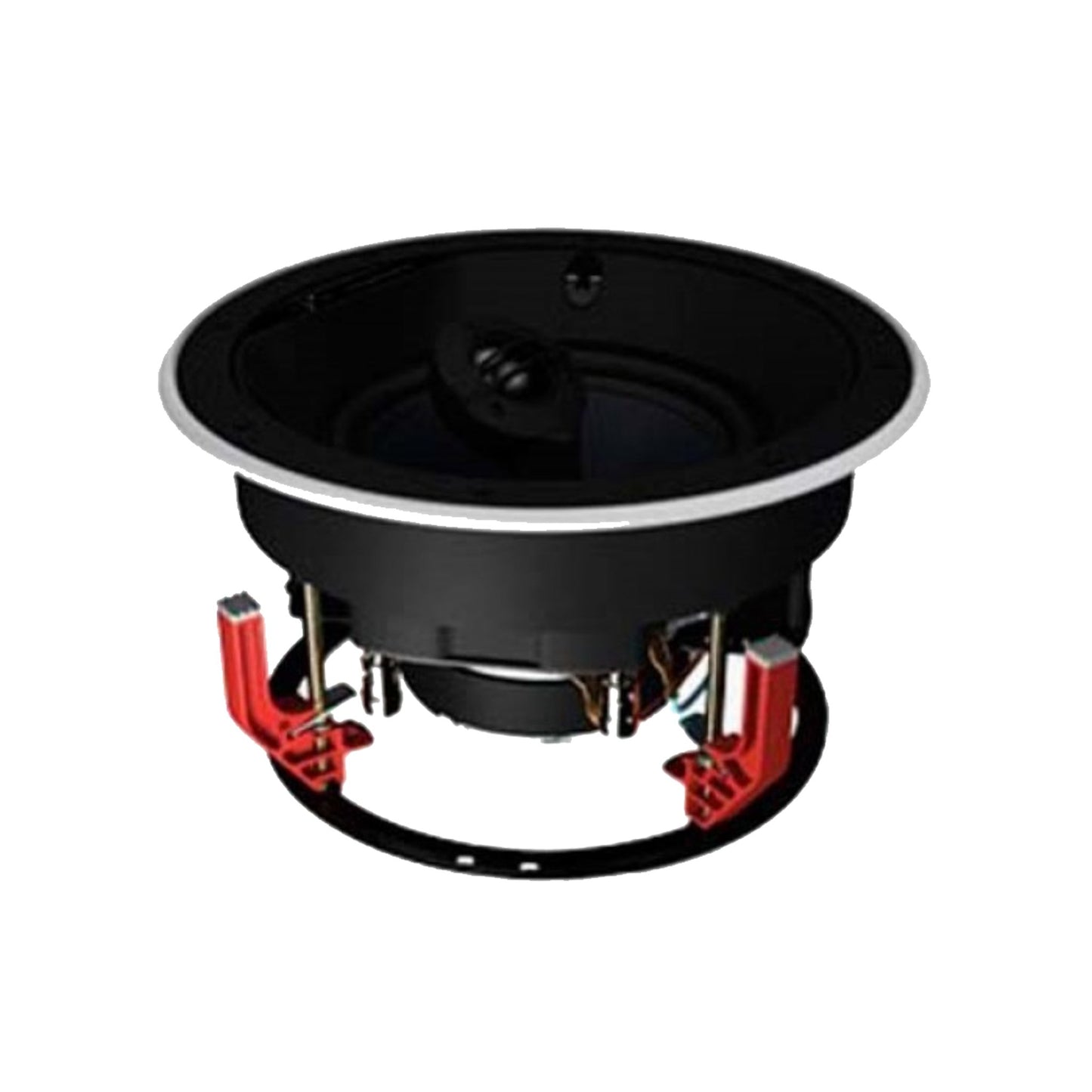

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.


Description 2-way in-ceiling system
Drive Units

1x ø25mm (1 in) NautilusTM swirl loaded aluminium dome tweeter
1x ø200mm (8in) blue
Aramid Fibre cone bass/midrange

Frequency Range (-6dB)

35Hz – 50kHz

Recommended Amp Power

25 – 130w

Sensitivity SPL (2.83V, 1m)

88dB

Impedance Nominal (min)

8Ω (4.5Ω)

Frame diameter



290mm (11.4in)

Cut-out diameter

250mm (9.8in)

Depth behind surface

133mm (5.2in)

Protrusion

4mm (0.2in)

Pre-mount Kit

C8

Back Box

6C
