Elegant Form Meets Studio-Grade Innovation | Available at Trimira Audio

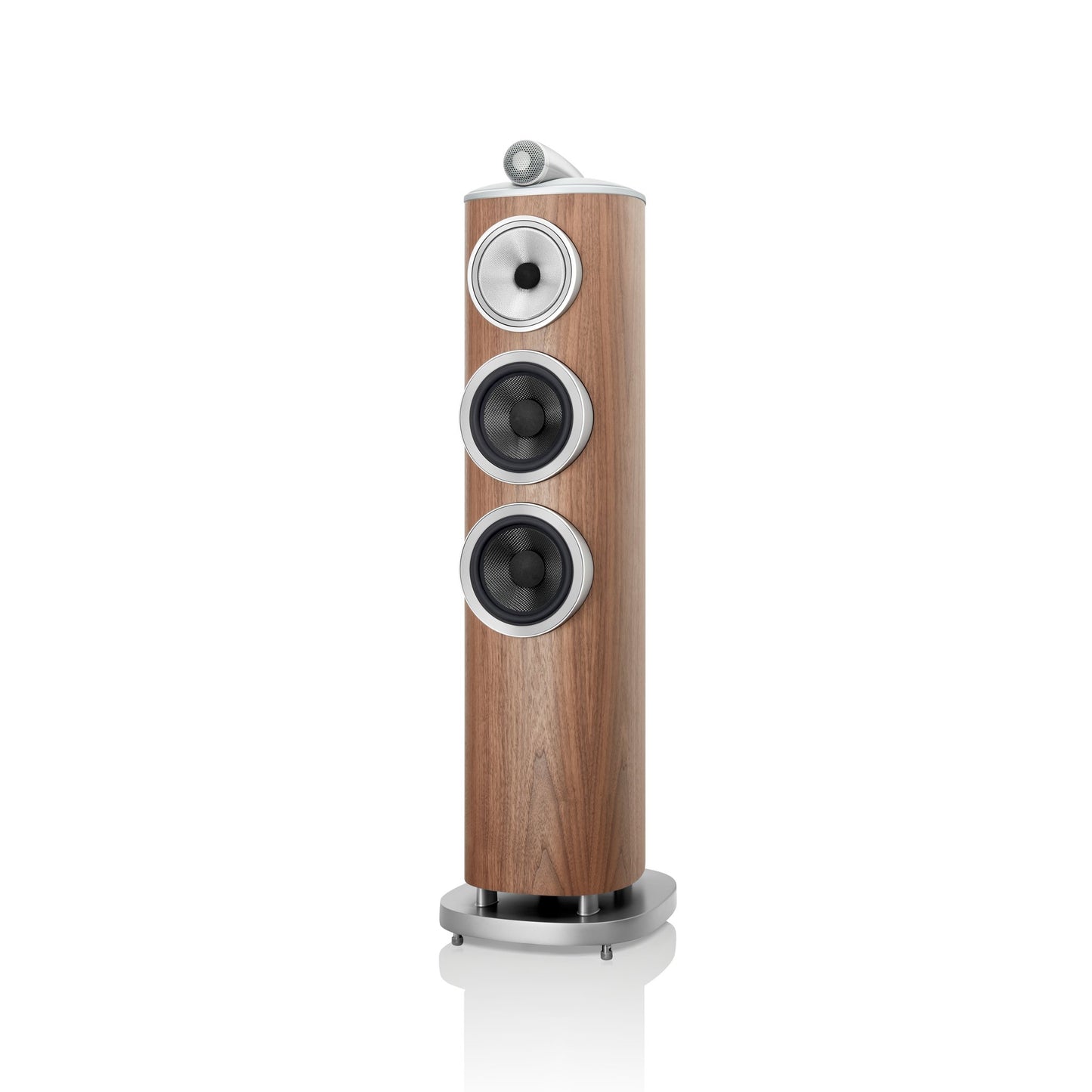

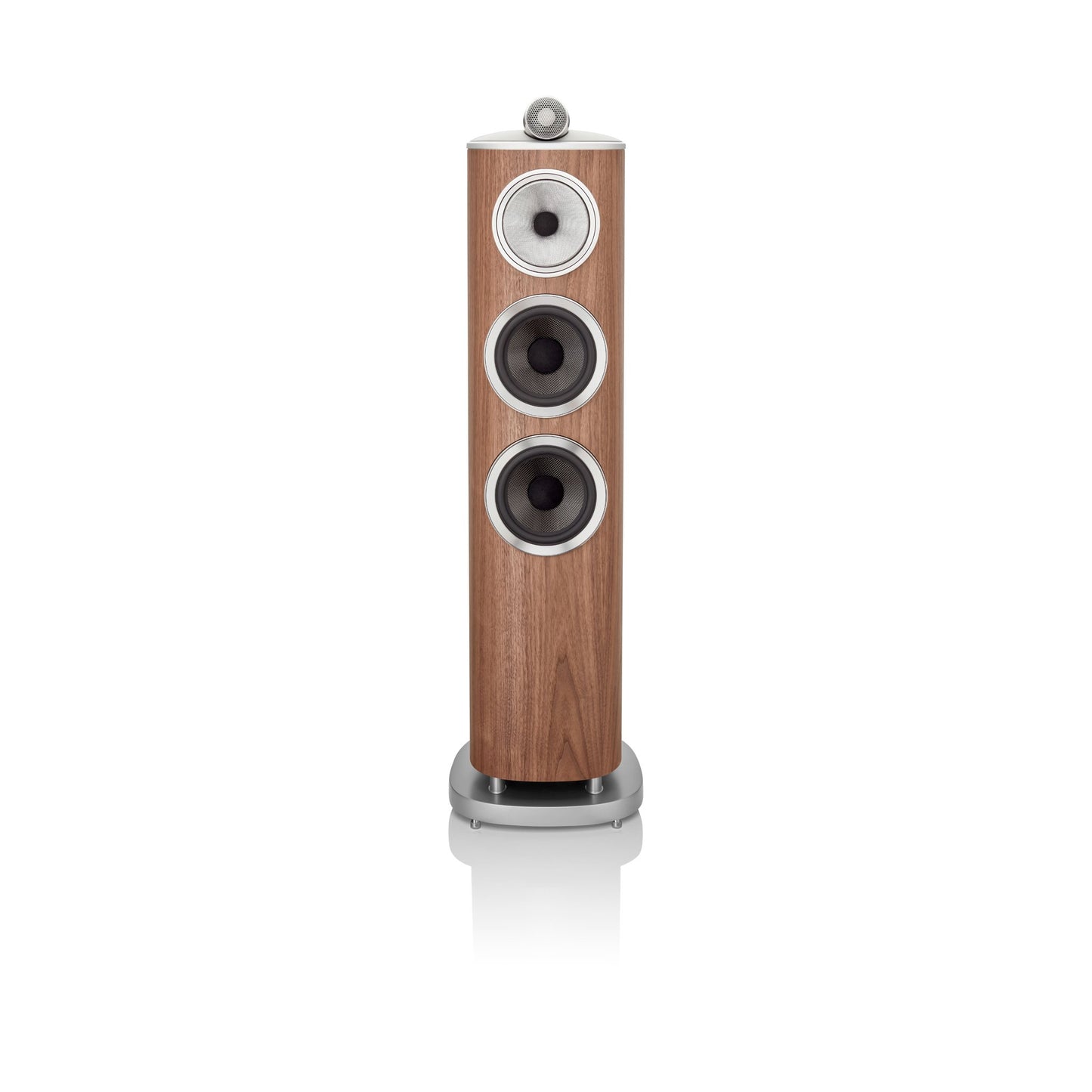

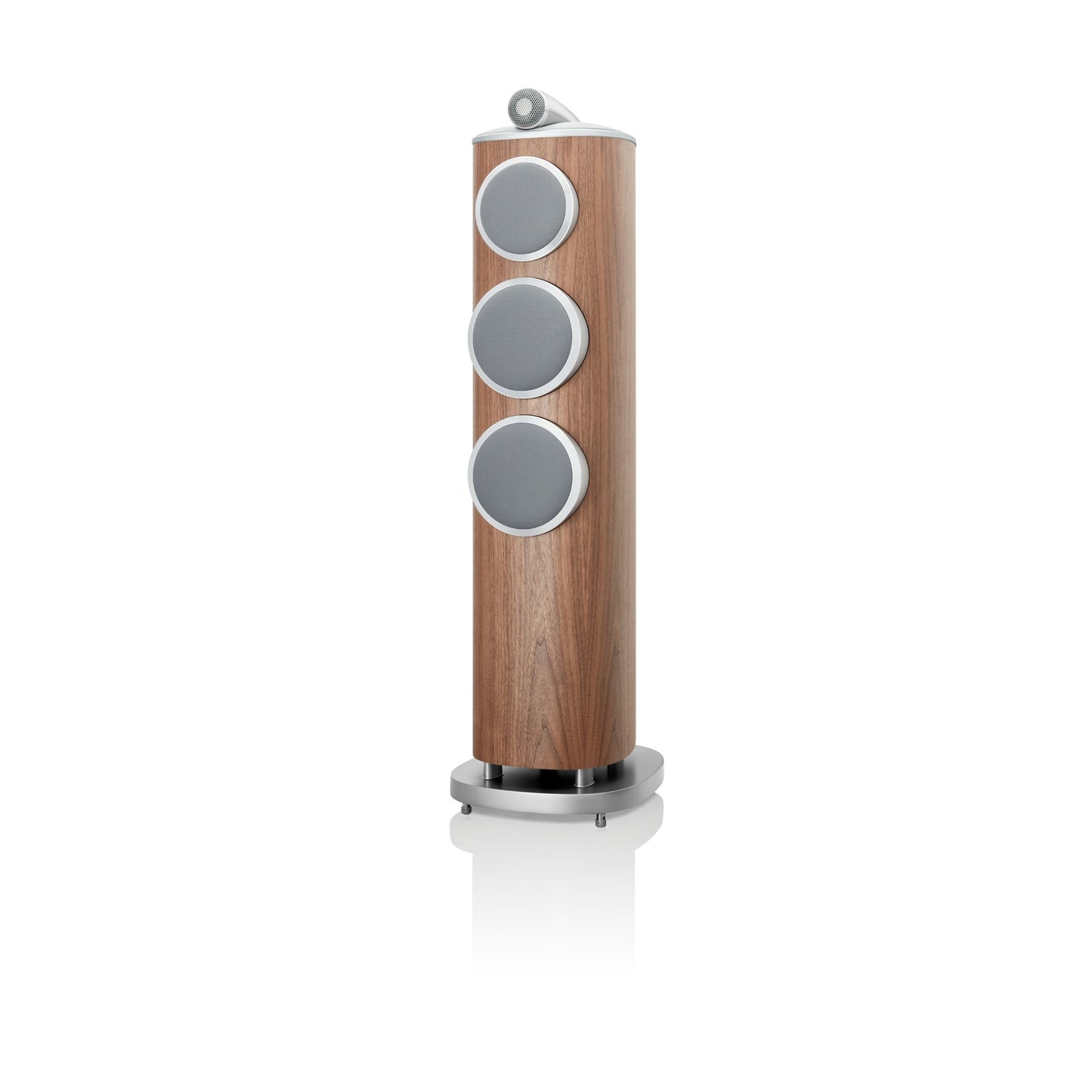

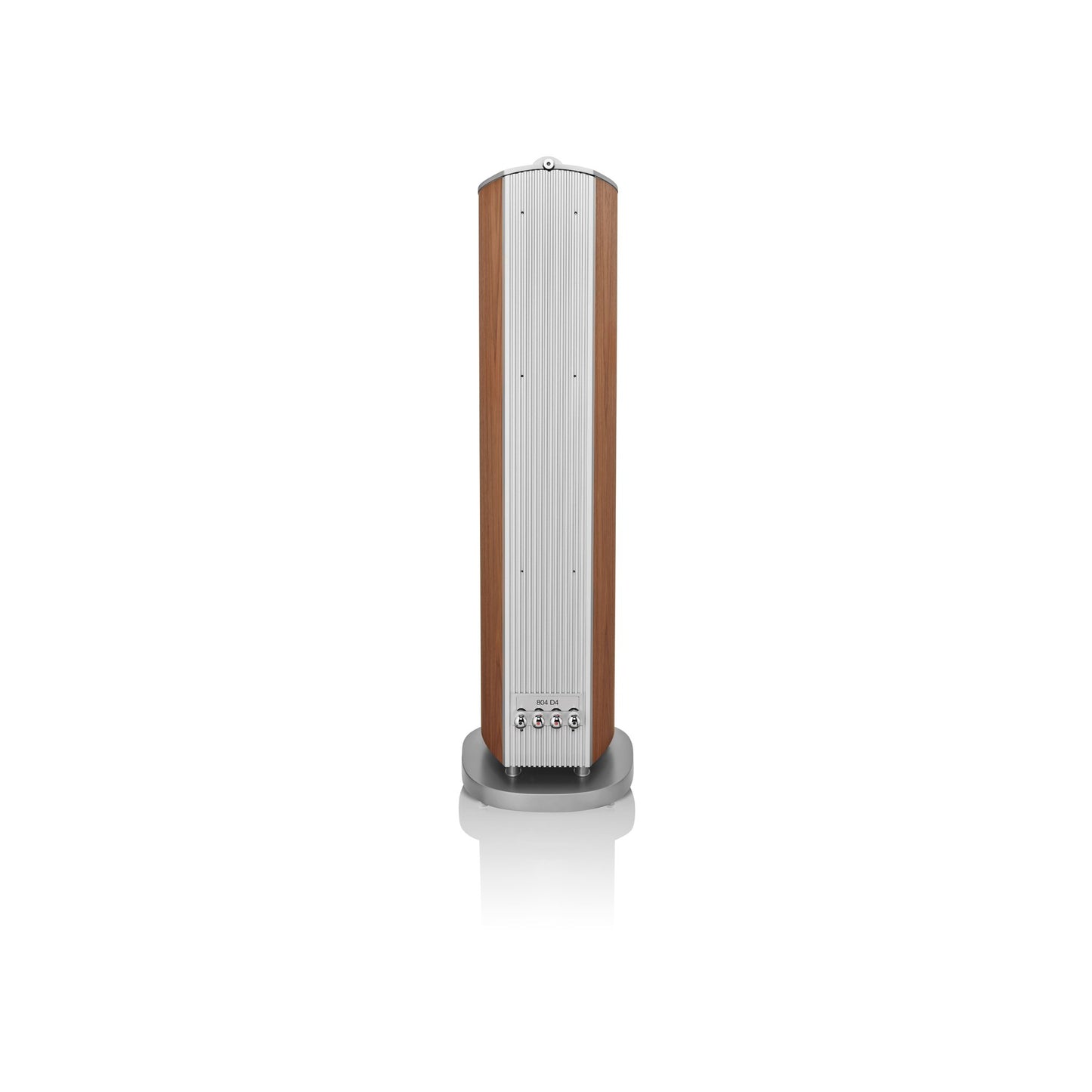

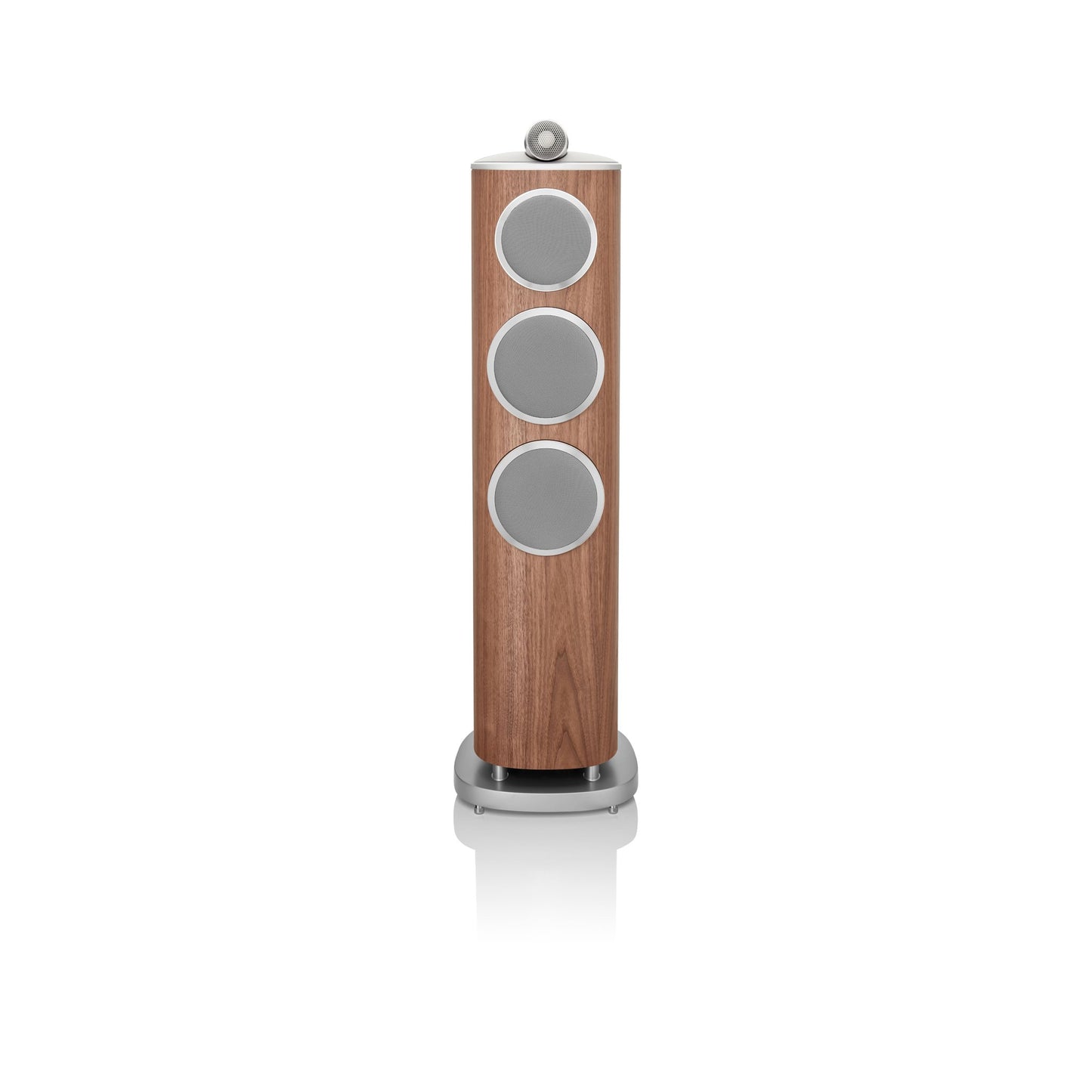

The Bowers & Wilkins 804 D4 Floorstanding Speaker brings advanced 800 Series Diamond technology into a more traditional floorstanding design. Finished in luxurious Satin Walnut with an aluminium top plate and light grey Connolly leather detailing, the 804 D4 combines refined aesthetics with sophisticated acoustic engineering.
Featuring B&W’s Solid Body Diamond dome tweeter, Continuum™ FST™ midrange driver, Biomimetic Suspension, and dual Aerofoil™ bass units, the 804 D4 delivers detailed imaging, natural vocal reproduction, and controlled low-frequency performance in a versatile footprint.
The reverse-wrap cabinet design improves structural rigidity and acoustic dispersion, while the aluminium plinth with downward-firing Flowport™ provides a stable foundation and efficient bass tuning.
Key Features & Technological Innovations
-
Solid Body Tweeter-on-Top Assembly: Aluminium housing isolates the Diamond dome tweeter for clean, extended high-frequency reproduction.
-
Reverse-Wrap Cabinet Design: Curved cabinet construction improves rigidity, reduces resonance, and enhances sound dispersion.
-
Biomimetic Midrange Suspension: Improves the Continuum™ FST™ midrange driver's movement control for greater vocal clarity and reduced coloration.
-
Dual Aerofoil™ Bass Units: Twin 6.5-inch bass drivers deliver accurate, controlled low-frequency response with excellent transient performance.
-
Aluminium Plinth & Downward Flowport™: Provides mechanical stability while optimising bass airflow and cabinet control.
-
Matrix™ Internal Bracing: Advanced internal reinforcement reduces unwanted cabinet vibration and improves structural integrity.
Technical Specifications
| Specification Metric |
Bowers & Wilkins 804 D4 Specification |
| System Format |
3-Way Vented-Box Floorstanding System |
| High Frequency Driver |
1 × ø25mm (1 in) Diamond Dome Tweeter |
| Midrange Driver |
1 × ø130mm (5 in) Continuum™ Cone FST™ Midrange |
| Low Frequency Drivers |
2 × ø165mm (6.5 in) Aerofoil™ Cone Bass Units |
| Frequency Range (-6dB) |
20 Hz – 35,000 Hz |
| Frequency Response (±3dB) |
24 Hz – 28,000 Hz |
| Sensitivity |
89 dB @ 2.83Vrms / 1 meter |
| Nominal / Minimum Impedance |
8 Ohms (3.0 Ohms Minimum) |
| Recommended Amplifier Power |
50W – 200W into 8 Ohms |
| Dimensions (H × W × D) |
1,071 mm × 306 mm × 391 mm |
| Net Weight |
36.85 kg (81.2 lbs) per speaker |
| Finish |
Satin Walnut |
Experience B&W Acoustic Authority at Trimira Audio
Experience the refinement and precision of the Bowers & Wilkins 804 D4 with carefully matched amplification and high-end source components.
Contact the high-fidelity specialists at Trimira Audio in Brisbane to discuss system matching, room placement, or to arrange a private listening demonstration.
