Uncompromised Headed Architecture in a Compact Footprint | Available at Trimira Audio

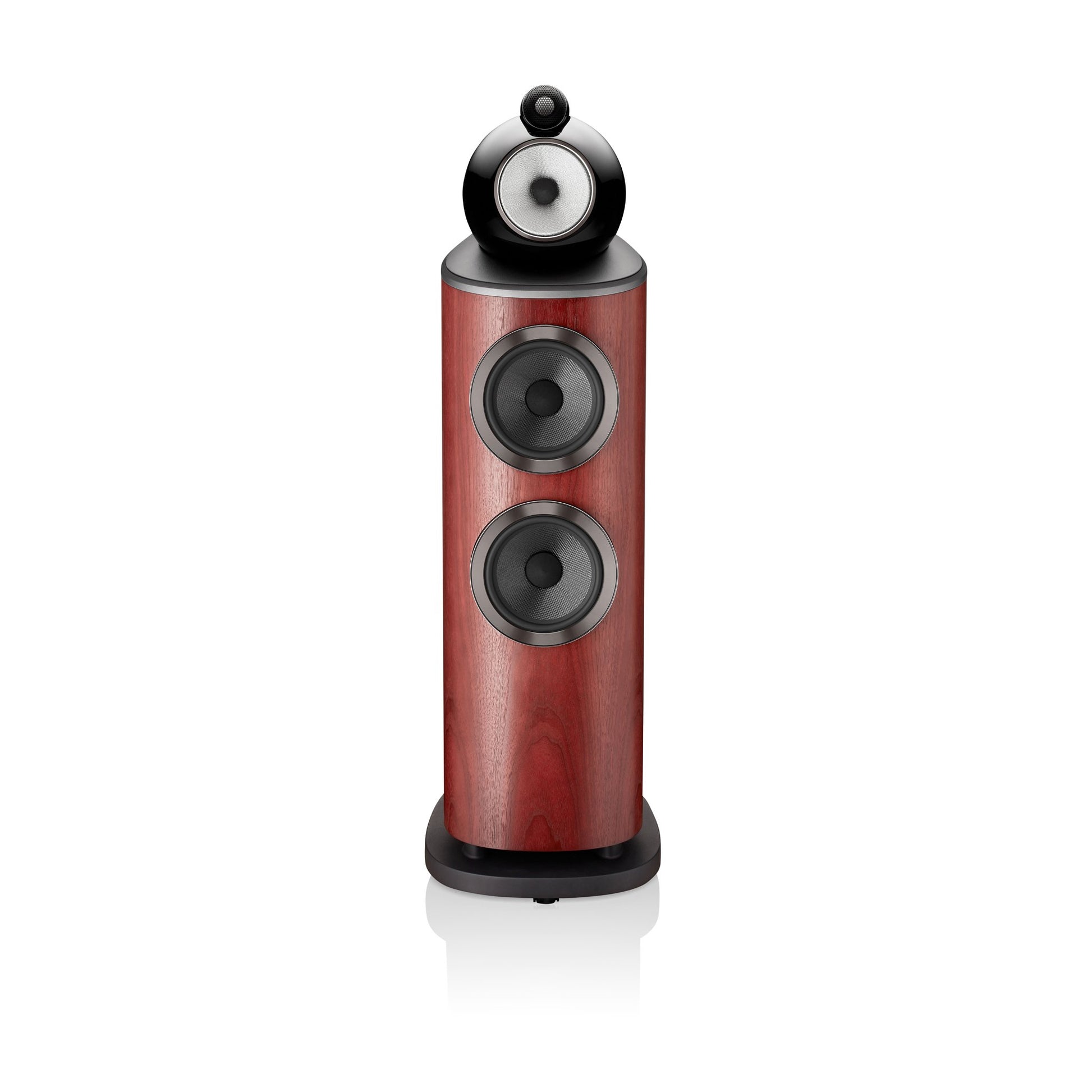

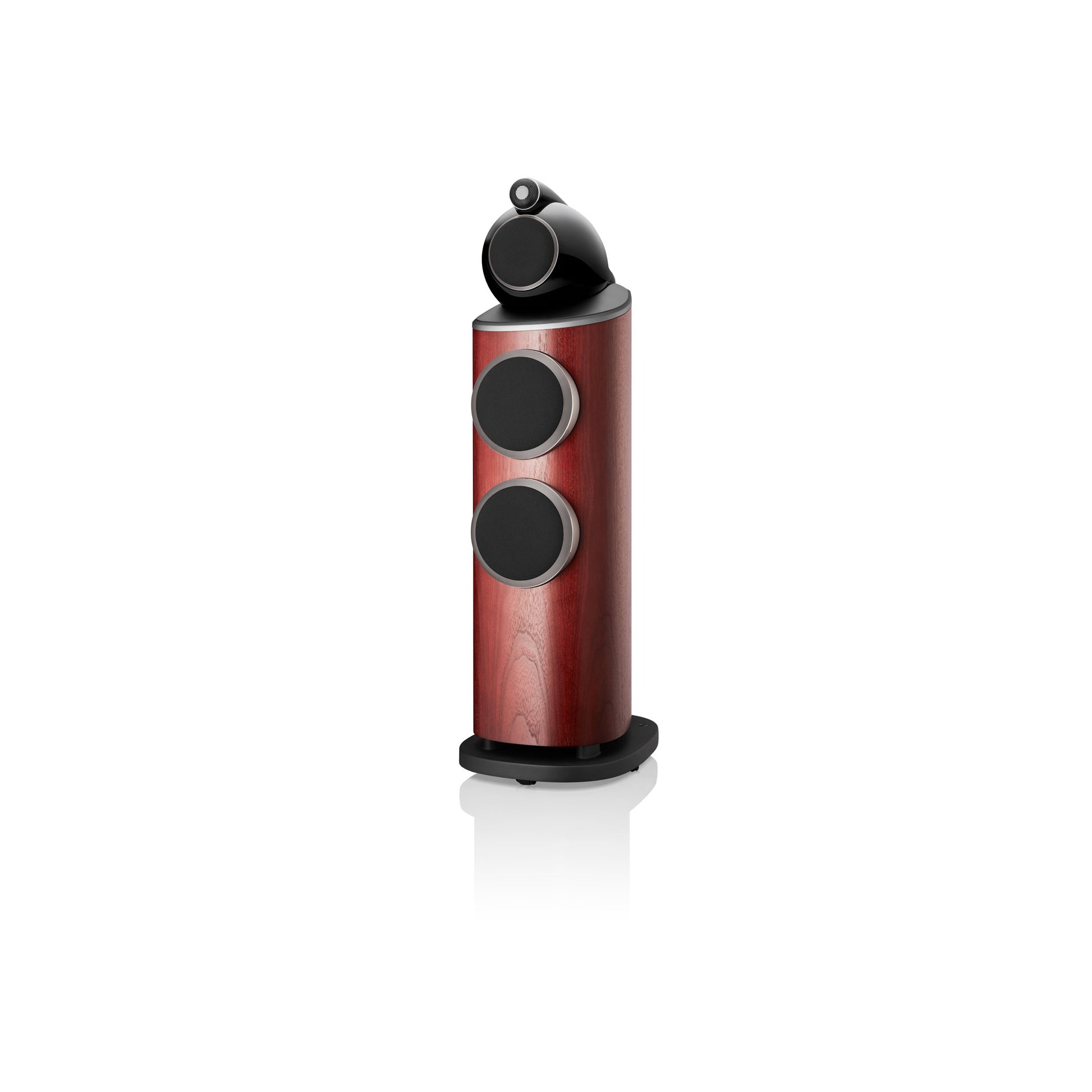

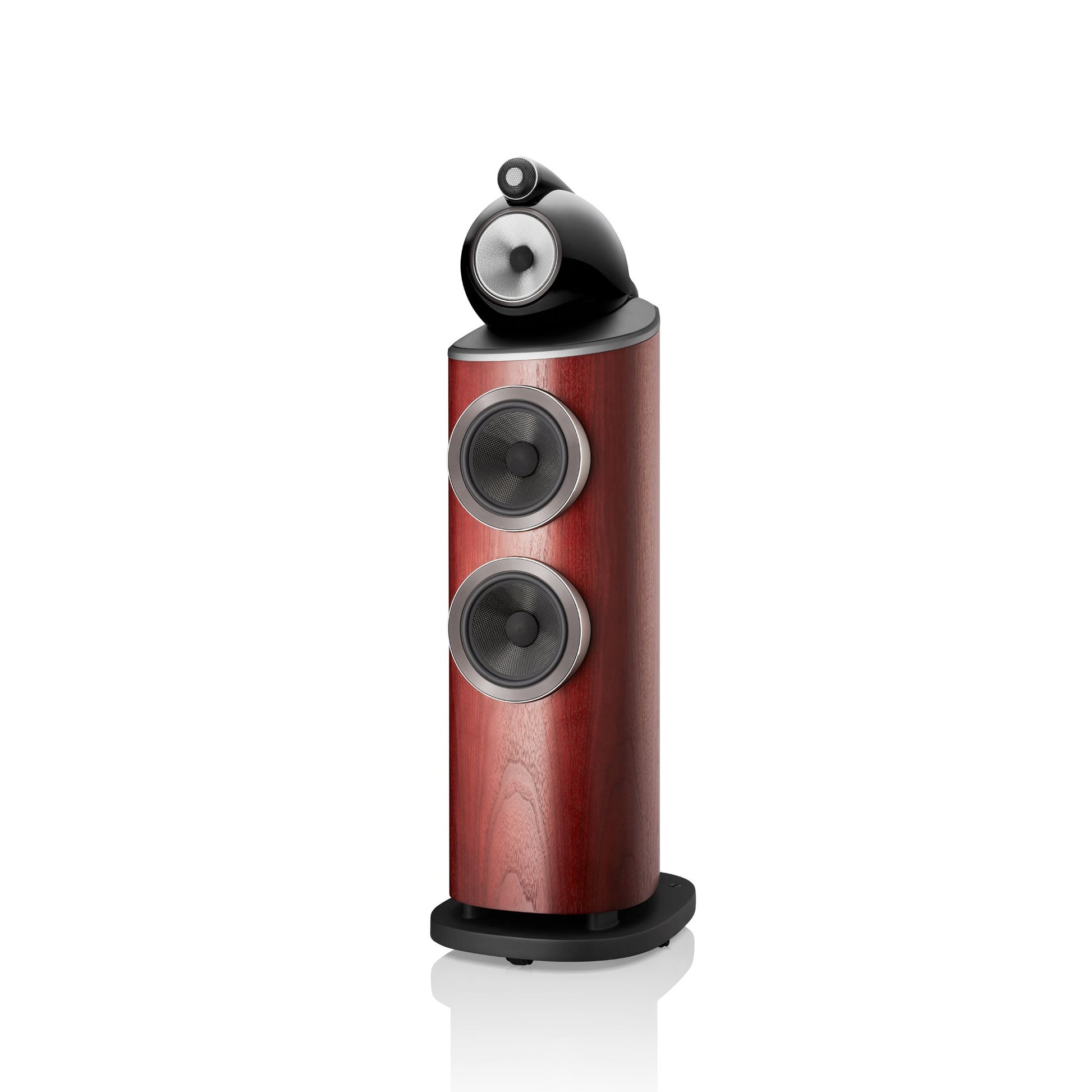

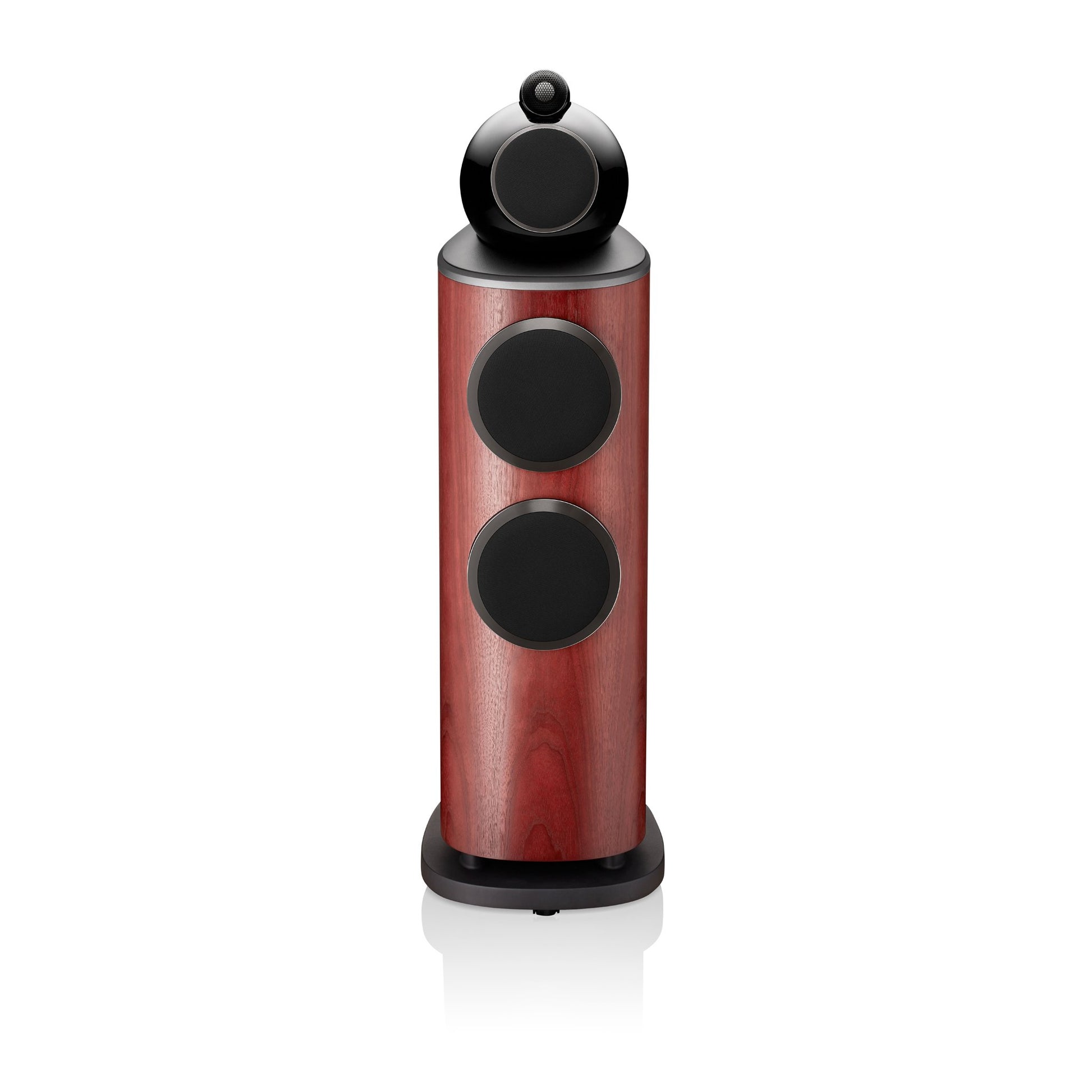

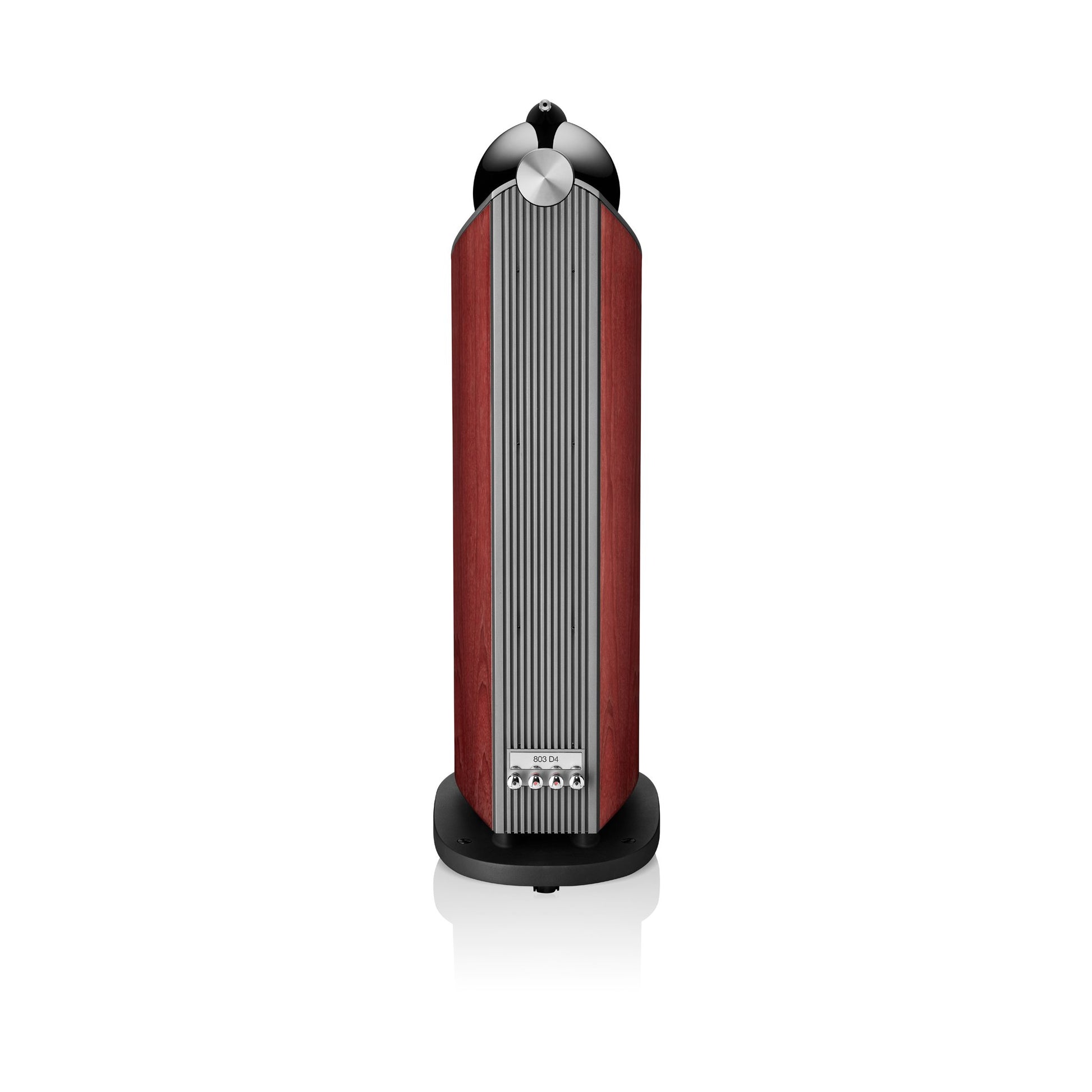

The Bowers & Wilkins 803 D4 Floorstanding Speaker brings flagship 800 Series Diamond technology into a more compact floorstanding design. Incorporating the iconic Turbine™ Head enclosure, Solid Body Diamond dome tweeter, and advanced Aerofoil™ bass technology, the 803 D4 delivers exceptional clarity, scale, and precision for high-performance two-channel systems.
Finished in elegant Satin Rosenut with light grey leather detailing, the 803 D4 combines sophisticated aesthetics with studio-inspired acoustic engineering.
The dedicated aluminium Turbine Head isolates the Continuum™ FST™ midrange driver, while dual 7-inch Aerofoil™ bass units deliver deep, controlled low frequencies with impressive speed and accuracy.
Key Features & Technological Innovations
-
Decoupled Aluminium Turbine™ Head: Houses the Continuum™ FST™ midrange driver in a rigid enclosure designed to reduce resonance and improve vocal clarity.
-
Solid Body Tweeter-on-Top: Machined aluminium housing isolates the Diamond dome tweeter for clean, extended high-frequency performance.
-
Biomimetic Suspension: Reduces midrange coloration by improving driver movement control and minimising unwanted mechanical effects.
-
Dual Aerofoil™ Bass Units: Twin 7-inch bass drivers provide powerful, controlled low-frequency extension with excellent transient response.
-
Solid Aluminium Bass Pods: Rigid bass enclosures improve structural stability and reduce unwanted vibration transfer.
-
Matrix™ Internal Bracing: Advanced cabinet reinforcement improves rigidity and reduces resonance.
-
Reverse-Wrap Cabinet Design: Curved cabinet construction improves acoustic performance while enhancing structural integrity.
Technical Specifications
| Specification Metric |
Bowers & Wilkins 803 D4 Specification |
| System Format |
3-Way Vented-Box Floorstanding System |
| High Frequency Driver |
1 × ø25mm (1 in) Diamond Dome Tweeter |
| Midrange Driver |
1 × ø130mm (5 in) Continuum™ Cone FST™ Midrange |
| Low Frequency Drivers |
2 × ø180mm (7 in) Aerofoil™ Cone Bass Units |
| Frequency Range (-6dB) |
16 Hz – 35,000 Hz |
| Frequency Response (±3dB) |
19 Hz – 28,000 Hz |
| Sensitivity |
90 dB @ 2.83Vrms / 1 meter |
| Nominal / Minimum Impedance |
8 Ohms (3.0 Ohms Minimum) |
| Recommended Amplifier Power |
50W – 500W into 8 Ohms |
| Dimensions (H × W × D) |
1,165 mm × 357 mm × 511 mm |
| Net Weight |
62.15 kg (137 lbs) per speaker |
| Finish |
Satin Rosenut |
Experience Compact Reference Performance at Trimira Audio
Experience the precision and scale of the Bowers & Wilkins 803 D4 with carefully matched amplification and high-end source components.
Contact the high-fidelity specialists at Trimira Audio in Brisbane to discuss amplifier matching, room integration, or to arrange a private demonstration.
