Studio Reference Proportion and Purity | Available at Trimira Audio

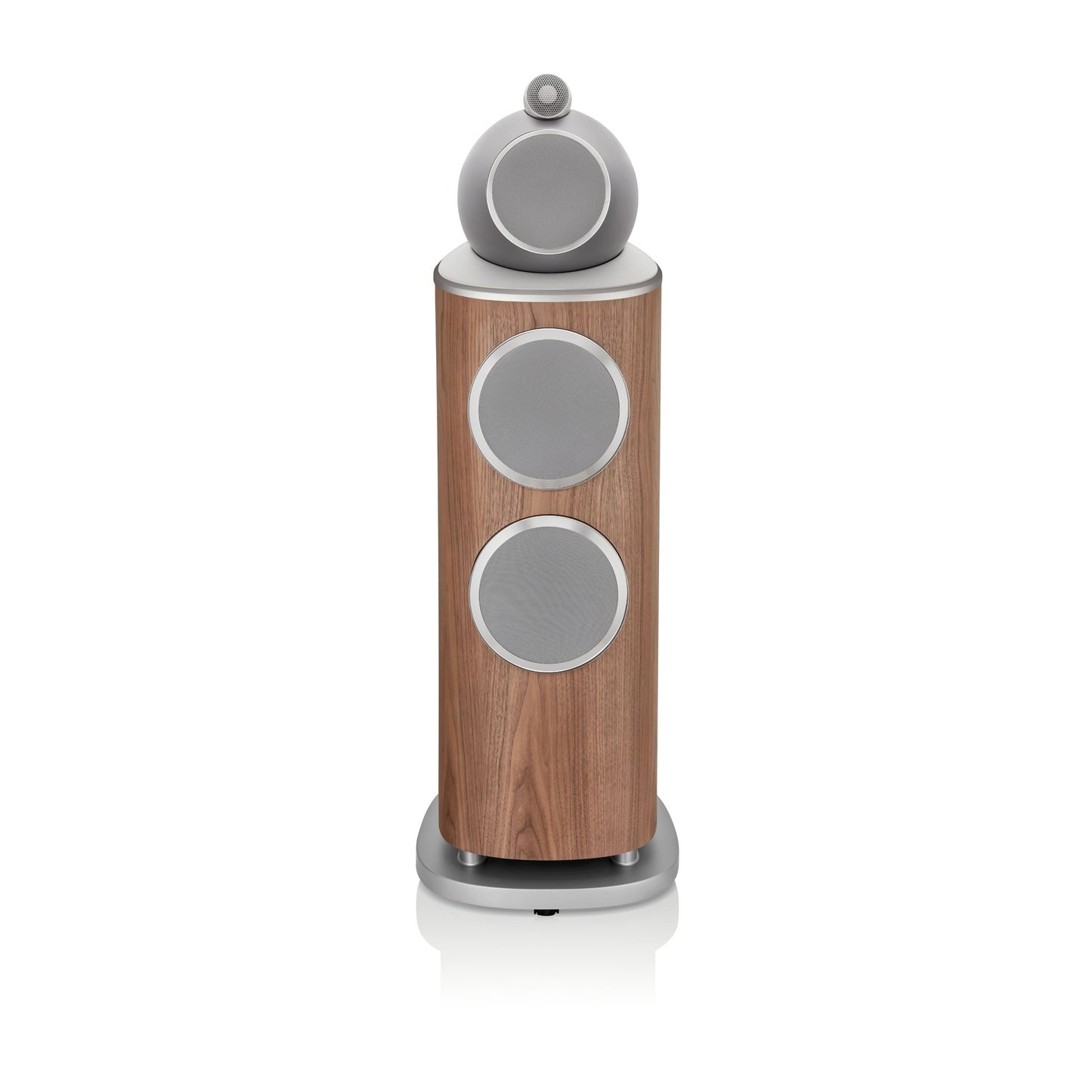

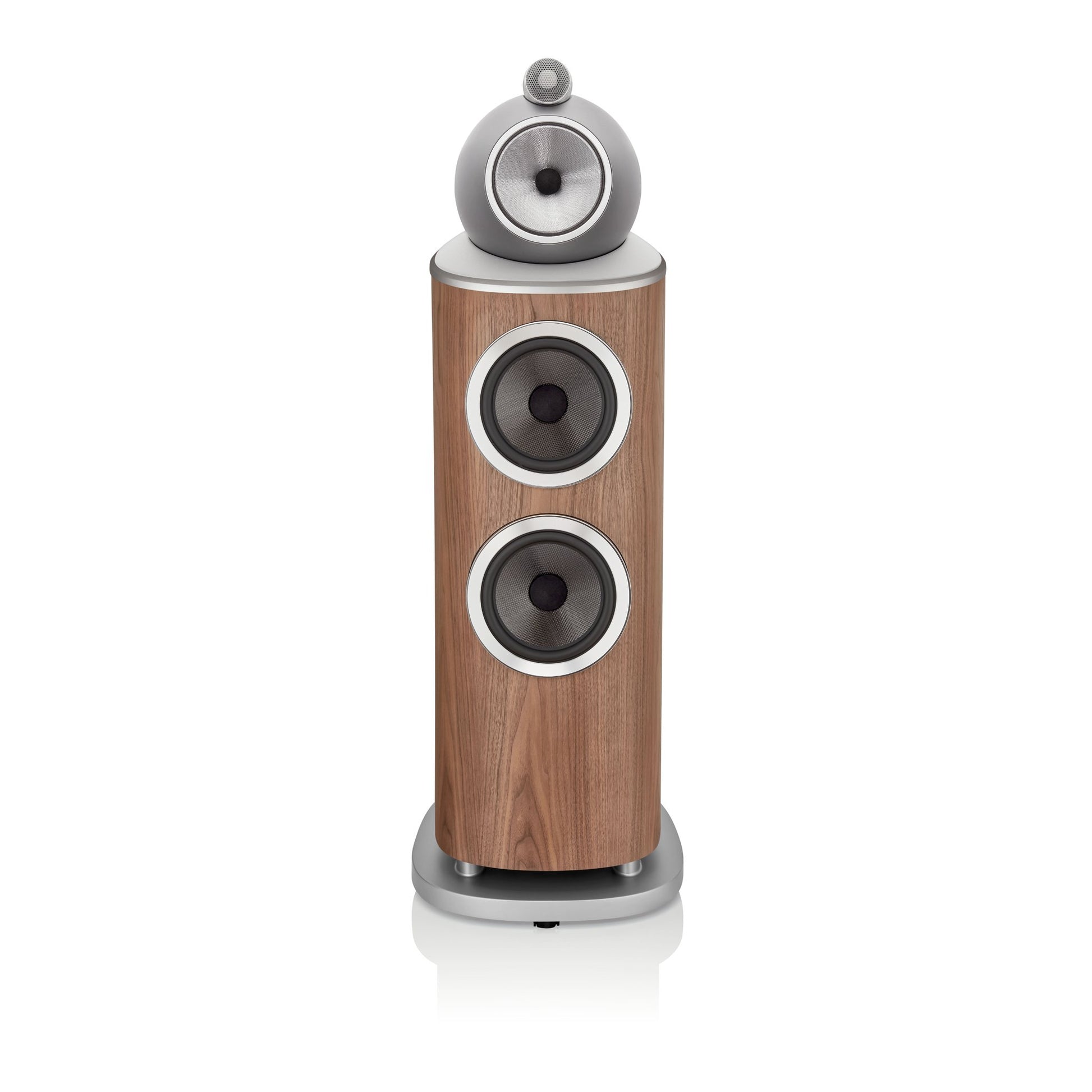

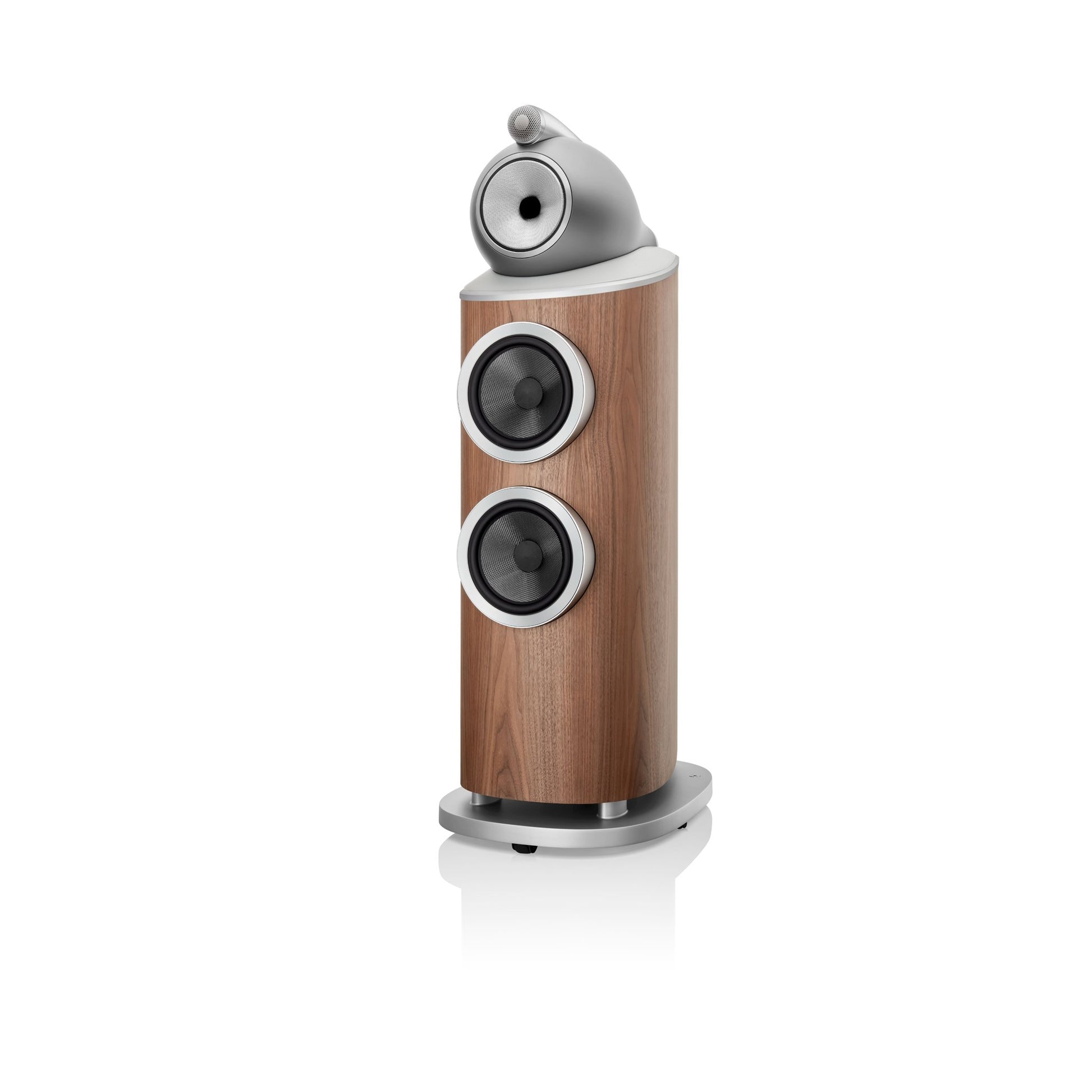

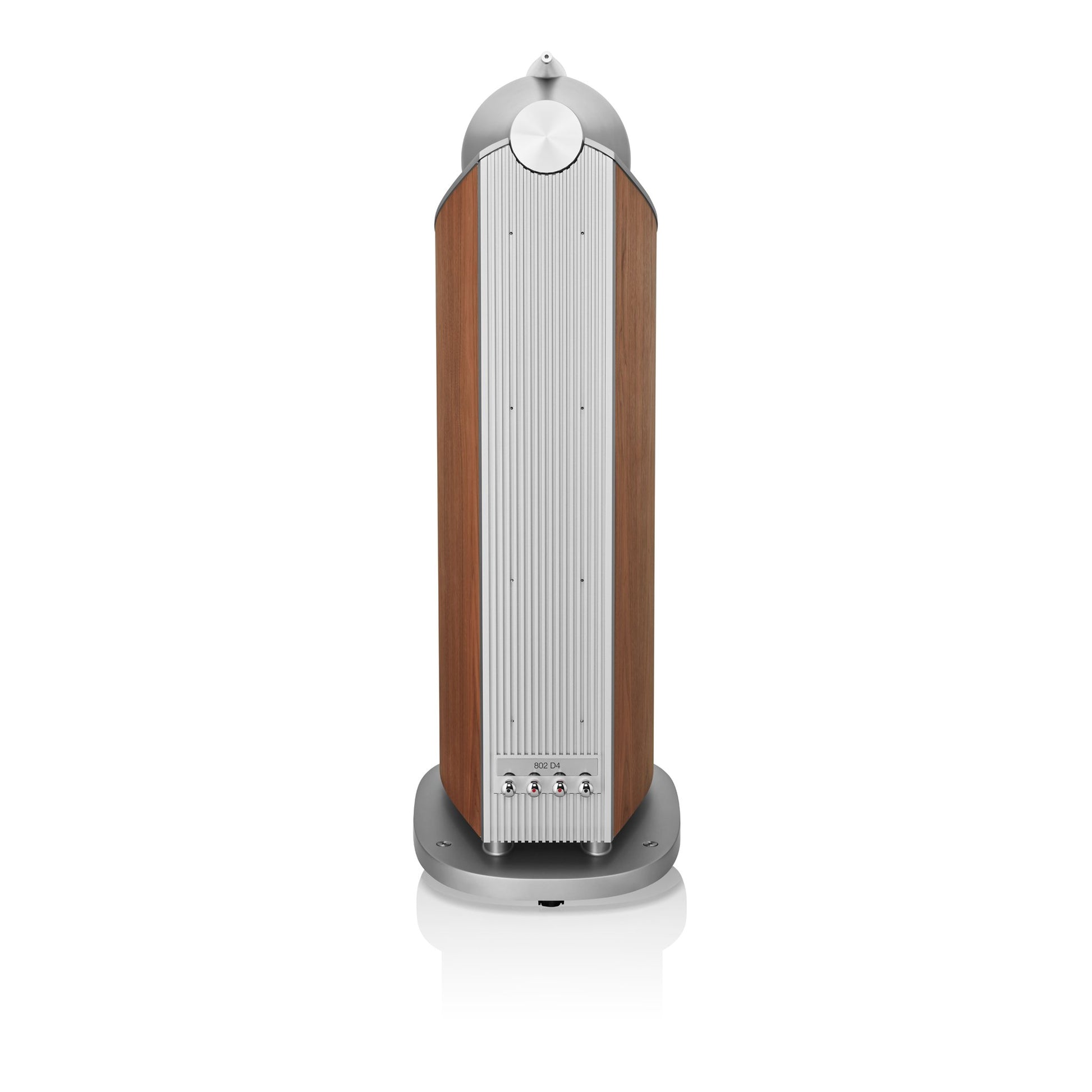

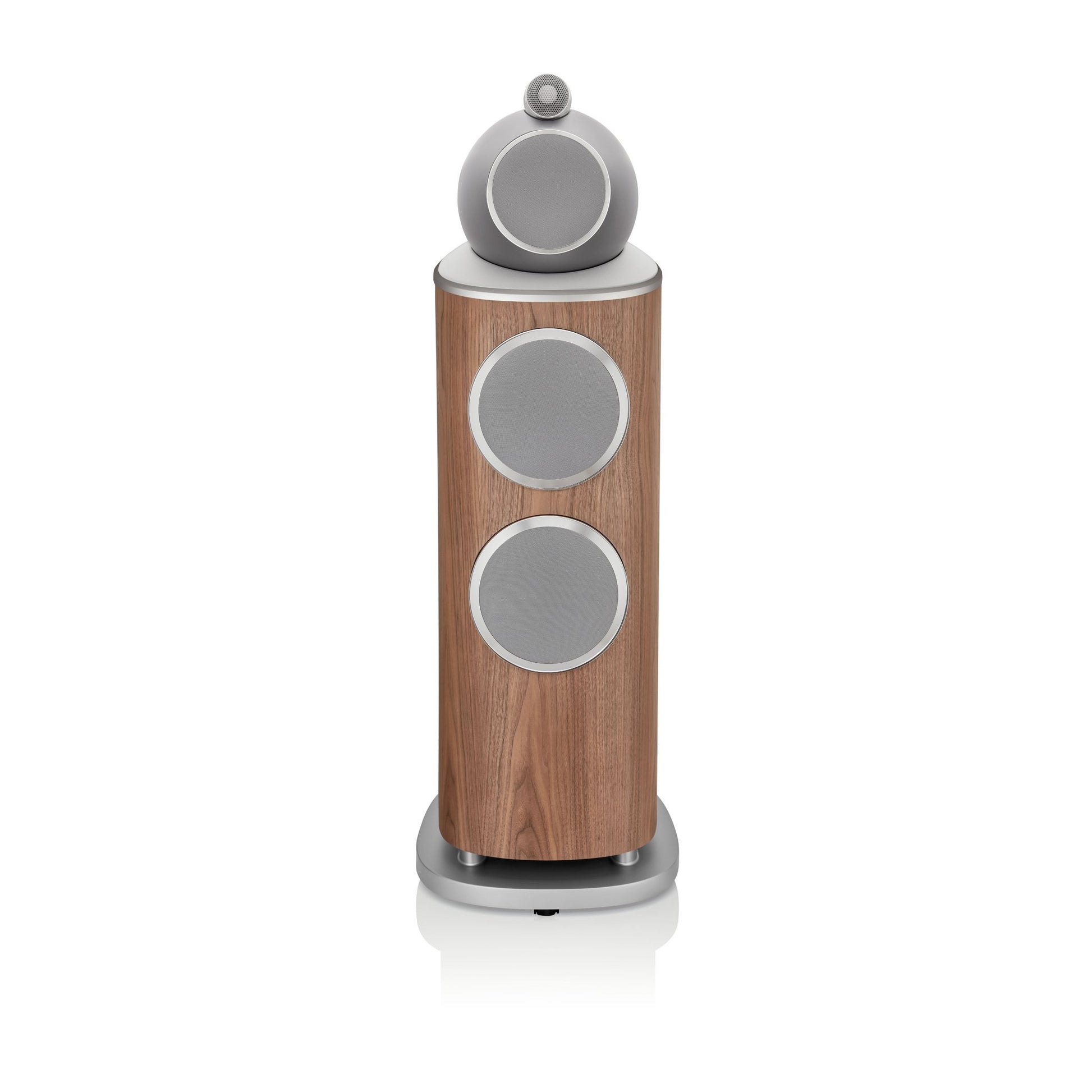

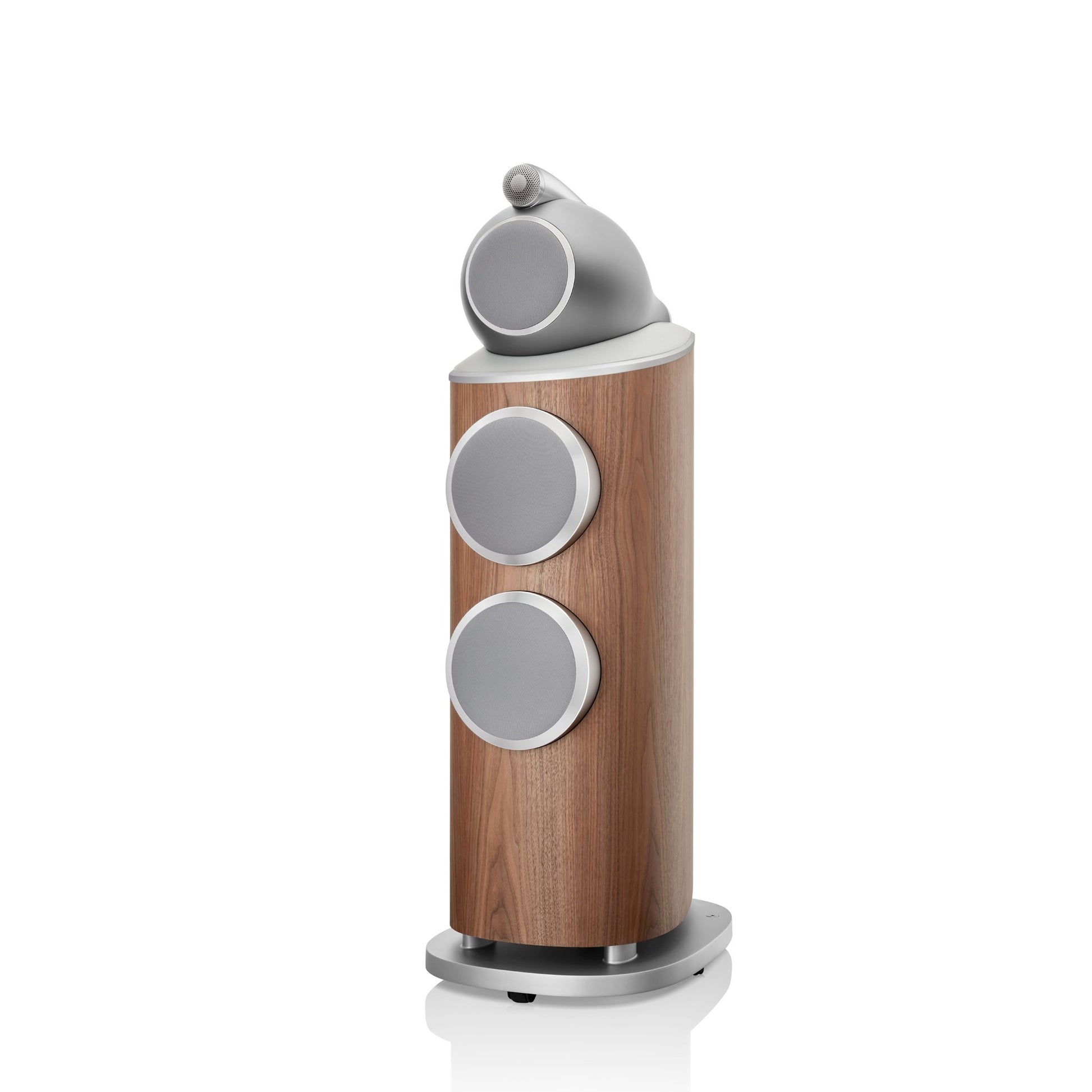

The Bowers & Wilkins 802 D4 Floorstanding Speaker brings much of the technology developed for the flagship 800 Series Diamond range into a more domestic-friendly reference loudspeaker design.
Finished in luxurious Satin Walnut with black leather detailing and an aluminium top plate, the 802 D4 combines premium craftsmanship with advanced acoustic engineering for exceptional scale, clarity, and musical realism.
Featuring B&W’s Solid Body Tweeter-on-Top, Turbine™ Head midrange enclosure, Continuum™ FST™ midrange driver, Biomimetic Suspension, and dual Aerofoil™ bass drivers, the 802 D4 delivers a highly detailed soundstage with powerful, controlled low-frequency performance.
Key Features & Technological Innovations
-
Solid Body Tweeter-on-Top: Machined aluminium housing isolates the Diamond dome tweeter for extended, detailed high-frequency reproduction.
-
Aluminium Turbine™ Head: Houses the Continuum™ FST™ midrange driver in a rigid enclosure designed to minimise resonance and improve vocal clarity.
-
Biomimetic Suspension: Reduces midrange coloration by improving driver movement and lowering unwanted mechanical effects.
-
Dual Aerofoil™ Bass Units: Twin 8-inch drivers provide deep, controlled bass response with excellent speed and accuracy.
-
Matrix™ Internal Bracing: Advanced cabinet reinforcement improves structural rigidity and reduces unwanted vibration.
-
Cast Aluminium Base Plinth: Provides a stable mechanical foundation with integrated damping and adjustable floor spikes.
Technical Specifications
| Specification Metric |
Bowers & Wilkins 802 D4 Specification |
| System Format |
3-Way Vented-Box Floorstanding System |
| High Frequency Driver |
1 × ø25mm (1 in) Diamond Dome High-Frequency |
| Midrange Driver |
1 × ø150mm (6 in) Continuum™ Cone FST™ Midrange |
| Low Frequency Drivers |
2 × ø200mm (8 in) Aerofoil™ Cone Bass Units |
| Frequency Range (-6dB) |
14 Hz – 35,000 Hz |
| Frequency Response (±3dB) |
17 Hz – 28,000 Hz |
| Sensitivity |
90 dB @ 2.83Vrms / 1 meter |
| Nominal / Minimum Impedance |
8 Ohms (3.0 Ohms Minimum) |
| Recommended Amplifier Power |
50W – 500W into 8 Ohms |
| Dimensions (H × W × D) |
1,218 mm × 413 mm × 602 mm |
| Net Weight |
88.1 kg (194.2 lbs) per speaker |
| Finish |
Satin Walnut |
Experience Studio Precision at Trimira Audio
Experience the Bowers & Wilkins 802 D4 with carefully matched amplification and reference system components.
Contact the high-fidelity specialists at Trimira Audio in Brisbane to discuss system matching, room placement, or to arrange a private listening session.
