AVID

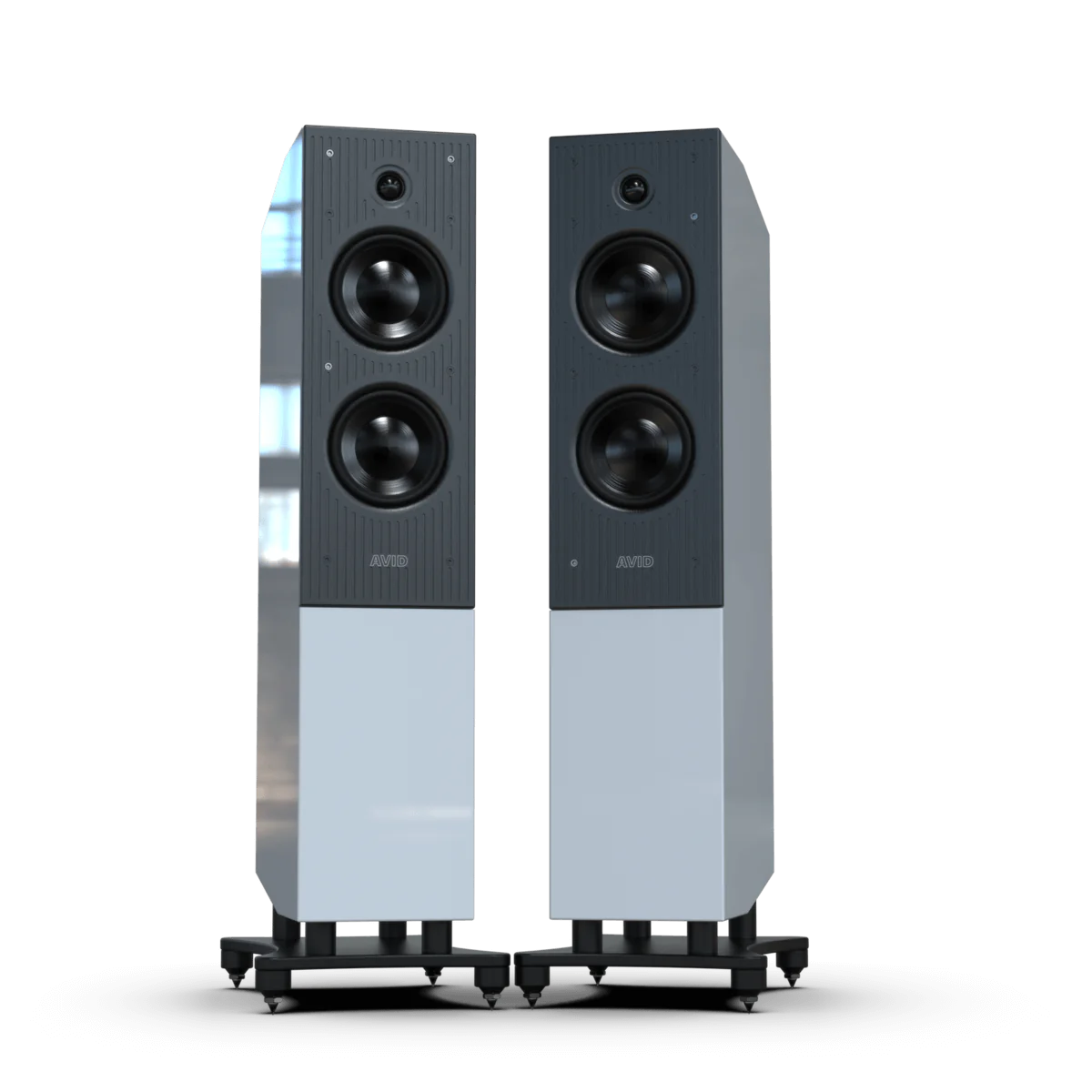

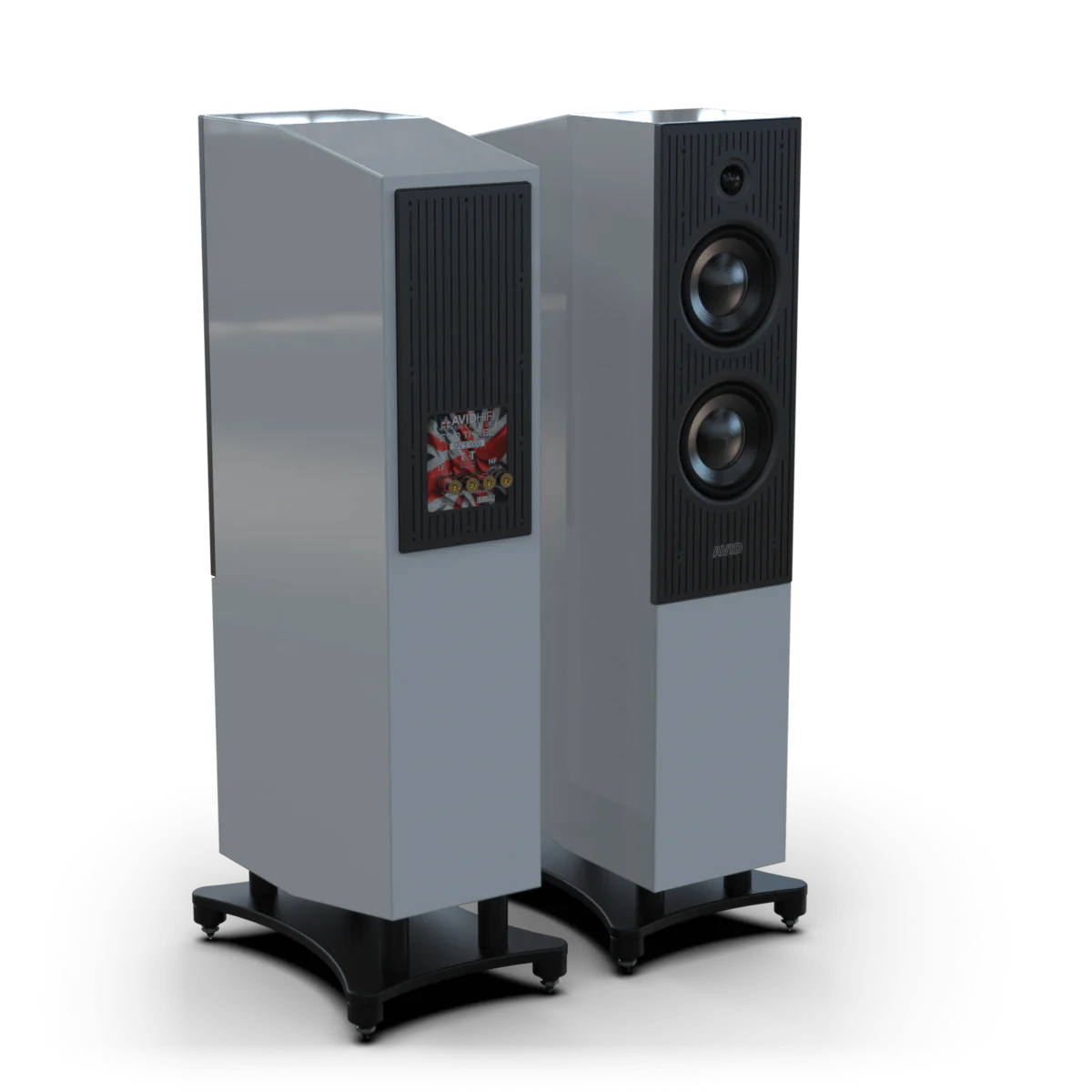

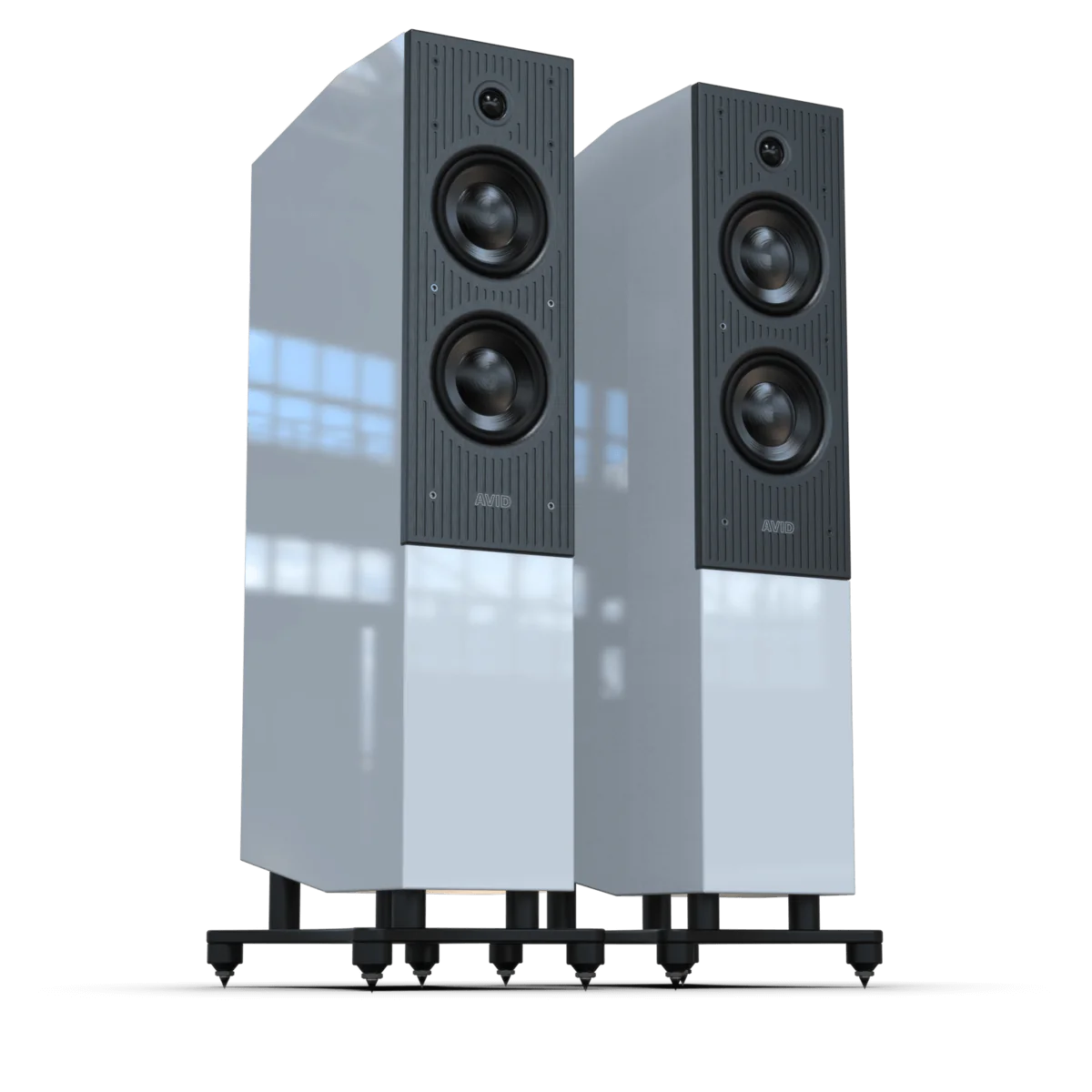

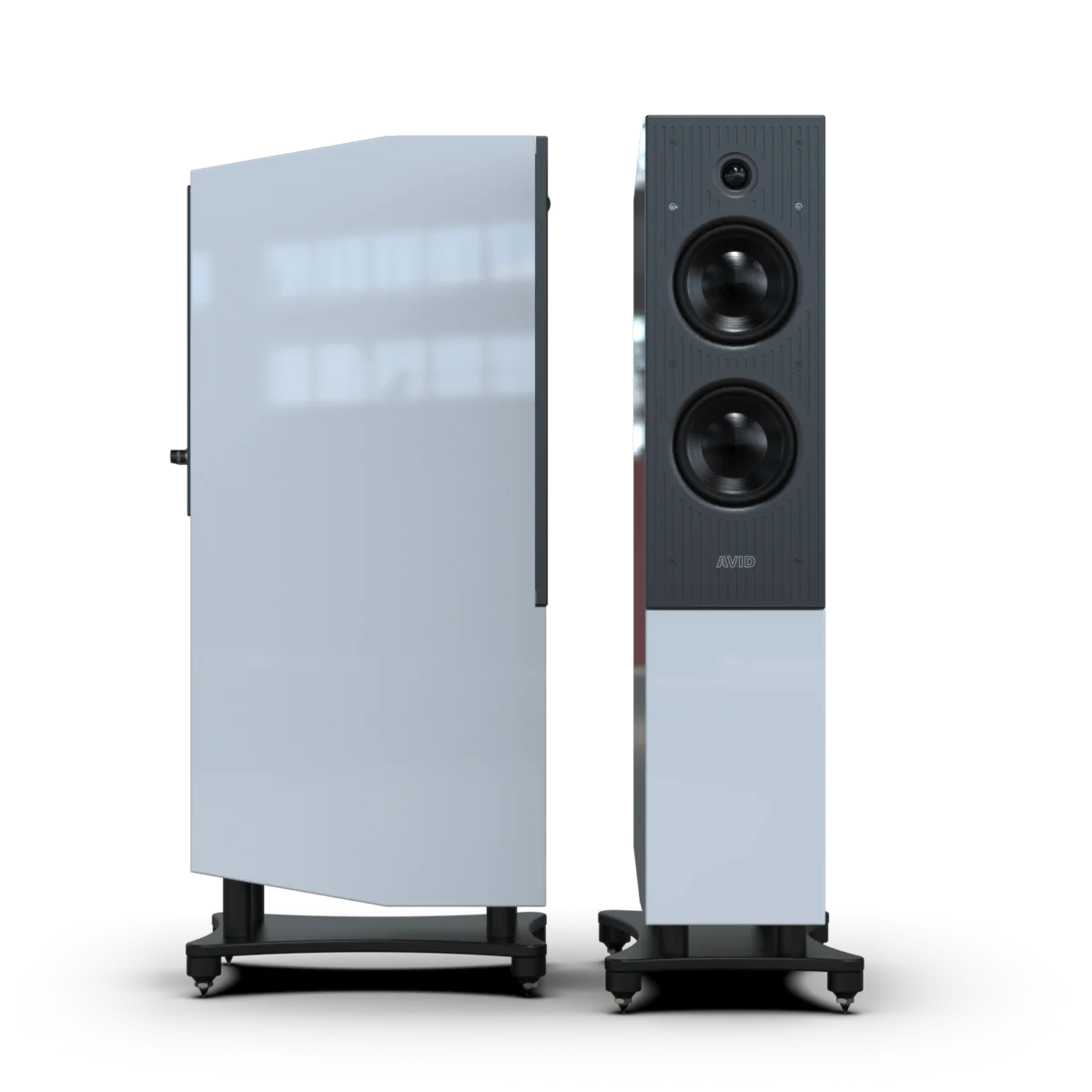

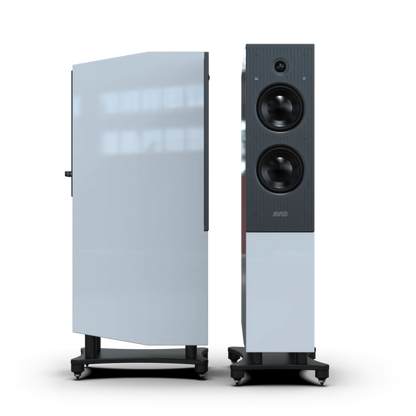

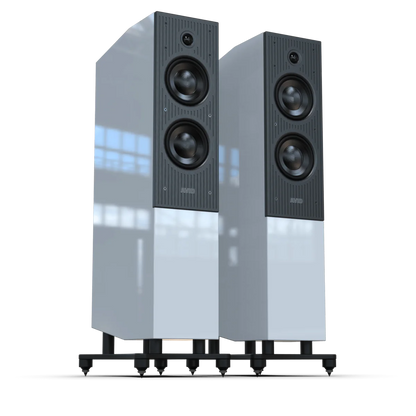

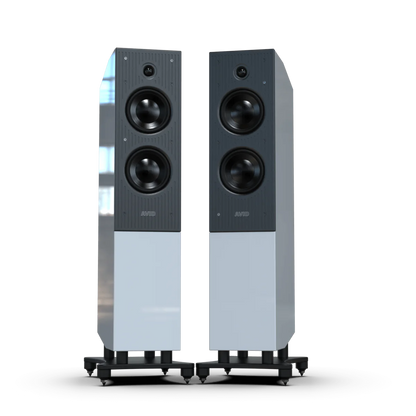

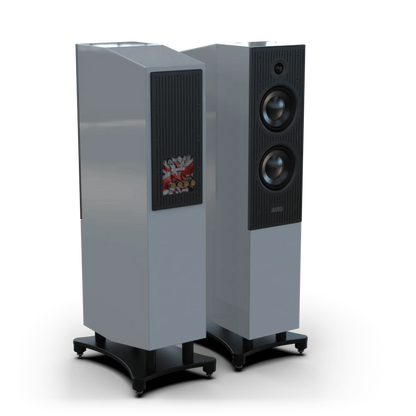

EVO THREE™ Loudspeaker (Pair)
The AVID Evo Three Loudspeaker is a high-performance audio system designed to deliver exceptional clarity and dynamic sound. Featuring Tuned Mass Technology™ and a silk soft dome tweeter, it offers a detailed soundstage and reduced low-frequency distortion for fast, tight bass. Reflex-loaded drive units optimise bass response, while vibration damping techniques ensure musical purity. With a frequency response of 32Hz to 20KHz, this loudspeaker provides a captivating and immersive listening experience, making it ideal for those seeking a realistic and exciting audio performance. (stands not included)
EVO THREE Loudspeaker Brings Realism and Precision to Your Audio Experience
The EVO THREE loudspeaker is an elite audio solution that brings together advanced technology and meticulous craftsmanship, creating an immersive, lifelike listening experience. Incorporating AVID’s acclaimed Reference Series innovations, EVO THREE offers an expansive soundstage, exceptional detail, and a deep, engaging dynamic range. Its sound engineering, which includes Tuned Mass Technology™ (TMT) and optimised low-frequency reflex loading, focuses on delivering clear, impactful sound across all frequencies. Whether you’re revisiting cherished recordings or discovering new music, EVO THREE elevates every note with precision and purity.
Tuned Mass Technology™ Enhances Acoustic Clarity
The EVO THREE loudspeaker is designed with Tuned Mass Technology™ (TMT), a sophisticated damping system that removes unwanted vibrations at the source, preserving only the desired, harmonious vibrations. This method uses a carefully tuned mass that is loosely coupled to each driver, creating an efficient path for residual energy to exit through the TMT damper. This approach mitigates distortion before it reaches the cabinet, ensuring an uncoloured, clean sound output.
Through TMT, EVO THREE produces a crystal-clear, focused sound with enhanced vocal definition and instrument separation, which immerses listeners in a vividly transparent soundstage. Unlike conventional speakers, where cabinet resonance can muddy the sound, the TMT system guarantees refined audio reproduction with captivating depth and clarity.
Precision Cabinet Construction for Enhanced Sound Integrity
EVO THREE’s cabinet construction is designed to complement its advanced acoustic performance. The cabinet features an aluminium front baffle that is meticulously machined to ensure accurate driver positioning, which is essential for maintaining sonic coherence. This 20mm aluminium front plate, paired with a custom metal compression mounting system, provides superior rigidity, reducing the risk of unwanted vibration. The rear baffle, also made of aluminium, further reinforces the cabinet’s stiffness and supports the crossover network.
Crafted from moisture-resistant MDF with precise CNC machining, the cabinet includes strategic internal bracing to control air pressure and prevent resonance. A downward-firing reflex port, positioned below the cabinet, optimises bass response and eliminates the need for precise room positioning. This unique bass port design ensures EVO THREE’s adaptability to a wide variety of room sizes, allowing it to perform remarkably well in both small and large spaces.
Acuflex™ Tweeter and Damped Polymer Composite Bass Drivers
At the heart of EVO THREE’s sound quality are its precision-engineered drivers, designed to deliver detailed highs and resonant, powerful bass. The 28mm soft dome Acuflex™ tweeter uses a proprietary damping material that cancels breakup modes by flexing in a way that neutralises vibrations. This creates a pure, balanced high-frequency response, capturing the delicate nuances of vocals and high-range instruments without harshness.
The 160mm bass drivers feature Damped Polymer Composite (DPC) cones that are stabilised by the Tuned Mass Technology™ damper, eliminating distortion from the start. Housed within an aerodynamically designed Uniflow™ basket, these drivers work seamlessly with the aluminium voice coils and an innovative External Voice Coil (EVC)™ configuration, effectively directing all magnetic energy to the voice coil and enhancing heat dissipation. These drivers are capable of delivering fast, tight bass, providing the kind of dynamic scale and low-end accuracy that makes music truly come alive.
Crossover Engineering for Impeccable Sound Precision
The crossover network in EVO THREE functions as the loudspeaker's 'brain,' directing the appropriate frequencies to each driver for optimal sound reproduction. This 2.5-way, 2nd-order crossover design is built with high-quality ClarityCap™ capacitors, which utilise CopperConnect™ technology to reduce signal path resistance and improve overall clarity. Air Core inductors, wound with thick enamelled wire, ensure exceptional bass control and minimise DC resistance, contributing to EVO THREE’s impressive low-end accuracy and precision.
Each component in the crossover has been meticulously selected based on a combination of computer simulations and rigorous listening tests, achieving an optimal balance that enhances both the speaker’s tonal accuracy and dynamic range.
Stunning Design and Versatile Room Placement
The EVO THREE loudspeaker is crafted with aesthetic sophistication and functional elegance. Available in a sleek black or white gloss cabinet finish, with brushed anodised front and rear baffles, EVO THREE seamlessly integrates into modern audio setups. Its downward-firing reflex port allows the speaker to deliver deep, resonant bass without the usual room placement challenges, enabling it to perform exceptionally well across varied room configurations.
At 1003mm in height and weighing 33kg, EVO THREE is a statement piece that combines imposing physical presence with finely-tuned audio performance. This loudspeaker’s balanced design not only contributes to its captivating sound quality but also offers durability and style that will elevate any listening environment.
