Extended Low-Frequency Scale & Uncompromising Resonance Control | Available at Trimira Audio

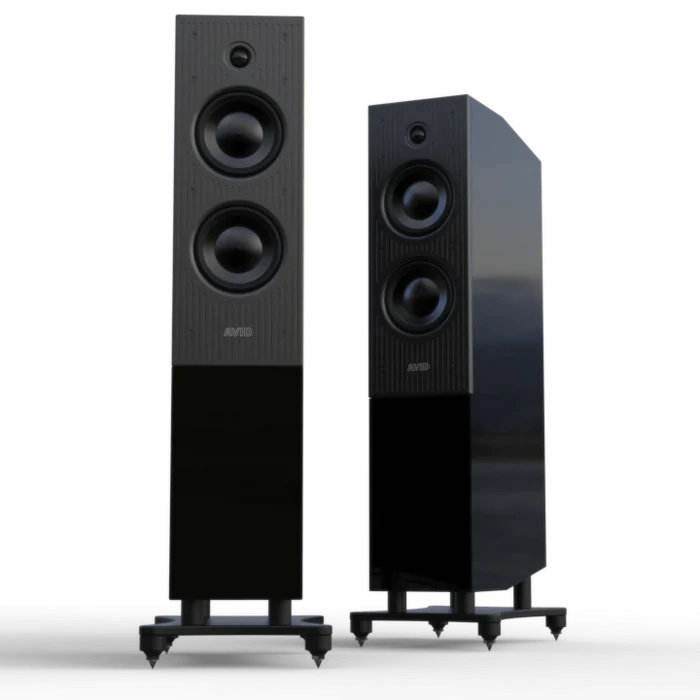

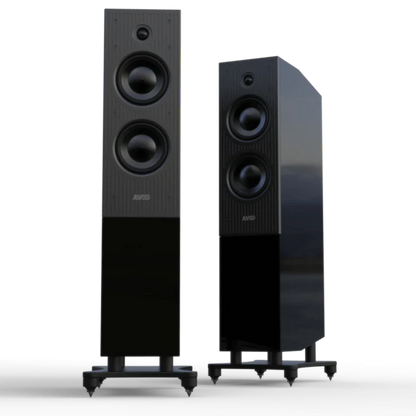

The AVID EVO THREE™ Black Cabinet Loudspeakers bring AVID HiFi’s advanced loudspeaker engineering into a full-range floorstanding design, delivering increased scale, dynamic authority, and extended low-frequency performance for demanding two-channel systems.

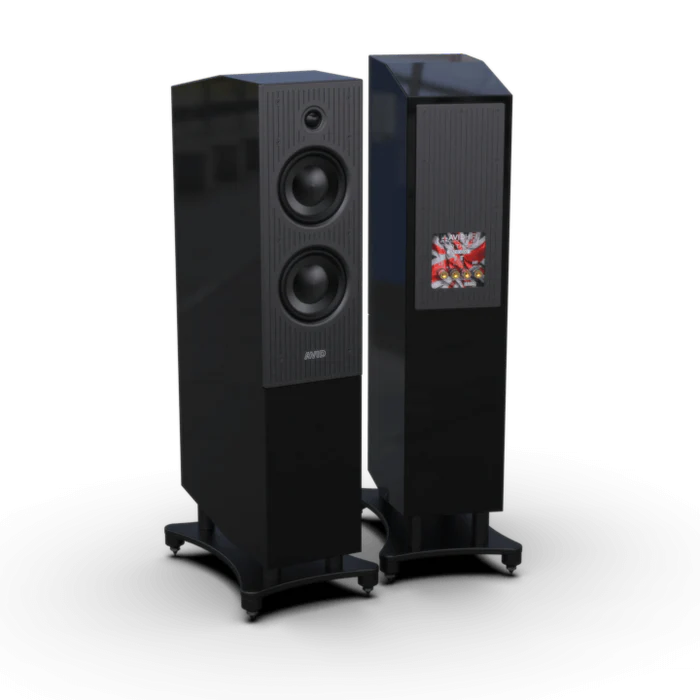

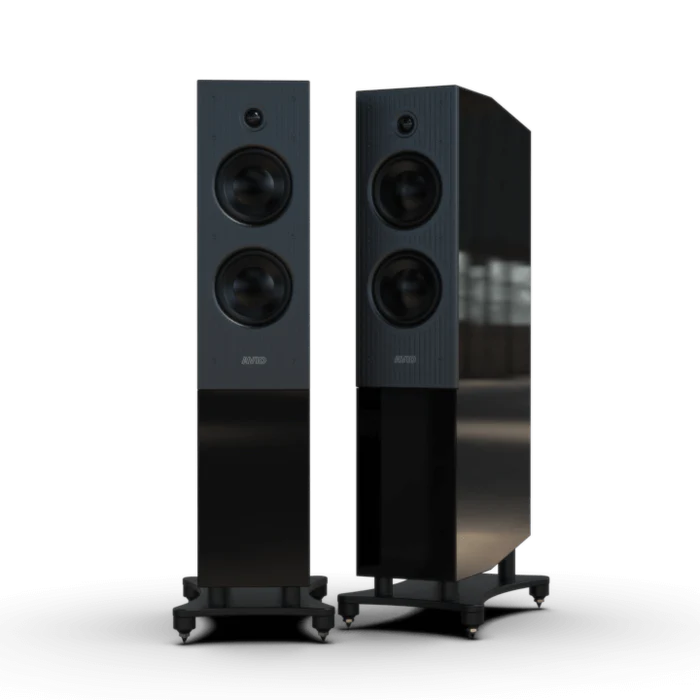

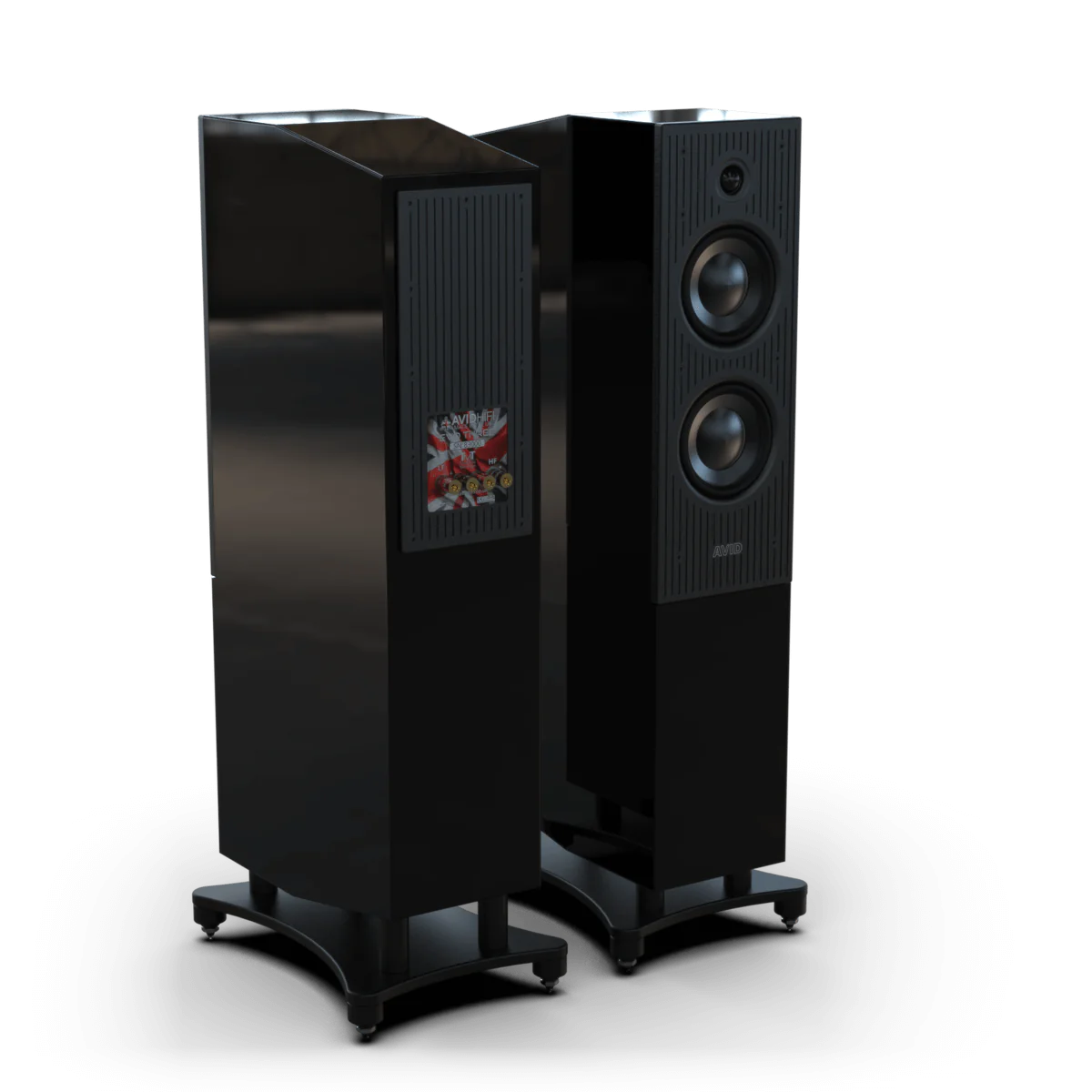

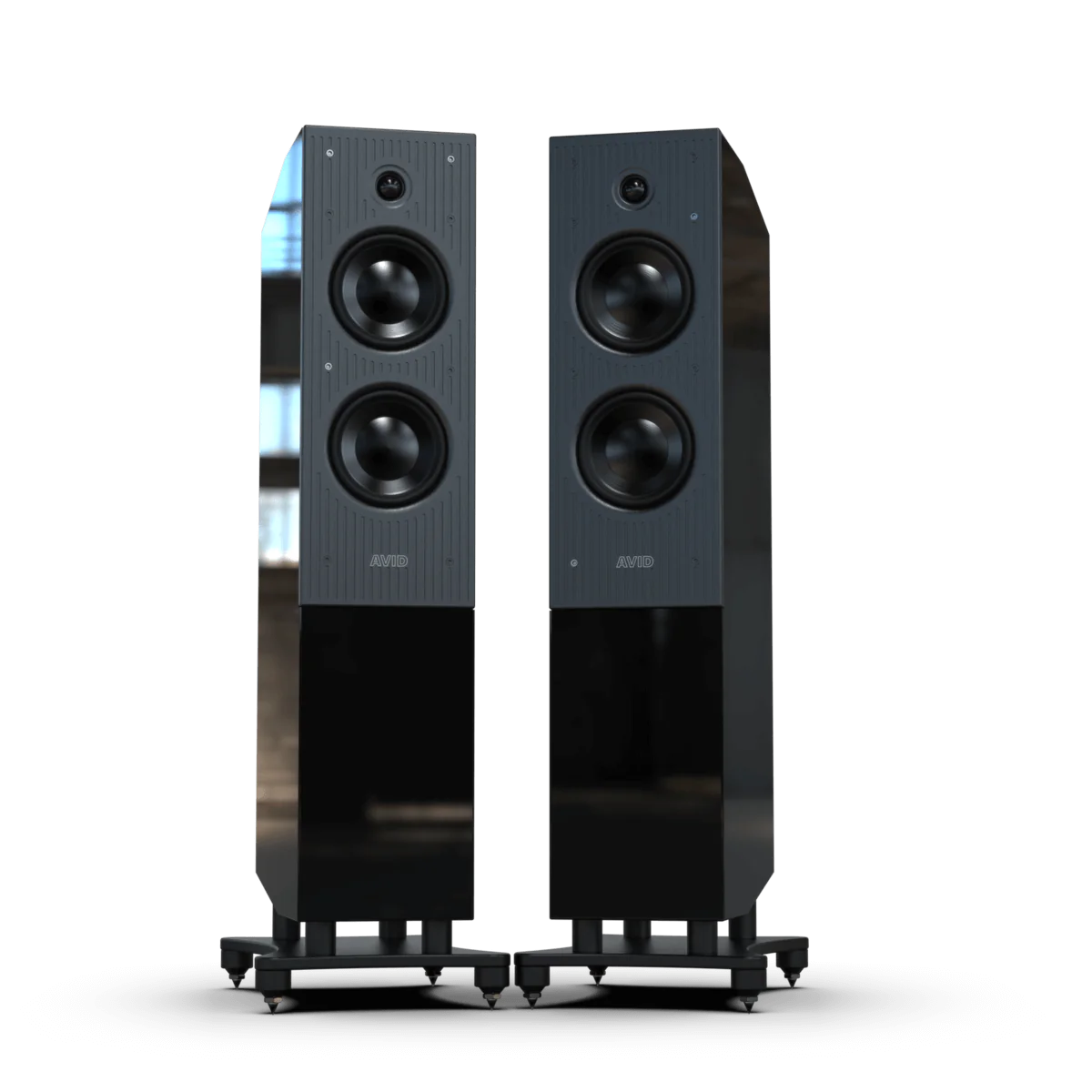

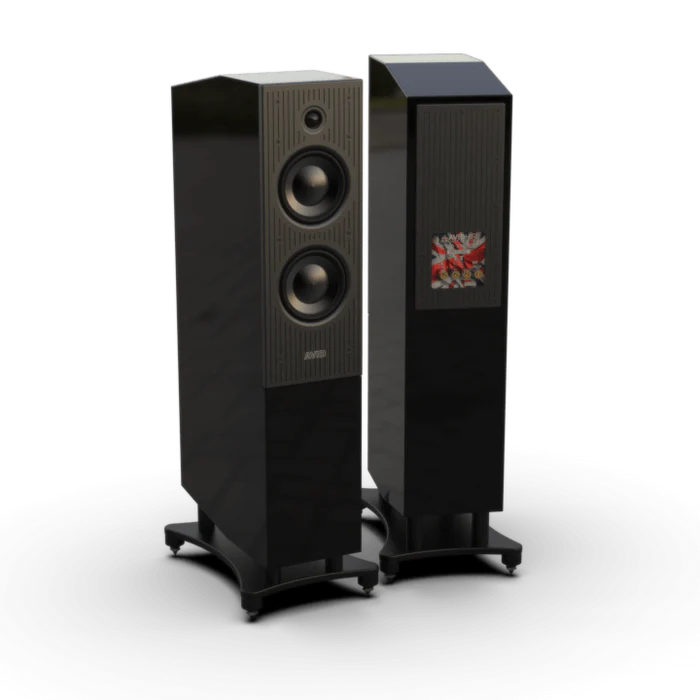

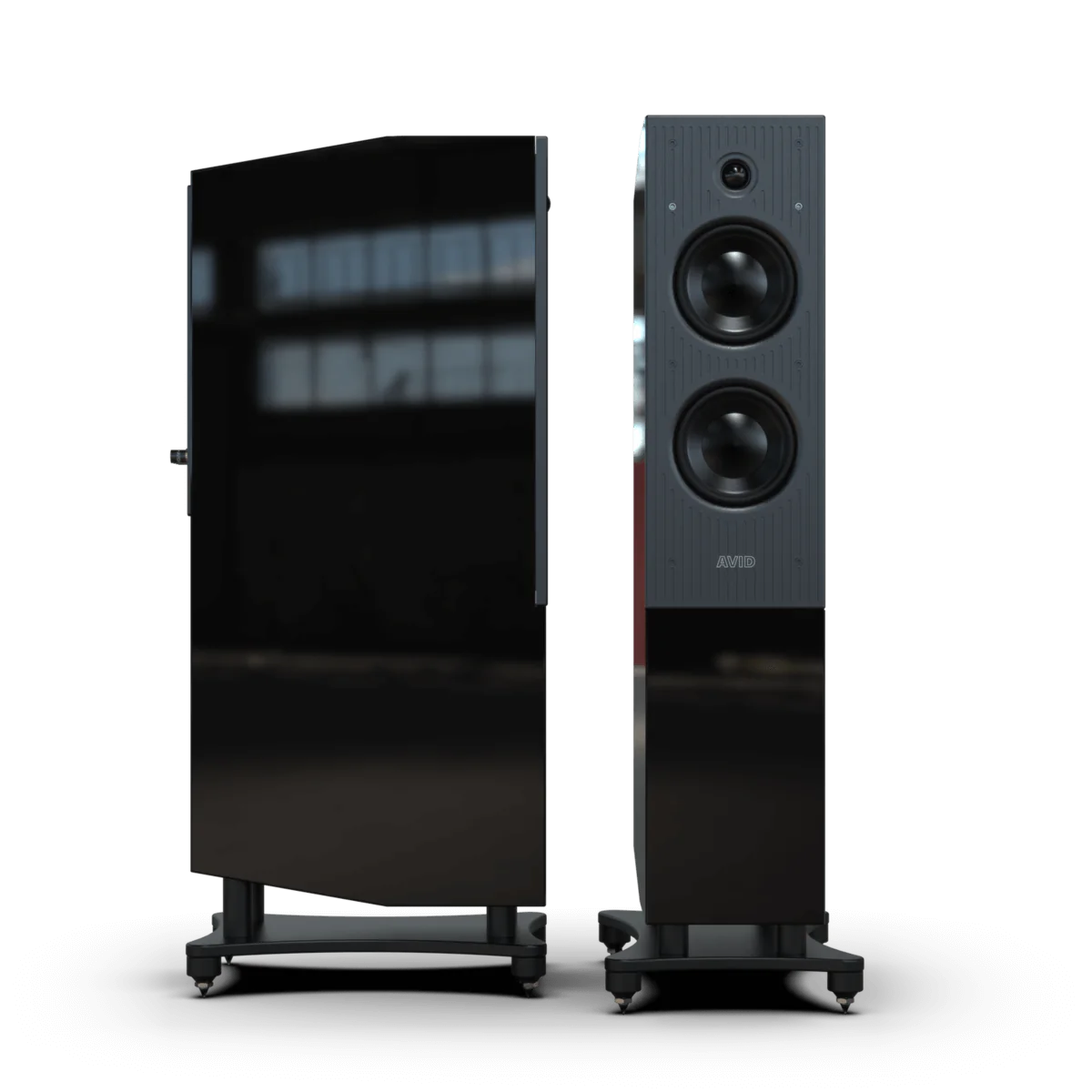

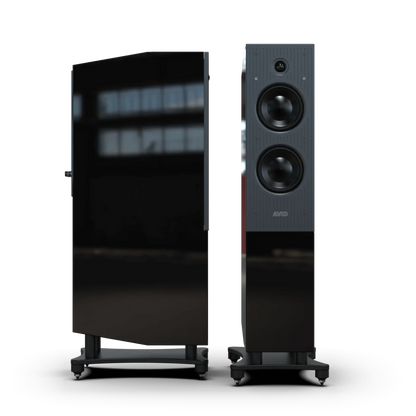

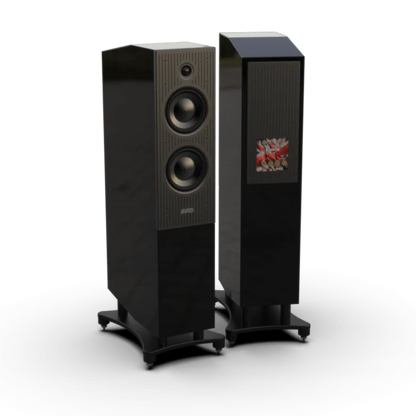

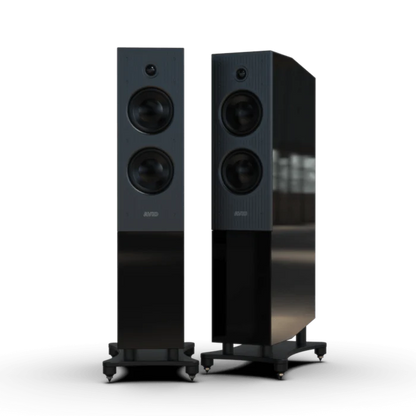

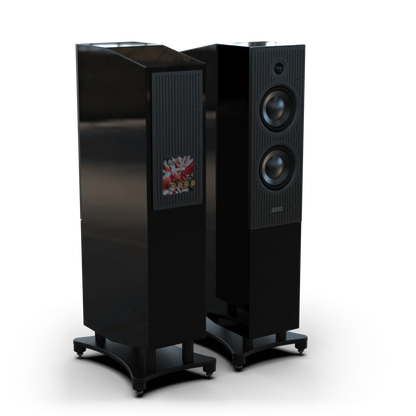

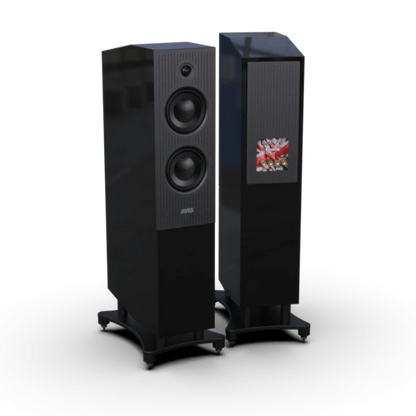

Finished in a high-gloss Black cabinet with precision-machined brushed anodised aluminium front and rear baffles, the EVO THREE™ combines refined aesthetics with a rigid acoustic platform designed to minimise unwanted resonance.
Featuring AVID’s proprietary Tuned Mass Technology™ (TMT™), a 28 mm Acuflex™ soft dome tweeter, and dual 160 mm damped polymer composite bass/mid drivers, the EVO THREE™ delivers expansive imaging, controlled bass response, and excellent musical clarity.
Key Features & Technological Innovations
-
Tuned Mass Technology™ (TMT™): Internal damping system absorbs and dissipates vibration energy to reduce cabinet coloration and improve acoustic purity.
-
Hybrid Structural Architecture: Precision-crafted MRMDF cabinet construction combined with 20 mm aluminium front and rear baffles provides increased rigidity and resonance control.
-
Acuflex™ Hand-Coated Soft Dome Tweeter: 28 mm tweeter design with Acuflex™ damping technology delivers smooth, detailed high-frequency reproduction.
-
Dual 160 mm Bass/Mid Drivers: Twin polymer composite cone drivers with 75 mm titanium voice coil formers provide fast transient response and controlled low-frequency output.
-
Downward-Firing Reflex Loading: Bottom-firing bass port design helps optimise room interaction and placement flexibility.
-
Audiophile Crossover Network: 2.5-way second-order crossover featuring premium components and low-resistance air-core inductors.
Technical Specifications
| Specification Metric |
AVID EVO THREE™ Specification |
| System Format |
2.5-Way Vented Reflex Floorstanding Loudspeaker (Pair) |
| High Frequency Driver |
1 × ø28mm (1.1 in) Acuflex™ Hand-Coated Soft Dome |
| Mid / Bass Drivers |
2 × ø160mm (6.3 in) Damped Polymer Composite Cones (75mm Titanium Voice Coil Formers) |
| Frequency Response (±3dB) |
32 Hz – 20,000 Hz |
| Sensitivity |
87 dB @ 2.83V / 1 meter |
| Nominal Impedance |
4 Ohms |
| Recommended Amplifier Power |
40W – 200W |
| Crossover Topology |
2.5-Way, 2nd Order |
| Cabinet Construction |
MRMDF Hand-Crafted Cabinet with 20mm Aluminium Front & Rear Baffles |
| Dimensions (H × W × D) |
1,003 mm × 290 mm × 449 mm |
| Net Weight |
33.0 kg (72.8 lbs) per speaker |
| Finish |
High-Gloss Black |
Consult with the High-End Audio Specialists at Trimira Audio
Experience the scale, control, and transparency of AVID EVO THREE™ floorstanding loudspeakers. Contact the two-channel specialists at Trimira Audio in Brisbane to discuss amplifier matching, room integration, or to arrange a private listening demonstration.
