Massive Physical Scale & Uncompromising Resonance Control | Available at Trimira Audio

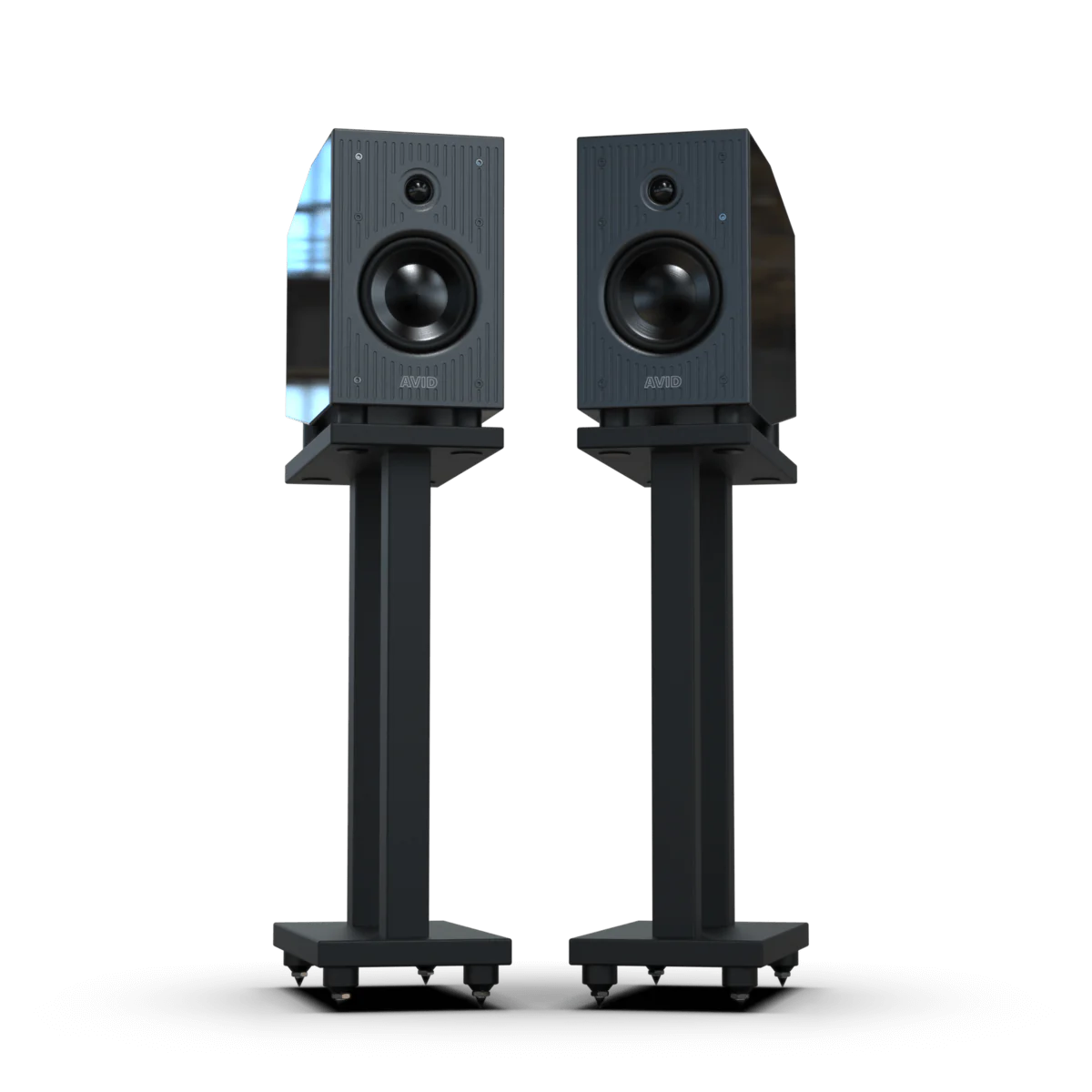

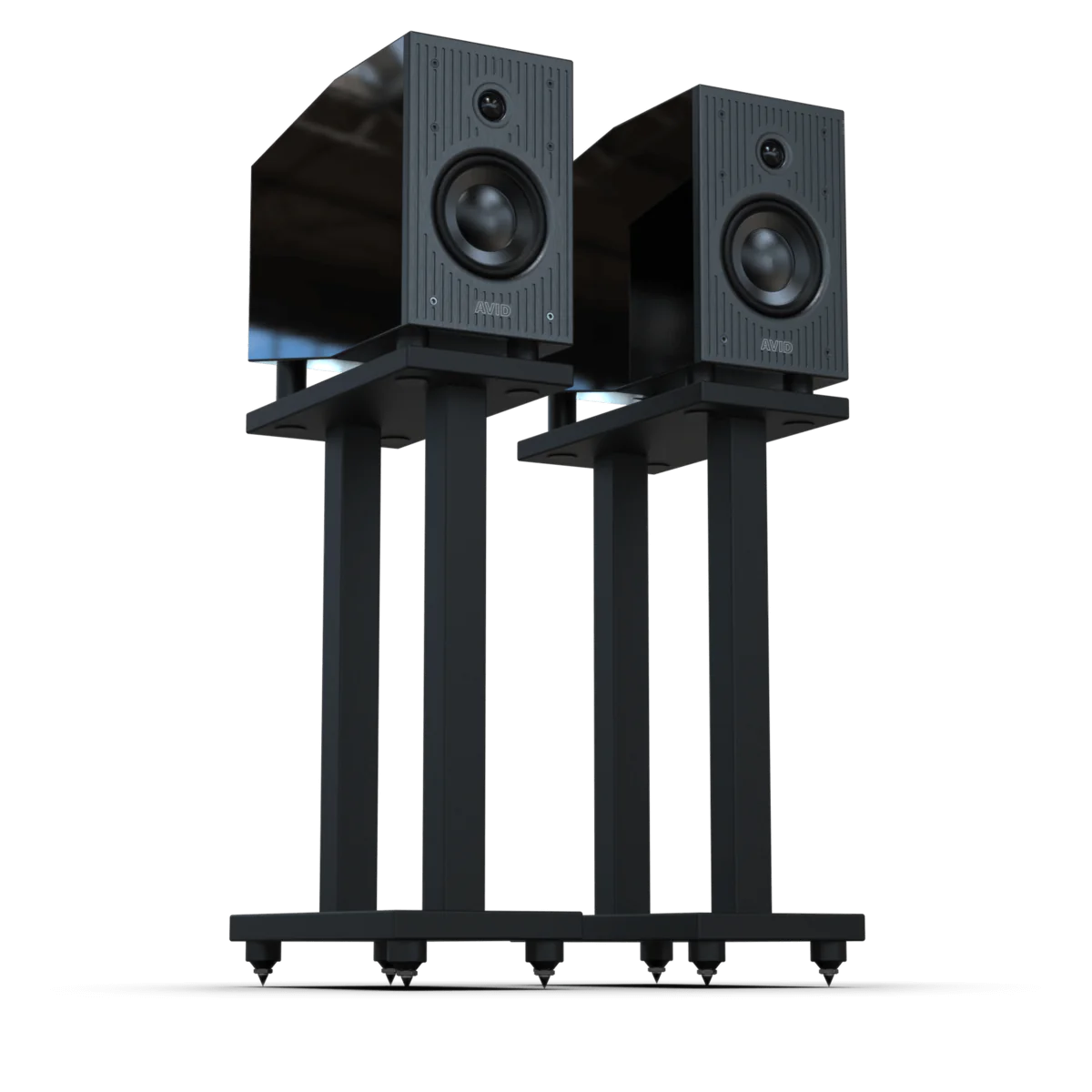

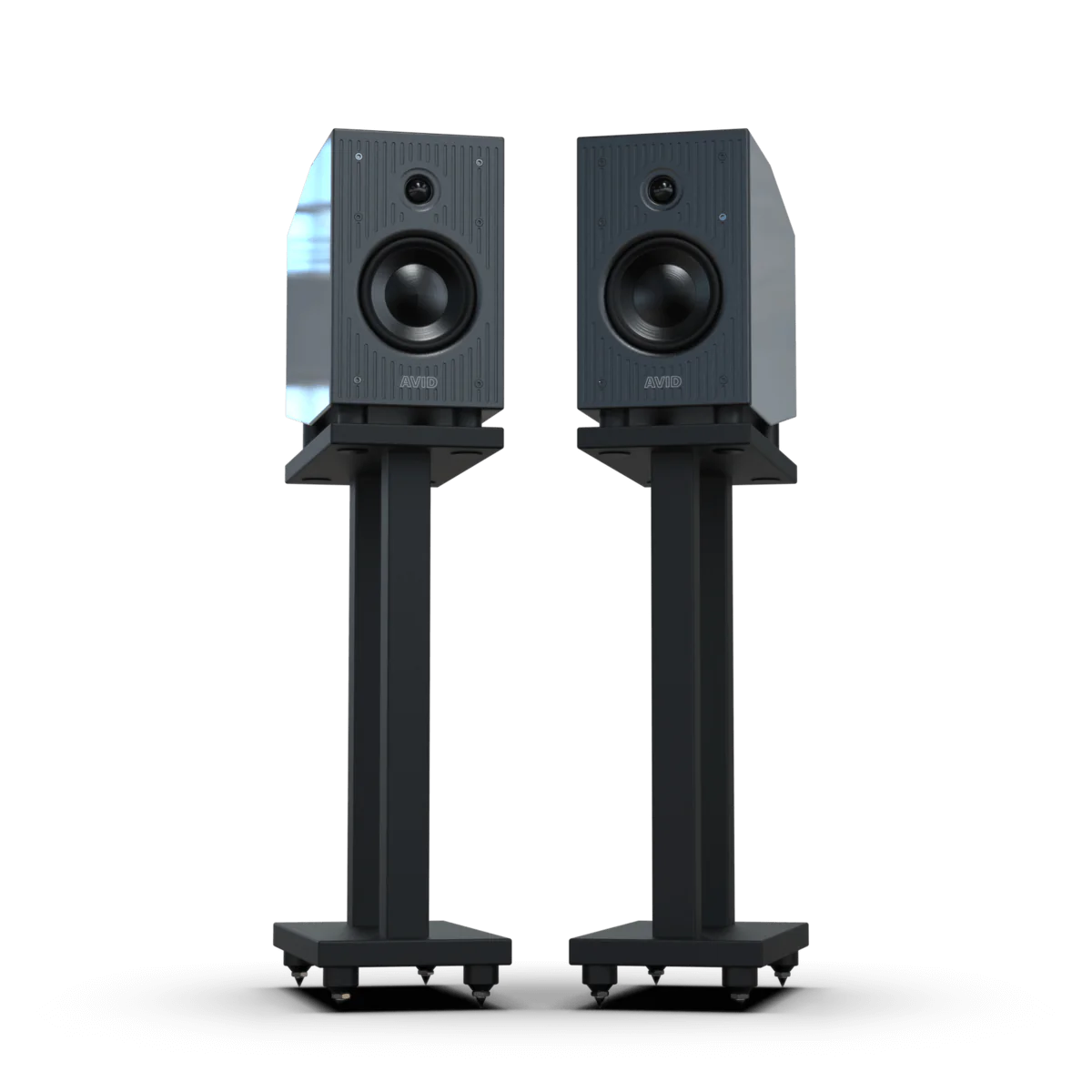

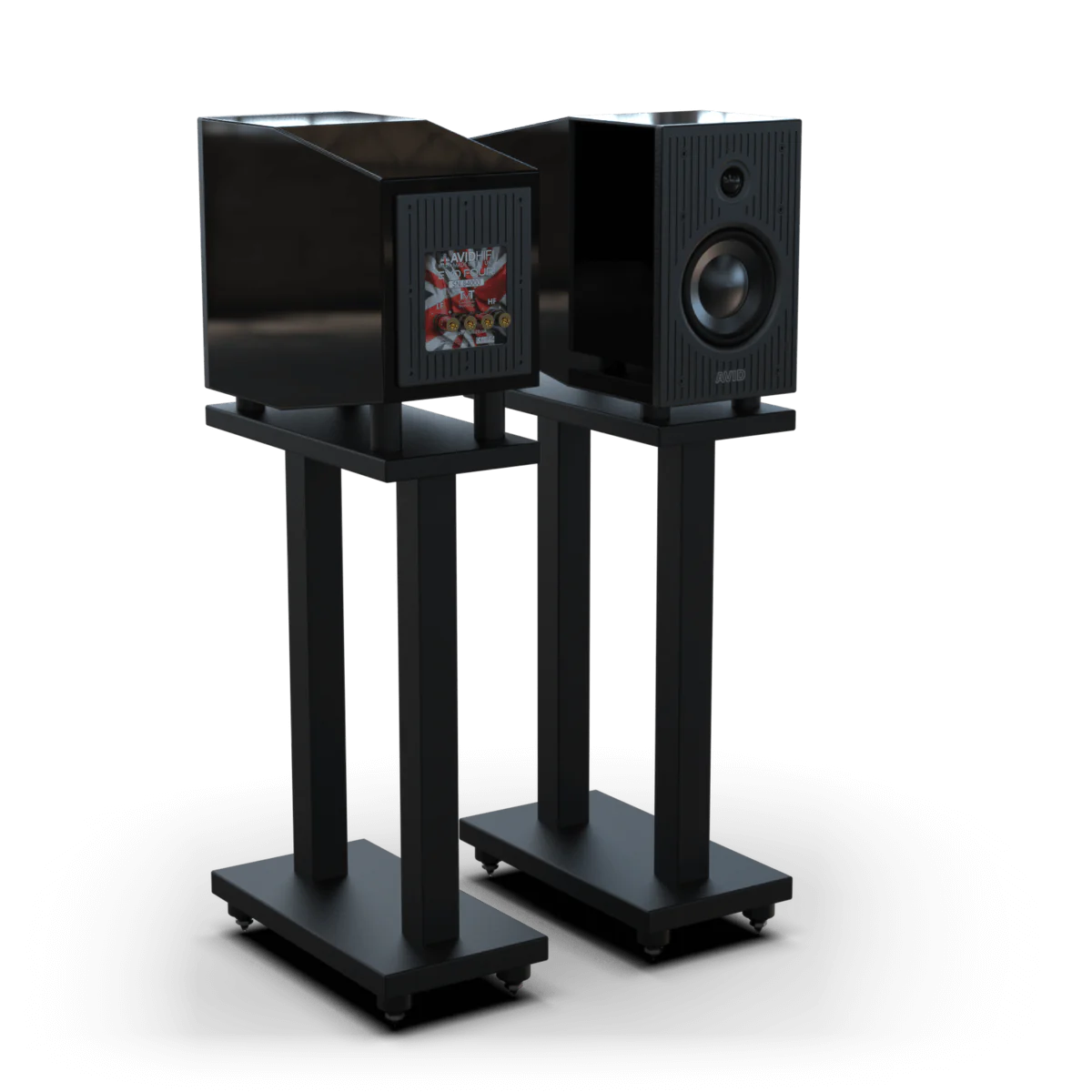

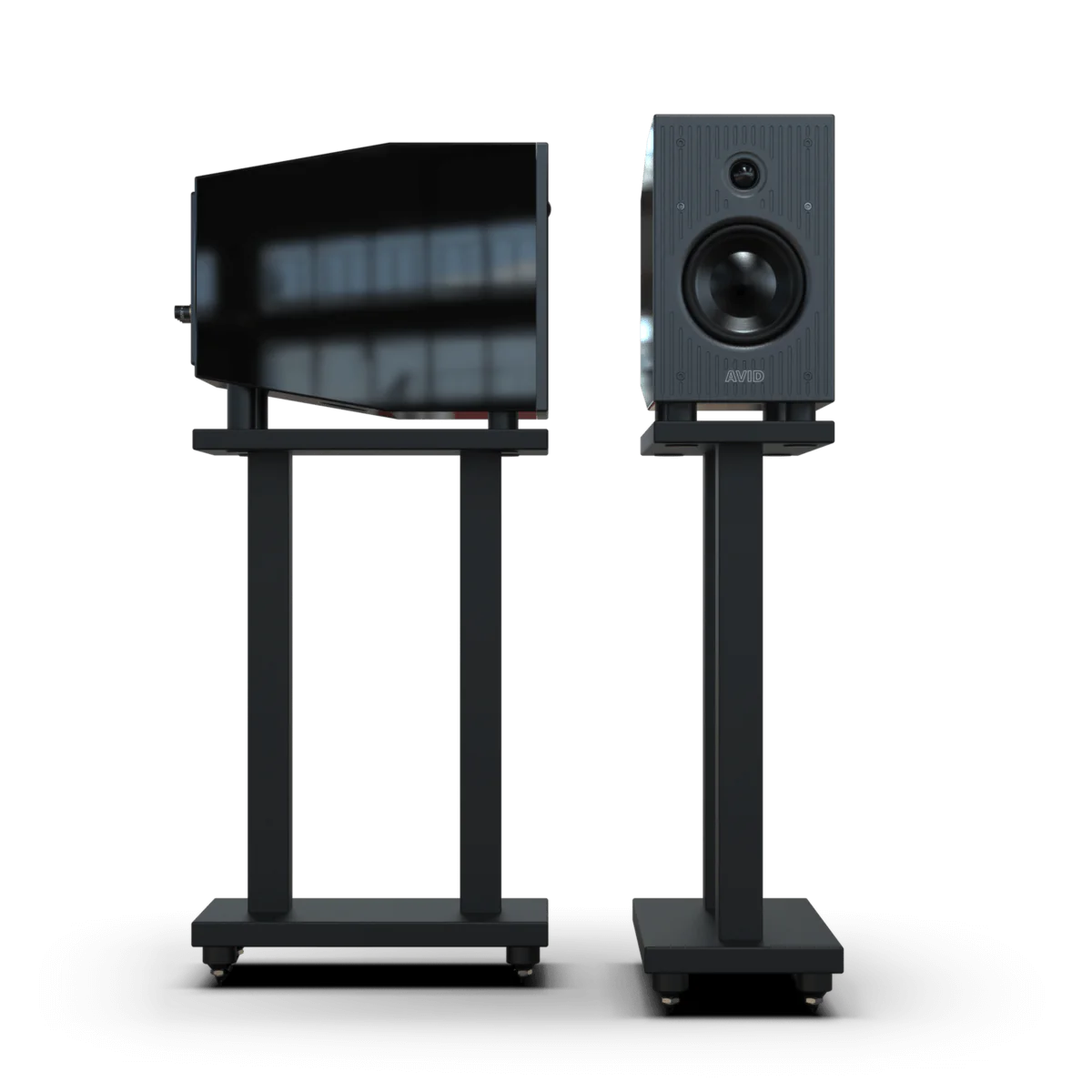

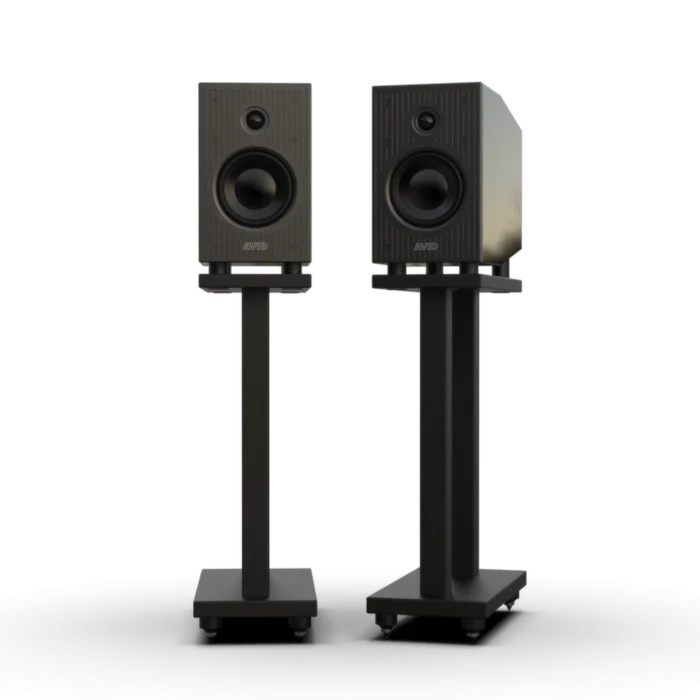

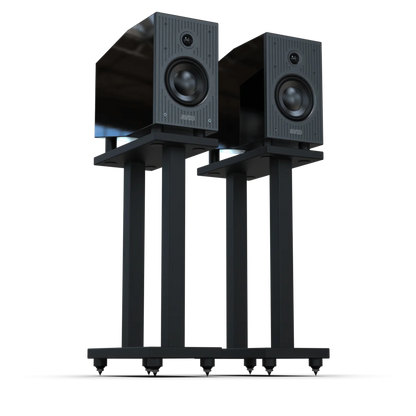

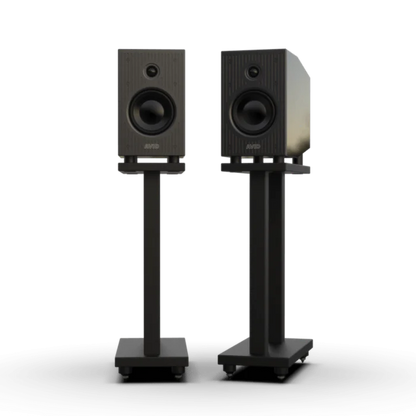

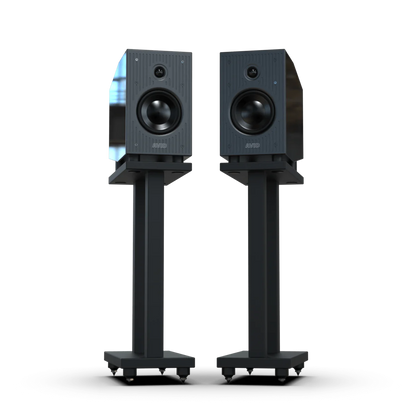

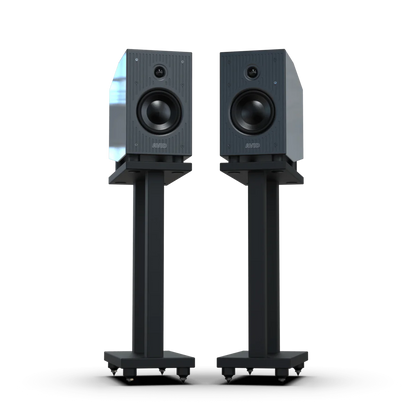

The AVID EVO FOUR™ Black Cabinet Loudspeakers bring AVID HiFi’s precision engineering approach to a high-performance standmount design, combining advanced cabinet control, carefully developed driver technology, and refined crossover engineering.

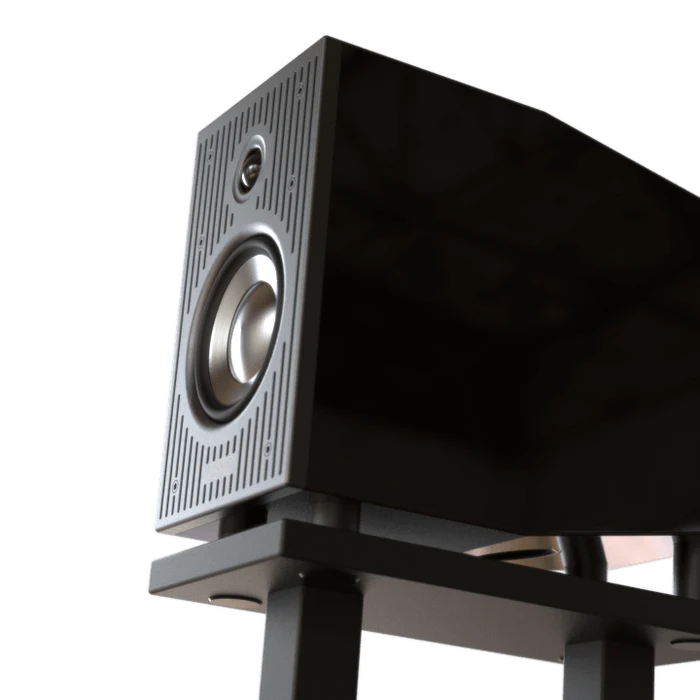

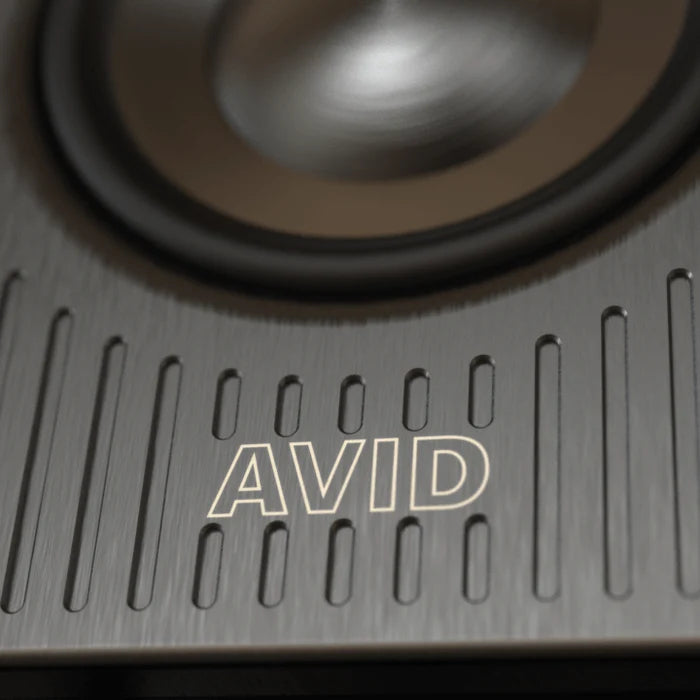

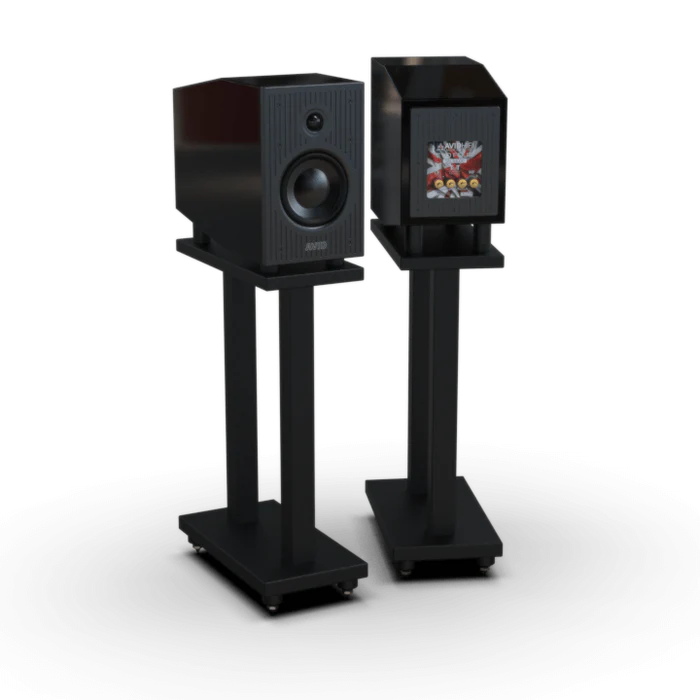

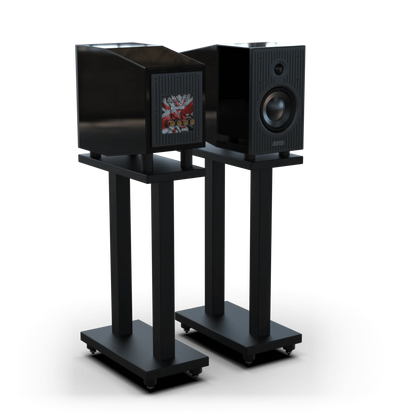

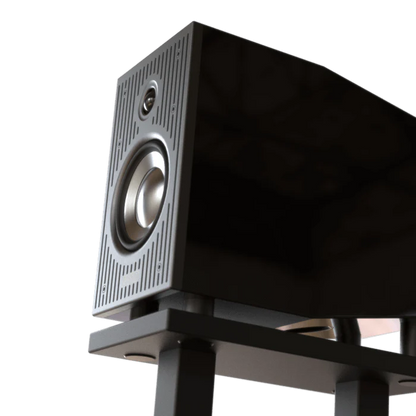

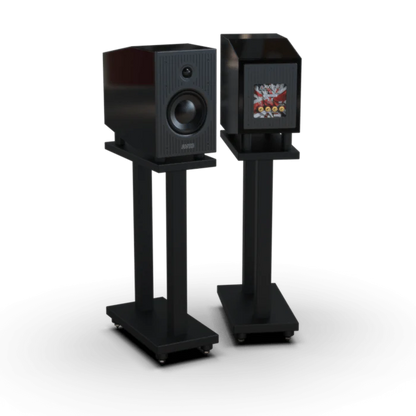

Finished in a deep Black high-gloss cabinet, the EVO FOUR™ features a moisture-resistant MDF enclosure with precision-machined 20 mm anodised aluminium front and rear baffles, creating a rigid acoustic platform designed to minimise unwanted resonance.
At the centre of the EVO FOUR™ design is AVID’s Tuned Mass Technology™ (TMT™), a cabinet damping approach designed to absorb and dissipate mechanical energy before it colours the musical signal. Combined with a 28 mm Acuflex™ soft dome tweeter and 160 mm polymer composite mid-bass driver, the EVO FOUR™ delivers excellent clarity, controlled bass response, and expansive imaging.
Key Features & Technological Innovations
-
Tuned Mass Technology™ (TMT™): Internal damping system reduces cabinet vibration and helps prevent unwanted panel coloration.
-
Hybrid Cabinet Architecture: Features an 18 mm moisture-resistant MDF cabinet structure with rigid 20 mm aluminium front and rear baffles for improved structural stability.
-
Acuflex™ Hand-Coated Tweeter: 28 mm soft dome tweeter with Acuflex™ damping compound and Hexatech voice coil technology for clean, detailed high frequencies.
-

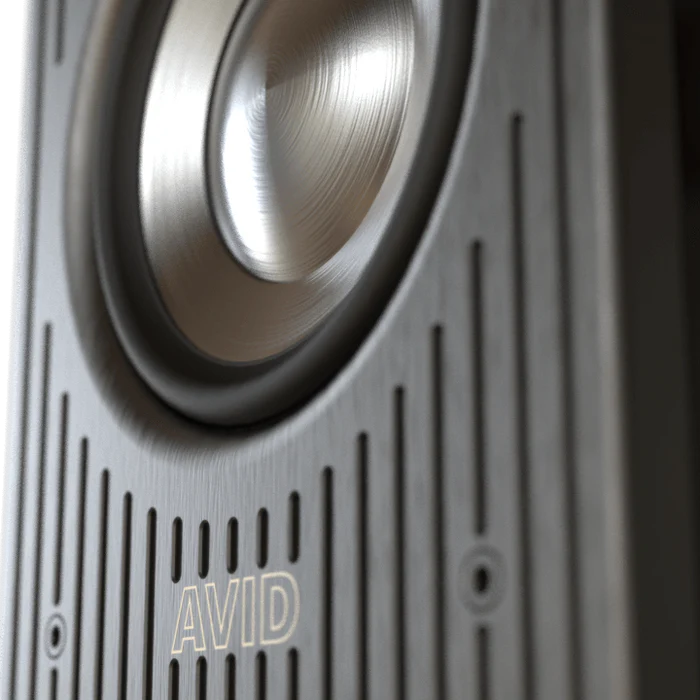

High-Power Mid-Bass Driver: 160 mm polymer composite cone driver with a 75 mm voice coil former provides accurate transient response and controlled bass performance.
-
Downward-Firing Reflex Loading: Bottom-firing port design with diffuser plate helps optimise bass response and reduce placement sensitivity.
-

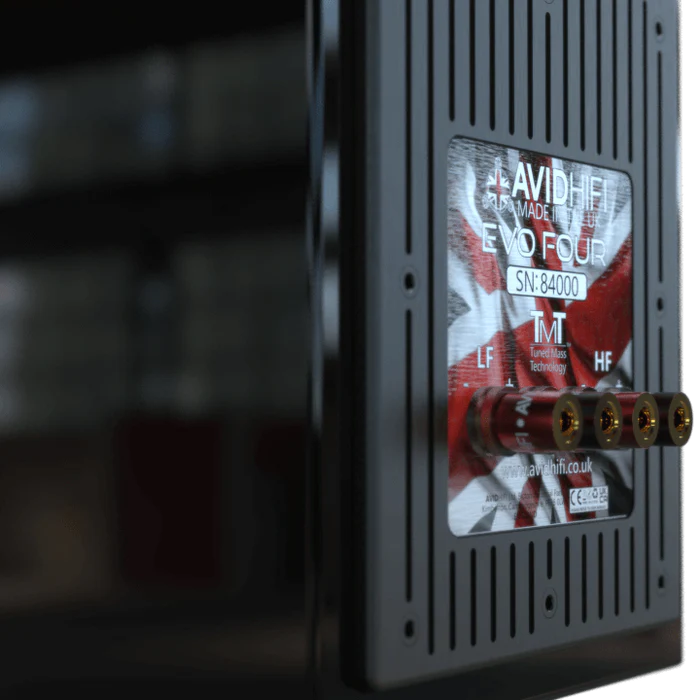

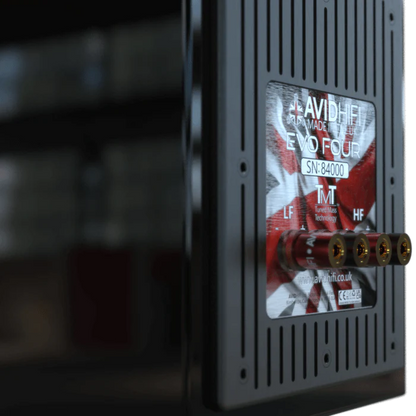

Audiophile Crossover Network: Hand-wired second-order crossover featuring premium components and custom bi-wire binding posts.
Technical Specifications
| Specification Metric |
AVID EVO FOUR™ Specification |
| System Architecture |
2-Way Vented Reflex Standmount Loudspeaker (Pair) |
| High Frequency Driver |
1 × ø28mm (1.1 in) Acuflex™ Hand-Coated Soft Dome |
| Mid / Bass Driver |
1 × ø160mm (6.3 in) Damped Polymer Composite Cone (75mm Voice Coil) |
| Frequency Response (±3dB) |
43 Hz – 20,000 Hz |
| Sensitivity |
87 dB @ 2.83V / 1 meter |
| Nominal Impedance |
8 Ohms |
| Recommended Amplifier Power |
30W – 150W |
| Crossover Topology |
2-Way, 2nd Order |
| Cabinet Materials |
18mm MRMDF Cabinet with 20mm Aluminium Front & Rear Baffles |
| Dimensions (H × W × D) |
363 mm × 200 mm × 449 mm |
| Net Weight |
15.0 kg (33.0 lbs) per speaker |
| Finish |
High-Gloss Black |
Consult with the High-End Audio Specialists at Trimira Audio
Experience the dynamic scale and precision of AVID EVO FOUR™ loudspeakers. Contact the two-channel specialists at Trimira Audio in Brisbane to discuss amplifier matching, speaker stand selection, system integration, or to arrange a private listening demonstration.
